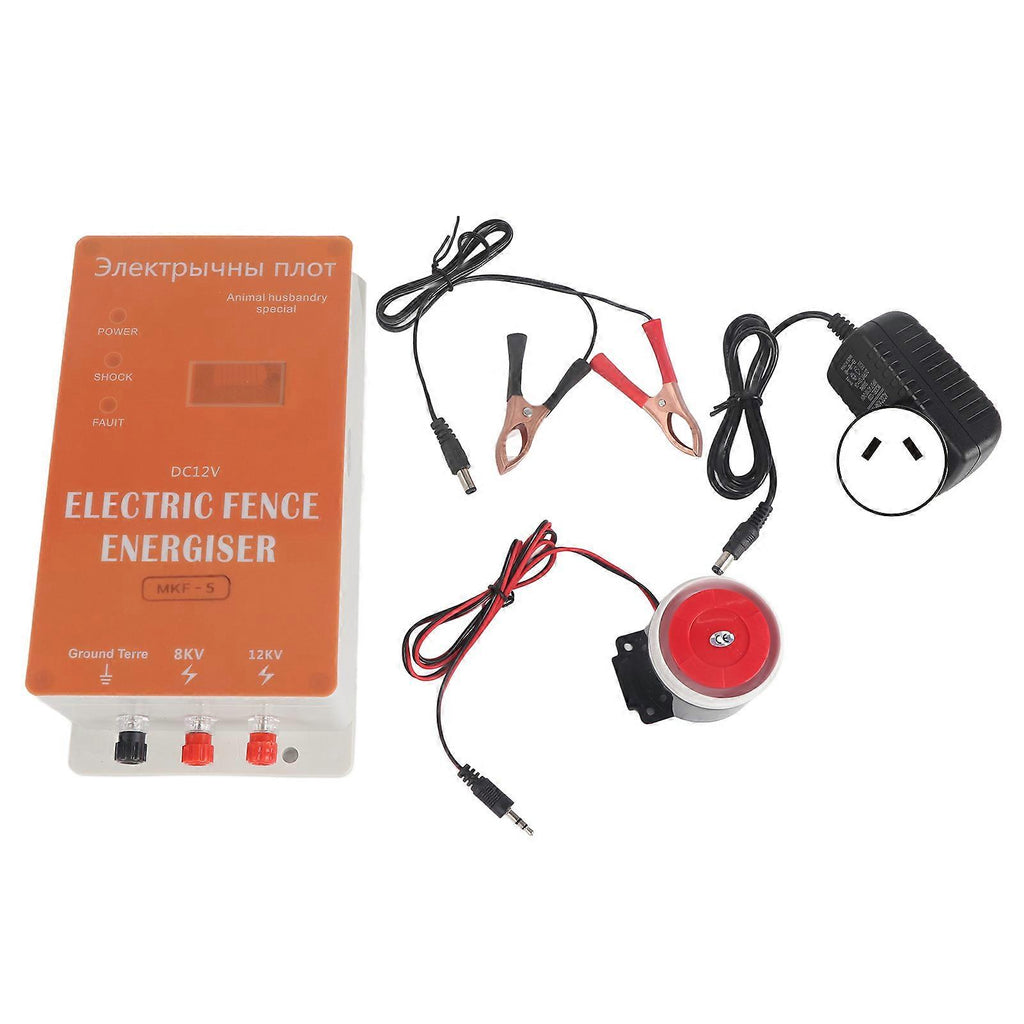

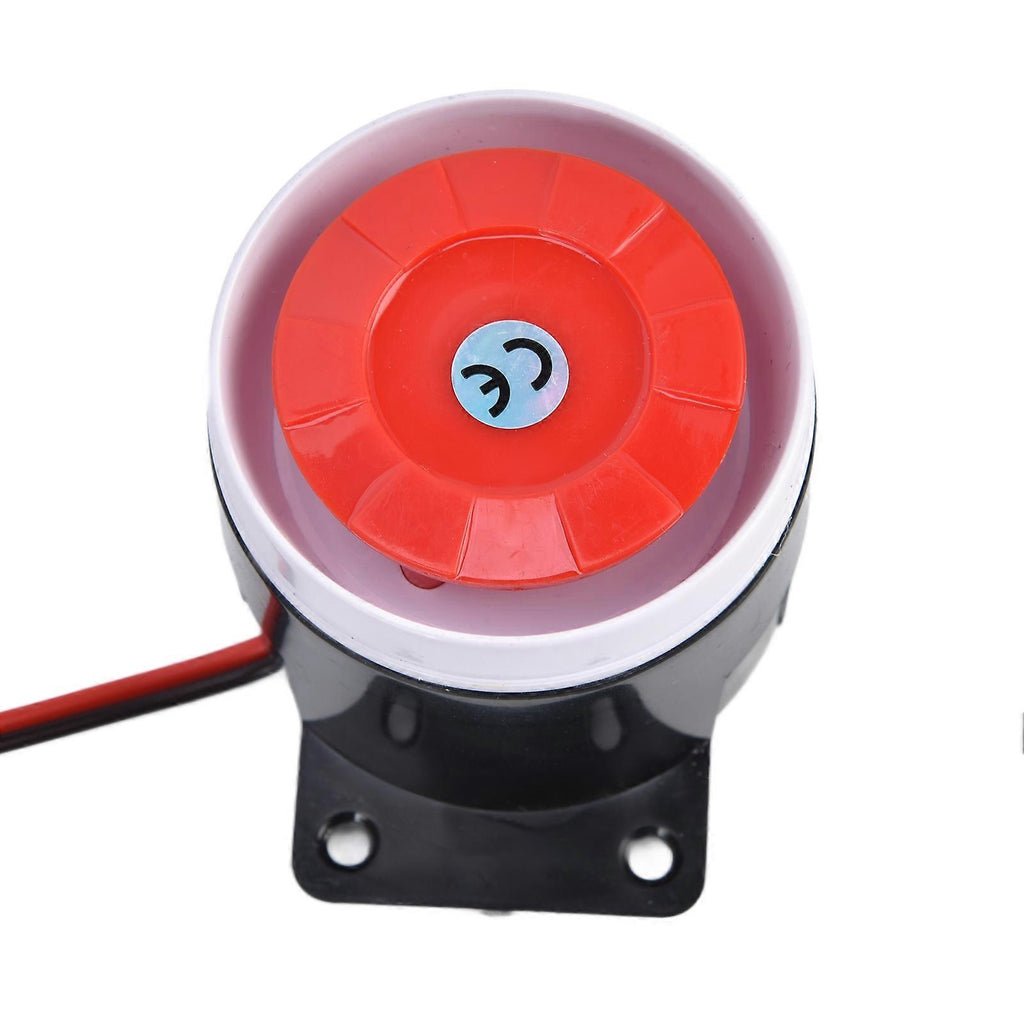

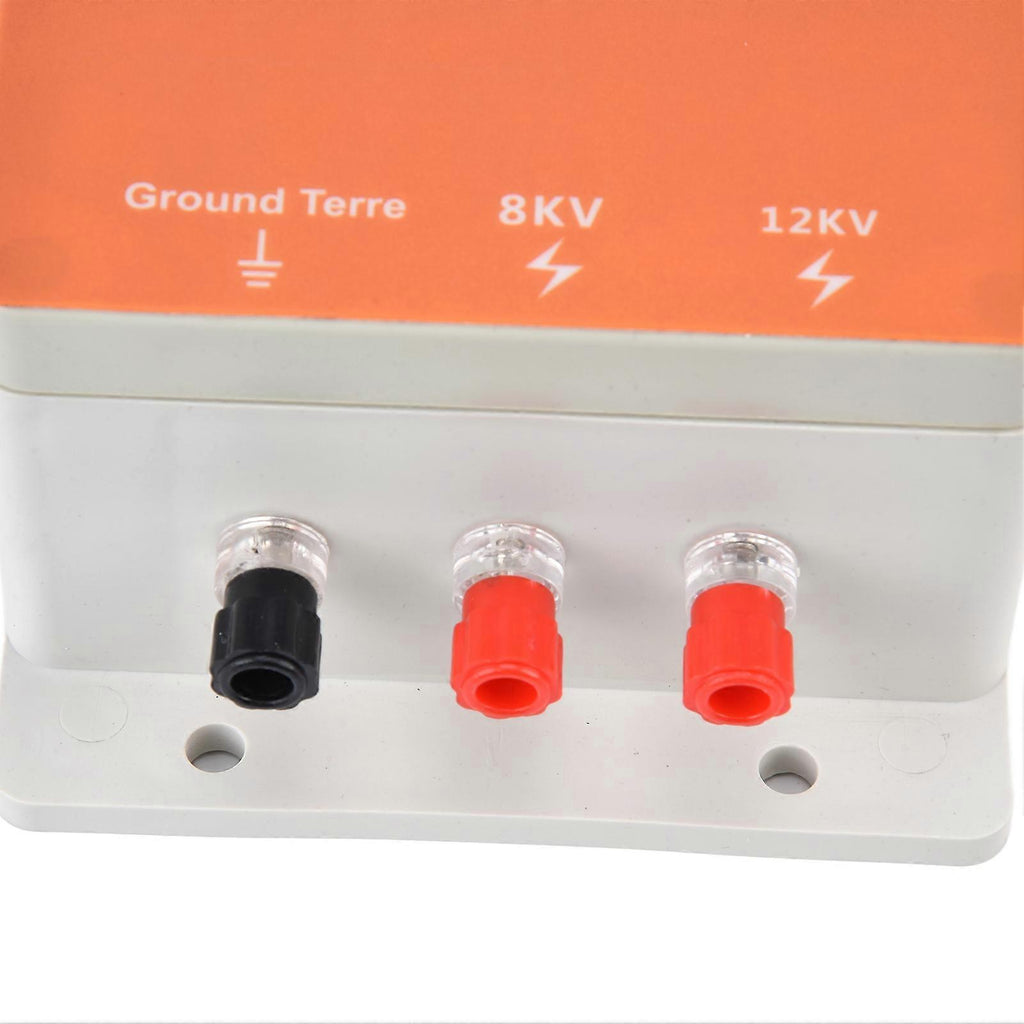

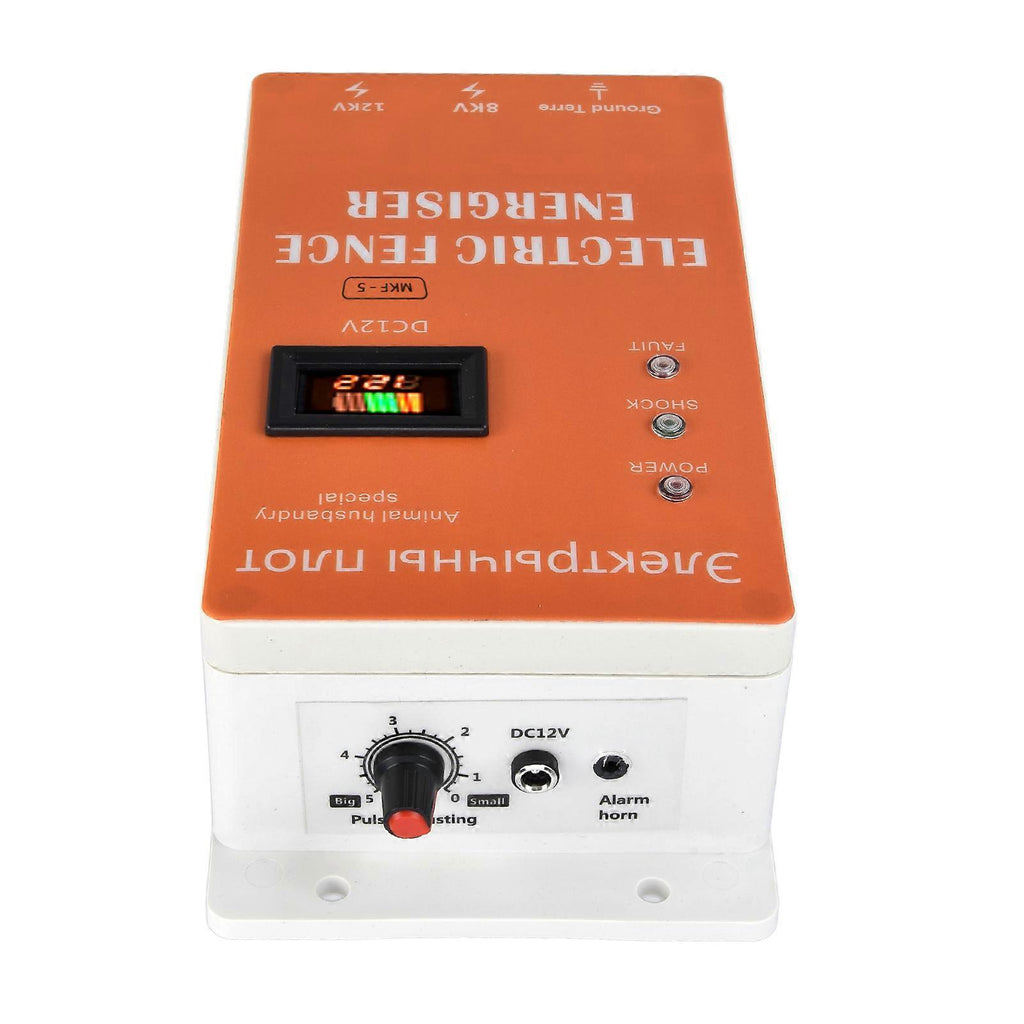

Features 1ALARM FUNCTION: The animal pulse electronic fence host has an alarm function. When the fence fails a siren will sound and the DC and AC power can be switched for use. 2VARIOUS INDICATORS: With host power indicator high voltage pulse indicator and fault indicator it is convenient to identify wiring and power status. 3REAL TIME DISPLAY: Can display the voltage of the power supply or battery in real time. When the display is lower than 12V the machine will alarm and stop working to protect the battery. 4GROUND TERMINAL: The high voltage positive 8KV output terminal and the ground terminal form 8KV high voltage pulse electricity and the 12KV forms 12KV pulse electricity. 5POWER SUPPLY WAYS: The power adapter can be used for power supply and customers can provide their own batteries and solar power system for power supply. Specification Item Type: Animal Electric FenceProduct Size: Approx. 24 x 12 x 7.5cm / 9.4 x 4.7 x 3inBottom Hole Distance: Approx. 22 x 7cm / 8.7 x 2.8inMaterial: ABSWeight: Approx. 1388g / 49ozPulse Period: 0.75S-0.3SOutput Energy: 2JAlarm: YesCable Length (Longest Cable Distance): Approx. 5km / 16404.2ft(single wire)Specification: 5km Alarm HostUses: Animal husbandry protectionApplicable Scene: OutdoorApplicable Animals: Pigs cows sheep horses dogs and other animalsWorking Principle: Electric Fence Use and Benefits: Perhaps the most widely recognized method of animal control is the electric fence system. Electric fences not only control domestic animals and livestock but also have many important uses including confining wild animals Type groups of animals allow crop and forage rotation isolate animals from trees rivers roads and damaged land electric fences have enabled newer grassland management techniques better grassland management is better for pastoralists Fixed and movable electric fences are used for grassland zoning to ensure the uniformity of grassland grazing and animals on the grassland; only in this way can the forage keep good palatability as well as maintain the appropriate height of the grass and ultimately play a role in Increase milk and meat production in grasslands.Function: (2) Pulse Adjustment: The pulse cycle adjustment knob rotate this knob to adjust the pulse to form a discharge cycle between 0.75 seconds and 0.3 seconds(3) Alarm: Alarm output socket output 12V when alarming used to connect alarms with power less than 10W if you need to connect alarms larger than 10W you need to connect an external relay control power supply to supply power to the alarms and directly connect an alarm larger than 10W. The alarm will burn out the wiring inside. Package List 1 x Electronic Fence Host1 x Power Adapter1 Pair Battery Clip1 x Alarm1 x English User Manual Note 1. This machine must use the power supply of the single phase leakage protector or install the single phase leakage protector separately.2. Do not let the elderly and children with limited mobility get close to the highvoltage power grid.3. The ground wire must be well connected. The ground wire is a discharge circuit and plays a role in safety protection so it must be installed firmly. Open circuit or serious rust on the connector will easily cause damage to the machine or trip of the leakage protector.4 This machine should not be used in a humid environment it should be installed in a dry and ventilated place. Special Note: Anyone who does not use the ground wire and leakage protector without authorization causing damage to the machine or electric shock to people and animals is responsible for the consequences.5. Household electric /12V battery can be freely switched for use (the battery is not shipped and the customer needs to prepare it by himself).6. Only the pulse electronic fence high voltage host power adapter battery clip alarm etc. are shipped in the shipment. It is recommended that customers use fence lines and nails to build fences for animals (without fence lines and nails).7. Please note that the new type and old type of this product will be sent randomly and make sure you will not mind before ordering.
