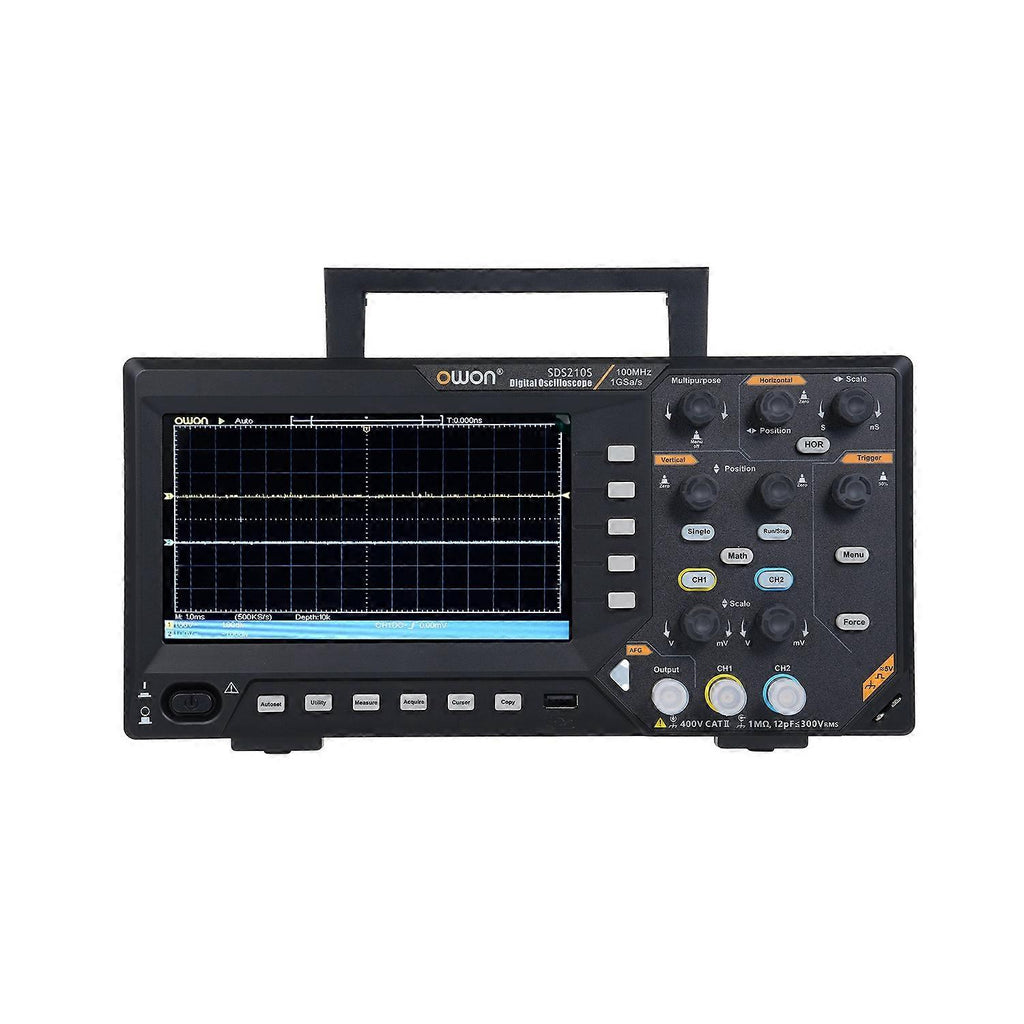

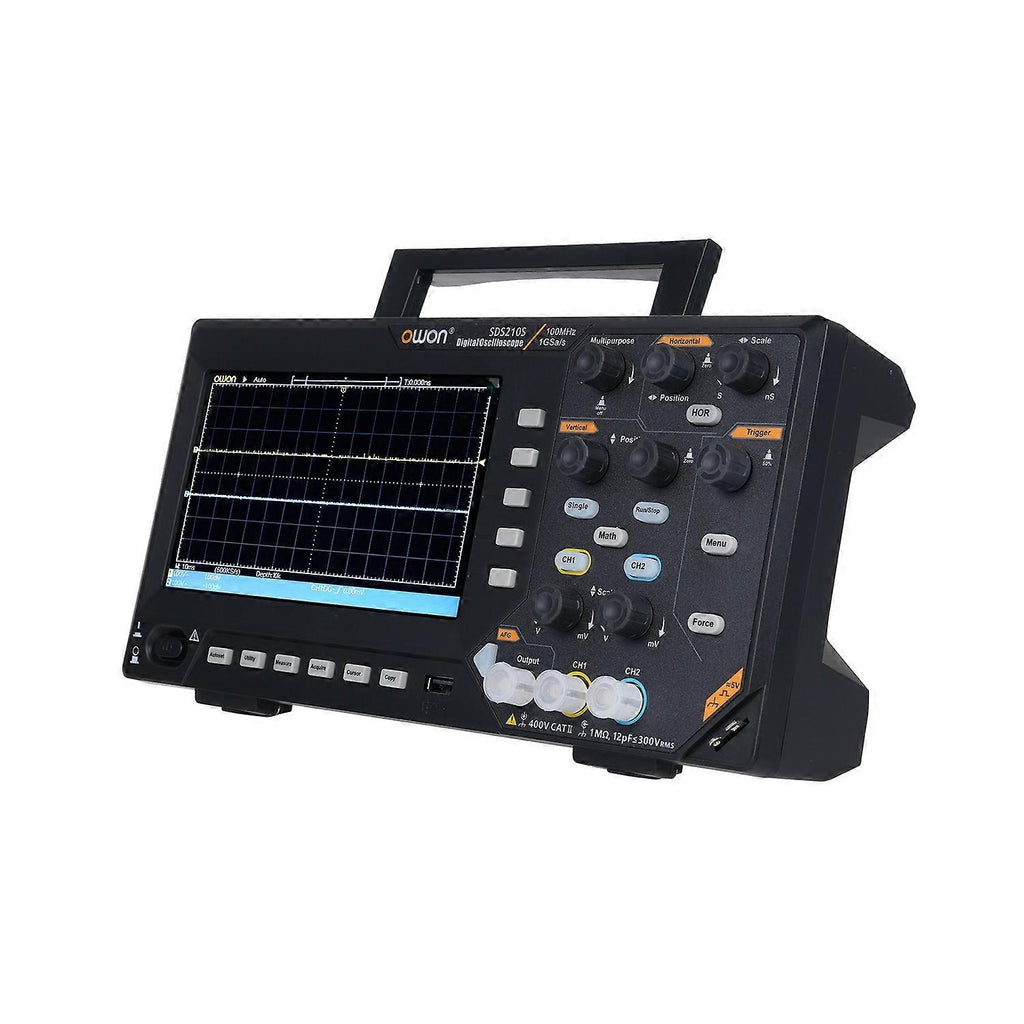

Feature: 1. Dual-channel oscilloscope+25MHz signal generator. 2. 150MHz bandwidth. 3. Dual-channel independent 1GS/s real-time sampling rate. 4. 20M memory depth. 5. Support 30 Automatic Waveform Measurements: Covering time values, counts, delay and phase values, amplitude values, and more. 6. 6-digit High-precision Frequency Counter: The oscilloscope's built-in frequency counter accurately measures input signals using CH1 or CH2 as the measurement source with a 6-digit display. 7. FFT Spectrum Analysis: FFT converts time-domain signals into frequency-domain components, helping you measure harmonics, distortion, noise, and vibration in your system. 8. Communicate with PC via USB Device interface, support SCPI and LabVIEW functions, provide free computer software and some programming development demos, so you can remotely control the instrument and consecondary development. 9. 7-inch TFT LCD Display: All signals and screen information can be clearly viewed. Specification: Specifications: Plug: EU / US / UK / AU (Optional) Model: SDS210S Material: ABS Bandwidth: 100MHz Sample Rate: Max 1GS/s Acquisition Mode: Normal, Peak detect, Averaging Input Coupling: DC, AC, Ground Input Impedance: 1M?? ??2%, in parallel with 20 pF ??5 pF Probe Attenuation Factor: 1X, 10X, 100X, 1000X Record Length: 20M Horizontal Scale (s/div): 2ns/div - 1000s/div, step by 1 - 2 - 5 Vertical Senstivity: 2mV/div~10V/div Automatic Measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, + PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A??B ?e, Delay A??B ?d, Cycle RMS, Cursor RMS, Screen Duty, Phase, + PulseCount, - PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area. Waveform Math: +, -, x, ??, FFT Waveform Storage: 16 waveforms Bandwidth: Full bandwidth Phase Difference: ??3 degrees Trigger Type: Edge, Video Communication Interface: USB Host and Device Frequency Counter: Available Standard Waveforms: Sine wave, square wave, ramp wave, pulse wave, arbitrary wave Arbitrary Waveforms: Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds Sine: 0.1Hz ~ 25MHz Square: 0.1Hz ~ 5MHz Ramp: 0.1Hz ~ 1MHz Ramp: 0.1Hz ~ 5MHz Arbitrary Waveform: 0.1Hz ~ 5MHz Sample Rate: 125MSa/s Amplitude (50??): 0.005Vpp ~ 3Vpp DC Offset Range: ??(3V) (high resistance) Channel: 1 Waveform Length: 8k Vertical Resolution: 14 bit Load Impedance: 50?? Display: 7 inch (800 * 480) LCD Item Size: 301 * 152 * 70mm / 11.85 * 5.98 * 2.76in Item Weight: 1000g / 2.2lb Package Weight: 1742g / 3.84lb Package Size: 37 * 18.5 * 11.4cm / 14.57 * 7.28 * 4.49in Package List: Package List: 1 * Digital Oscilloscope 1 * Power Cord 1 * USB Cable 1 * Probe 1 * Probe Adjust 1 * Soft Bag 1 * BNC Cable 1 * User Manual (English)
