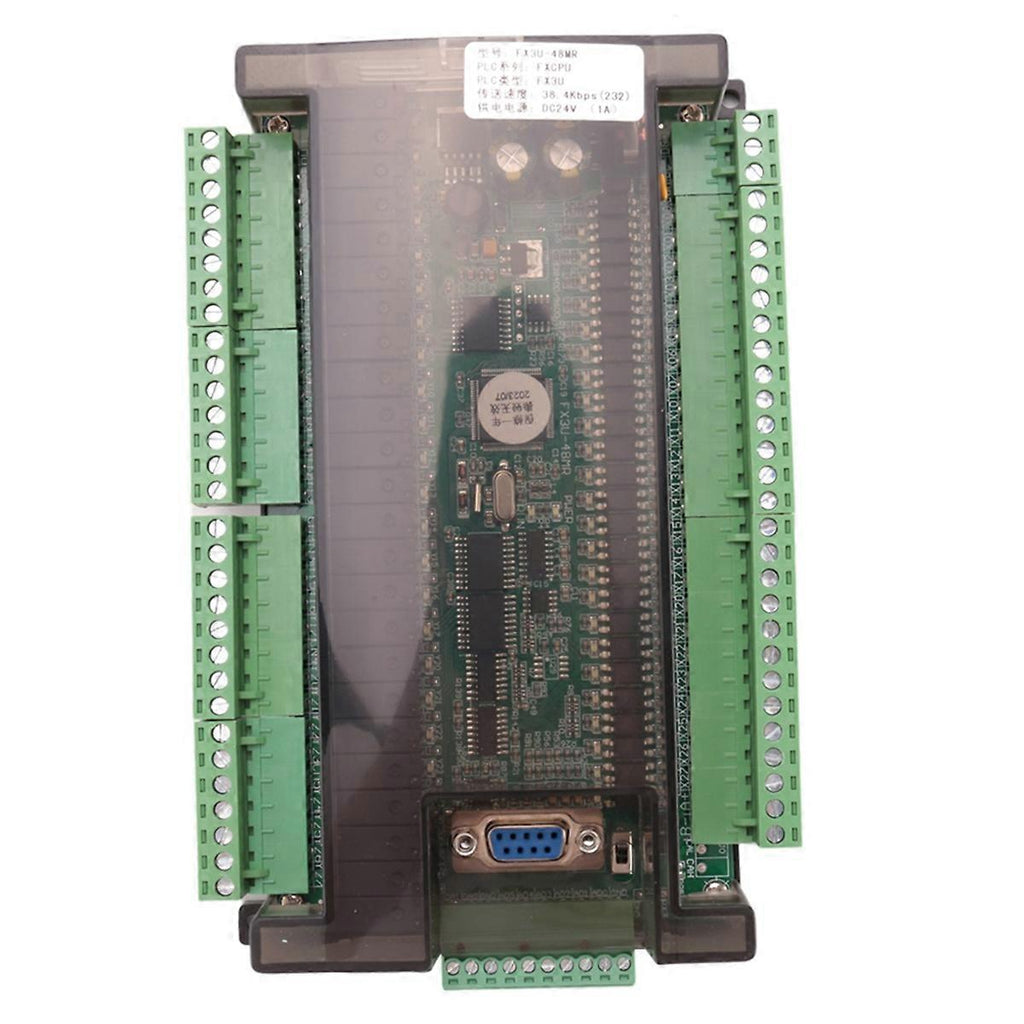

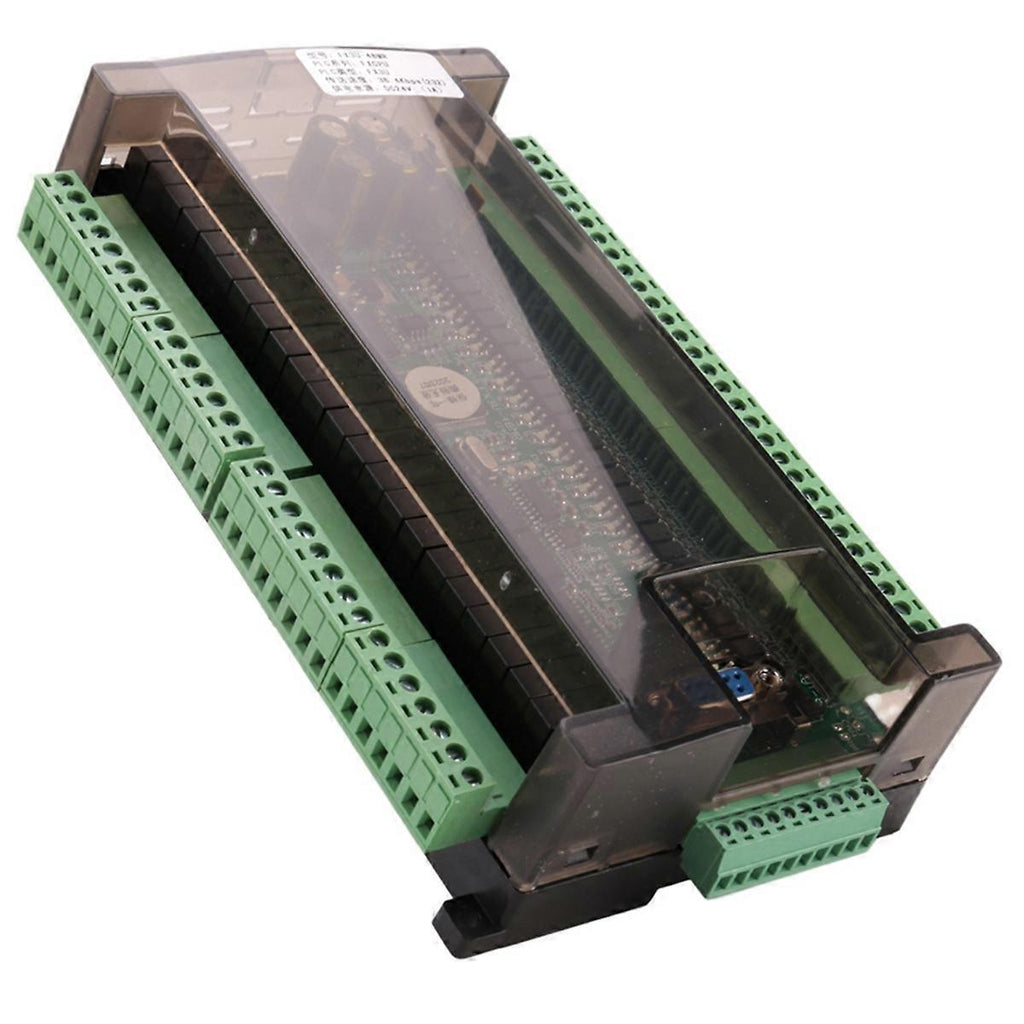

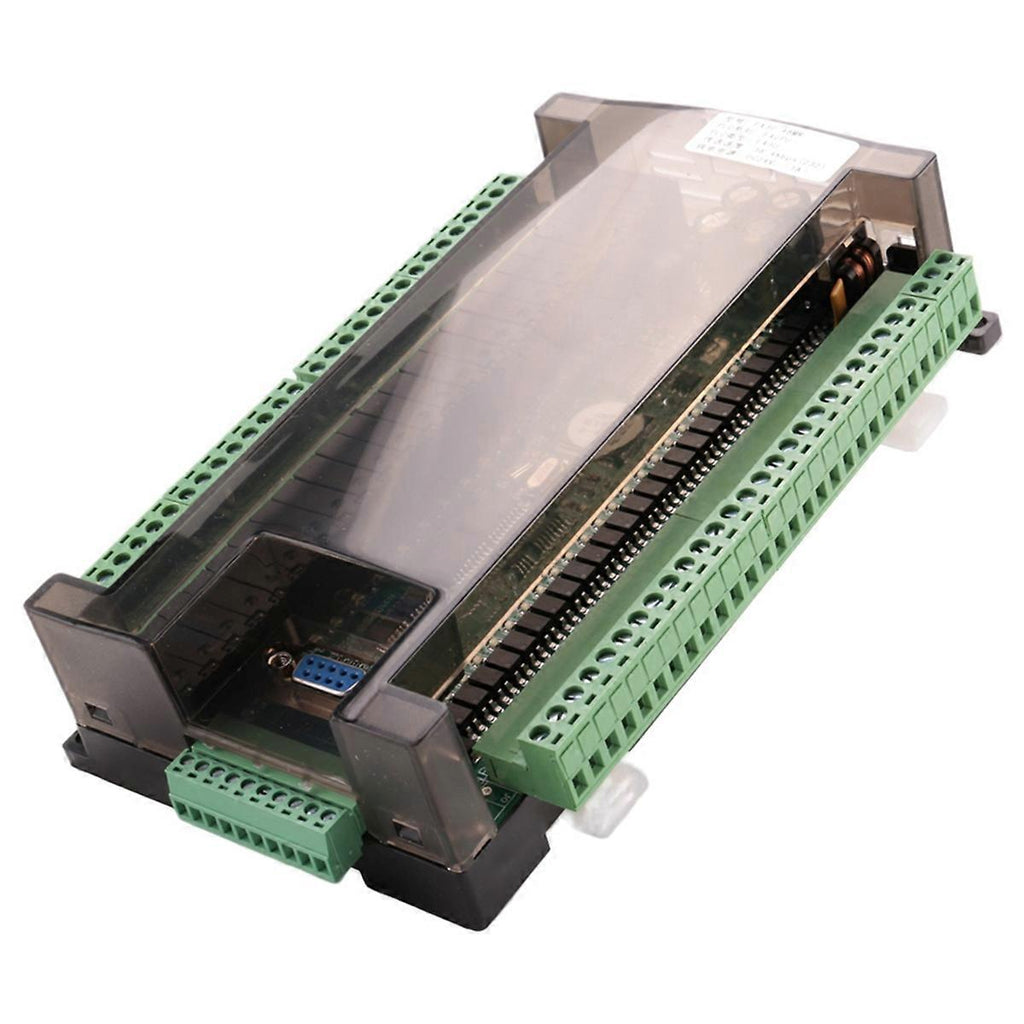

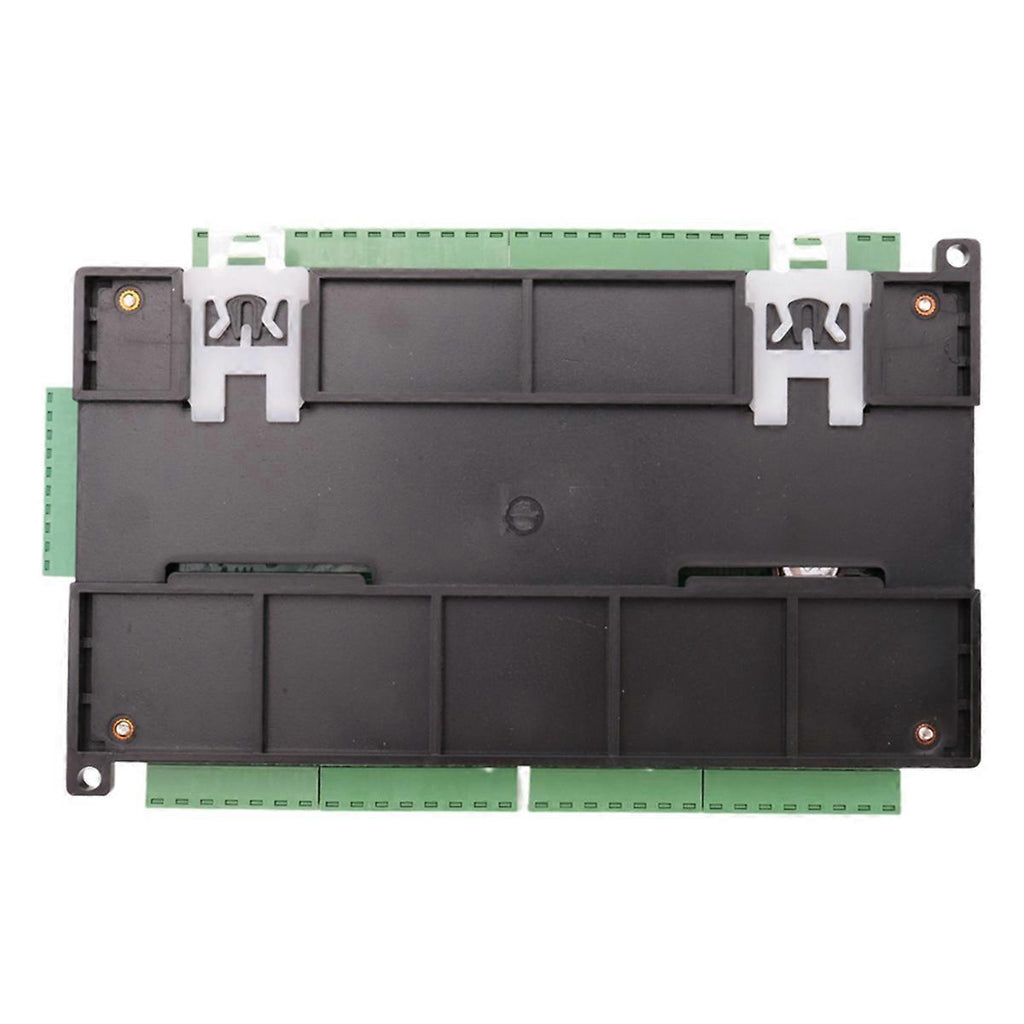

FX3U 48MR RS485 (Real Time Clock) 24 Input 24 Relay Output 6

Name: FX3U 48MR RS485 (Real Time Clock) 24 Input 24 Relay Output 6
Brand: mickcara
SKU: 8982557259754
Price: 101.82 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8982557259754

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$101.82

Quantity:

Subtotal: $101.82

283 customers are viewing this product

Tags:

Description

This programmable logic controller uses industrial-grade 32-bit MCU with strong anti-interference and faster speed. Program is written in ladder logic programming language, supports for GX-, GX-work2, supports HMI connection. Support ladder logic programming language programming, downloading and monitoring. Programming port is the port for program upload, download and HMI communication. Widely used for fields of printing, metallurgy, food, textile, packaging, home, building materials, plastics, chemicals. Specifications: Input Voltage:DC24V Output Point Y component: Y0-Y17 are transistor output. Y0~Y7 can output 8-channel 100K pulse or 6-channel PWM pulse signal. Maximum current is 3A. Y0-3 are high-speed output port (max. 100k). PWM period is 0-32767US. High-speed port maximum current is 3A. External load common end connects to +24, the other end connects to PLC output port Y. Analog Input: 6 channels analog input, 12-bit accuracy; 3-channel 0~10V+3-channel 0~20mA, read with RD3A Analog Output:2 channels analog output, 12-bit accuracy, output voltage:0-10V. Output analog voltage with WR3A Intermediate Relay M:M0-M3071, power-off save range can be set Stepping Point S:S0-1023, power-off save range can be set S0-S1023 100Ms Timer:T0-T199, accumulative power-off save T184-T199 10Ms Timer:T200-T249, accumulative power-off save T246-T249 1Ms Timer:T250-T383, T250-255 is accumulated type 16-bit Counter:C0-C199, power-off save C100-199 32-bit Counter:C200-C219, power-off save C220-C234 32-bit High-speed Counter:C235-255; C235-240 is single-phase counter, no frequency Colour:green Material:plastic Package Contents: 1 * plc industrial control board Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Logistics information

Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time

CONTACT US

If you have questions or concerns then please do not hesitate to get in contact with us. We would love to hear from you, contact us on: whatsapp：+8613625959351
