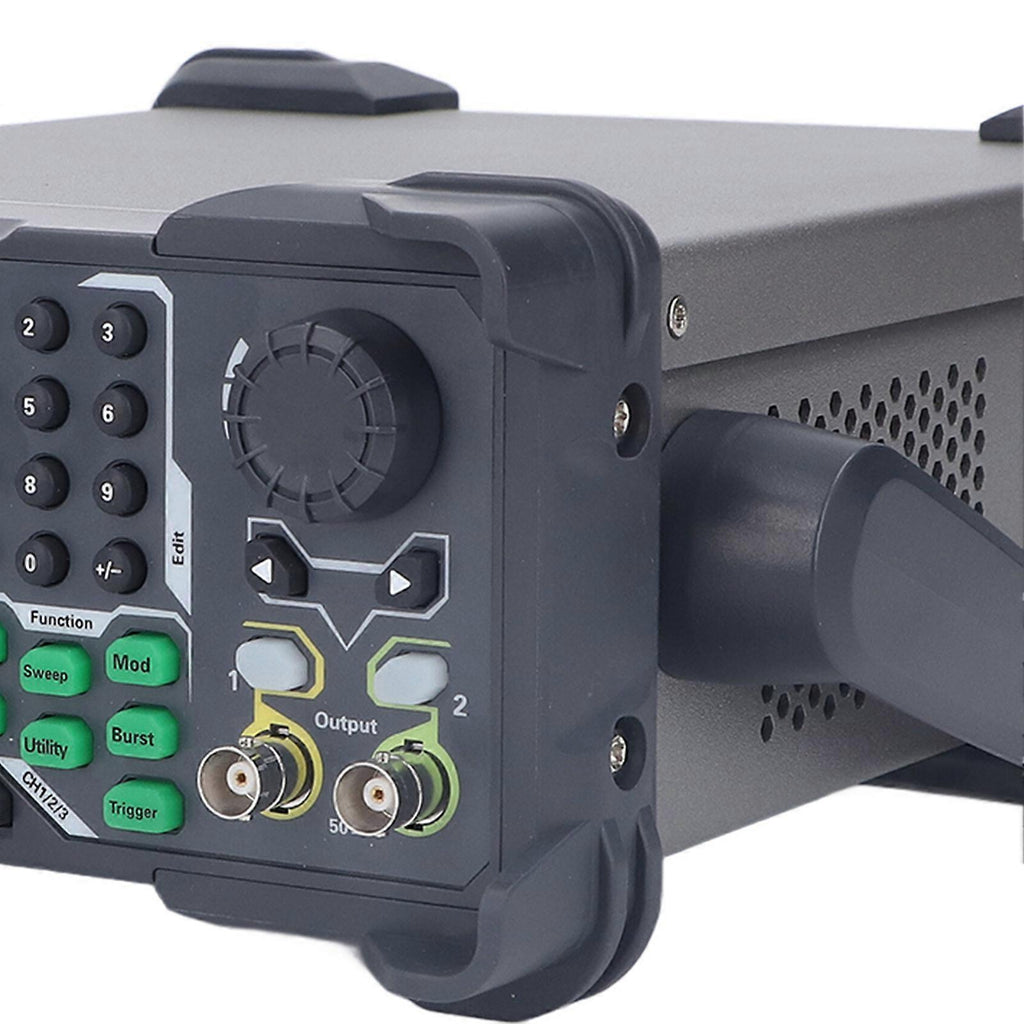

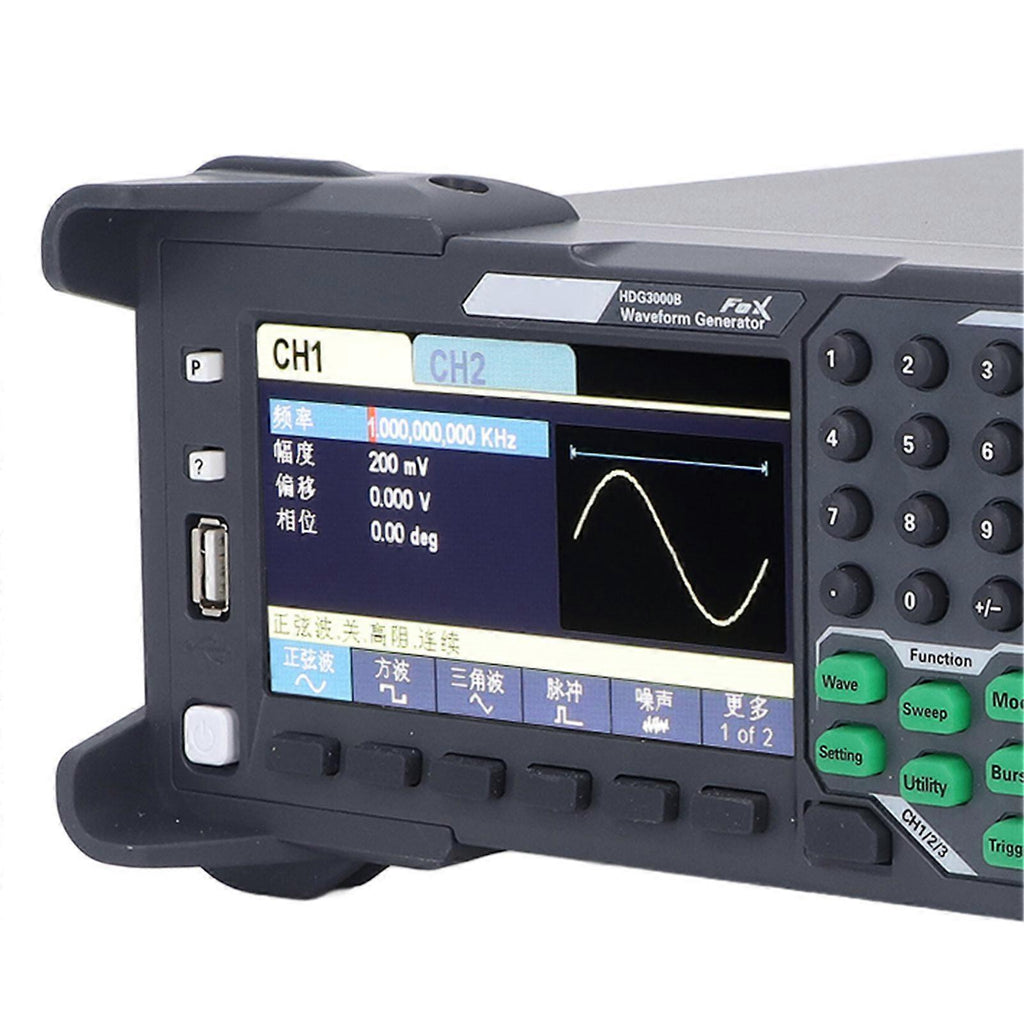

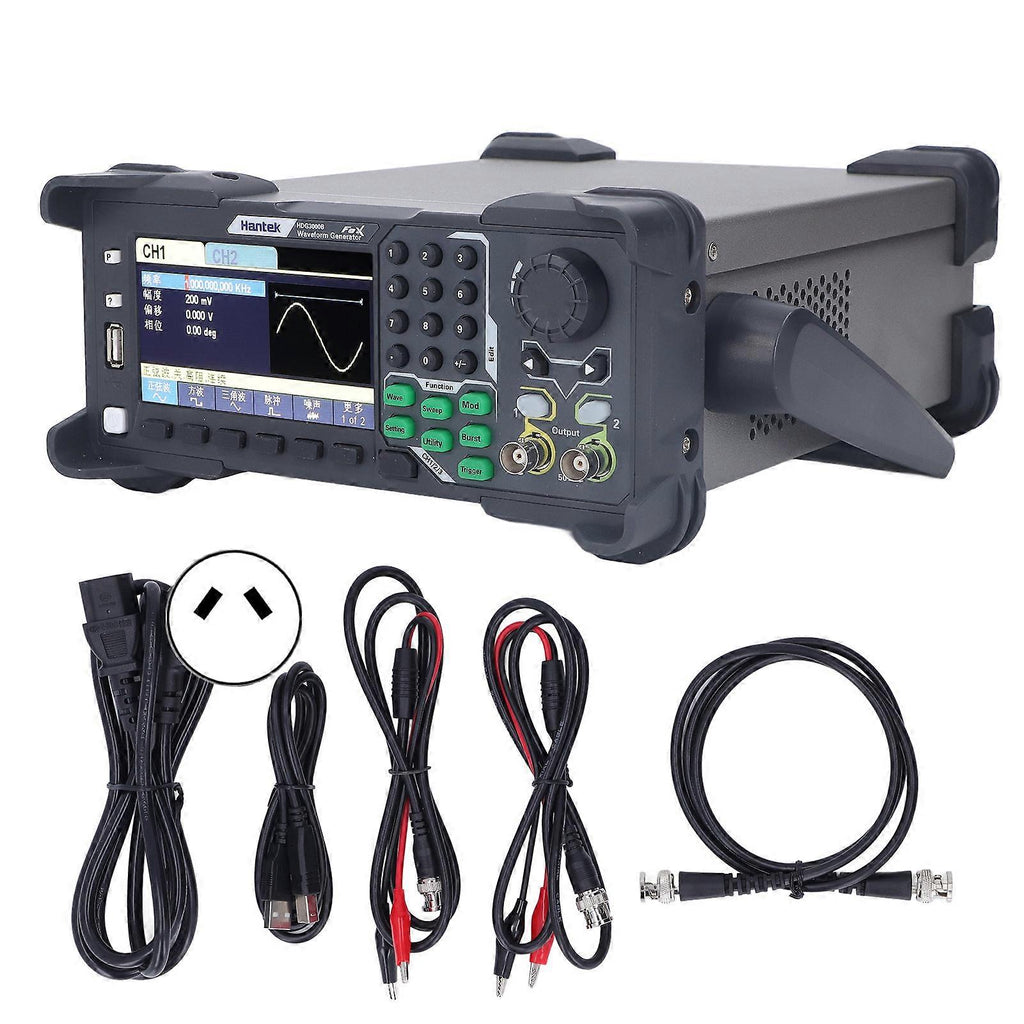

Feature:1. HIGH ACCURACY: Dual channel arbitrary waveform signal generator, with independent signal source, up to 300MSa/s sampling rate, 16bits vertical resolution to ensure the accuracy of waveform amplitude.2. LCD DISPLAY: Using 4.3in color TFT LCD screen, the user interface is clear and intuitive, and equipped with front USB Host and rear USB Device standard communication interface.3. MULTIPLE FUNCTIONS: The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details, and has multiple modulation functions that supports AM, FM, PM, ASK, etc.4. HIGH RESOLUTION: With 1Hz frequency resolution, when the impedance is high resistance, the amplitude range is 2mV-20Vpp, when the impedance is 50, the amplitude range is 1mV-10Vpp.5. ARBITRARY WAVEFORM: Support 160 kinds of arbitrary waveform output, including exponential rise, exponential fall, electrocardiogram signal, Gaussian, Haversine, Lorentz, DTMF, DC voltage, etc.6. FOR HARMONIC DETECTION: Built in 16 subharmonic generator functions, output harmonics with specified order, amplitude and phase, often used for harmonic detection equipment or filter equipment testing.Specification:Item Type: Signal GeneratorMaterial: Aluminum AlloyChannels: 2Waveform Length: 2MFrequency Range: 1Hz-15MHzSampling Rate: 300MSa/sWaveform: Standard Waveform Output: Sine, square, triangle, pulse, noise, harmonicsFrequency Characteristics: Sine Wave: 1Hz-15MHzSquare Wave: 1Hz-15MHzPulse Wave: 1Hz-15MHzTriangular Wave: 1Hz-2MHzHarmonics: 1Hz-5MHzNoise (-3dB): 100MHz bandwidthArbitrary Wave: 1Hz-15MHzResolution: 1HzAccuracy: 1ppm, 18-28Square Wave Characteristics: Rise and Fall Time: Typical (1KHz, 1Vpp), 9nsOvershoot: Typical (100KHz, 1Vpp), 5%Duty Cycle: 0.001%-99.999%; range varies with frequencyAsymmetry: 1% of period +4nsTriangle Wave Characteristics: Linearity: 1% of peak output (typical, 1KHz, 1Vpp, Symmetric )Symmetric: 0%-Pulse Wave Characteristics: Rise and Fall Time: 9ns (limited by current frequency setting and pulse width setting)Period: 67ns-1MsPulse: 16nsOvershoot: Typical (1KHz, 1Vpp), 5%Arbitrary Wave Characteristics: Waveform Length: 2MVertical Resolution: 16 BitsSampling Rate: 1Sa/s-62.5MSa/s, 1Sa/s resolutionRise and Fall Time: 9nsOvershoot: Typical (1Vpp), 5%Harmonic Characteristics: Harmonic Order: 16Harmonic Types: Even Harmonics, Odd Harmonics, All HarmonicsHarmonic Amplitude: The amplitude of each harmonic can be setHarmonic Phase: The amplitude of each harmonic can be setAmplitude Characteristics (50 Termination): Amplitude Range: 10MHz: 1mVpp-10Vpp; 55MHz: 1mVpp-5.5Vpp; 80MHz: 1mVpp-3.5Vpp; 100MHz: 1mVpp-2Vpp;Accuracy: Typical (1KHz sine wave, 0V offset, >10mVpp); 1% of setting value 5mVppAmplitude Flatness (Relative to 1kHz Sine Wave, 1Vpp, 50): 5MHz: 0.1dB; 15MHz: 0.2dB; 25MHz: 0.3dB; 40MHz: 0.5dB; 40MHz: 1.0dBUnit: Vpp, mVpp, Vrms, dBm (50 impedance)Resolution: 1mVppOffset Characteristics (50 Termination): Range: 5Vpkac+dcAccuracy: (1% of setting value plus 5mV plus 1% of amplitude)Waveform Output: Impedance: 50Modulation Characteristics: Modulation Types: AM, DSB AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM.Package List:1 x Host1 x Plug1 x USB Cable2 x Crocodile Clip Lines1 x Signal Cable1 x User ManualNote:Pay attention to electricity safety when using
