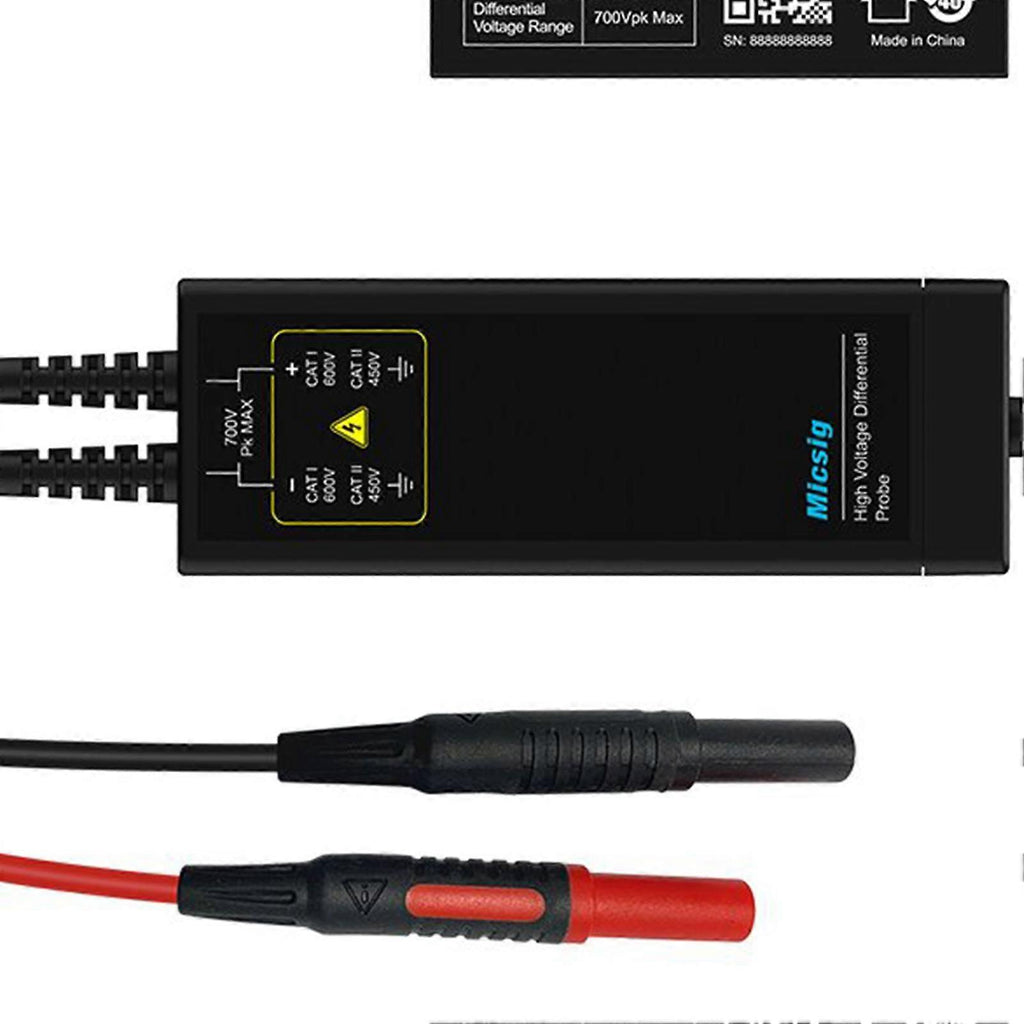

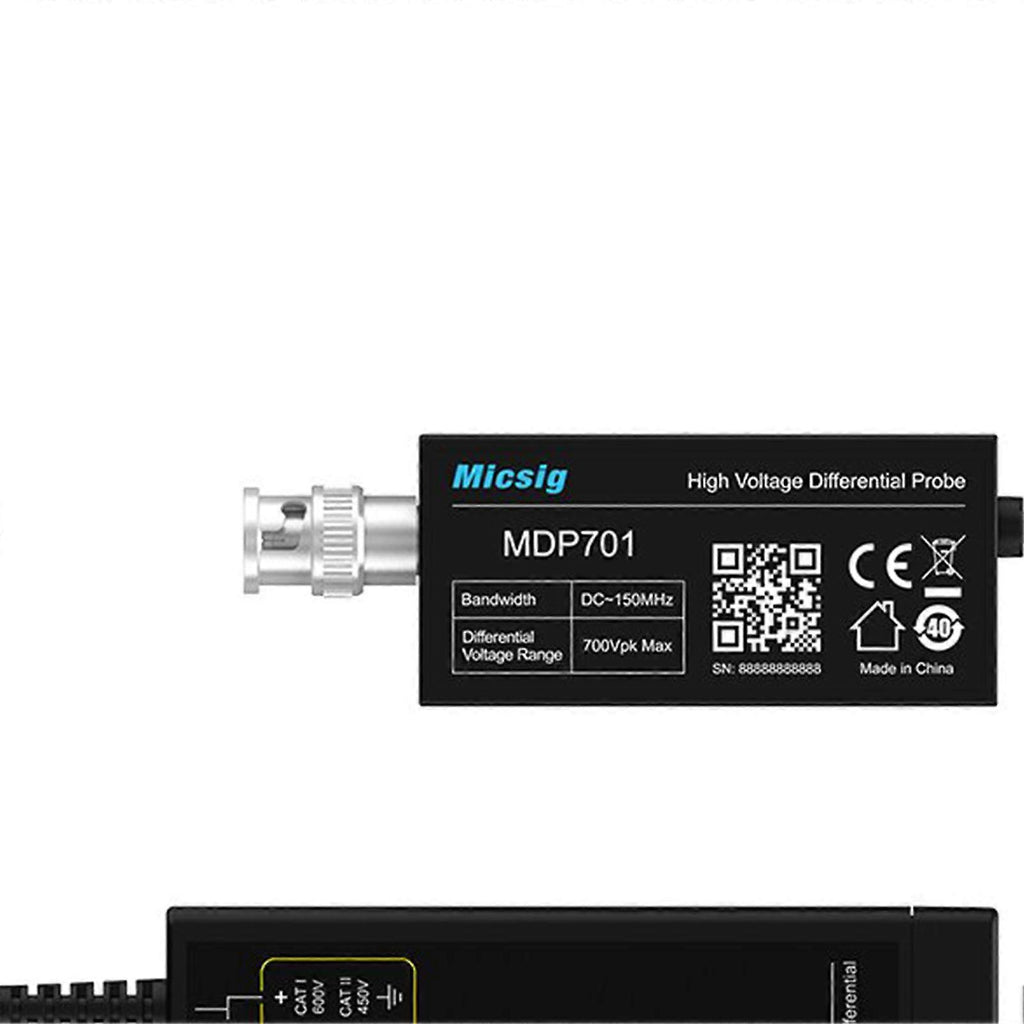

Feature:1. [Exceptional Performance] The high voltage differential probe delivers ultra low noise, excellent amplitude frequency characteristics, and common mode rejection capabilities, enabling users to effortlessly test high frequency and high voltage signals.2. [5MHz Bandwidth Limit] The MDP probe effectively eliminates high frequency noise when measuring the FET switching frequency in most switch mode power supplies.3. [Multi Function] By shorting the test leads and pressing the zero button, the probe can be zeroed rapidly. Dual range selection function improves signal to noise ratio and meets a wide range of testing requirements.4. [BNC and USB Interface] Equipped with standard BNC interface, this oscilloscope probe can be used with any oscilloscope. Can be powered directly from the oscilloscope USB port via a Type C cable.5. [Audible and Visual Alarm] The flashing LED and rapid beeping of the buzzer serve as quick alerts for overvoltage, ensuring safe usage and preventing damage to the probe and equipment.Specification:Item Type: High Voltage Differential ProbeMaterial: ABSVoltage: 100-240VModel: MDP701Bandwidth: 150MHzRise Time: 2.33nsAttenuation: 20X 200XAccuracy: 2%Maximum Input Differential Voltage (DC+AC pk): 70V (20X), 700V (200X)Maximum Ground Voltage: CAT I 600V, CAT II 450VBase Noise:Full Bandwidth: 20X: 0.9mVrms, 200X: 0.4mVrms5MHz Bandwidth Limitation: 20X: 0.4mVrms, 200X: 0.35mVrmsCommon Mode Rejection Ratio: DC: >-80dB, 100kHz: >-60dB, 10MHz: >-30dB, 100MHz: >-26dBDelay Time: 11.99ns (20X), 12.27ns (200X)Input Impedance: 16M/1.5pF (Differential), 8M/3pF (Single Ended to Ground)Output Voltage: 3VPower: 2WPower Supply: Type C InterfaceOverload Indication: LED Alarm, BuzzerControl Module Size: Approx. 91x33x15mm/3.58x1.30x0.59inSignal Box Size: Approx. 100x36x20mm/3.94x1.42x0.79inInput Cable Length: Approx. 8cm/3.15inOutput Cable Length: Approx. 120cm/47.24inTemperature: Operating: 0 to 40, Non Operating: -30 to 70Humidity: Operating: 5% to 85%RH (0 to 40), Non Operating: 5% to 85%RH (40); 5% to 45%RH (40 to 70).Package List:1 x High Voltage Differential Probe2 x Crocodile Clips1 x Type C Cable1 x User Manual2 x Extendable IC Clips1 x PlugNote:Manual measurement may result in slight size errors.
