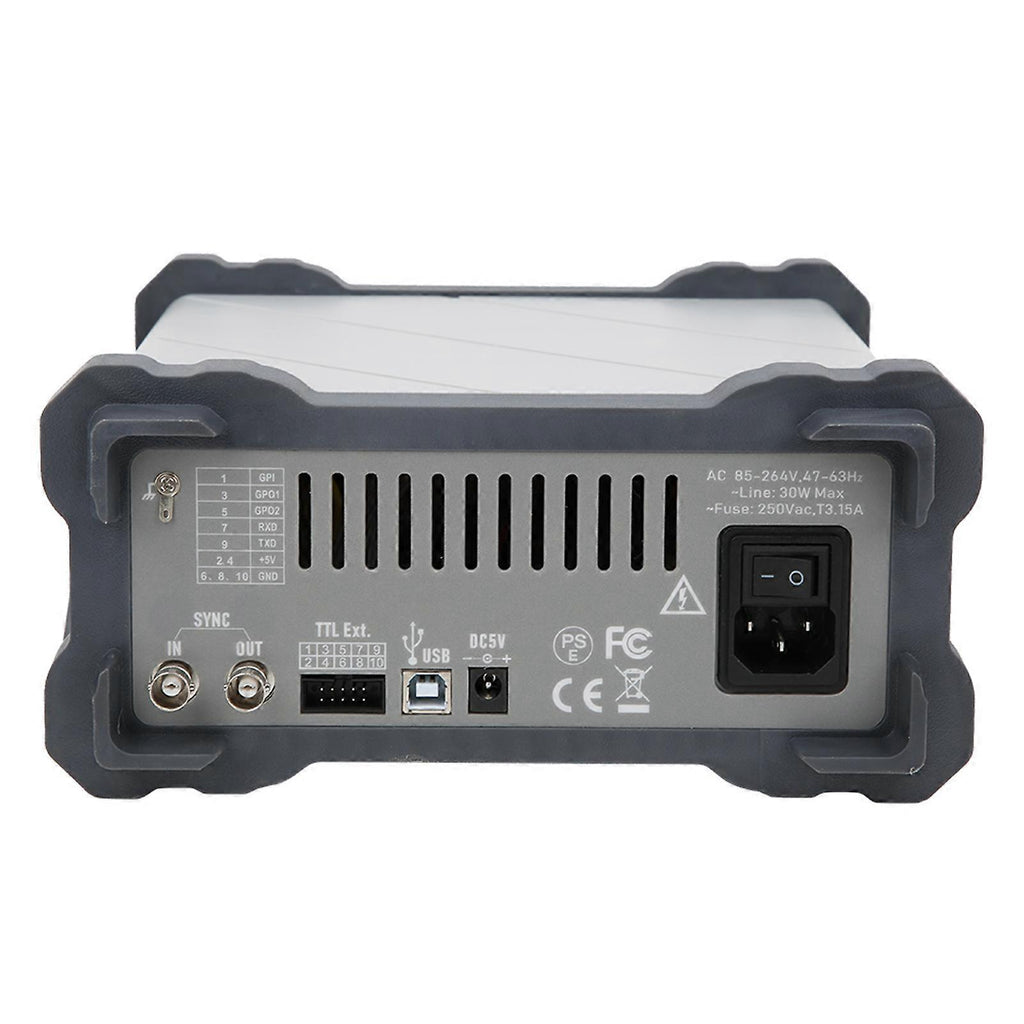

Feature:1. Programmable output, the type of waveform output (such as sine waves, square waves, triangular waves, arbitrary waves, etc.), output time and output sequence can be freely formulated to realize automatic work.2. Firmware is updated in real time, and can be updated at any time to fix bugs, or for your special customization needs. Press the corresponding soft key to confirm to enter the update mode and perform onekey firmware update by connecting with the PC software.3. Power supply is flexible, it can be powered by AC 85264V or DC 5V2A mobile power supply, which is convenient for outdoor use.4. Support voltage control adjustment, the output frequency, amplitude and duty cycle can be controlled by an external analog voltage signal to realize the voltage controlled scanning frequency, scanning amplitude and scanning duty cycle, which is widely used in industrial debugging.5. With modulation function, the modulated waveform can be output in single channel or dual channel. Modulation is the process of adding information from the signal source to the carrier to make it suitable for channel transmission. It is a technique that changes the carrier with the signal.6. In order to meet the individual needs of customers, four color schemes are provided for the system. You can use the number keys and the knob to select the desired system color, and press the soft key Save to save the selected color.7. Support dualchannel output with equivalent performance, which can output the same or different functional signals or arbitrary waveform signals at the same time; All parameters can be adjusted independently, and the phase difference between the two channels can be continuously adjusted between 0 and 359.9 degrees; Signal frequency It can be as high as 80MHz, and the output signal can be within 1MHz, up to 25Vpp.8. Pulse string function, can use sine waves, square waves, sawtooth waves or arbitrary waves to generate pulse string signal, the number of cycles is continuously adjustable between 11,000,000,000.9. The pulse width can be precisely adjusted, and the pulse width and pulse cycle time of the pulse waves can be adjusted digitally and accurately, so that various pulse waveforms can be accurately set without jitter.10. Arbitrary waveforms can be drawn. PC software and communication protocol are provided free of charge. Arbitrary waveforms can be drawn using PC software; the communication protocol can be used for secondary development and programming; all functions of the instrument can be controlled by PC software (also available when the computer is not connected Complete all the operations of the instrument.) You can use the mobile phone APP for Bluetooth control.Specification:Condition: Item Type: Signal GeneratorMaterial: ABSSize: Approx. 240 x 218 x 87mm/9.4 x 8.6 x 3.4inModelPSG9080Channel2Sampling Rate300MSA / SWaves CharacteristicsWaves Length8192 points/channelWaveform Vertical Resolution14 bitsWaves TypeSine waves, square waves, pulse waves (duty ratio, pulse width and cycle time can be set accurately), triangular waves, rising ramp, falling ramp, CMOS waveform, DC level, half waves, full waves, sine waves, Inverse order waves, exponential rise, exponential fall, Lorentz pulse waves, multisonic waves, random noise waves, trapezoidal pulse waves, sinking pulse waves, amplitude modulation waveform, frequency modulation waveform and 99 user-defined waveforms.Frequency CharacteristicsSine Waves Frequency Range1nHz-80MHzsquare Waves Frequency Range1nHz-30MHzTriangular Waves Frequency Range1nHz-50MHzPulse Frequency Range1nHz-30MHzTTL Digital Waves Frequency Range1nHz-20MHzArbitrary Waves Frequency Range1nHz-50MHzPulse Width Adjustment Range5nS-4SPulse Period Adjustment Range10nS-40SMinimum Frequency Resolution1nHzFrequency Accuracy5ppm 0-50Frequency Stability3ppm / 1 yearSine Waves Spectrum PurityTotal Harmonic Distortion0.5% (At 1kHz,5Vpp)Signal Characteristicssquare WavesRise/Fall Time10nSOvershoot10%Asymmetry0.1%Oblique and Triangular WavesLinearity1% (less than 1MHz)Asymmetry1% (less than 1MHz)Pulse WavesPulse Width5nS-4SPulse Cycle Time10nS-40SDuty Cycle0.01%-99.99%Rising/Falling Edge10nSOvershoot10%Arbitrary WavesWaves Length8192 points (8K points)Vertical Resolution14 bitsMinimum Rise/Fall Time10nSOvershoot10%Arbitrary Waveform Non-Volatile Storage Number99Output CharacteristicsAmplitudeAmplitude RangeFrequency1MHz1MHzFrequency11MHz11MHzFrequency60MHz60MHzFrequency80MHz2mVpp-25Vpp2mVpp-10Vpp2mVpp-5Vpp2mVpp-3.6VppAmplitude Resolution1mVppAmplitude Stability1%1 mVpp (At 1 kHz, > 10 mVpp)Amplitude Flatness1%(0.1dB)<10MHz2%(0.2dB)<10MHz-50MHz10%(0.9dB)<50MHz-70MHz20%(1.9dB)<70MHz-80MHzDC PolarizationOffset Adjustment Range -9.99V-15.00VOffset Resolution0.01VPhase CharacteristicsPhase Adjustment Range0-359.9Phase Resolution0.1Waves OutputOutput Impedance50 (Nominal)ProtectionShort Circuit ProtectionModulation CharacteristicsModulationAM,FM,PM,ASK,FSK,PSK,PWMAmplitude Modulat
