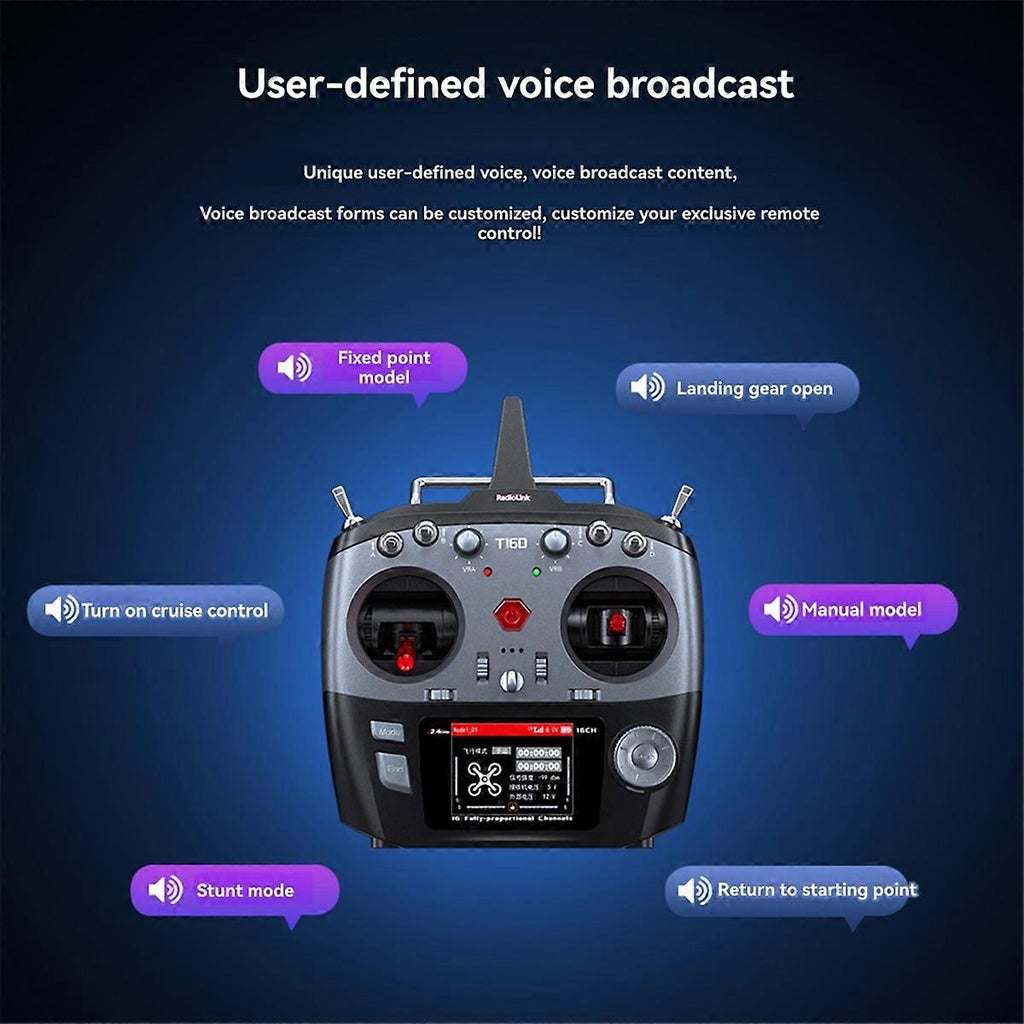

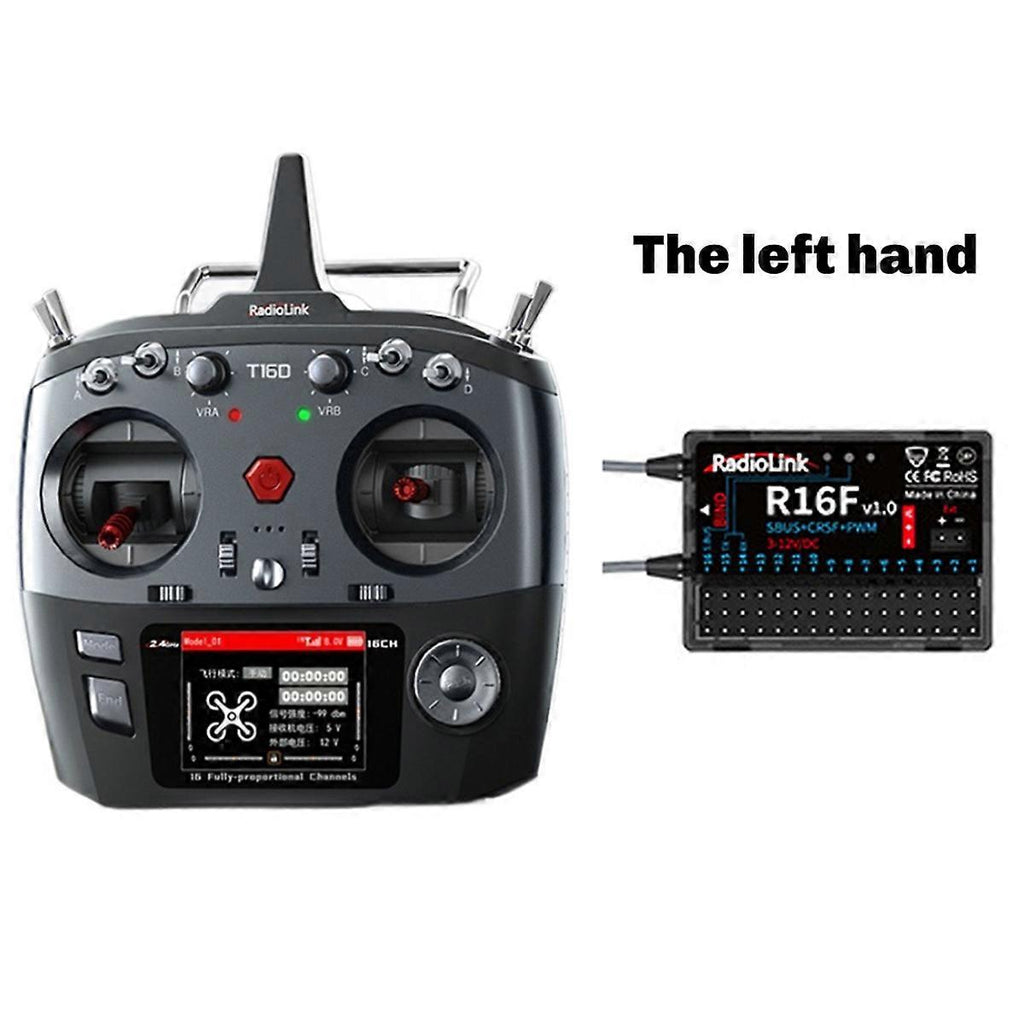

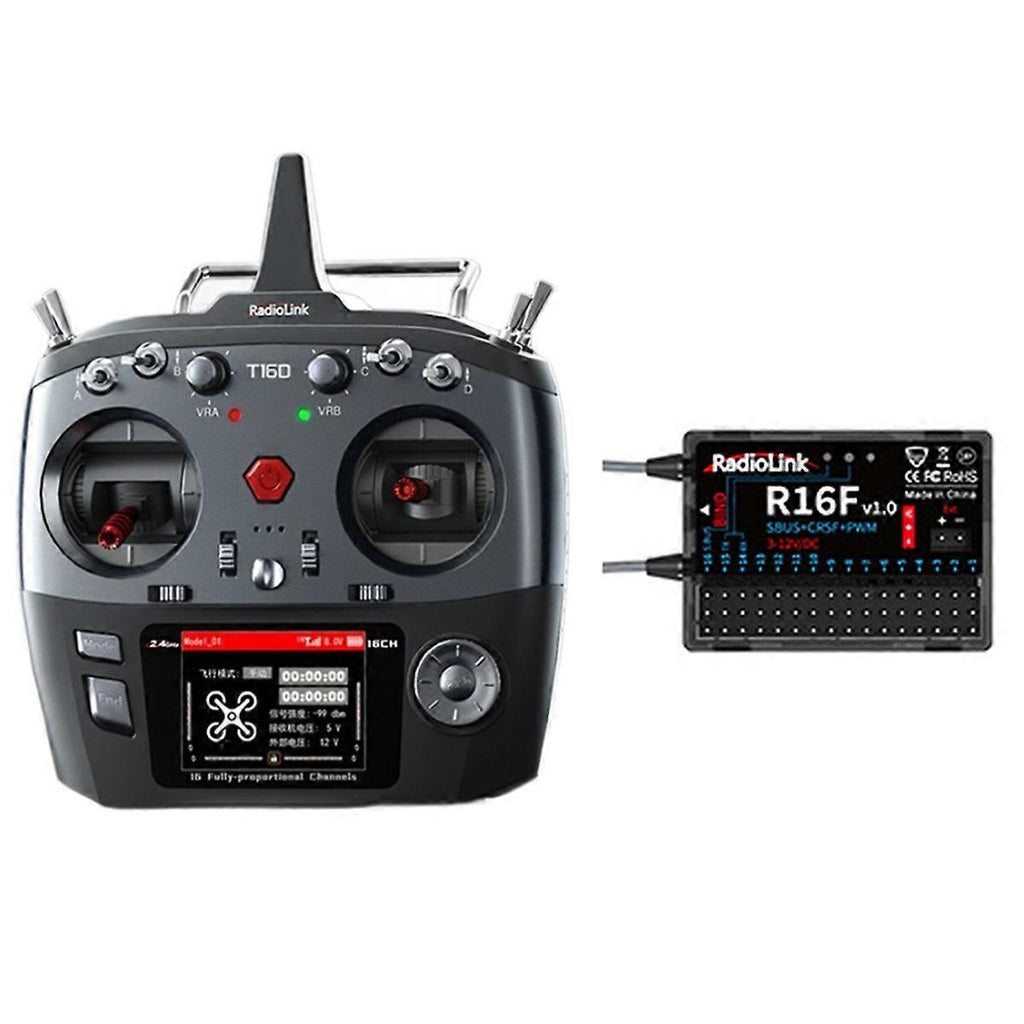

T16D, with 16 fully-proportional channels, Excellent Anti-interference Capability,4000 Meters Control Distance,Mainstream ,Multiple Languages,Unique Personalized and Humanized Voice Broadcast Customization,Receiver Supports Upgrade Online,Humanized and Easy to Operat. It fully supports ELRS, TBS , and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D.Realize the perfect combination of the humanized user interface of the remote control and the various functions of the open-source long-range modules. Top Configuration: 1M bytes RAM Memory, 208MHz Basic Frequency Memory, 2.8 inches, 240 x 320 pixels 16 colorful screens, freeRTOS system plus LVGL GUI user interface realizes a colorful and responsive user interface. support helicopters,fixed-wings, gliders, multi-, racing drones, football drones, engineering vehicles, racing boats,robots, lawnmowers, bait boats, mechas, and other models on the market. Specifications: T16D. Channels: 16 fully proportional channels, 5-16 channels can be programmed. Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz). Spread Spectrum: FHSS 67 channels -random frequency hopping/CRSF. Operating Systems: freeRTOS+LVGL GUI. Long-range Module: it fully supports ELRS, TBS , and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D Response Latency: 3ms, 4ms, 14ms can be . Channel Resolution: 4096 with regular jitter of 0.5us. Modulation Mode: GFSK. Channel Band Width: 400KHz. Channel Pacing: 1200KHz. Transmitter Power: Less than 100mW(20dBM). Adjacent Channel Rejection: 36dBM. Transmission Rate: 38kbps. Reception Sensitivity: -104dBM. Cycle:15ms/per frame. Operating Voltage: 7.4-18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithium battery, Without battery). Type-C Port Input Current: 500mA Control Distance: FHSS: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference) CRSF: Depends on the RX and TX of the long-range module Storage Subsidiary ID Models Quantity: 15 Screen: 2.8 inches 16 colorful screens, 320 x 240 pixels Compatible Receivers: R16FG(Std), R8EF,R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F Operating Temperature: -30 to 85 C R16F Antenna Length: 205mm (8.07 inch) Channel: 16 channels Operating Voltage: 3-12V Operating Current: 5010mA@5V Signal Output: SBUS+PWM Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz) Spread Spectrum: FHSS 67 channels -random frequency hopping Section Precision: 4096, 0.5us per section Water Splash Proof: The waterproof grade is IPX4 Operating Temperature: -30 to 85 C Compatible transmitter: T16D/T12D/T8FB/T8S/RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS Color: As shown Material: ABS Specifications:Left Package Contents: 1 set of T16D remote control with accessories Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
