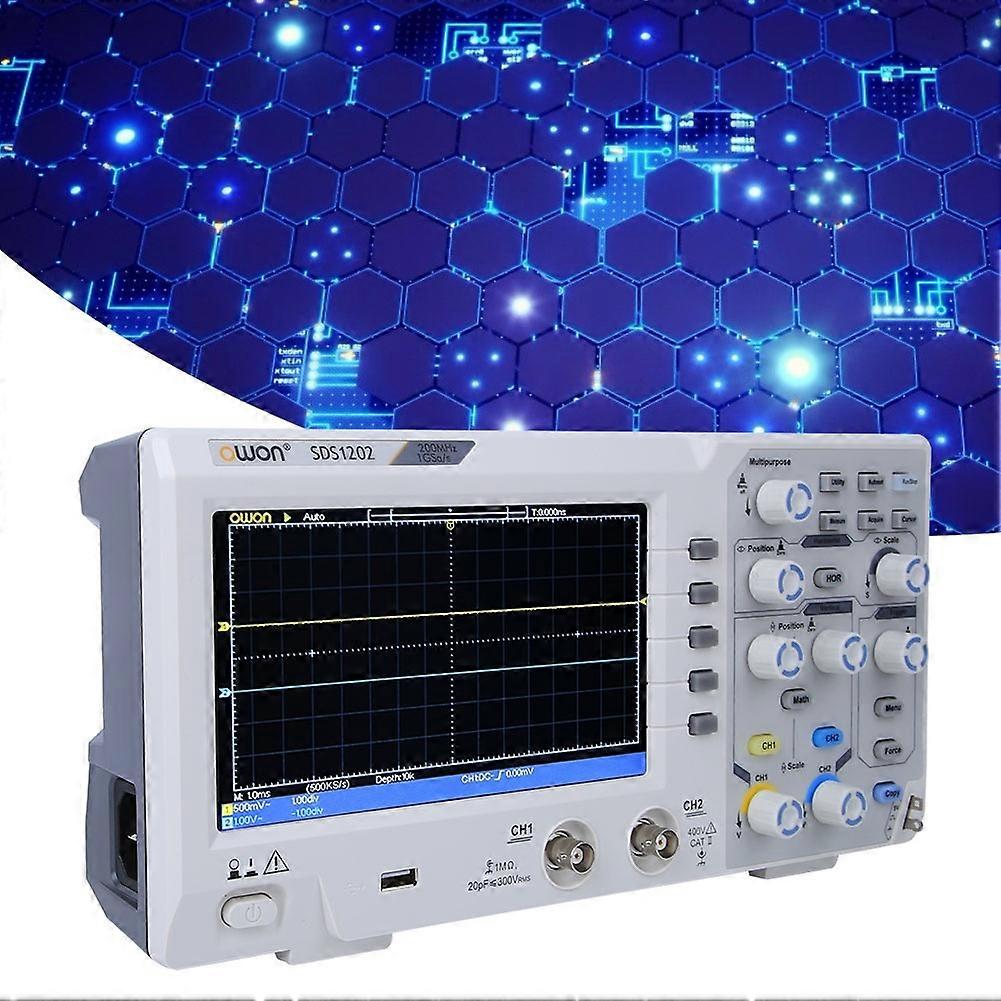

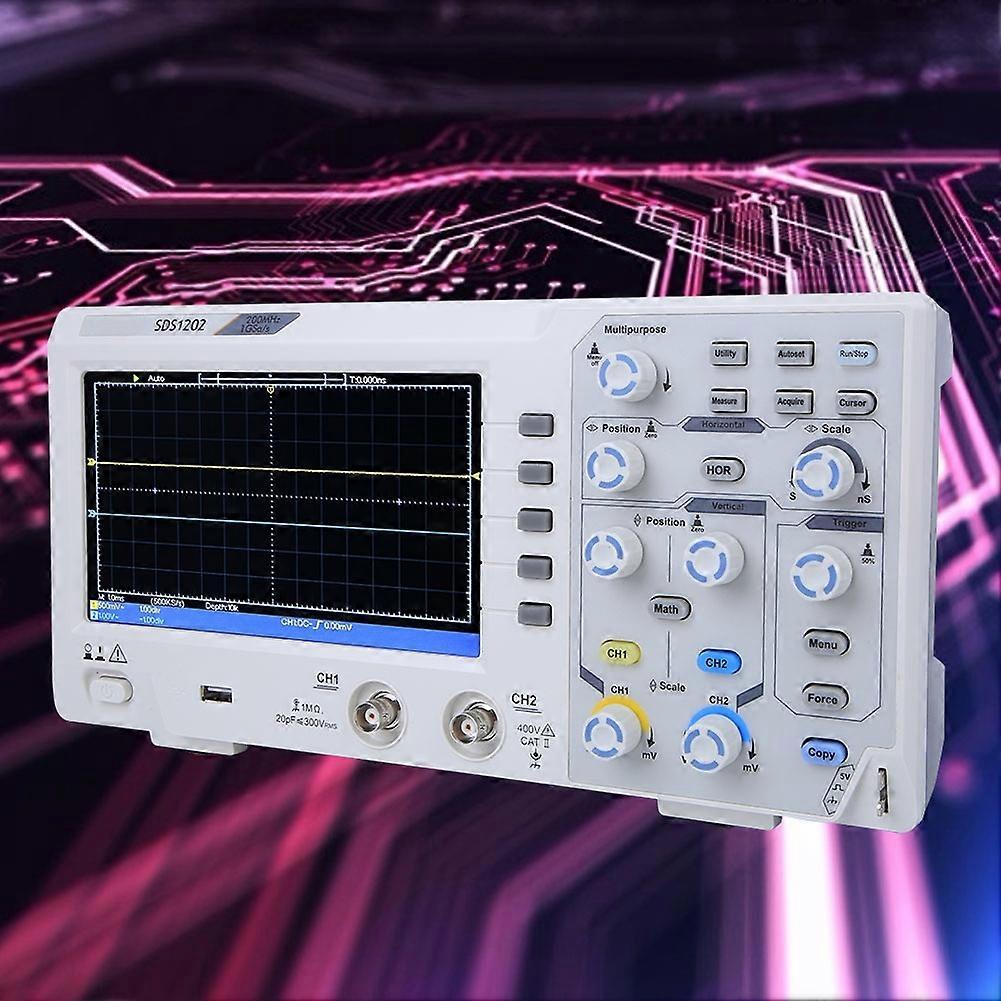

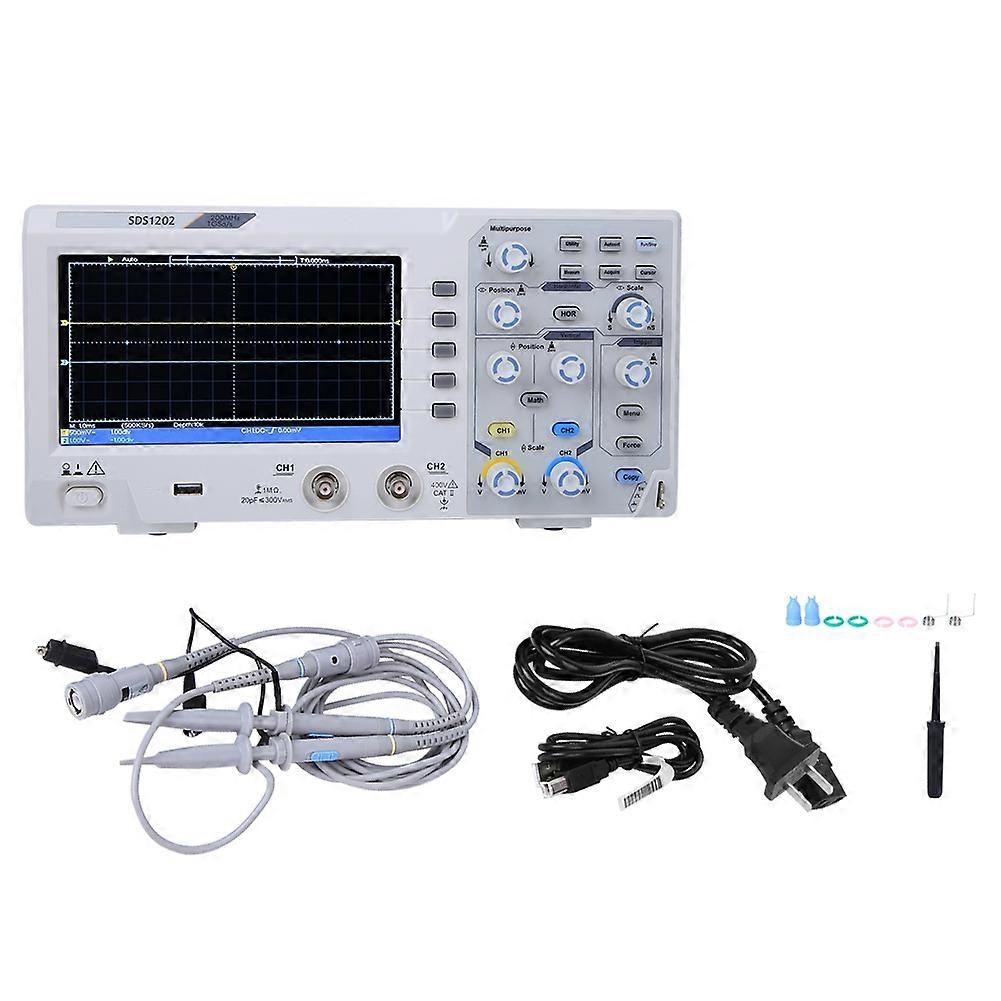

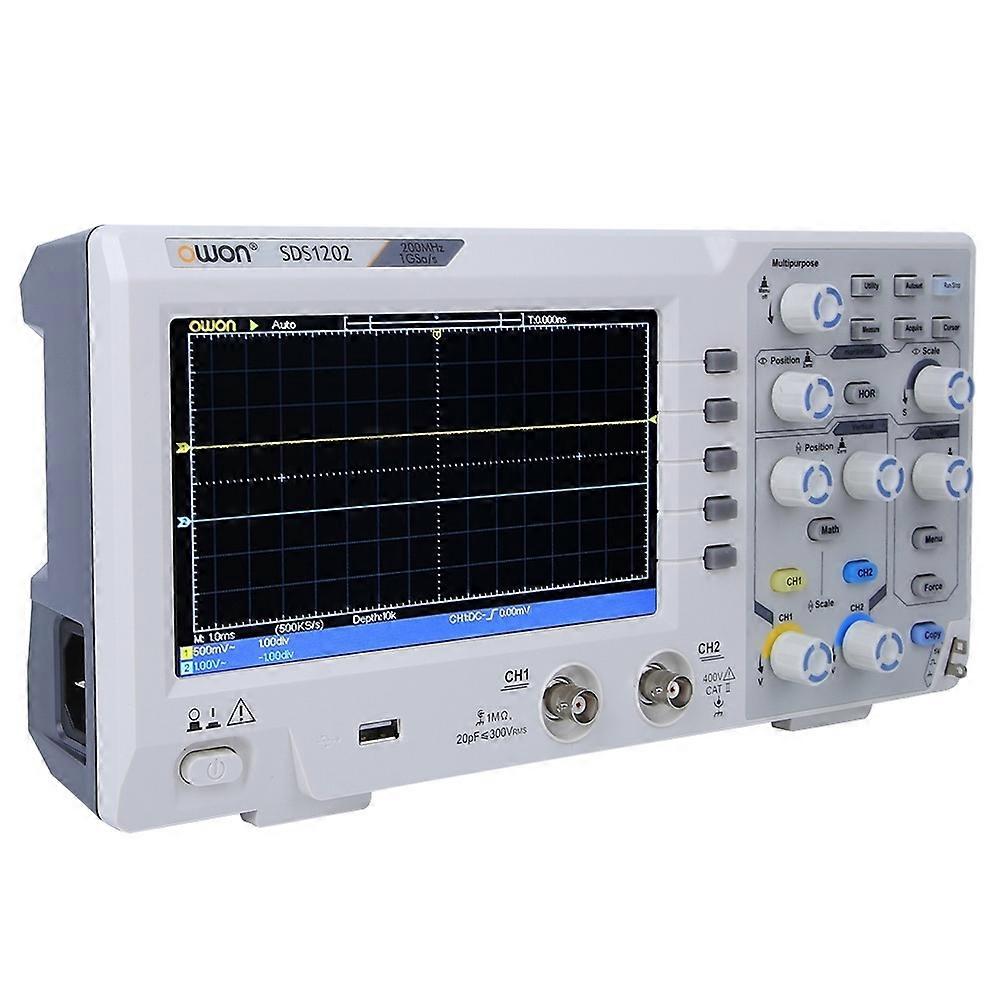

OWON SDS1202 200MHz 1GS/s 7in LCD Multifunction Digital 2-Channel OscilloscopeUS Plug 100-240V

Name: OWON SDS1202 200MHz 1GS/s 7in LCD Multifunction Digital 2-Channel OscilloscopeUS Plug 100-240V
Brand: mickcara
SKU: 8606473943657
Price: 419.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8606473943657

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$419.00

Quantity:

Subtotal: $419.00

283 customers are viewing this product

Tags:

Description

Feature: 1. Configuration of 7in large LCD color display screen, resolution is 800??480 pixels, data display is clear and intuitive. 2. Concise and clear front panel design, more convenient for users to operate. 3. The bandwidth is 200MHz and the sanple rate is 1GS/s. 4. Mainly used in electronic circuit testing, circuit function testing, designing and manufacturing testing, education and technical training, vehicle maintenance testing and so on. 5. It has two trigger type: Edge, Video, and three trigger modes: Auto, Normal, and Single. Specification: Condition: 100% Brand New Item Type: Oscilloscope Material: ABS Color: As shown in the picture Model SDS1202 Bandwidth 200MHz Sample Rate 1GS/s Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5 Rise Time (at input, typical) ??1.7ns Channel 2 Display 7in color LCD, 800 x 480 pixels Input Impedance 1M?? ?? 2%, in parallel with 20pF??5pF Channel Isolation 50Hz:100:1, 10MHz:40:1 Maximum Input Voltage 400V (PK - PK) (DC+AC, PK - PK) DC Gain Accuracy ??3% Record Length 10K DC Accuracy (average) Average??16: ??(3% reading + 0.05 div) for ??V Probe Attenuation Factor 1X, 10X, 100X, 1000X LF Respond (AC, -3dB) ??10Hz (at input, AC coupling, -3dB) Sample Rate / Relay Time Accuracy ??100ppm Interpolation sin (x) / x Interval (??T) Accuracy (full bandwidth) Single:??(1 interval time + 100ppm x reading + 0.6ns), Average>16:??(1 interval time + 100ppm x reading + 0.4ns) Input Coupling DC, AC , and GND Vertical Resolution (A/D) 8 bits (2 channels simultaneously) Vertical Sensitivity 5mV/div - 5V/div (at input) Trigger Type Edge, Video Trigger Mode Auto, Normal, and Single Trigger Level ??5 divisions from screen center Line / Field Frequency (video) NTSC, PAL and SECAM standard Cursor Measurement ??V, and ??T between cursors Automatic Measurement Vpp, Vavg, RMS, Frequency, Period, Vmaximum, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot,Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A??B , Delay A??B, area,cycle area . Package List: 1 x Oscilloscope1 x Power Cable1 x English Manual 1 x USB Cable1 x CD2 x Probe1 x Set of Probe Adjustment Kit
