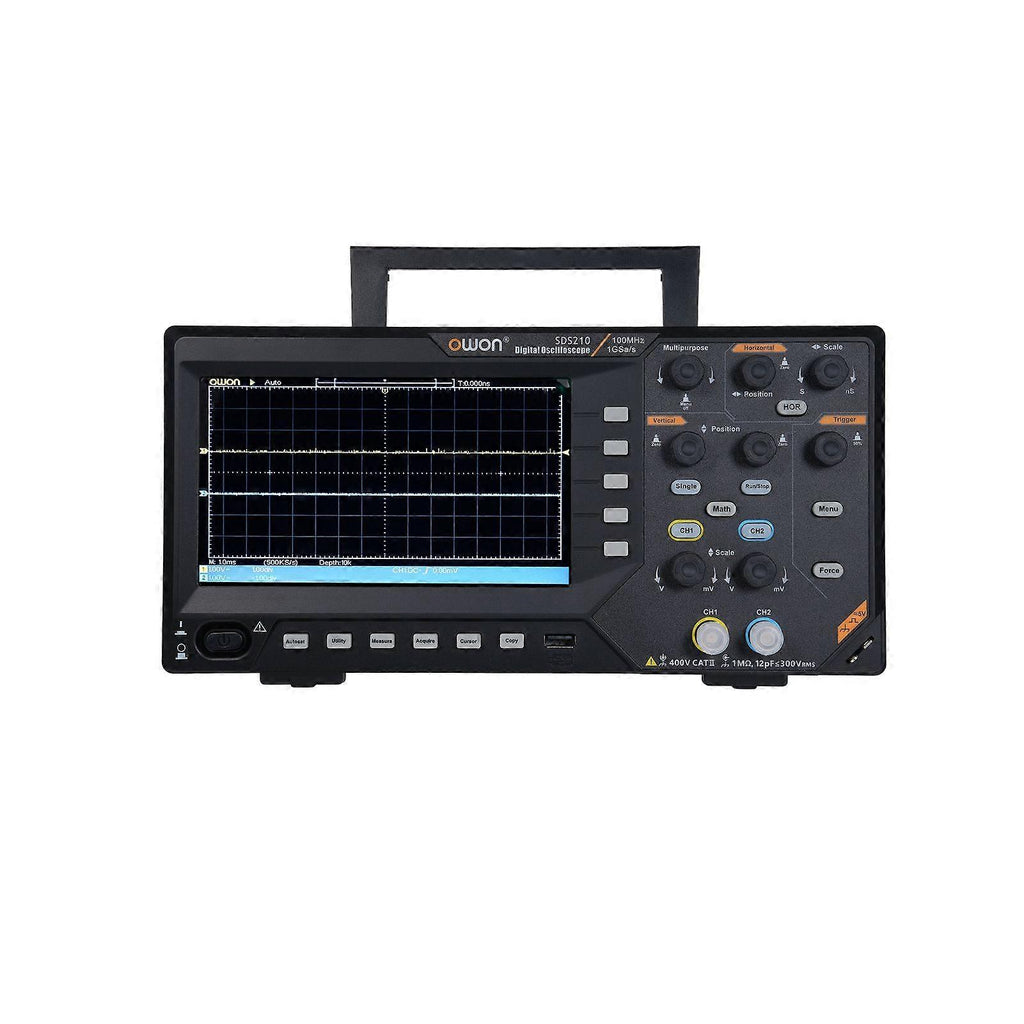

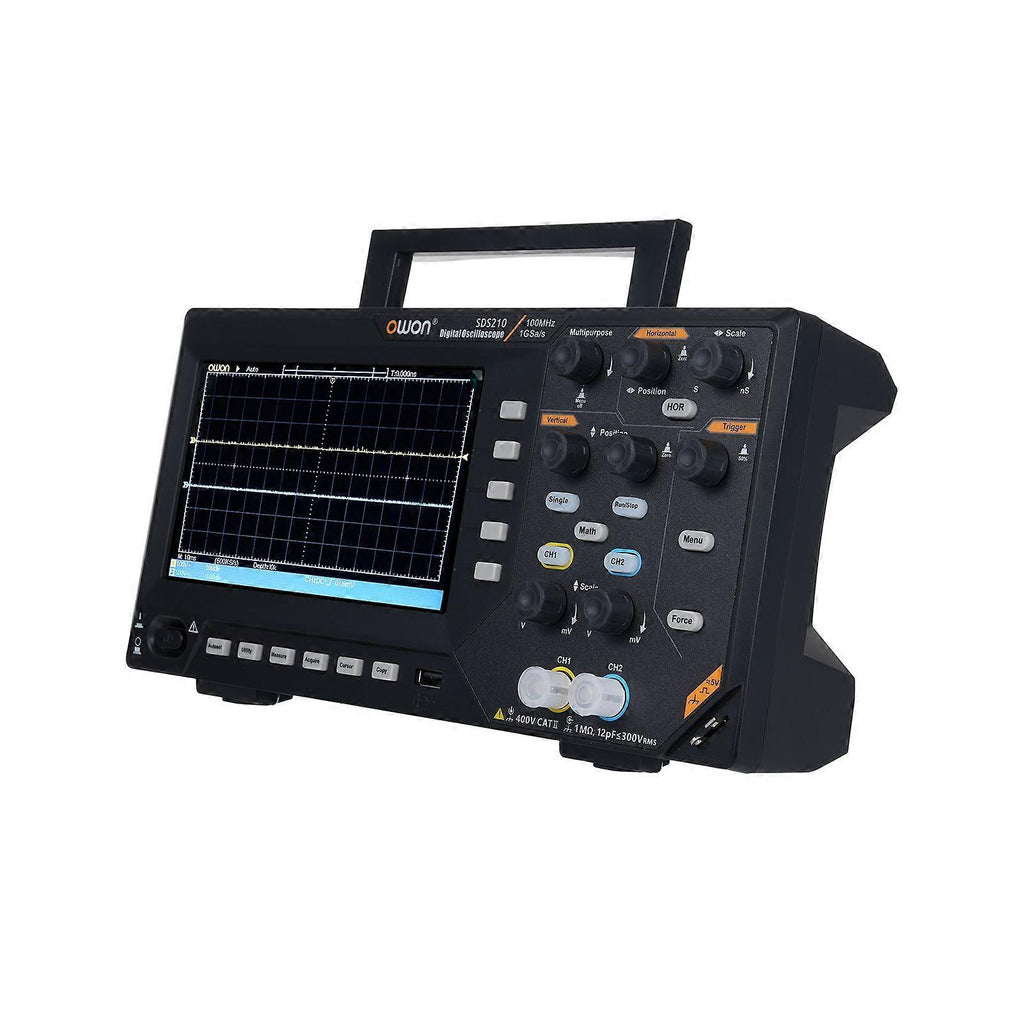

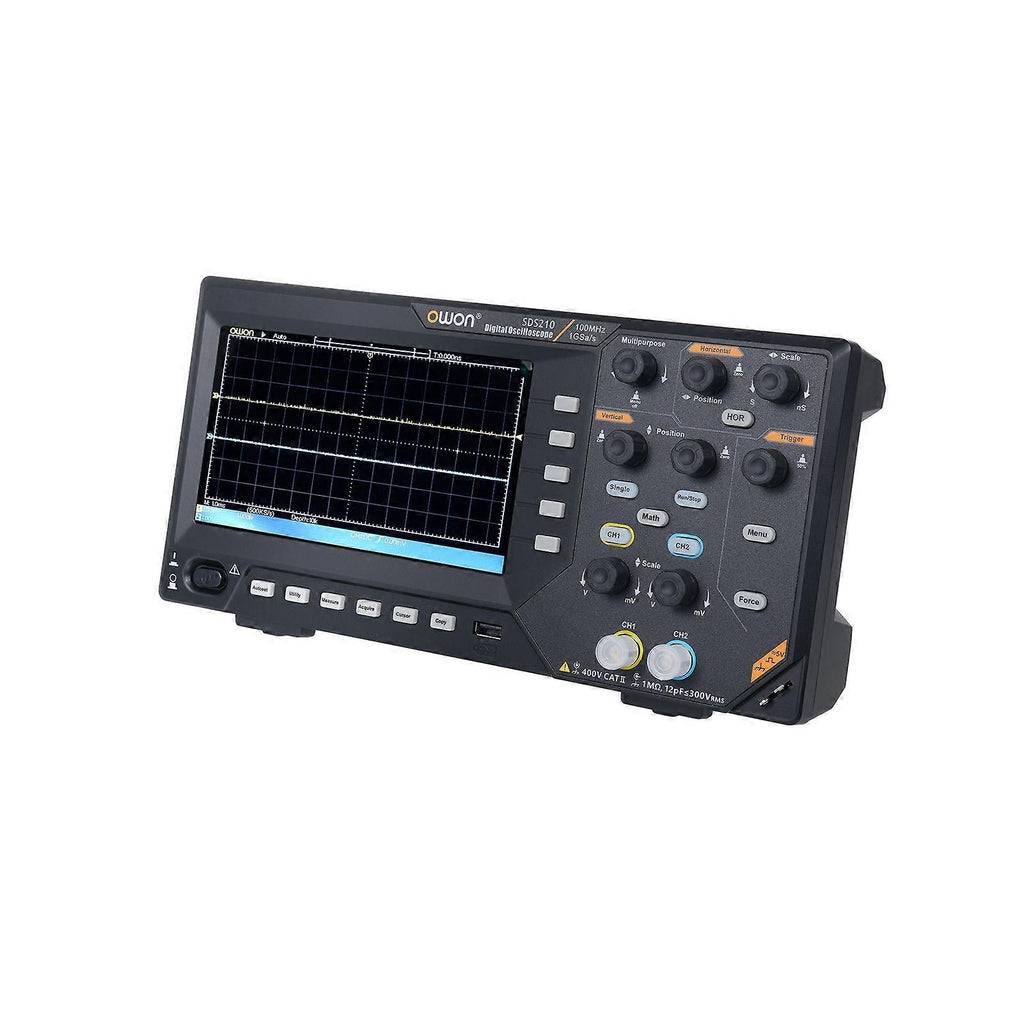

Feature:1. 100MHz bandwidth.2. Dual-channel independent 1GS/s real-time sampling rate.3. 20M memory depth.4. Support 30 Automatic Waveform Measurements: Covering time values, counts, delay and phase values, amplitude values, and more.5. 6-digit High-precision Frequency Counter: The oscilloscope's built-in frequency counter accurately measures input signals using CH1 or CH2 as the measurement source with a 6-digit display.6. FFT Spectrum Analysis: FFT converts time-domain signals into frequency-domain components, helping you measure harmonics, distortion, noise, and vibration in your system.7. Communicate with PC via USB Device interface, support SCPI and LabVIEW functions, provide free computer software and some programming development demos, so you can remotely control the instrument and consecondary development.8. 7-inch TFT LCD Display: All signals and screen information can be clearly viewed.Specification:Specifications:Plug: EU / US / UK / AU (Optional)Model: SDS210Material: ABSBandwidth: 100MHzSample Rate: Max 1GS/sAcquisition Mode: Normal, Peak detect, AveragingInput Coupling: DC, AC, GroundInput Impedance: 1M ±2%, in parallel with 20 pF ±5 pFProbe Attenuation Factor: 1X, 10X, 100X, 1000XRecord Length: 20MHorizontal Scale (s/div): 2ns/div - 1000s/div, step by 1 - 2 - 5Vertical Senstivity: 2mV/div~10V/divAutomatic Measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, + PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty, Phase, + PulseCount, - PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.Waveform Math: +, -, x, ÷, FFTWaveform Storage: 16 waveformsBandwidth: Full bandwidthPhase Difference: ±3 degreesTrigger Type: Edge, VideoCommunication Interface: USB Host and DeviceFrequency Counter: AvailableStandard Waveforms: Sine wave, square wave, ramp wave, pulse wave, arbitrary waveArbitrary Waveforms: Sinc, exponential rise, exponential decline, Gaussian more than 160 kindsSine: 0.1Hz ~ 25MHzSquare: 0.1Hz ~ 5MHzRamp: 0.1Hz ~ 1MHzRamp: 0.1Hz ~ 5MHzArbitrary Waveform: 0.1Hz ~ 5MHzSample Rate: 125MSa/sAmplitude (50): 0.005Vpp ~ 3VppDC Offset Range: ±(3V) (high resistance)Channel: 1Waveform Length: 8kVertical Resolution: 14 bitLoad Impedance: 50Display: 7 inch (800 * 480) LCDItem Size: 301 * 152 * 70mm / 11.85 * 5.98 * 2.76inItem Weight: 1070g / 2.36lbPackage Weight: 1654g / 3.65lbPackage Size: 37 * 18.5 * 11.4cm / 14.57 * 7.28 * 4.49inPackage List:Package List:1 * Digital Oscilloscope1 * Power Cord1 * USB Cable1 * Probe1 * Probe Adjust1 * Soft Bag1 * BNC Cable1 * User Manual (English)
