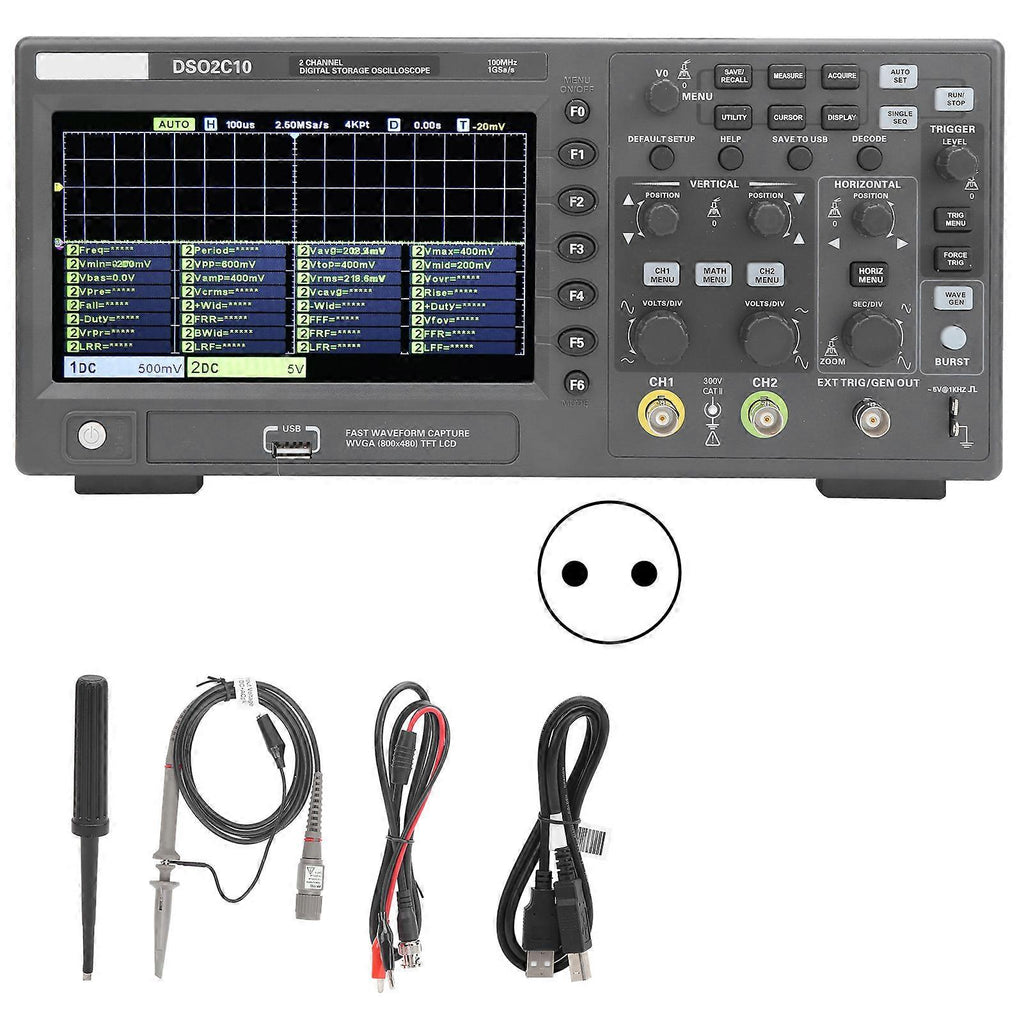

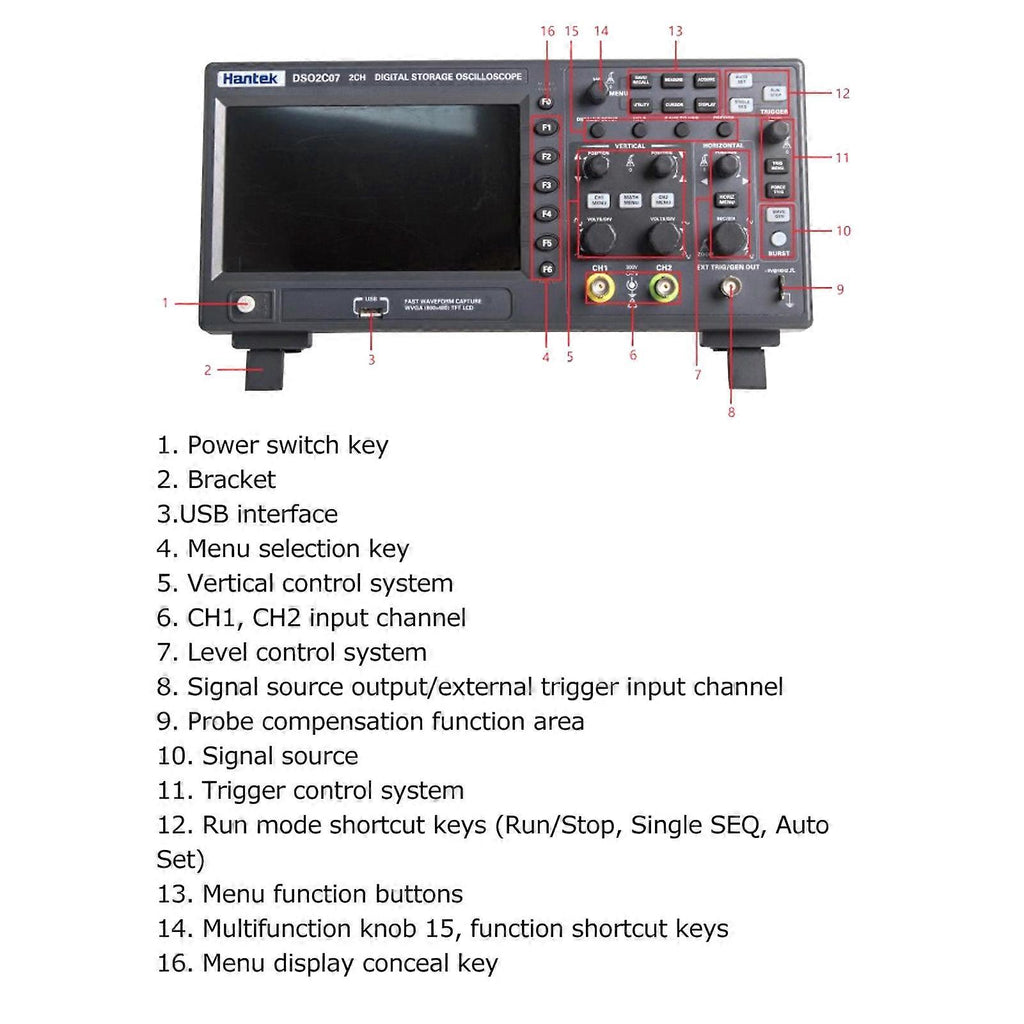

Feature:1. Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN. Abundant SCPI remote control commands/2. 5 bits digital voltage meter and 6 bits hardware frequency indicator function.3. 32 kinds of auto measurements with statistics, realtime statistics of maxmum, minimum, standrad deviation and etc.4. 2 channels, each channel has independent knob control, and adjustment is more convenient.5. Suitable for troops, college laboratory, scientific research unit and factory production line.Specification:Item Type: Digital Storage OscilloscopeMaterial: ABSColor: As shown in the pictureModelDSO2C10Bandwidth100MHZOscilloscope channel2CHOscilloscope indexSampling rate range1GSa/a(single channel),500Msa/sCollection methodSamplingSample dataPeak-to-peak valueDisplay high frequency and random glitchesAverage valueAverage waveform times: 4, 8, 16, 32, 64, 128High accuracyHighest 12bitInputInput CouplingDC, AC or ground (DC, AC, GND)Input impedance1M2% II20pF3PFProbe attenuation coefficient setting1X, 10X, 100X, 1000XVoltage classes300V CATIIMaximum input voltage300V RMS(10X)Horizontal systemWaveform interpolation(sinX)/XMaximum record lengthSingle channel maximum 8MDual channel maximum 4MHorizontal scale range2ns/div-100s/div, 1, 2, 5 stepTime base modeX-T, X-Y, RollNull offset0.5divX Minimal base gearTriggerTrigger modeAutomatic, normal, singleTrigger typeEdge trigger, pulse width triggerVideo trigger, slope trigger, timeout triggerWindow trigger, pattern trigger, interval trigger, runt trigger, UART trigger, LIN trigger, CAN trigger, IIC triggerMeasurementCursorVoltage difference between cursorsVTime difference between cursorsTThe reciprocal of T, in Hz (1/T)Automatic measurementDouble peak value, frequency, average value, maximum value, minimum value, period, top value, middle value, bottom value, amplitude, root mean square, rising edge overshoot, falling edge preshoot, period root mean square, period average , Rise time, fall time, positive pulse width, negative pulse width, positive duty cycle, negative duty cycle, FRR, FFF, falling edge overshoot, rising edge preshoot, pulse width, FRF, FFR, LRR, LRF, LFR, LFFDigital voltmeterData sourceCH1~CH2Measurement TypeDC RMS, AC RMS, DCFrequency meterHardware 6 bitsArithmetical operationData sourceCH1~CH2Operator=+, -, , , FFTFFTPoint1024WindowRectangular, Hanning, Heming, Blackman, Bartlett, flat topDisplaySingle display or full displayVertical scaleDb, VRmsStorageSave/callout (non-volatile)9 types of files can be saved and recalled internally, including settings, waveforms, and referenceSave to external storageCSV file, BMP picture (24 digits)DisplayDisplay screen type7in TFT LCD screen diagonallyDisplay resolution800 (horizontal) x 480 (vertical) pixelsDisplay typePoint, vectorWaveform brightnessAdjustableGrid typeOptionalGrid brightnessAdjustableScreen brightnessAdjustableAfterglow1s, 5s, 10s, 30s, unlimitedInterfaceStandard interfaceUSB Host, USB DevicePower supplyPower supply voltage00-120VACRMS(10%), 45Hz to 440Hz, CAT120-240VACRMS(10%), 45Hz to 66Hz, CATPower consumption<15WFuseT2A 250VACEnvironmentOperating temperature0~50 (32~122 )Storage temperature-40~+71 (-40~159.8 )Humidity+104(+40): 90% relative humidity106~122 (+41~50): 60% relative humidity.Instructions:1: Plug in the power and turn on2: Set the switch on the probe to X10 and connect the probe to channel 1 of the oscilloscope. To do this, align the slot on the probe connector with the protrusion on the CH1 BNC, press it down to connect, then turn to the right to lock the probe in place, and connect the probe tip and reference lead to the "probe unit "On the connector, the label on the panel is: ~5V at lKHz.3: Press the Auto Set button. The screen shows a square wave with a frequency of 1kHz and a voltage of 5V peak-to-peak.4: Observe whether it is a square wave, adjust the probe to keep the probe in the best state (the waveform is normal).5: MeasurementPackage List:1 x Oscilloscope1 x USB Cable1 x BNC Connecting Line1 x Probe1 x Adjustment1 x IC Cap6 x Color Circle1 x Power Cord1 x Instruction Manual
