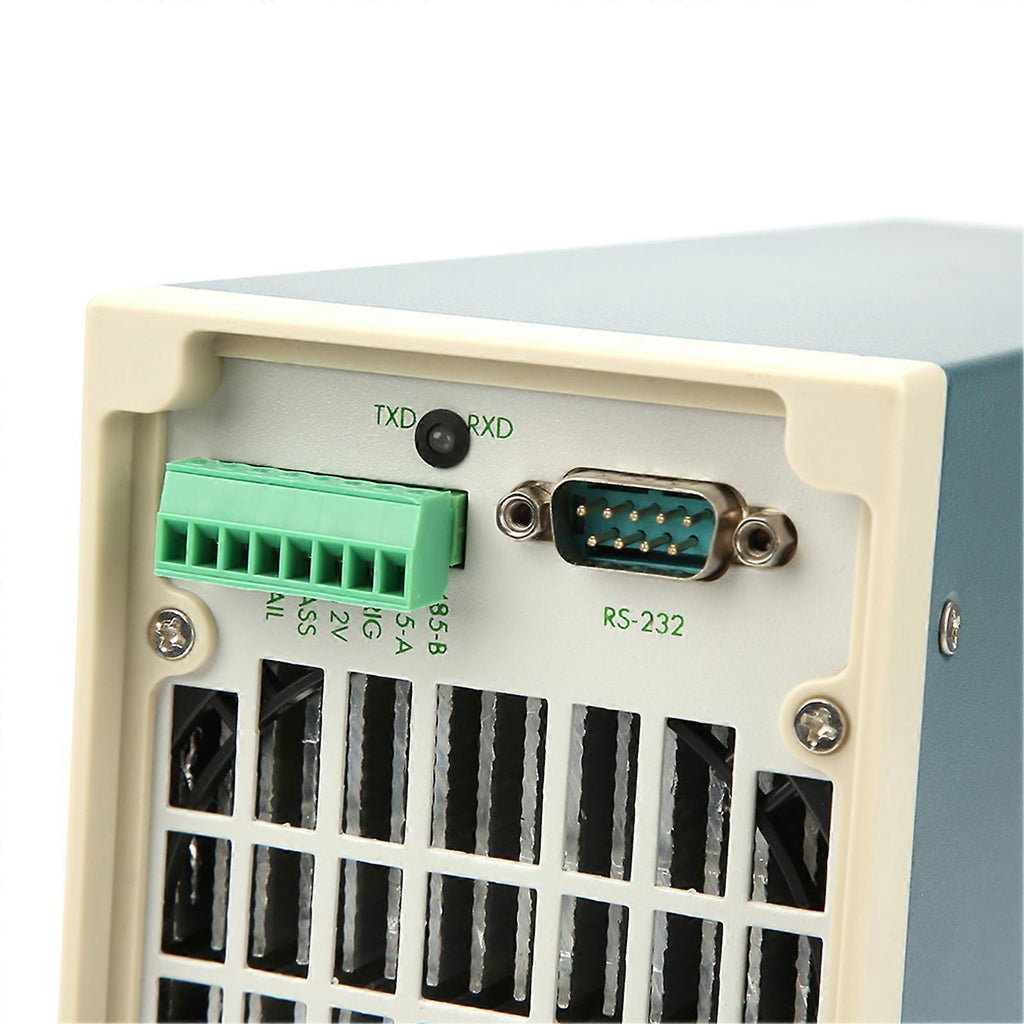

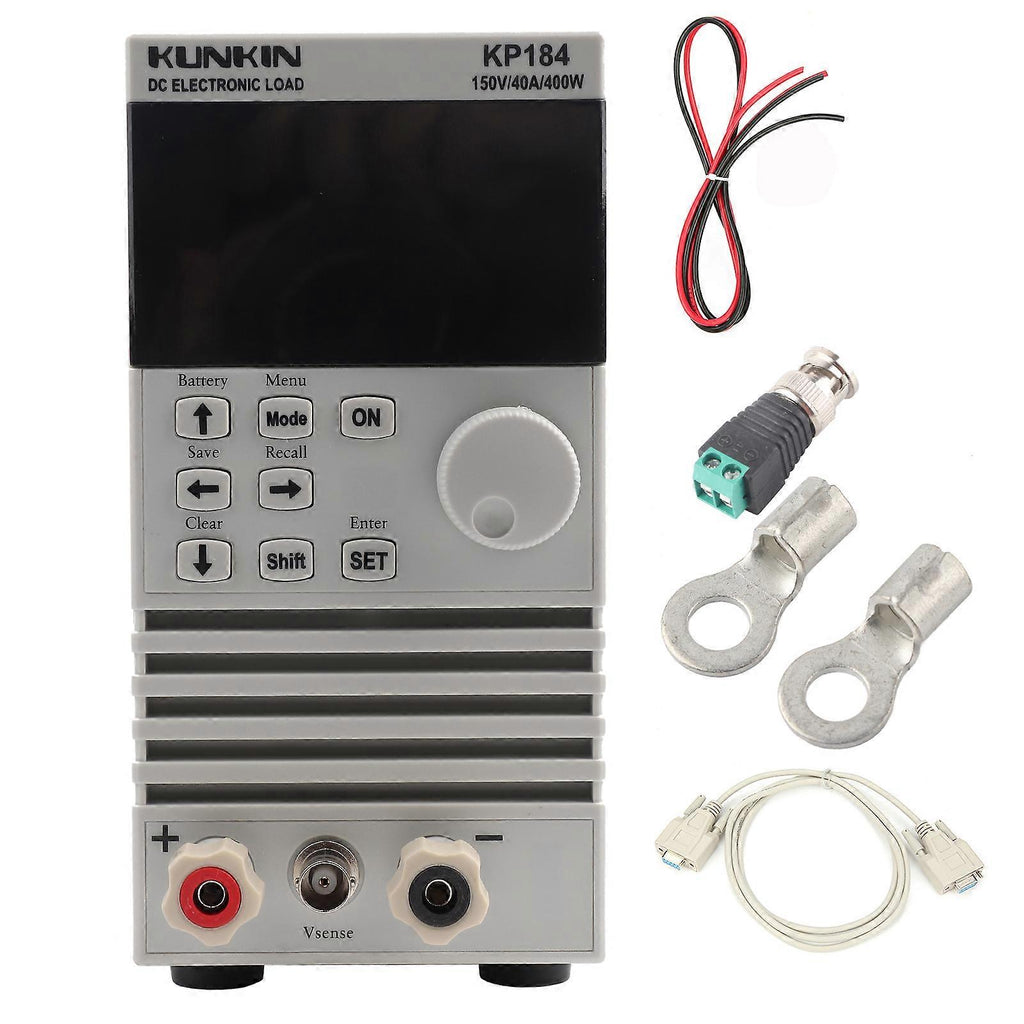

DescriptionKP184 series electronic load can be widely applied to product testing and ageing in LED lighting, power source, charger and accumulator. The current mode can be sued for simulating resistive load to discharge the battery and load the power source; the voltage mode can be used for simulating capacitive load and load the charge, as well as simulating the constant voltage of LED and load the power source. It is used simply, adjusted conveniently and has perfect protection function. The performance and function are unmatched by traditional slide wire resistor. If it is used for related industries, it could enhance productivity and reduce the costFeatures:1.It has four basic load modes like CC, CV, CW and CR .2.Input positive and negative transposition protection and give alarm3.Optimized heat radiation structure realizes high power density;4.Digital control mode, high accuracy and good stability5.Has overvoltage, overcurrent, overpower and overtemperature protection;6.Voltage far-end measuring function (remote sense)7.Auto testing function, external I/0 trigger signal, PASS, FAIL indication signal;8.10KHz dynamic testing function;9.Battery capacity testing function;10.Testing of internal resistance of battery11.Overcurrent protection point/protection time testing function12.Fan PWM temperature control;13.Power source 110VAC/220VAC shift use14.RS485 and 232 communication interface15.Synchronous operation function of multiple loaded devices online16.Upper computer software support with powerful function and friendly interfaceSpecification:Voltage: AC 110V 10%(US plug), AC 220V 10%(EU plug)Plug type(Optional): US plug, EU plugPower consumption: < 20 WLoad voltage: DC 1 -150 VLoad current: 0-40ALoad power: 0-400WMeasuring Accuracy Current: 0.05%+5mAMeasuring Accuracy Voltage: 0.05%+5mVControl Accuracy Current: 0.05%+5mAControl Accuracy Voltage: 0.05%+5mVCommunication Mode:RS232/RS485Overvoltage: When the voltage is more than 152V,the load is turned off loadOver temperature: 85Overpower: Single channel: 410WPower supply input fuse: 0.5Size: Approx. 300 x 90 x 180mm/11.8 x 3.5 x 7.1inWeight: Approx.4000g/141.1ozPackage list:1 x KP184 DC Electronic Load1 x Plug1 x Remote Compensation Terminal2 x Positive and Negative Test Terminal1 x 232 Communication Cable2 x Test Cable1 x User ManualNote: 1. This DC Load support secondary software programming, we hope you will have the software yourself.2. If you do not have, we can send it to you as a free gift, Software is only a gift ,not the goods ,so we hope you are professional for software using ; it is a free and development Software; it is only for Win7 or IE system.3. Please kindly make a note if you need any plug adapter..
