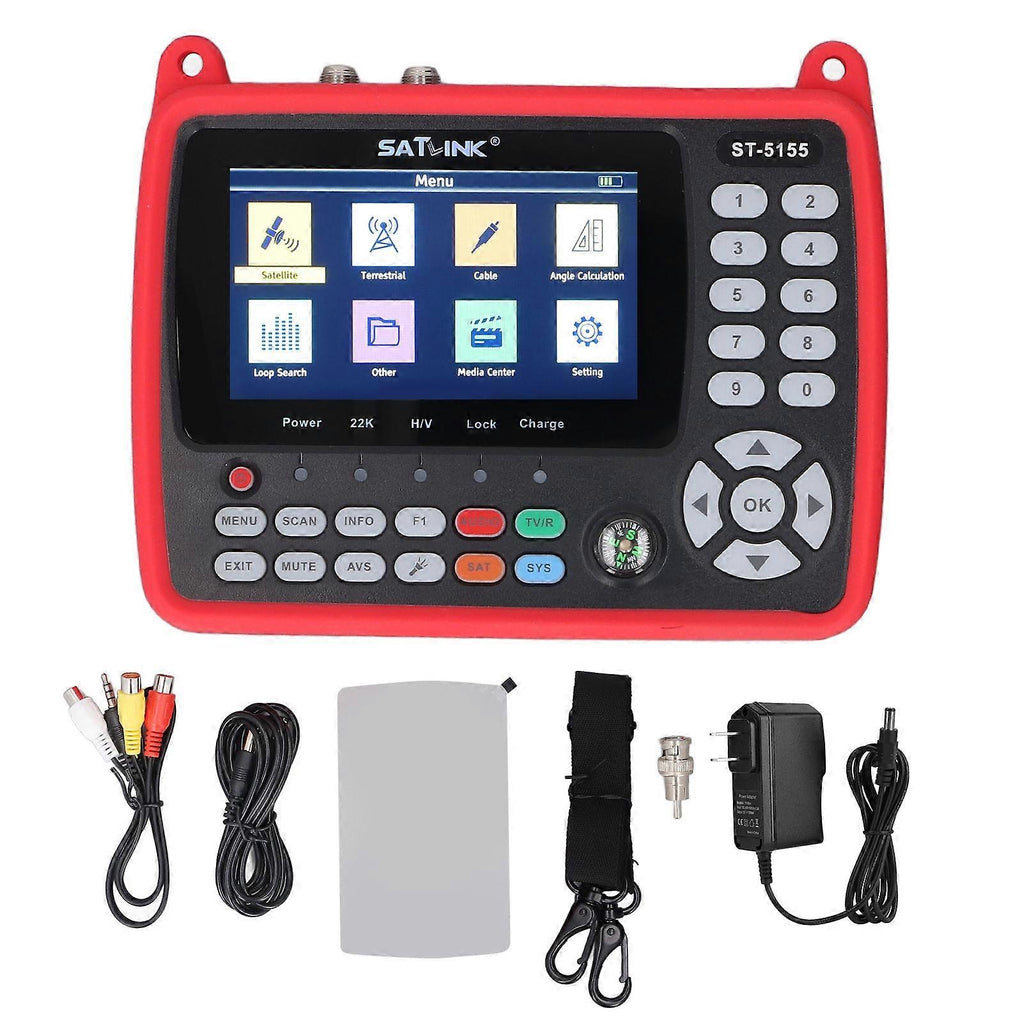

Feature:1. Transmissing Standard: High definition satellite finder, compliant with for DVB S, S2, T, T2, C and MPEG 2/4 H.264/H.265 (10 bit) standards, with input frequency of 9502150MHz (S2, S) and 47860MHz (T, T2, C).2. Versatile Use: This signal finder provides all the functions required to install and verify digital satellite TV services, antenna signal, and cable TV signal for residential or multi household units.3. Product Advantages: The satellite signal finder has the advantages of compact size, light weight, intuitive user interface, long battery working time, and rich functionality, making it highly practical.4. Functions: The satellite finder supports automatic and manual scanning, lock signal sound and light alarm, automatically calculates AZ and EL angle, supports for DISEQC 1.0/1.1/1.2, for Unicable, and 0/22kHz tones.5. Multiple Interfaces: Supports AV output and AV input, supports HD multimedia interface output, and supports LNB short circuit guard. Ensure that the satellite signal finder has stable and reliable performance.Specification:Item Type: Satellite FinderTransmissing Standard: For DVB S2X S2 S, for DVB T T2, for DVB C, H.265 (10Bit)Satellite Input DemodulationConnector Type: Female TypeInput Frequency: 950-2150MHz (S2, S), 47-860MHz (T, T2, C)Signal Input Level: -65 to -25 dBmBand Switch Control: 22KHzLNB Power Supply: 13V/18V, Maximum Current 400mADemodulation Type: QPSK, 8PSK, 16APSK, 32APSKSymbol Rate: 2<Rs<45Mband (SCPC/MCPC)For DVB T T2 C Input DemodulationConnector Type: Female TypeInput Frequency: 48-862MHzSignal Input Level: -79.5dBm (for DVBT, T2), -67dBm (for DVB C)Demodulation Type: 5V, 12V (+5%) Maximum Current 100mAANT Power Supply: QPSK,16QAM, 64QAM, 256QAMLCD Type: TFT Transmissing TypeCount: 800(RGB)x480Effective Area (W x H): 95.04x53.86mmAV Output InterfaceConnector Type: 3.5mm ConnectorVideo Output: CVBSSound Output: Stereo L/R OutputHD Multimedia Interface Output InterfaceAV Input Port: HD Multimedia Interface 1.4Connector Type: 3.5mm ConnectorSound Input: CVBSSound Input: Stereo Left Right InputSound Video ProcessingVideo Decompressing: HEVC Main Profile at level 4.1 and Main10 ProfiledL 4.1Resolution: 480p, 576p, 720p, 1080i/pVideo Format: 4:3, 16:9Sound Decompressing: MPEG 1/2 layer I/II/III, for AC3 AC3+Sound Output Mode: Stereo, Mono, R/LData Service PortConnection: USBData Protocol: USB2.0 InterfaceFile Management System: NTFS, FAT32File Format: WMA, MP3, MP4, AVI, JPQ, JPEG, BMPPower SupplyLithium Battery: 1 x 7.4V Polymer Lithium Battery 2600mAh (built in)Adapter: Output DC12V 1A, Input: 100-240VAC 50/60Hz (based on actual configuration)Energy Consumption: Maximum 10W.Package List:1 x Satellite Finder1 x Connection Cable1 x Plug1 x Adapter1 x Strap1 x Screen Protector1 x User Manual1 x Accessory
