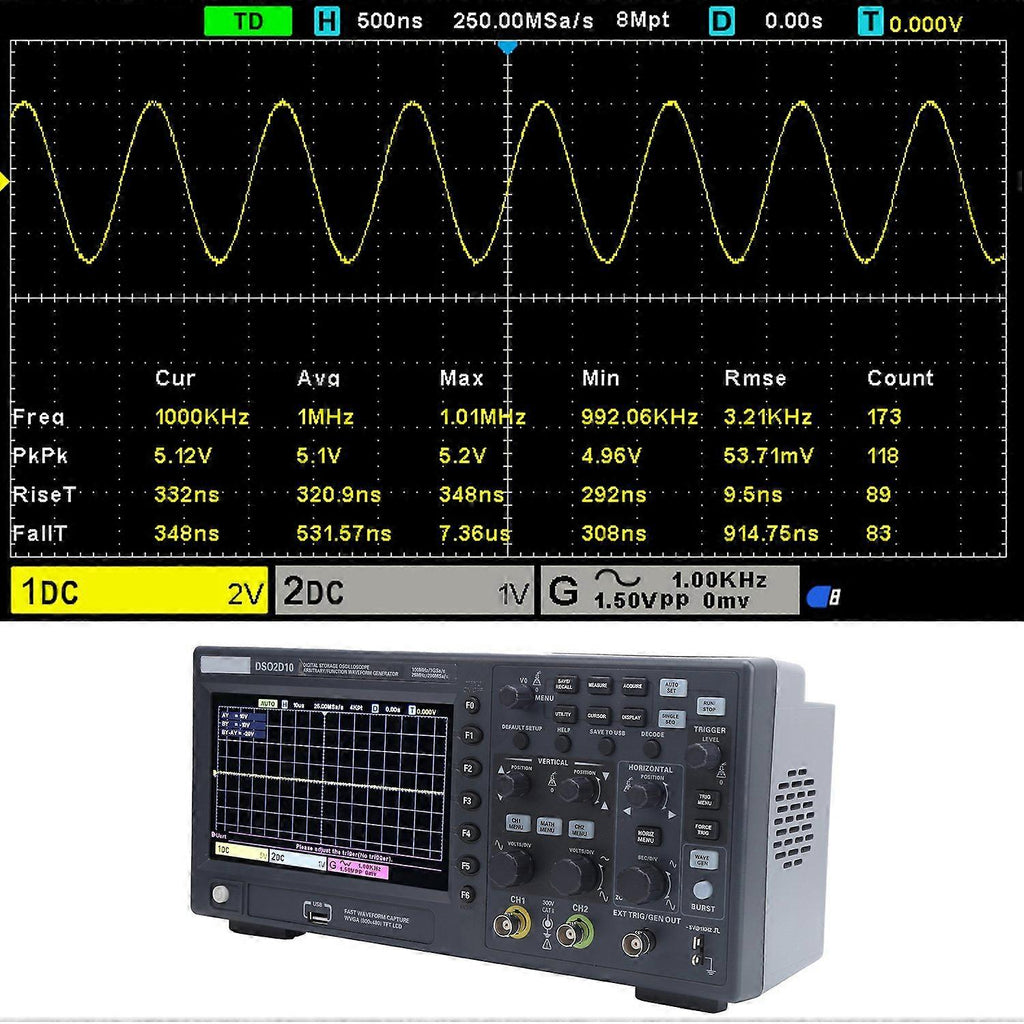

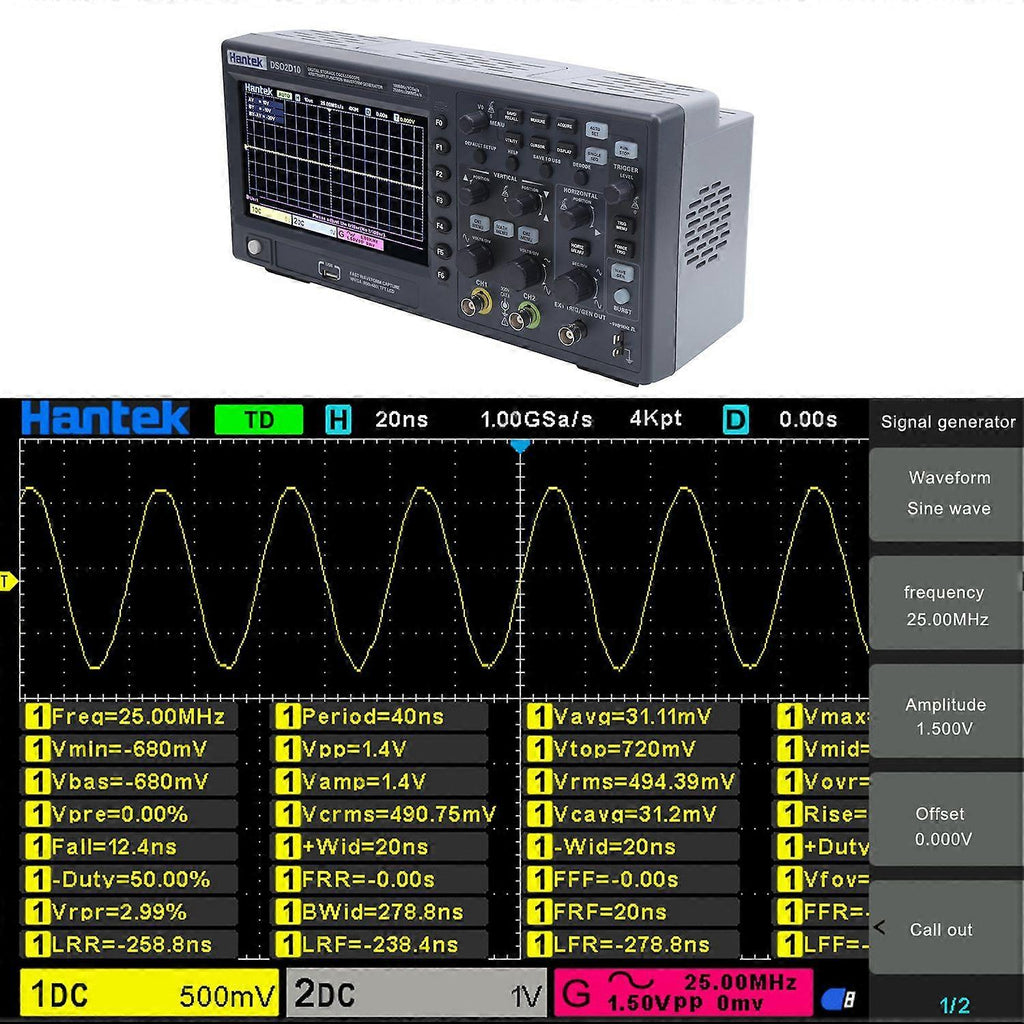

Feature: 1. Digital storage oscilloscope, built?in 1CH 25MHz signal generator, which makes electronic maintenance and car maintenance more convenient. 2. Abundant SCPI remote control commands. Storage depth is 8Mpts. 3. Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC. 4. It can save settings, waveforms, reference waveforms, CSV, pictures and other data formats. 5. Support threshold test, realize free measurement in the screen. Specification: Item Type: Digital Storage Oscilloscope Material: ABS Weight: Approx. 2700g/95.2oz ModelDS02D10 Bandwidth100MHZ Number of Oscilloscope Channels2CH Built-In Signal Source1CH Oscilloscope index Sampling Rate Range 1GSa/a (single channel), 500Msa/s Collection Method SamplingSampling Data Peakdisplay high frequency and random glitch Averagenumber of average waveforms: 4, 8, 16, 32, 64, 128 High Accuracyup to 12bit Input Input coupling DC, AC or ground (DC, AC, GND) Input impedance1M????2% II20pF??3PF Probe attenuation coefficient setting1X, 10X, 100X, 1000X Voltage level300V CATII Maximum input voltage300V RMS??10X?? Horizontal system Waveform interpolation??sinX)/X Maximum record length Single channel: maximum 8M Dual channels: maximum 4M Horizontal scale range 2ns/div-100s/div, 1, 2, 5 steps Time base modeX-T, X-Y, Roll Zero offset ??0.5divX minimum time base gear Trigger Trigger mode:automatic, normal, single Trigger typeedge trigger, pulse width trigger Video trigger, slope trigger, timeout trigger Window trigger, pattern trigger, interval trigger, runt trigger, UART trigger, LIN trigger, CAN trigger, IIC trigger Measure CursorVoltage difference between cursors??V Time difference between cursors??T The reciprocal of ??T, in for Hertz (1/??T) Automatic measurementdouble peak value, frequency, average value, maximum value, minimum value, period, top value, middle value, bottom value, amplitude, root mean square, rising edge overshoot, falling edge preshoot, period root mean square, period Average value, rise time, fall time, positive pulse width, negative pulse width, positive duty cycle, negative duty cycle, FRR, for FFF, falling edge overshoot, rising edge preshoot, pulse width, FRF, FFR, LRR, LRF, LFR, LFF Digital Voltmeter Data Source CH1-CH2 Measurement type DC RMS, AC RMS, DC Frequency meter hardware 6 bits Computation Data source CH1-CH2 Operator=+, -, ??, ??, FFT FFTpoints1024 Windowrectangular, for Hanning, for Heming, for Blackman,for Bartlett, flat roof display high frequency and random glitchalone or full display Vertical scaledB, VRms Store Save/recall (non-volatile) 9 types of files can be saved and recalled internally, including settings, waveforms, and references Save to external memoryCSV file, BMP picture (24 bits) Arbitrary Waveform Generator Channel1 Sampling Rate Range 200MSa/sec Vertical resolution 12 bits Maximum frequency 25MHZ Standard WaveformSine wave, square wave, ramp wave, Exp, noise, DC Arbitrary waveform Arb1, Arb2, Arb3, Arb4 Sine wave frequency range 0.1Hz-25MHz Square wave frequency range 0.1Hz~10MHz Duty ratio1%~99% Triangular wave frequency range0.1Hz~1MHz Symmetry0%~ Exponential wavefrequency range0.1Hz~5MHz Noise bandwidth??25MHz DCoffset 1.75V (50??), 3.5V (high resistance) Arbitrary wavefrequency range1uHz~25MHz Wave length4096 Support PC download and external memory recall Output impedance50 ??+1%, high impedance Amplitude5mV~3.5Vpp(50??) 10mV~7Vpp (high resistance) Amplitude accuracy ??3dB Frequency resolution1uHz Wave depth4KSa Frequency accuracy10KHz,50ppm ModulationFMmodulation waveform Sine wave, square wave, triangular wave Modulation frequency1Hz-50KHz Modulation deviation 0.1Hz-carrier frequency AMmodulation waveform Sine wave, square wave, triangular wave Modulation frequency1Hz-50KHz Modulation depth0%-120% BursttypeMulti-period, infinite Number of cycles 1-1024 Trigger source manual Trigger input signal source LevelCMOS Probe compensator output Output voltage, typically 5V, input load ??1M?? Frequency, typically1kHz??1% Show Display type 7in TFT LCD screen diagonally Display resolution800 (horizontal) x 480 (vertical) pixels Display typepoint, vector Waveform brightnessadjustable Grid type adjustable Grid brightnessadjustable screen brightnessadjustable Afterglow1s, 5s, 10s, 30s, infinite Interface Standard interface USB Host, USB Device power suppl
