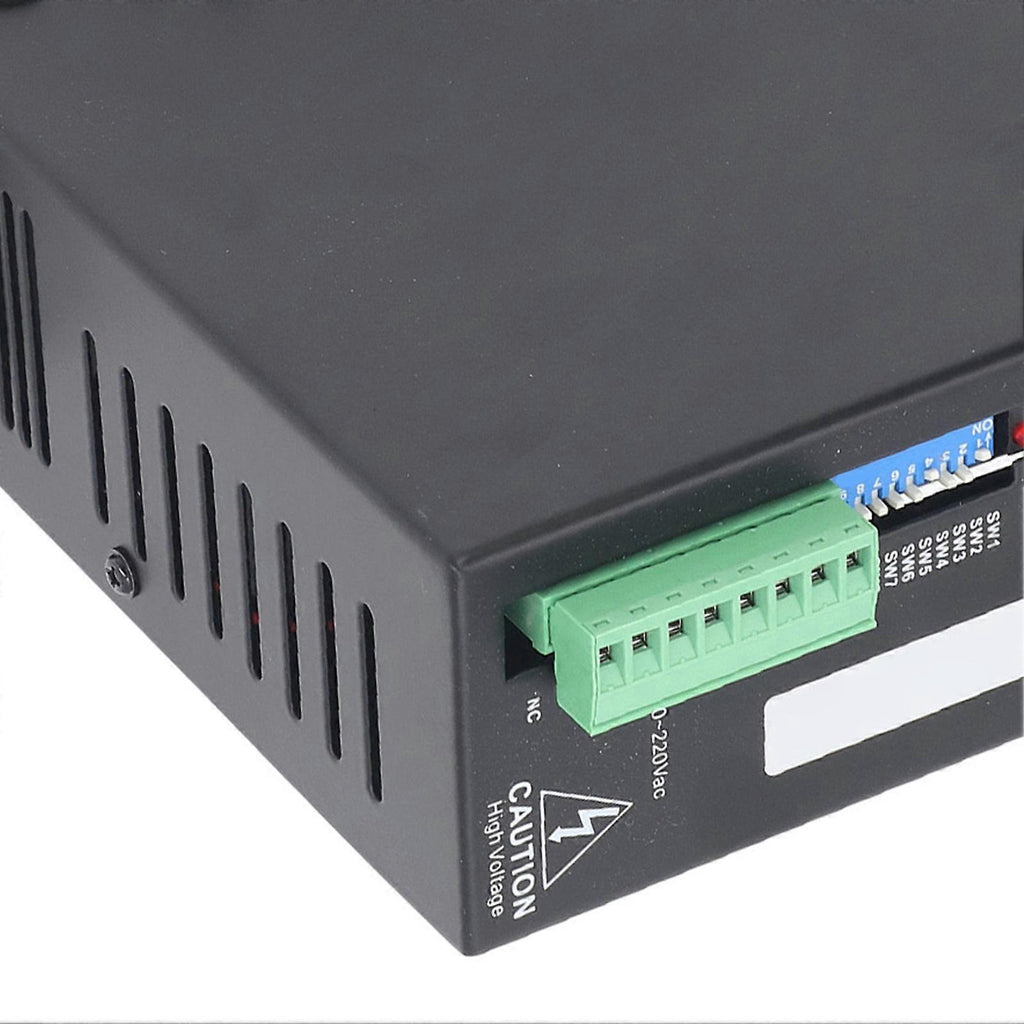

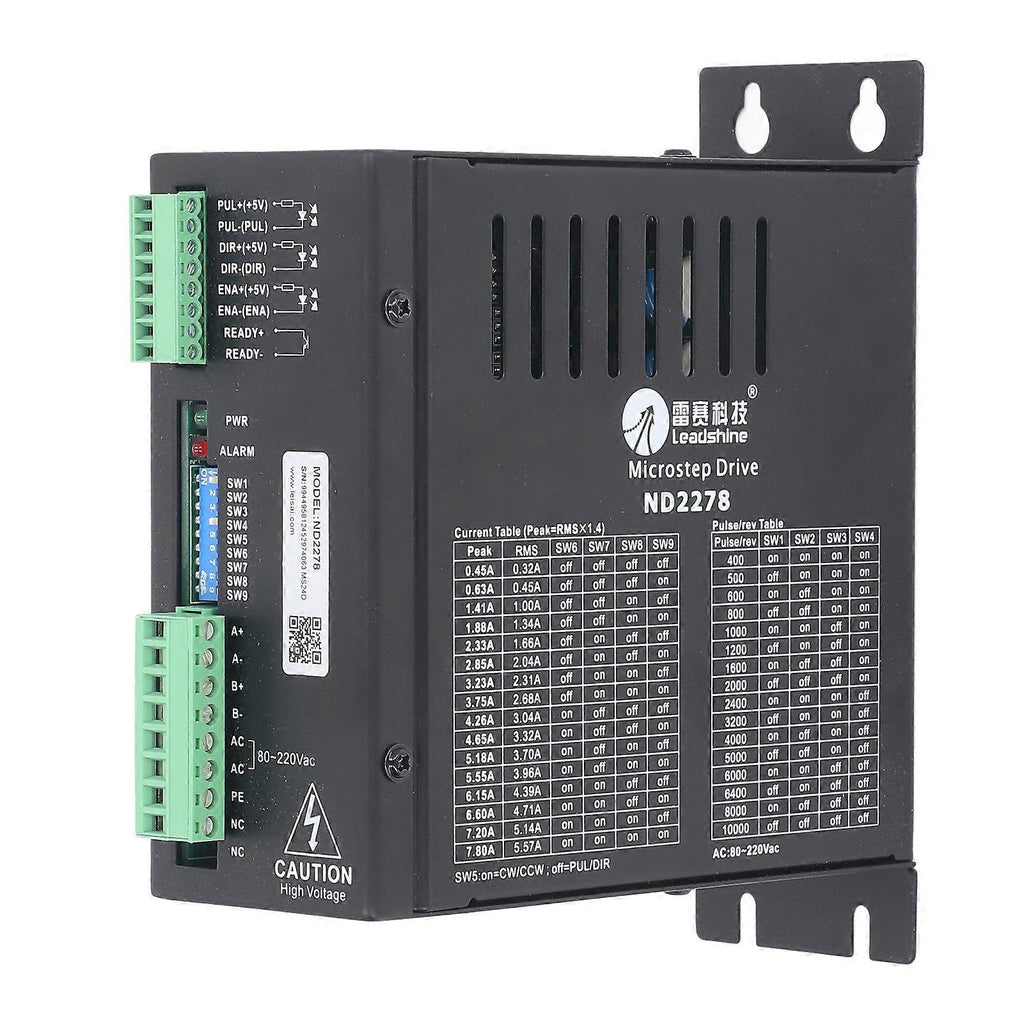

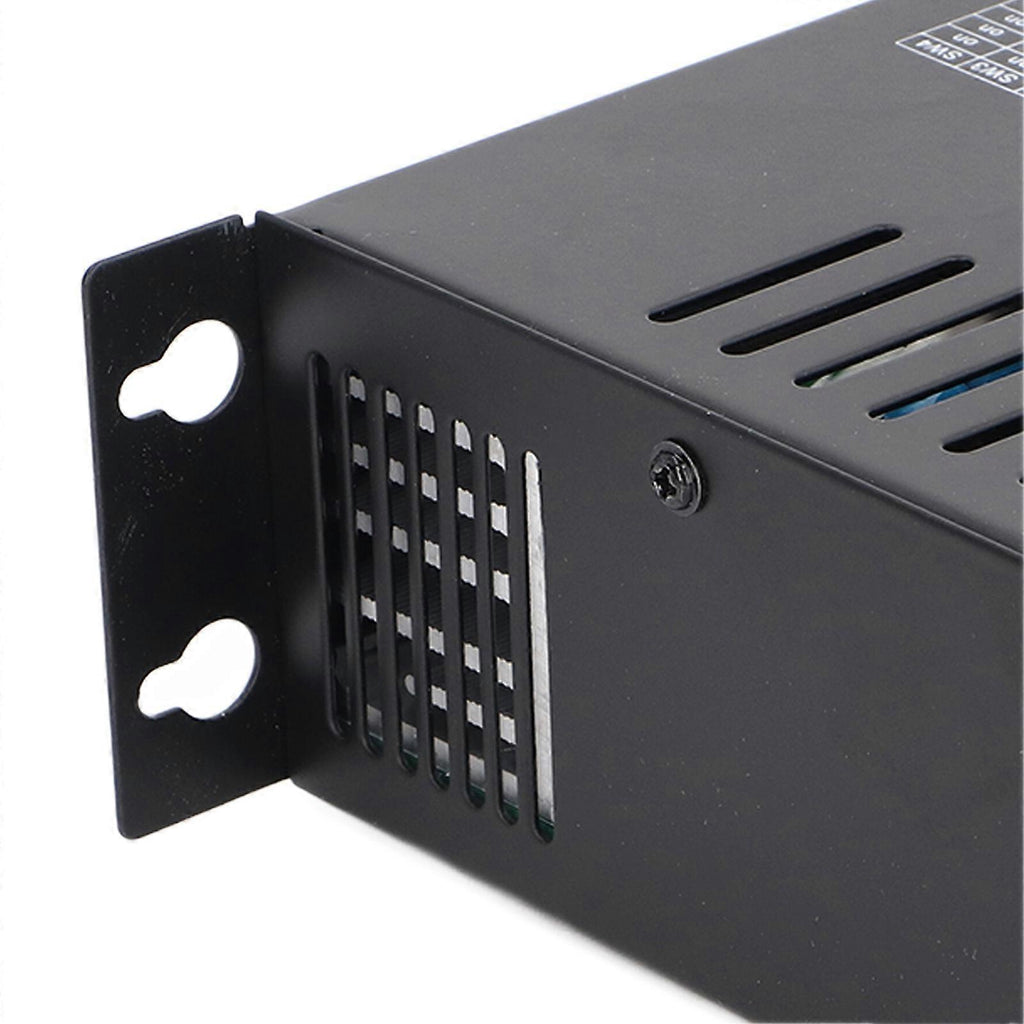

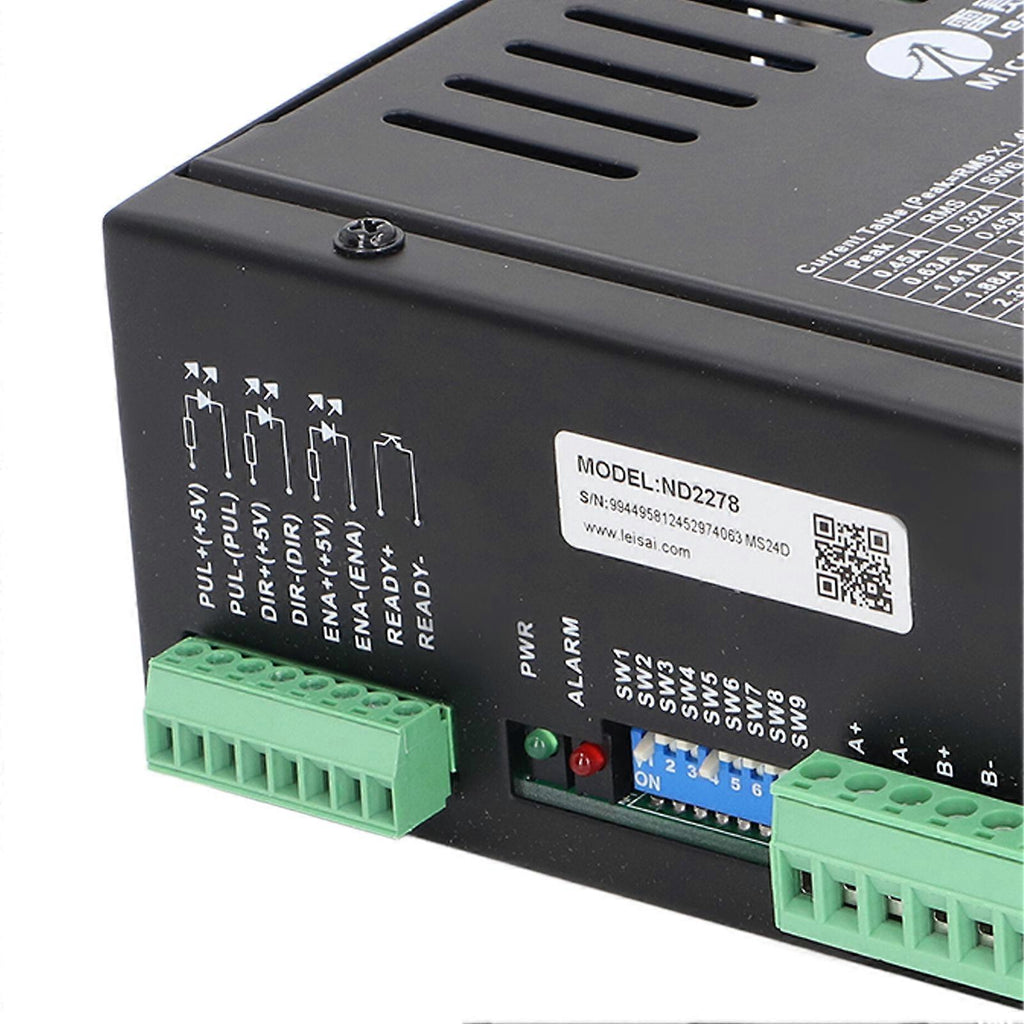

Stepper Motor Driver Micro Nema34 ND2278 for Engraving Carving Machine 80220V AC

Name: Stepper Motor Driver Micro Nema34 ND2278 for Engraving Carving Machine 80220V AC
Brand: mickcara
SKU: 8172520829002
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8172520829002

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$0.00

Quantité:

Total: $0.00

283 customers are viewing this product

Tags:

Description

Feature:1. APPLICABLE SCENARIO: The driver is suitable for driving two phase and four phase hybrid stepper motors. By adopting advanced bipolar constant current chopping technology2. SMOOTH AND LOW NOISE: The micro stepping capability of the driver make the stepper motor run smoother, with less vibration and less noise3. LOW HEAT: Pure sinusoidal current control technology can control coil current well, and the current ripple is small, thus achieving less motor noise and less motor heat4. CURRENT INFORMATION: Stepper motor driver output current up to 7.8A(5.57 ARMS) TTL compatible and optically isolated input5. FREQUENCY AND RESOLUTION: The input frequency of the micro stepper motor driver is up to 400KHz, and the resolution of 16 microsteps is optional6. SUPPORTED FEATURES: Nema34 motor driver support DIP switch microstep and current setting, and support PUL DIR and CW CCW modesSpecification:Item Type: Stepper Motor DriverOutput Current: Minimum Value: 0.45A(average 0.3A), Maximum Value: 7.8A(average 5.5A)Input Power Voltage: Minimum Value: 80V, Typical Value: 180V, Maximum Value: 220V(with ripple)Logic Input Current: Minimum Value: 7mA, Typical Value: 10mA, Maximum Value: 16mAStep Pulse Response Frequency: Minimum Value: 0KHz, Maximum Value: 400KHzInsulation Resistance: 500M.Package List:1 x Stepper Motor Driver
