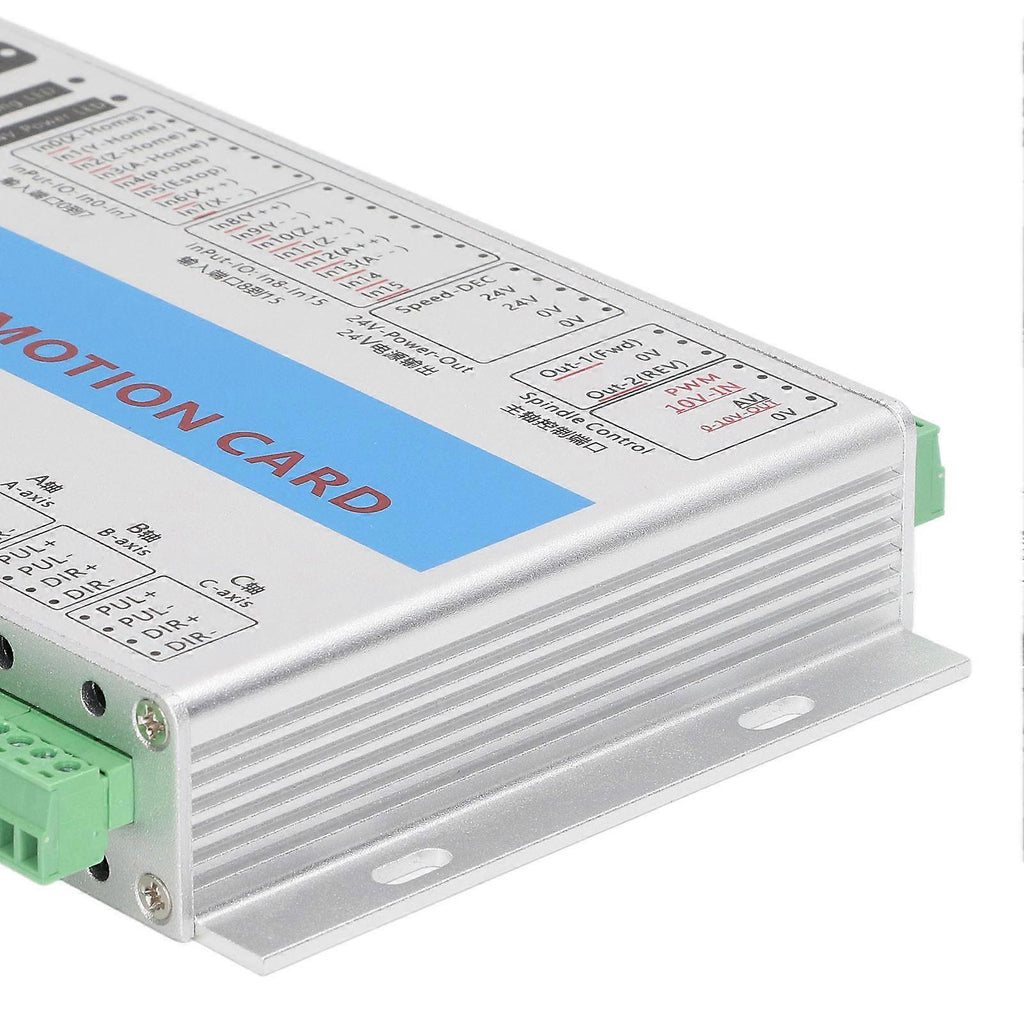

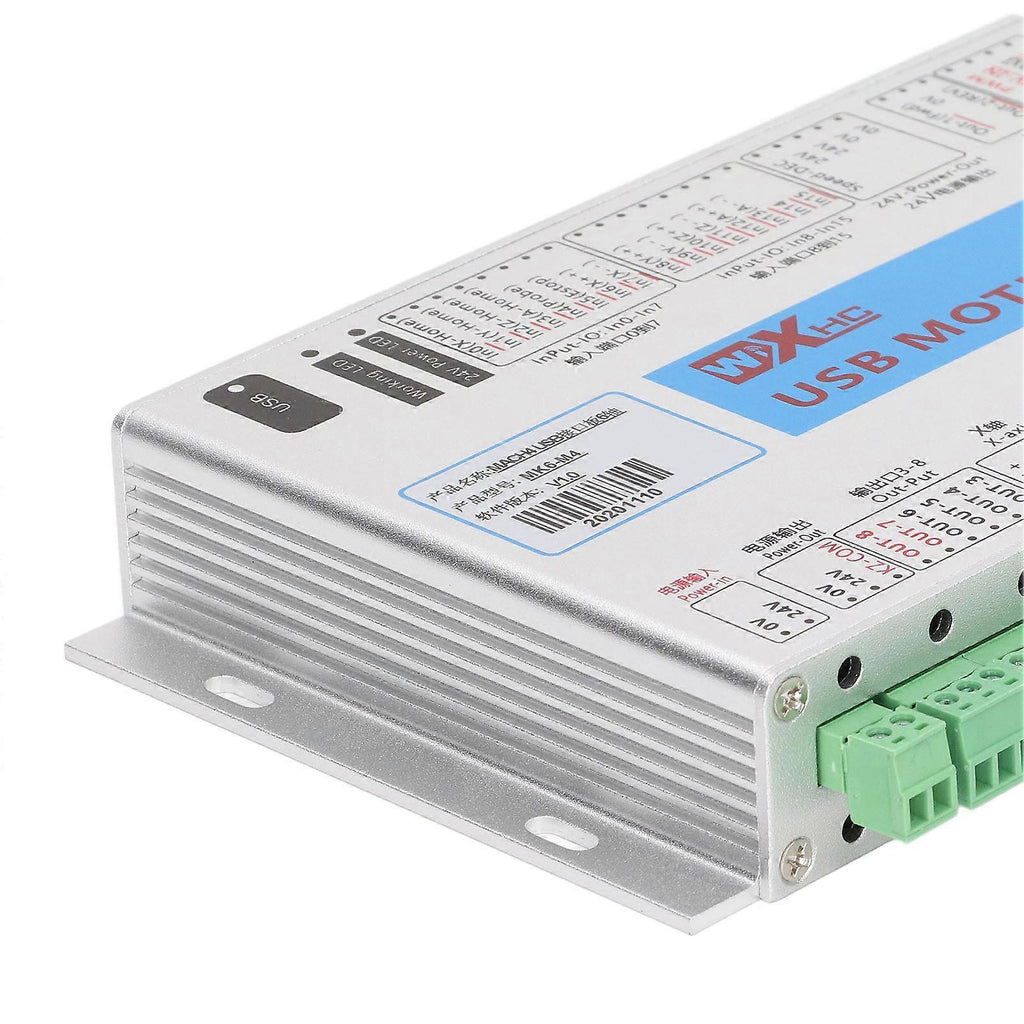

USB Motion Control Card 2000KHz Pulse Output Plug and Play USB Motion Control Board for 6 Axes CNC Engraving Machine

Name: USB Motion Control Card 2000KHz Pulse Output Plug and Play USB Motion Control Board for 6 Axes CNC Engraving Machine
Brand: mickcara
SKU: 8172520828722
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8172520828722

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$0.00

Quantité:

Total: $0.00

283 customers are viewing this product

Tags:

Description

Feature:1. Multi Function: The motion control card supports the spindle speed feedback, shaft differential output, spindle PWM speed control output, pulse and direction output, 0 to 10V analog voltage speed control output, practical and useful.2. Plug and Play: USB does not need to install drivers, plug and play for Windows all versions, support USB hot plug, the USB cable can be unplugged and plugged when working, the connection is normal.3. High Output and Durable: The control board has 2000KHz pulse output, support servo or stepper motor, adopts aluminum alloy housing, has high strength and long last durability.4. Status Indicator: With status indicator, can monitor the USB connection status, machine connection status, operation status and various statuses at a glance.5. High Performance Interface: The controller has 16 input ports, 8 output ports, supports extended input and output ports, all IO ports are fully isolated, with strong anti interference and stable performance.Specification:Item Type: USB Motion Control CardMaterial: Aluminum alloyOutput Control: Direction, pulseDrive Current: Isolated open circuit output 5V 20mADrive Mode: Pulse and direction outputOutput Frequency: 2000KHZNumber of Axes Supported: MK6 M4 6 axes supportedSpindle Speed Control Output: Support 3 modes of output Analog Speed Regulation Voltage Output: 0-10VPWM Output: 5V, 1KHZ, duty cycle 0 to Pulse and Direction Output: Minimum output frequency is 15HZ, maximum output frequency is 4KHZ8 Way Output Port: Drive Current: Isolated open circuit output maximum current 50mA, maximum drive voltage 25V, active low16 Way Input Port:Input Current: Isolated input 5mA, maximum voltage 25VControl Signal: Differential signalControl Signal Type: Position controlTool Setting Type: Fixed tool setting, floating tool settingSupport Toolpath File Format: nc tap txtSupported Drive Type: Stepper or Servo DriveUSB Interface: Compliant with USB2.0 standard, supports full speed transfer mode.Package List:1 xUSB Motion Control Card1 x Driver CD1 x Connection CableNote:Support for Mach4 hobbyist version, only suitable for Windows operating system.
