2Set 868-915MHz SX1262 ESP32 LoRa 0.96 Inch Blue OLED Display WIFI Lora 32 V3 Development Board for

Name: 2Set 868-915MHz SX1262 ESP32 LoRa 0.96 Inch Blue OLED Display WIFI Lora 32 V3 Development Board for
Brand: mickcara
SKU: 8564030659987
Price: 72.66 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8564030659987

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$72.66

Quantité:

Total: $72.66

283 customers are viewing this product

Tags:

Description

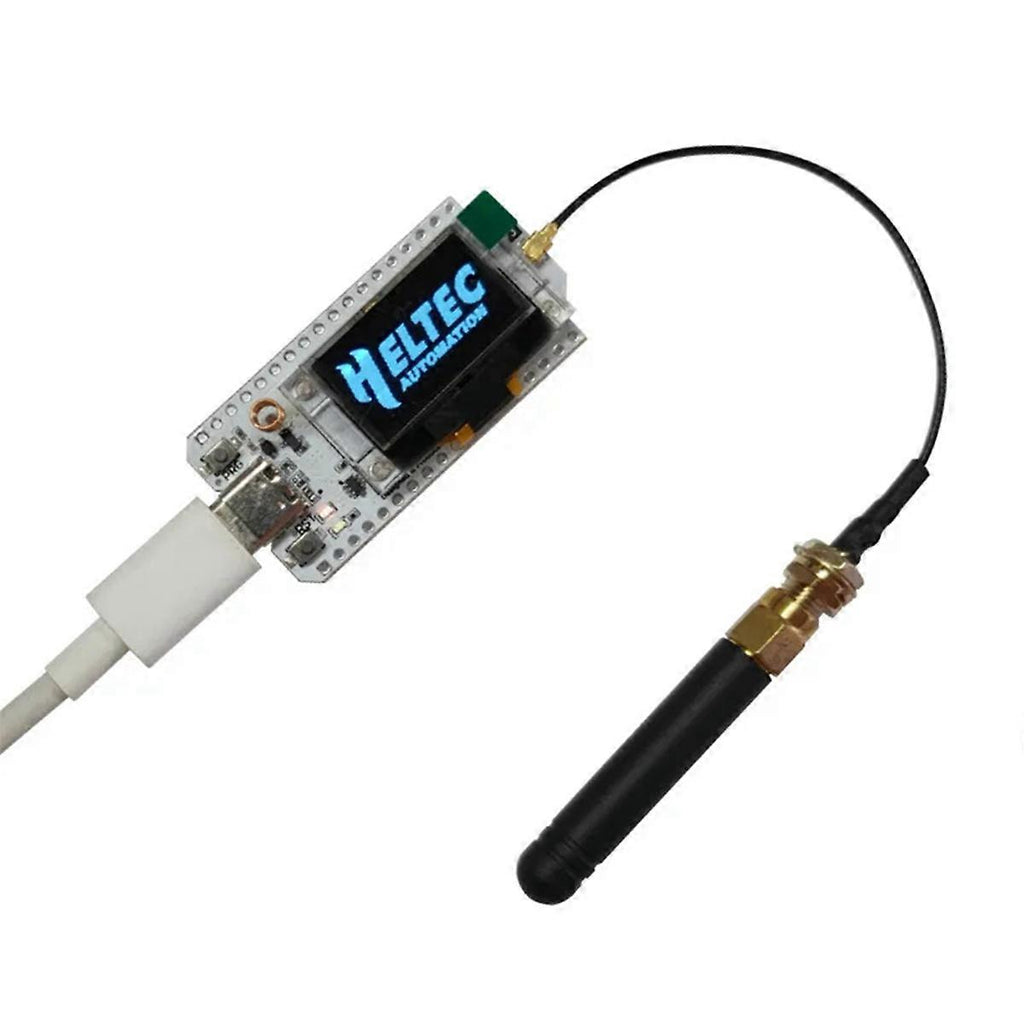

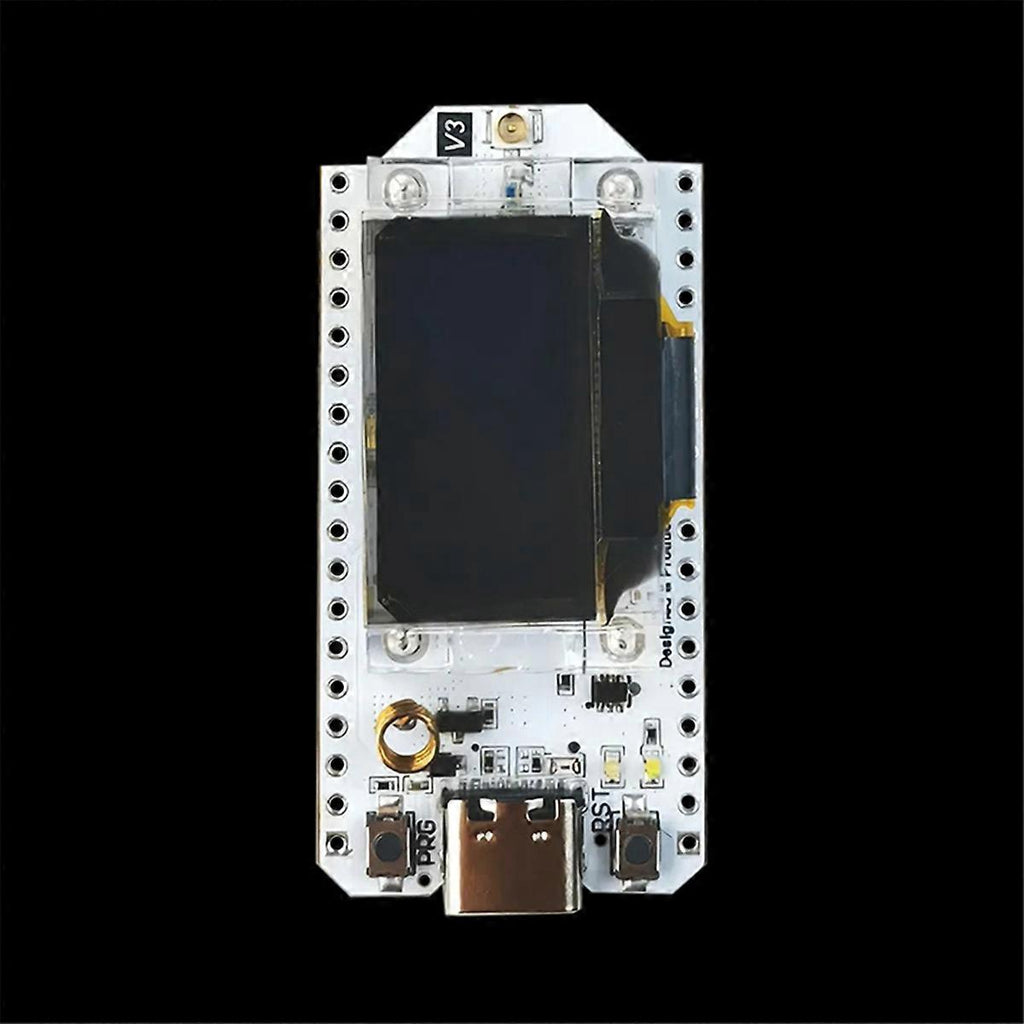

WiFi LoRa 32 is a classic IoT dev-board , it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions. It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers. Microprocessor: ESP32-S3FN8 (Xtensa 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz). SX1262 LoRa node chip. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching). Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved (U.FL) interface for LoRa use. Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information. Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing. Support the for development environment. We provide ESP32 + LoRaWAN protocol for library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed. With good RF circuit design and low-power design. Quantity:2Set Colour:White & Black Material:PCB+electronic components Package Contents: 2 * LoRa32 V3 Development Board 4 * Pin 2 * Antenna 2 * Terminal line Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
