Features
1??CPU Block: The CPU block is constructed with a copper base to provide exceptional heat transfer and cooling performance.
2??Cylindrical Water Reservoir: The cylindrical water reservoir is manufactured from high quality transparent acrylic so that the circulation system is visible.
3??Water Pump: Waterproof, stable, high quiet, long life. 240mm Heat Sink: Provide the excellent heat dissipation, as you need for highly overclocked desktop processors.
4??LED Cooling Fan: The excellent performance cooling fan offers a high air static pressure with lower noise.
5??6 Rigid Tube: Can be bent when heating, also can be cut to meet your need.
Specification
Description:

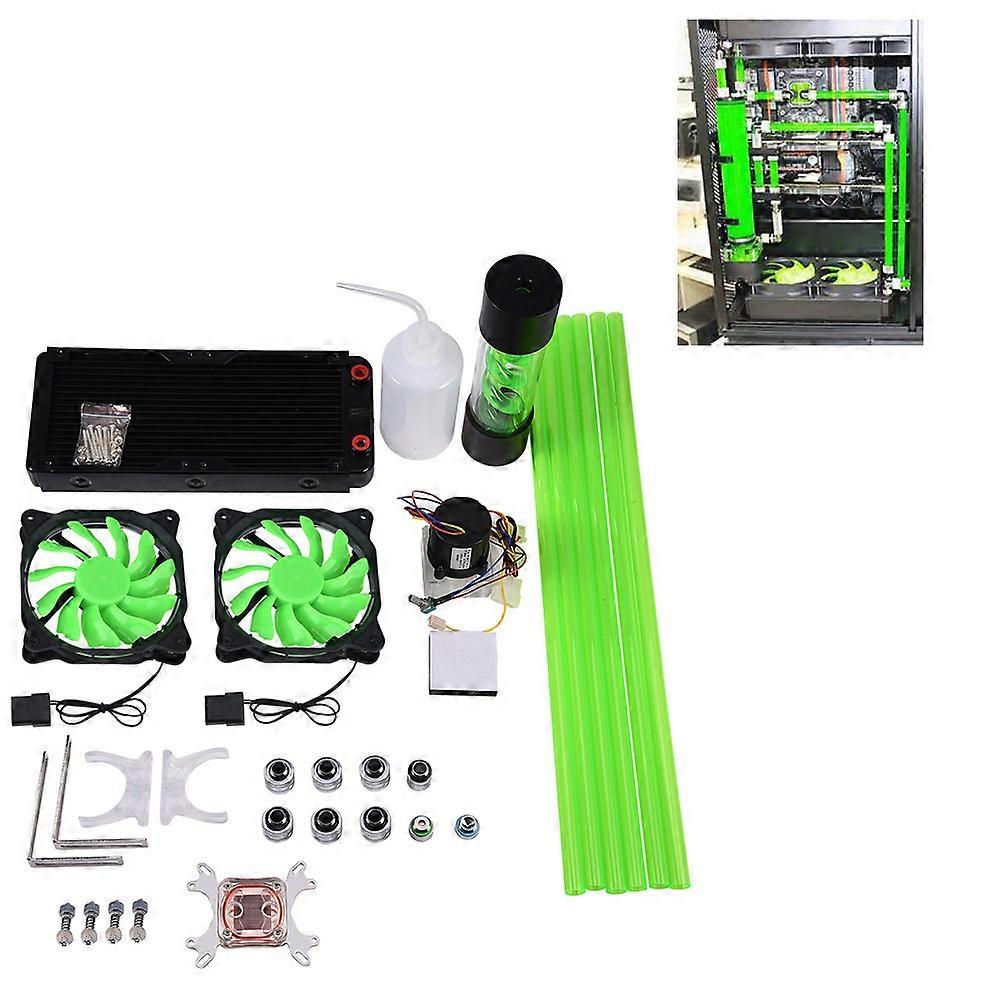

This all-in-one liquid CPU cooler kit provides 240mm heat sink, CPU block, 6 rigid tubes, water pump, cylindrical water reservoir, dual LED fans, as well as installation accessories, which will dramatically improve heat dissipation experience, especially in terms of stability, silence, efficiency, and convenience. Liquid cooling simply works better than air cooling and the special design makes it easy for you to protect your valuable CPU.
Features:
CPU Block: The CPU block is constructed with a copper base to provide exceptional heat transfer and cooling performance.
Cylindrical Water Reservoir: The cylindrical water reservoir is manufactured from high quality transparent acrylic so that the circulation system is visible.
Water Pump: Waterproof, stable, high quiet, long life.
240mm Heat Sink: Provide the excellent heat dissipation, as you need for highly overclocked desktop processors.
LED Cooling Fan: The excellent performance cooling fan offers a high air static pressure with lower noise.
6 Rigid Tube: Can be bent when heating, also can be cut to meet your need.
Specifications:
Main Color: Green and Black
Package weight: 2500g

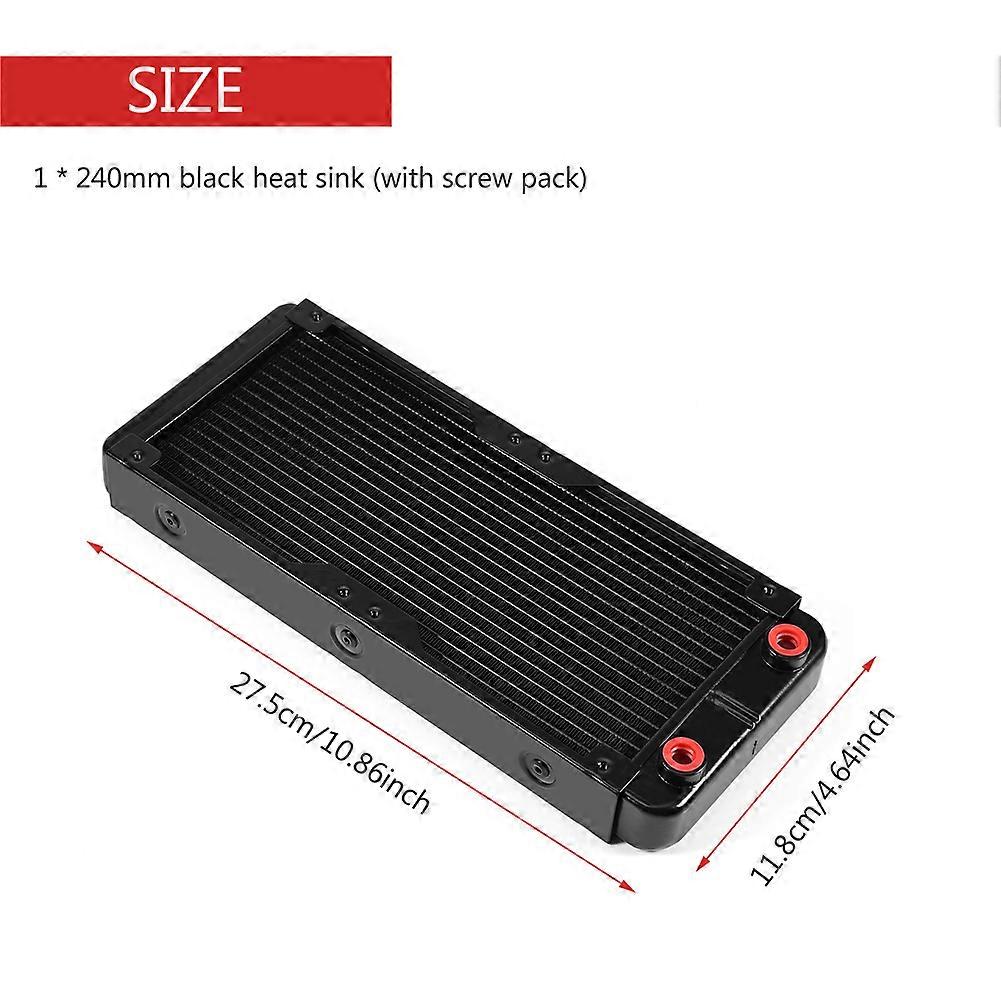

1. 1 * 240mm black heat sink (with screw bag):
Appearance size: 27.5*11.8*3.2cm
Suitable tube: Diameter of 8-10mm/ 0.3-0.4in
Outdoor diameter: approx. 12.9mm/ 0.5in
Material: Aluminum
Number of waterways: 18
Application: water cooling system heat exchange
Surface treatment: powder coating
2. 2 * LED fans:
Appearance size: 12 * 12cm
Power supply interface: large 4Pin + small 3Pin
3. 1 * CPU block (with 4 pcs screws):
Description: Universal for INTEL / AMD Dual Platform (For INTEL 775, 1150, 1155, 1156, 1366) (For AMD: AM2, AM3, AM3 +)
Note: Do not support for AMD4CPU CPU block, bracket supports for AMD INTEL mainstream hole installation.
Screw size: G1 / 4
Outside diameter: 12.9mm
Size: bottom contact size: 5 * 5cm; thickness: 3mm
Material: Bottom: red copper; Cover: transparent plexiglass
4. 1 * Cylindrical water reservoir (with plastic brackets * 2, metal brackets * 2, screw bag * 1):
Water reservoir height: about 200mm
Water reservoir diameter: 5.5cm
Water reservoir interface: G1 / 4 universal thread
Interface diameter: 12.9mm
5. 6 * PETG 50cm green hard tube (Note: Chamfer tools, pipe bending tools, heat gun, saw blades and other tools are NOT included, please purchase separately):
Can be bent when heating, also can be cut off.
Inner diameter: 10mm
Outer diameter: 14mm
6. 1 * Sine Wave Quiet Recycling Water pump for DDP computer (with shock pad):
Features: Waterproof, High Stability, Quiet, Long life
Thread size: G1 / 4
Interface diameter: 12.9mm
Pump Size: overall length: 7.5cm, height: 5.2cm, cover thickness: 2.8cm, cover width: 5.2cm
Material: Acrylic
Pump head: 4 meters
Power supply interface: large 4Pin + small 3pin
Power: 15W
Flow: 8L/min
7. 6 * 10x14 Two-Touch fitting:
Thread
Specification: G1/4 (2'), the actual outer diameter is 12.9mm
Material: Brass
Surface treatment: chrome plating
Seal: Silicone sealing ring, inside 3 sealing rings design
Size: outer diameter: 21.8mm; overall height: 18mm; screw thread height: 5mm; intubation height: 14mm
Application: for PETG acrylic cylindrical tube with outer diameter of 14mm
8. 1 * Water feeder (No water):
Capacity: 500ml
Thread
Specification: G1/4 (2'), the actual outer diameter is 12.9mm
Material: Brass
Surface treatment: chrome plating
Seal: silicone sealing ring
Diameter: 18mm
10. 1 * Nnipple connector:
Can rotate 360 degrees
Thread size: G1 / 4 (2')
Actual diameter size:12.9mm
Material: Brass
Surface treatment: chrome-plated
Seal: silicone sealing ring
Diameter: 18mm
Thread size: G1 / 4 (2')
Actual diameter size:12.9mm
Material: brass
Surface treatment: Chrome-plated

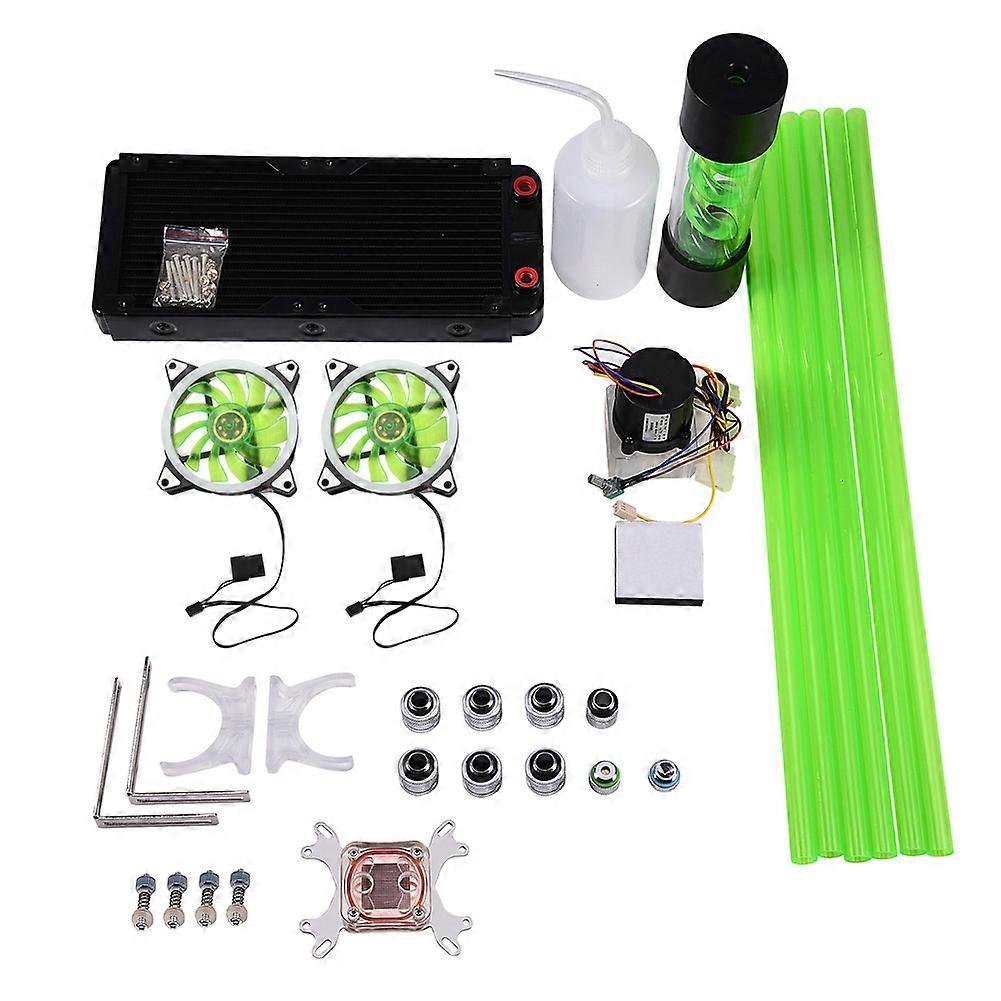

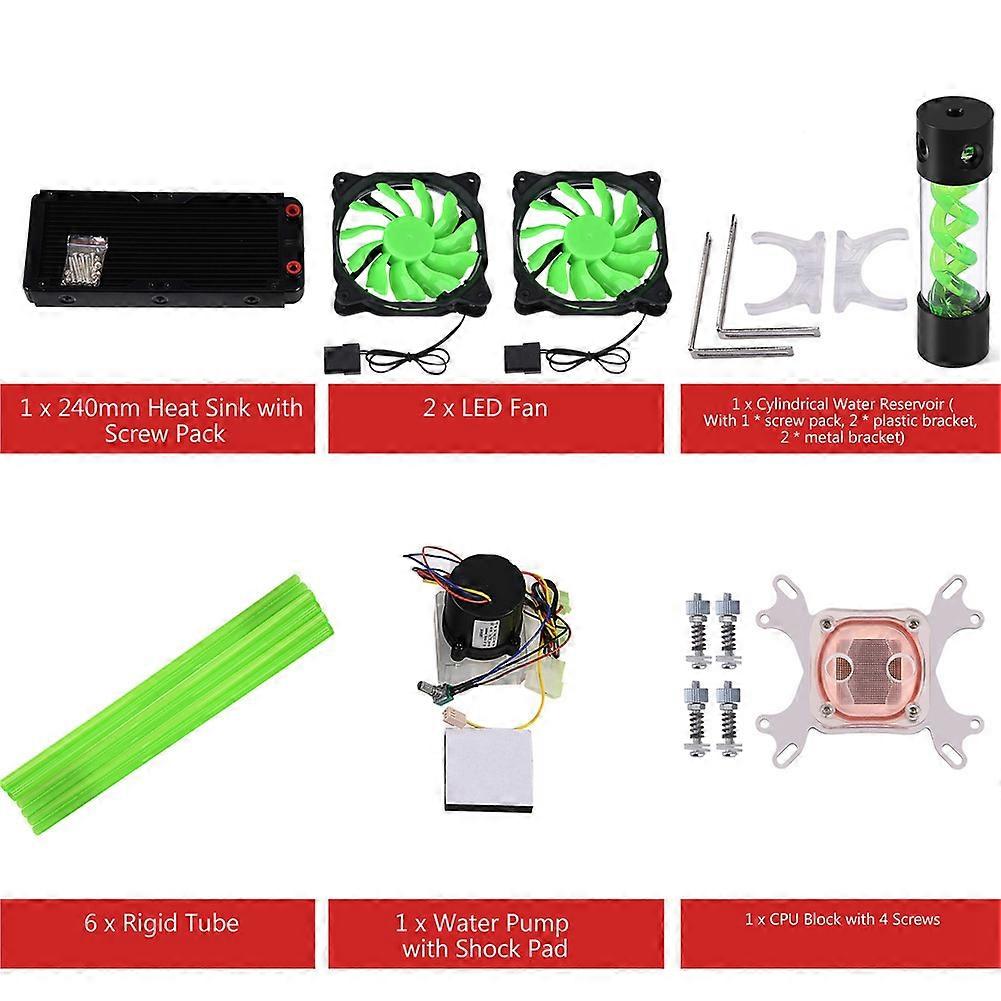

Package List:
1 x 240mm Heat Sink with Screw Pack
2 x LED Fan
1 x CPU Block with 4 Screws
1 x Cylindrical Water Reservoir (With 1 * screw pack, 2 * plastic bracket, 2 * metal bracket)
6 x Rigid Tube
1 x Water Pump with Shock Pad
6 x Two-Touch Fitting
1 x Water Feeder
1 x Nipple Connector
