Features:
1. When people come, the light is on, and when people leave, the light is off.
2. The product is small in size and convenient for wiring
3. Small and easy to install
4. High safety performance

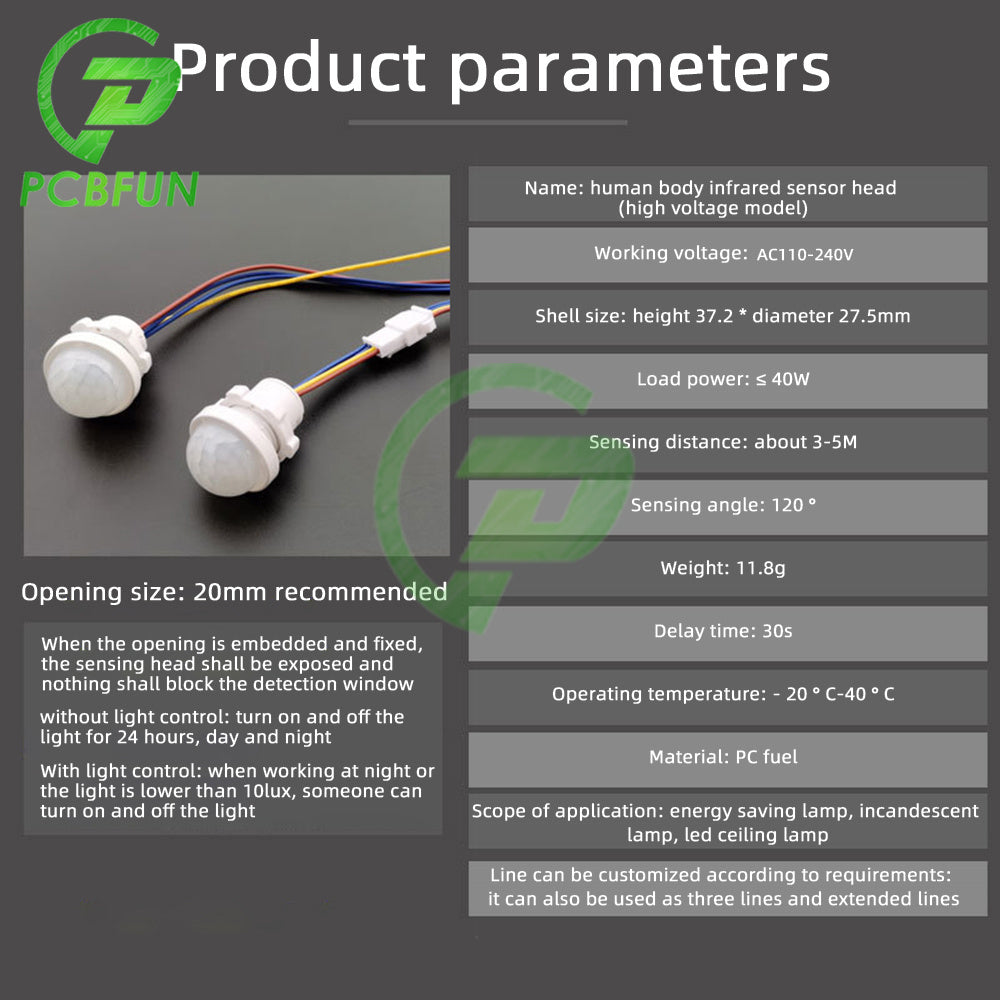

Product Specifications:

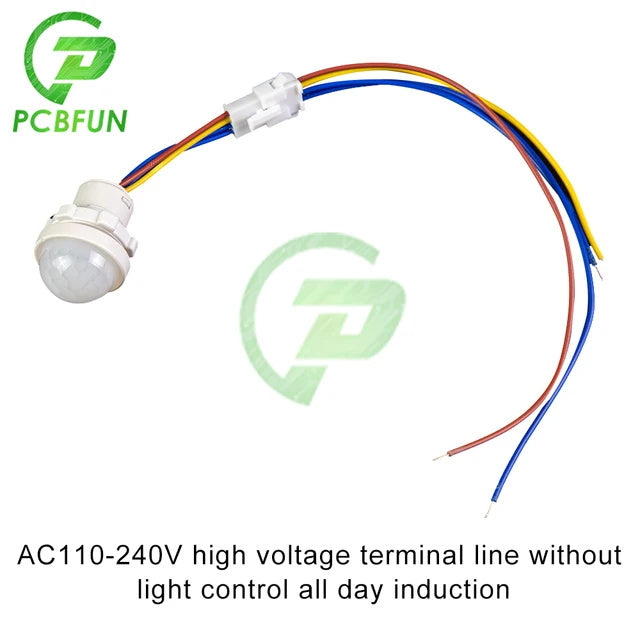

Name: Human infrared sensor head

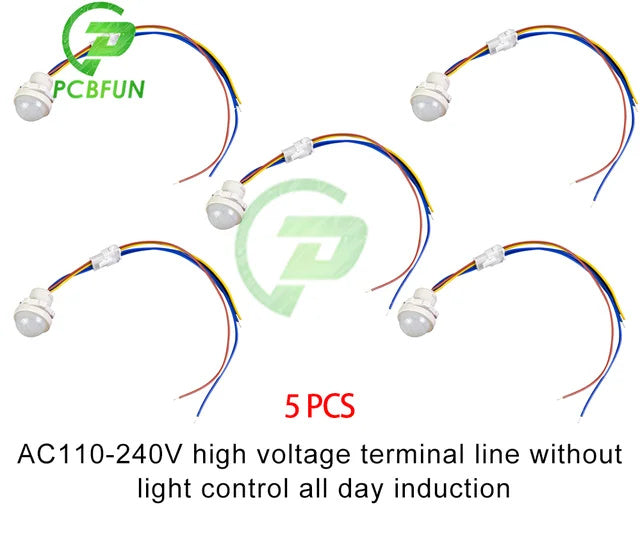

(AB high voltage version)
Working voltage: AC110-240V

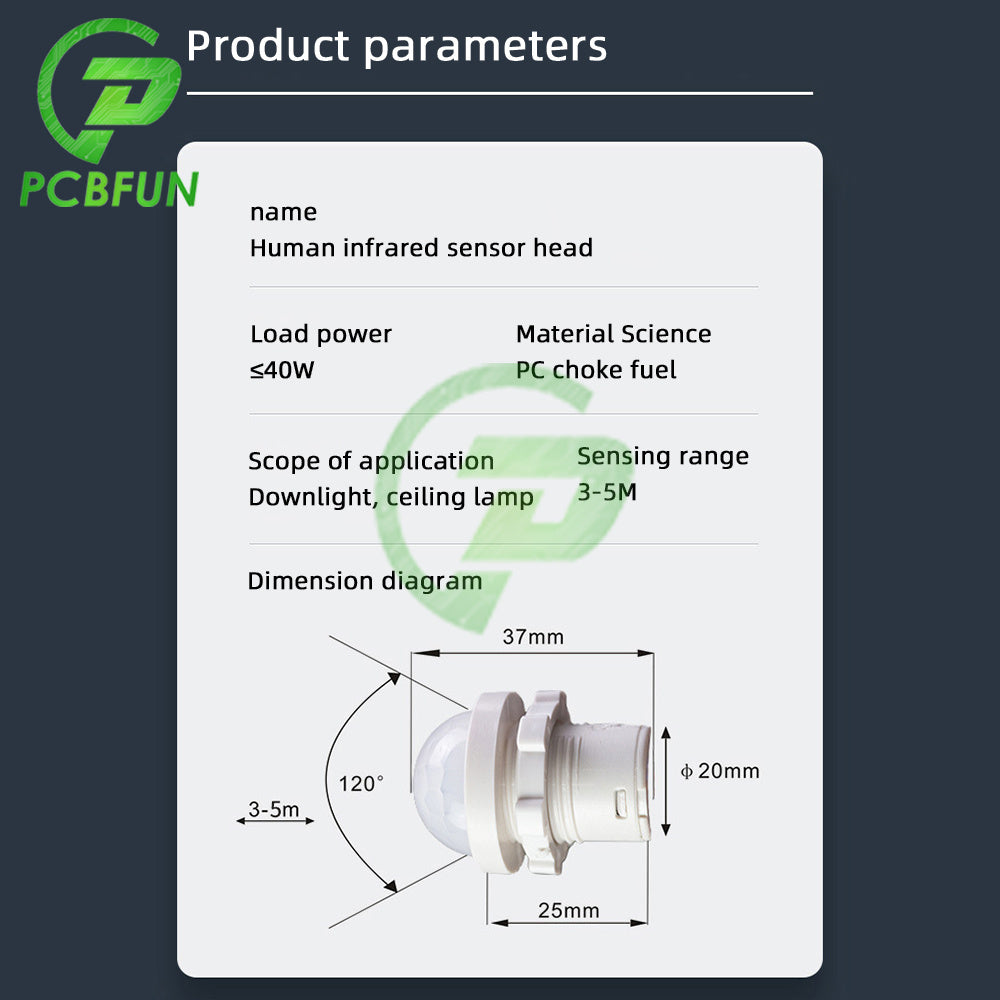

Shell size: height 37.2* diameter 27.5mm
Load power: ≤40w

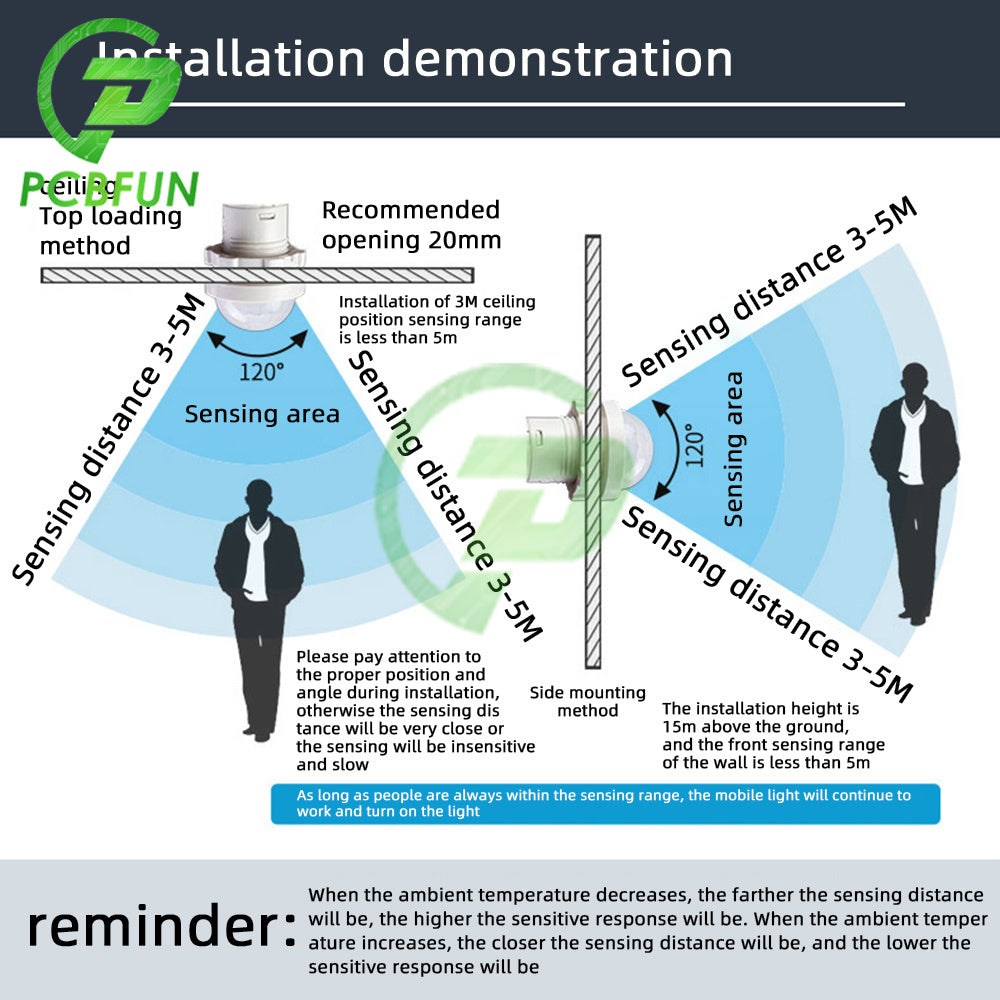

Induction distance: 3-5m
Sensing angle: 120°
Delay time: 30S
Working temperature: -20℃-40℃
Hole size: 20mm recommended
(C section low voltage section)
Working voltage: DC12-24V
Loadable: 18W 180-260mA
Product specification: 25*19mm
Recommended opening: 24.9mm

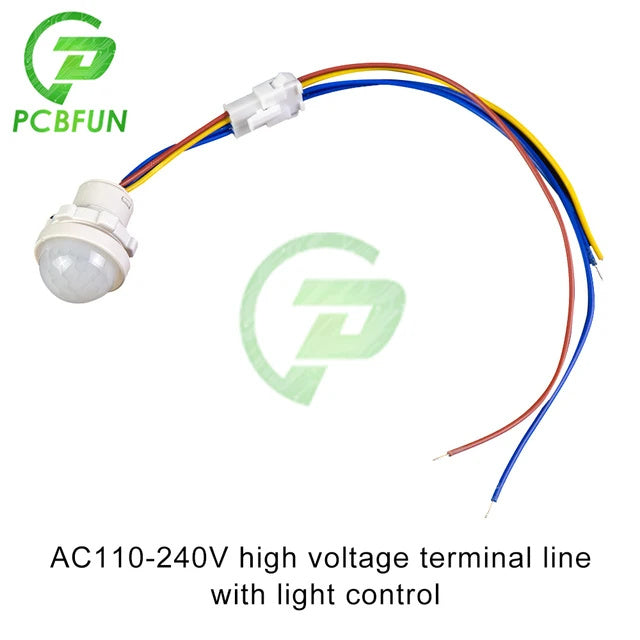

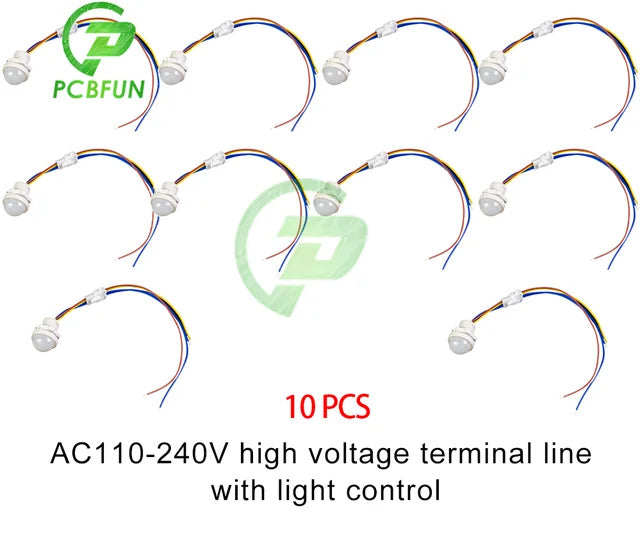

Optional function: light control model/without light control all-day induction model
