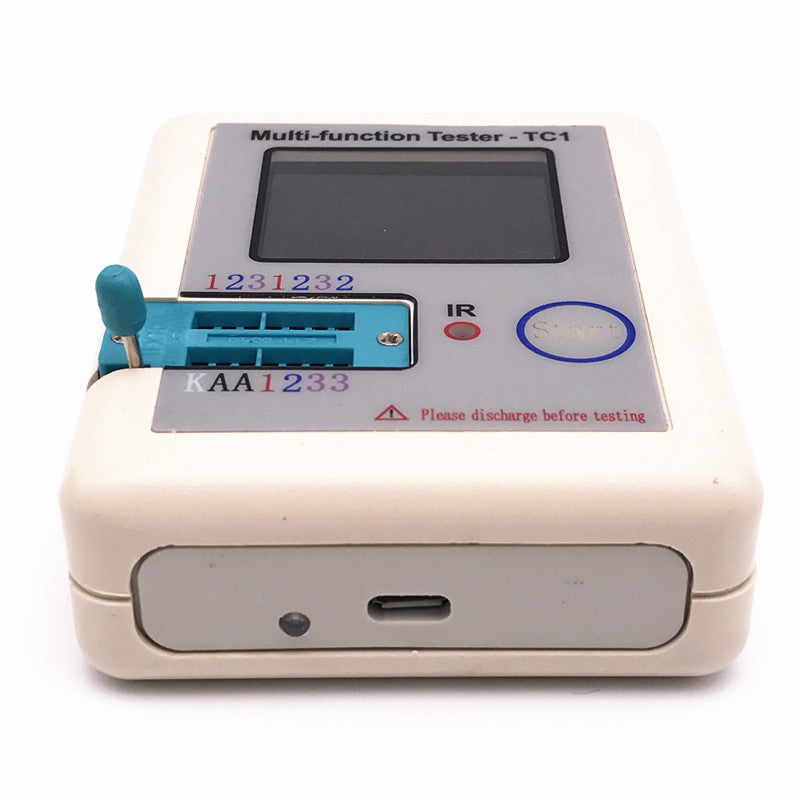

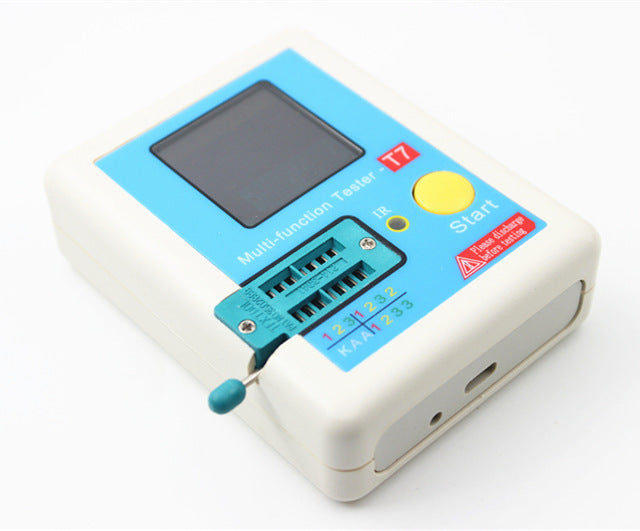

1.8" LCR-TC1 T7 TFT LCD Multi-meter Transistor Tester Diode Triode Capacitor Resistor Test Meter ESR LCR NPN PNP MOSFET COD

       Feature:

       For detecting NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery, resistor and capacitor and other components, etc.

       Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly. ( Use 12864 liquid crystal display with green backlight).

       After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

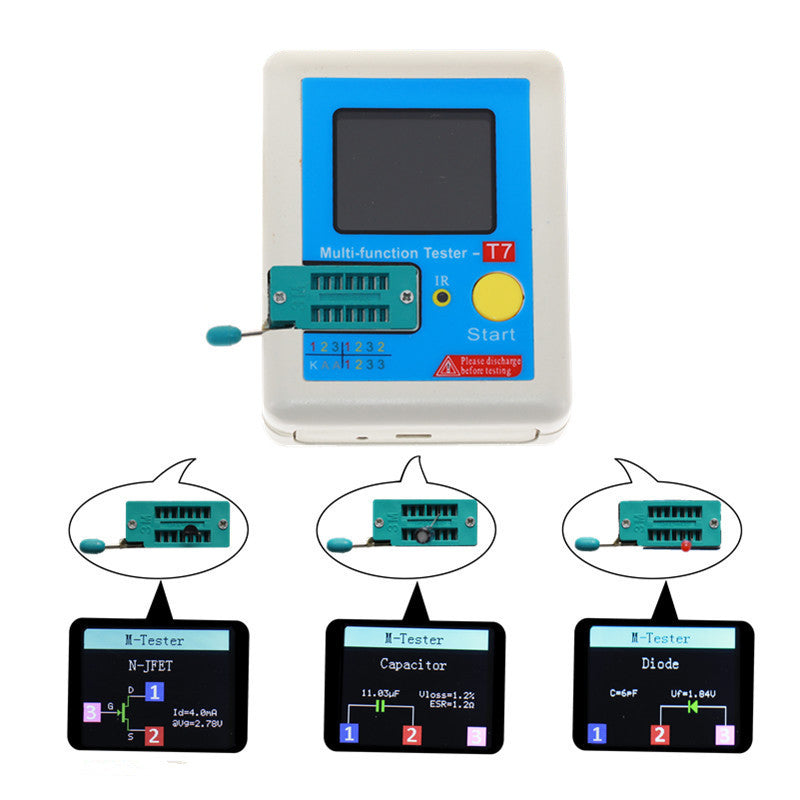

       Measurement results represent by TFT graphic display(160x128). Support Chinese and English.

       One key operation, Auto Power Off(Timeout Settable). Can also press the multi-functional button to close the detector.

       Specification:

       Color: White

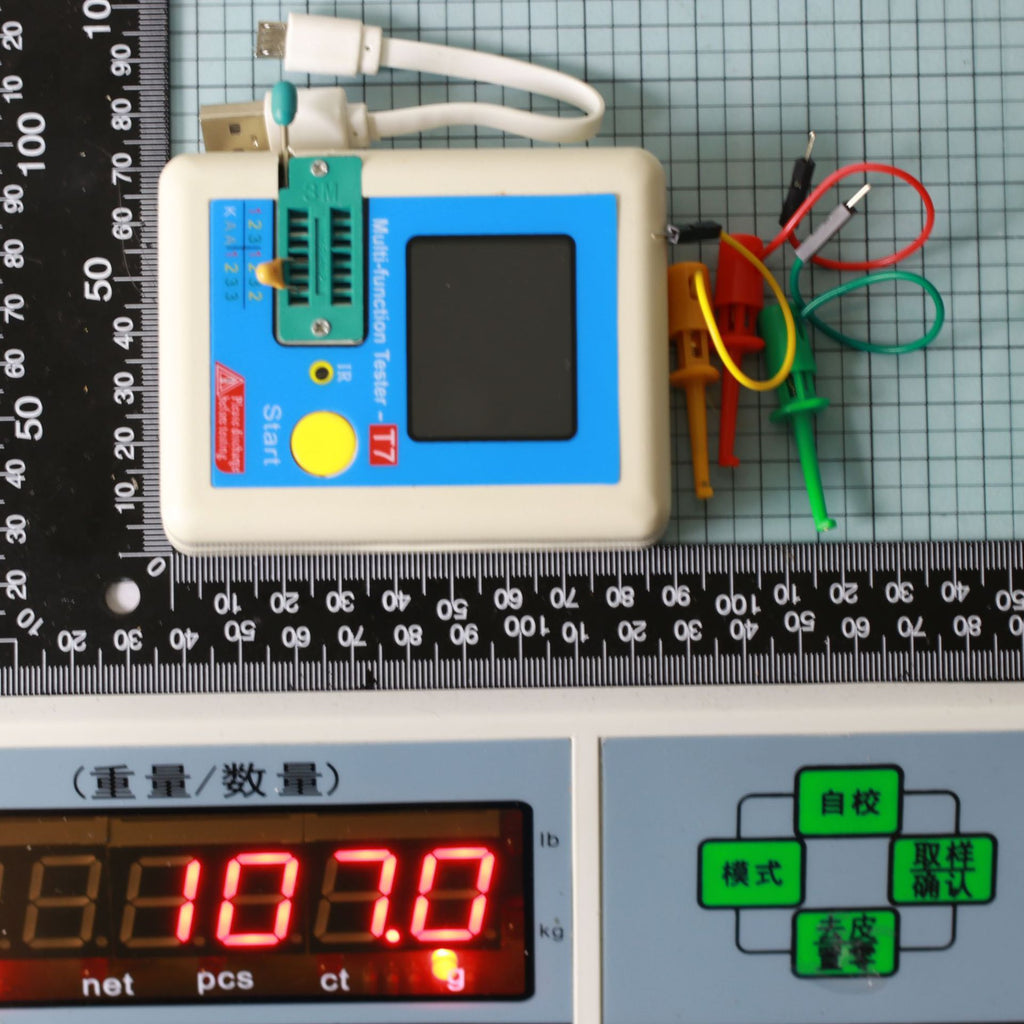

       Size: 70*90*28mm/ 2.71x3.58x1.10 inch

       Display: 1.8 inch TFT Screen, Color Screen

       Diode Range: less than 4.5V

       Transistor Detect Area: 0.01-4.5V

       Zener Diode Detect Area: 0.01-30V

       Triac Range: IGT less than 6mA

       Capacitance: 25pF-100mF(Please discharge capacitor before testing)

       Resistor: 0.01-50MΩ

       Inductance: 0.01mH-20H

       Power Voltage: 3.7V

       Power: Built-in Rechargeable Lithium Battery

       Package Included:

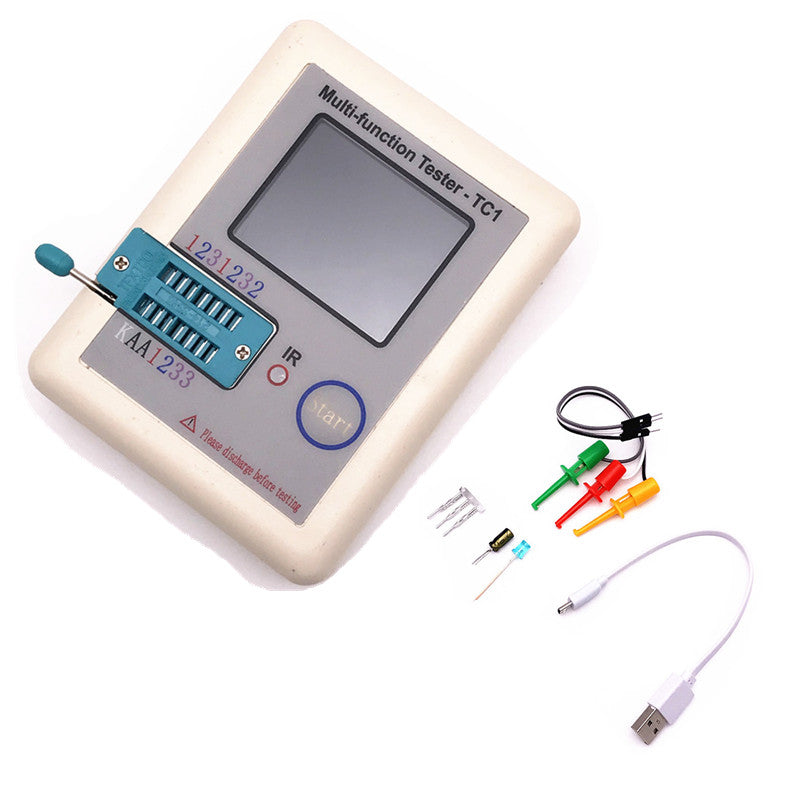

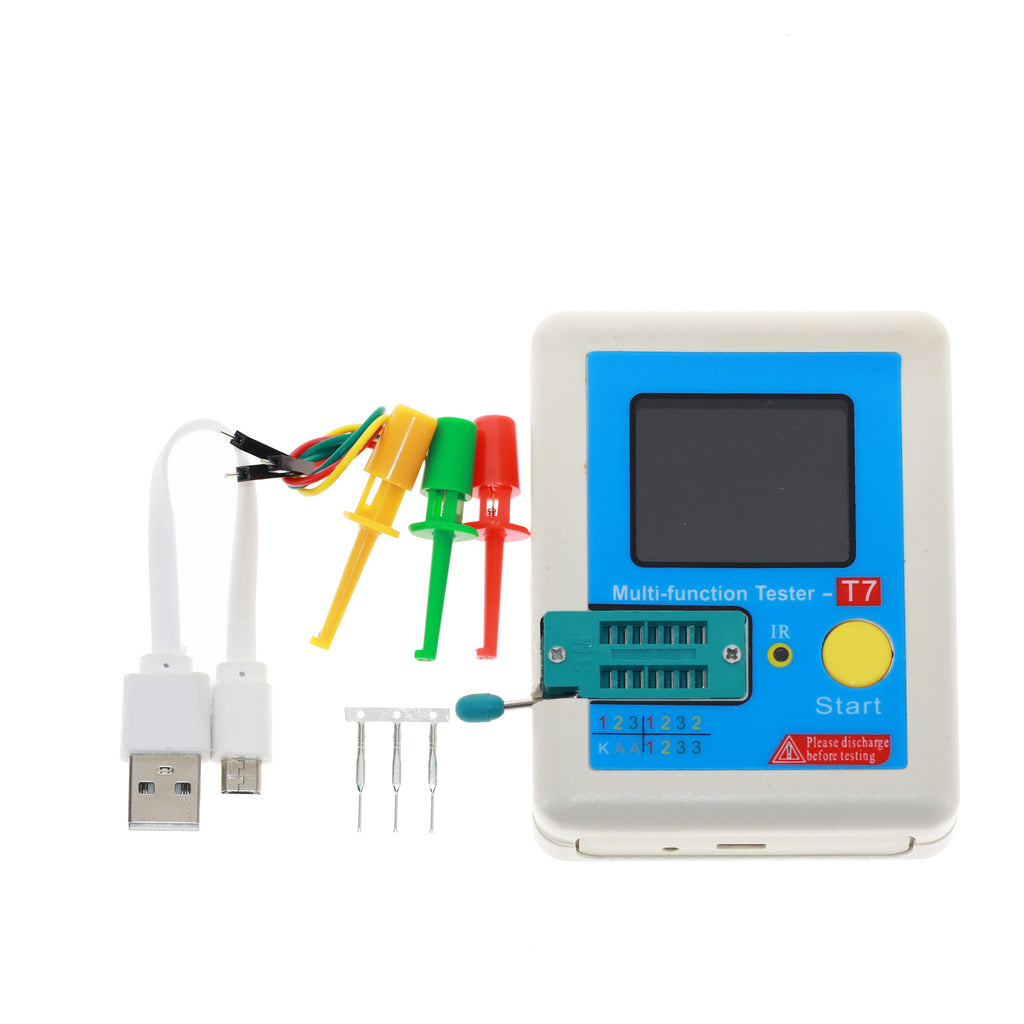

       1 * Multi-functional TFT Transistor Tester

       1 * Electronic Component Set

       1 * Micro USB Cable

       3 * Test Hook

    Operating Instructions

    Key operational definitions

    Multi-function key has two actions:

    Short press: Press the key and not less than 10 ms, release key within 1.5 seconds

    Long press: Press the key more than 1.5 seconds

    Power on

    In the power off state, short press the multifunction key, the tester is turned on and automatically measured.

    Power on & measurement interface

    Detect transistor

    In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.

    Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!

    Warning: We do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

    Component placement

    Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.

    No, unknown, or damaged part
