24V 30mA 0.2-12m Adjustable

Functional features:

1. Non contact detection; moving target detection
2. The transmission frequency of the module is 10.525ghz, which can be widely used in commercial, industrial automatic control and other fields
3. Different frequency range standards can be provided: - UK, - F. advanced low power PHEMT oscillator
4. Independent transmit and receive path, maximum gain, single channel operation
5. High sensitivity, high flexibility, low cost, the maximum action distance is 20 meters

7. Strong resistance to radio frequency interference, stable performance, fast response and high sensitivity
8. The output power is only 5MW, which is not harmful to human body;
9. The long-distance detection range can reach 20 meters (the default is 0.2-10 meters continuously adjustable).
10. Small size, simple installation.
11. Radar waves can penetrate non-metallic objects, such as wood, glass, plastics, fiber fabrics, etc., unless blocked by concrete walls and metal plates
12. The detection effect is the best when people or objects move towards the sensor!

Technical parameters:

Model: xzg-wb-10g-3

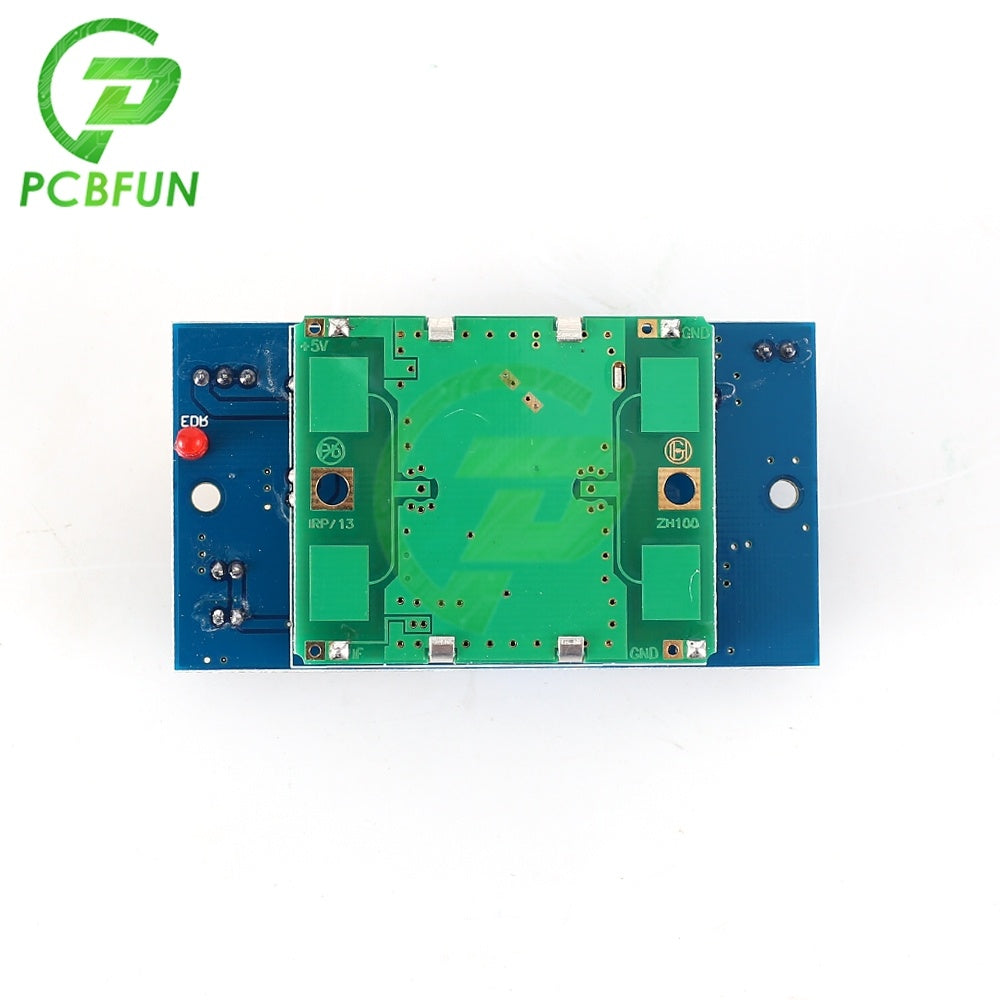

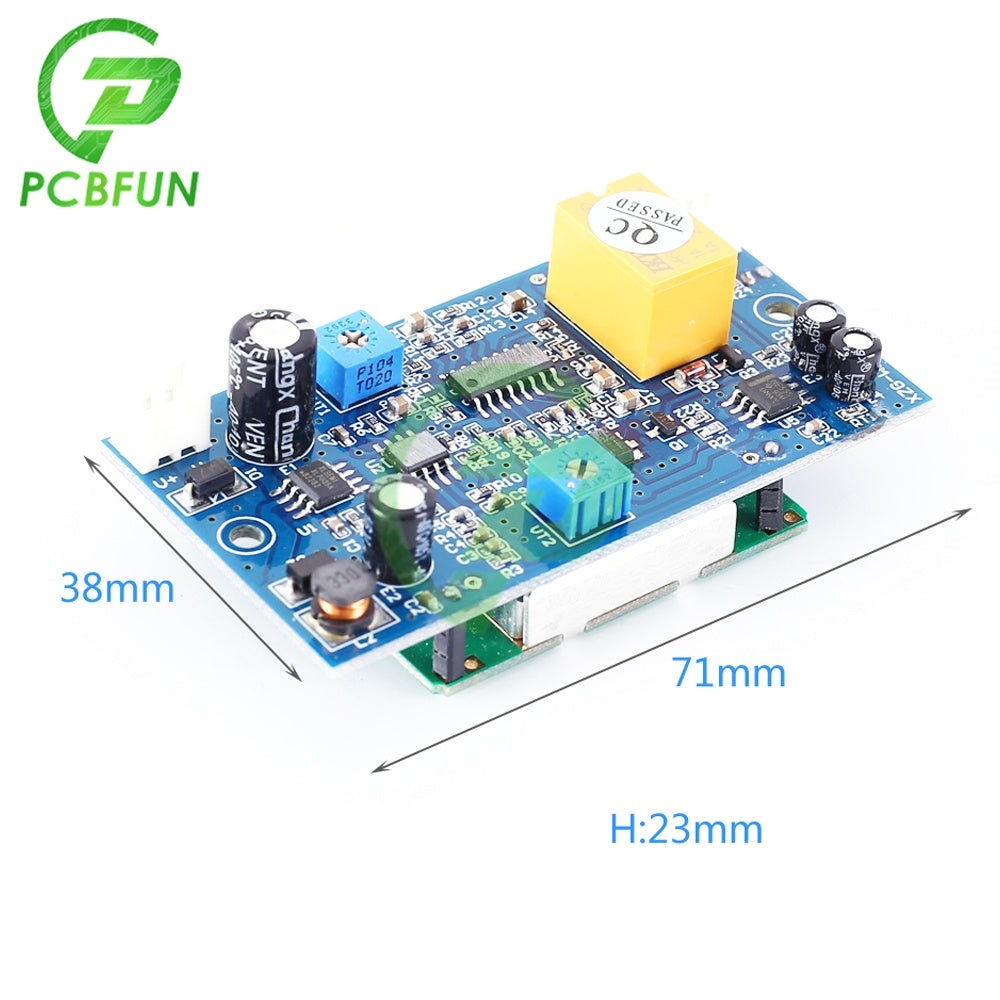

Specification: 7.1 * 3.8 * 2.3cm

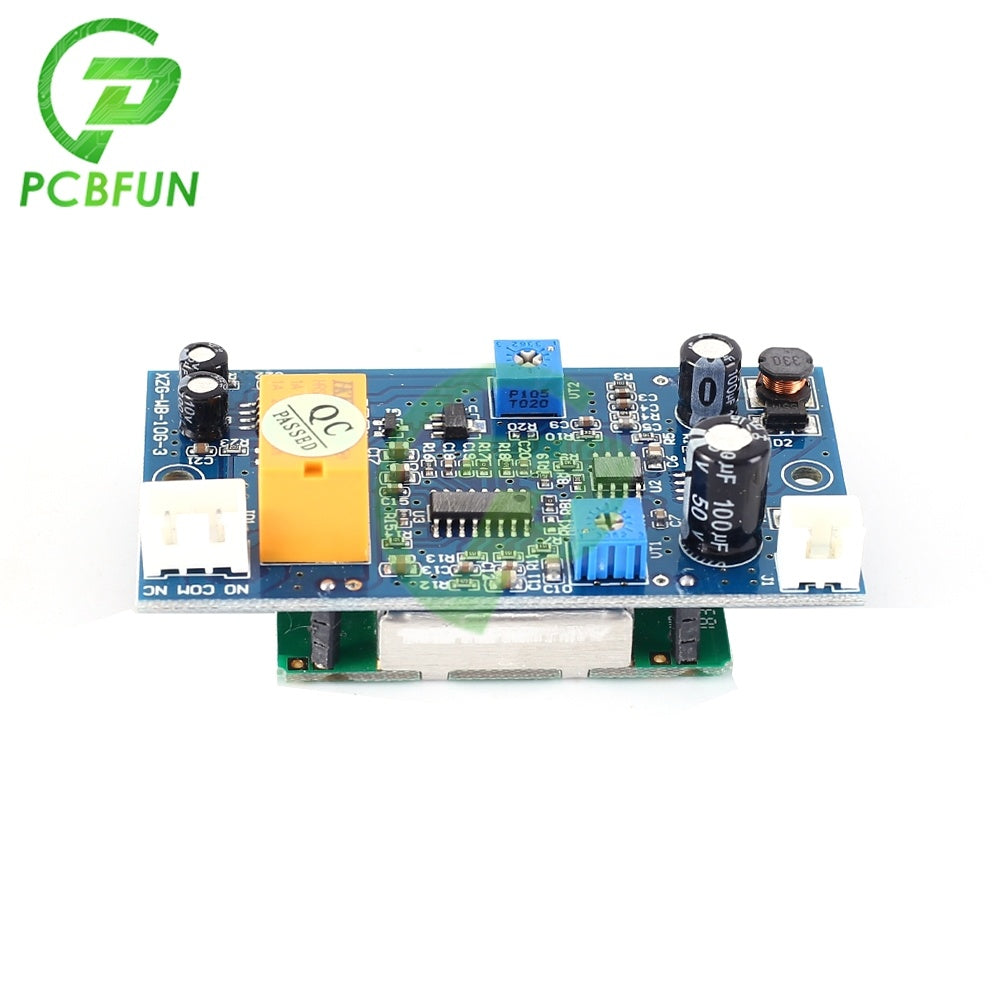

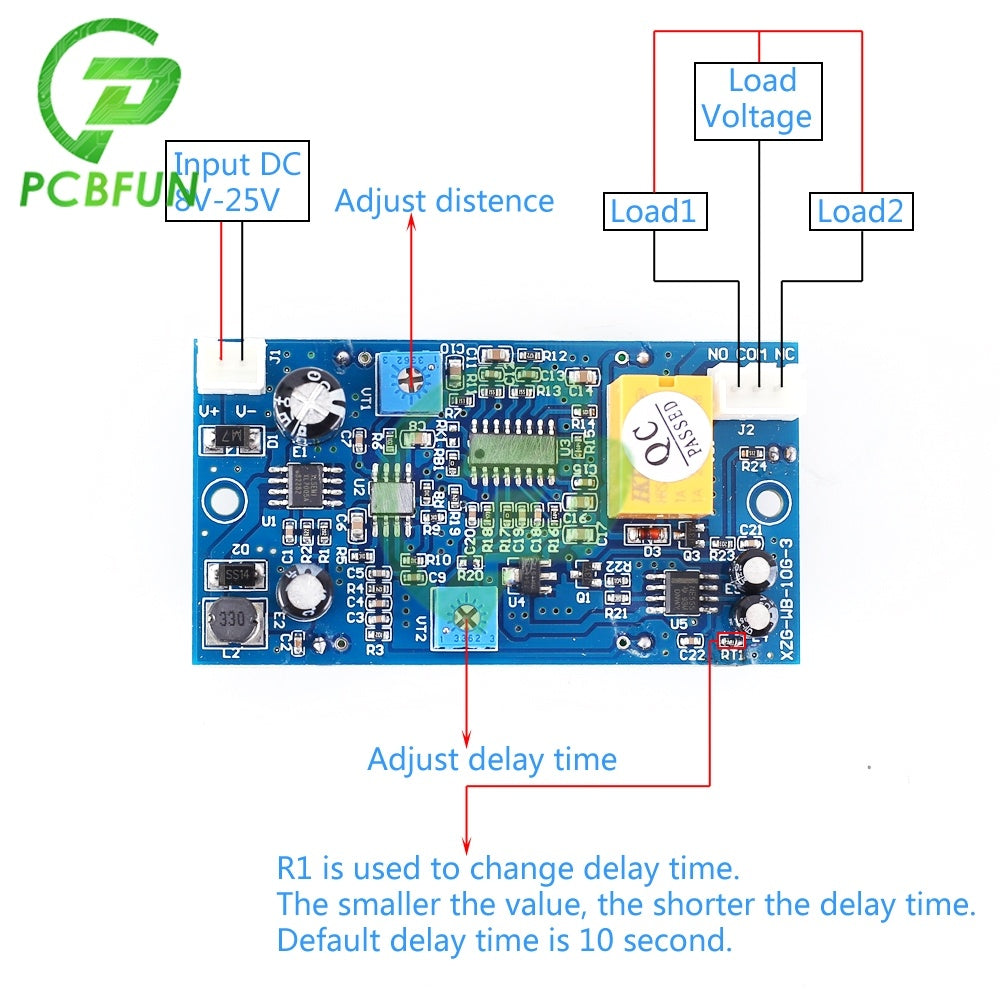

Voltage: 8-25v DC
Working current: 30mA
Induction angle: 170 degrees (horizontal 95 degrees, vertical 75 degrees)
Working temperature: - 20 ° ~ + 55 °
Frequency: 10.525ghz
Detection range: 0.2-12m continuously adjustable (can customize fixed distance or adjustable range)
Output delay time: 1-300 seconds continuously adjustable (can customize fixed delay time)
Power on delay start time: 10 seconds. (different delay time can be customized) Note: this function can delay about 10 seconds after power on to sense and output signals. For example, it is used for alarm, and it will not alarm as soon as it is powered on, so as to avoid noise.
Application: automatic door, automatic lamp, elevator, advertising machine, security alarm, industrial automatic control and other fields.

Precautions:

1. Live working is strictly prohibited to avoid wrong action, wrong connection, burning out the circuit or electric shock; during operation, hands or tools should be avoided to touch the sensing surface of the probe to prevent electrostatic damage to the module probe.
2. Avoid installation in the sun and rain to prevent damage or affect the service life
3. Try to install the equipment far away from the magnetic field and vibration to avoid misoperation

Package includes:

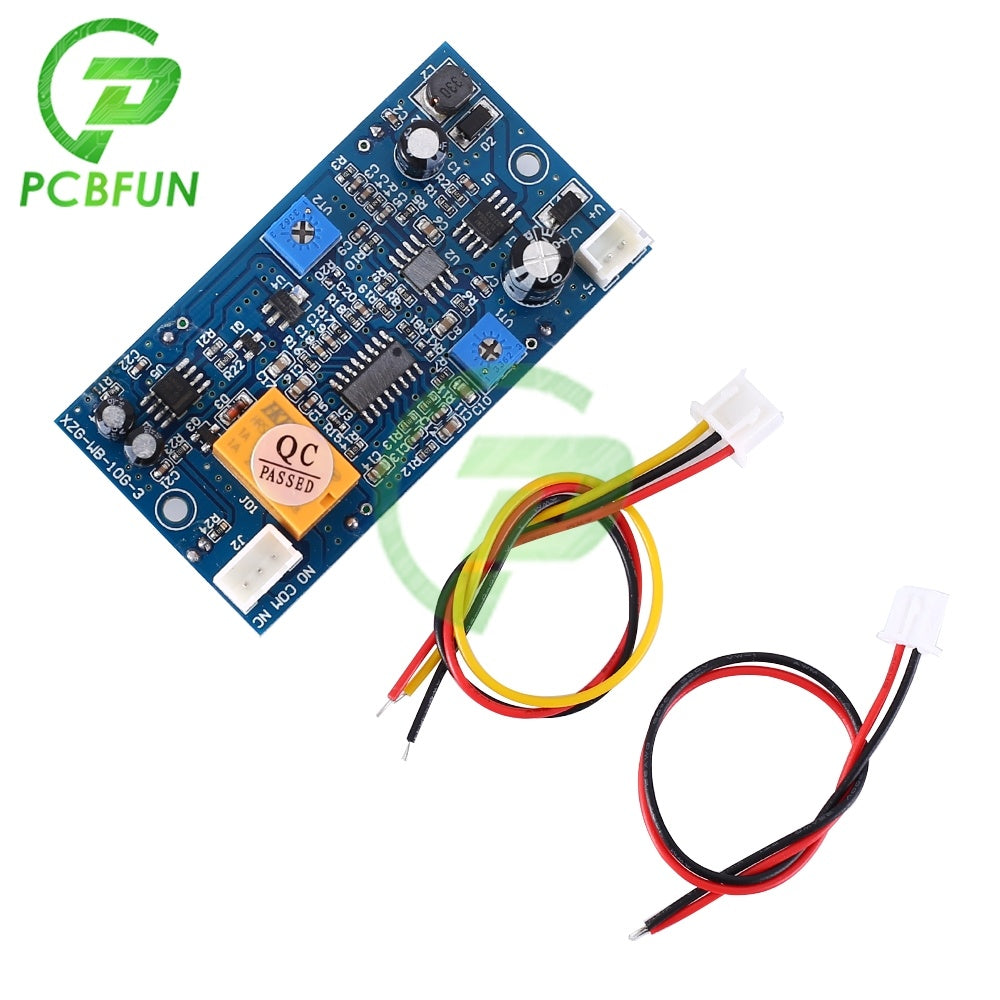

1 x 10 GHz microwave radar sensor module
1X xh2.54-2p cable
1X xh2.54-3p cable
