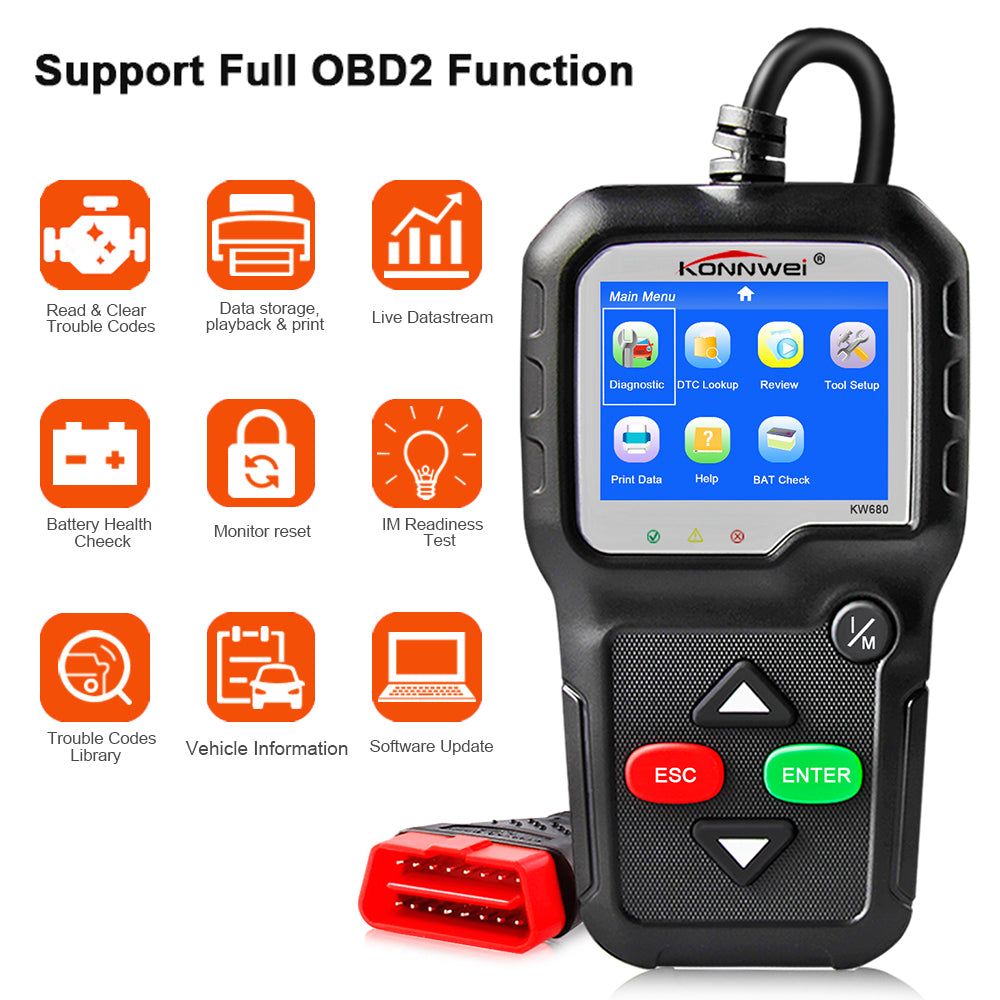

The KONNWEI KW680 OBD2 / EOBD / CAN Auto Diagnostic Scanner supports all 10 OBDII test modes on all OBDII compliant vehicles for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, Real Time Battery Voltage Monitoring, the KONNWEI KW680  is truly the ultimate in power and affordability, allowing users to do their jobs faster.

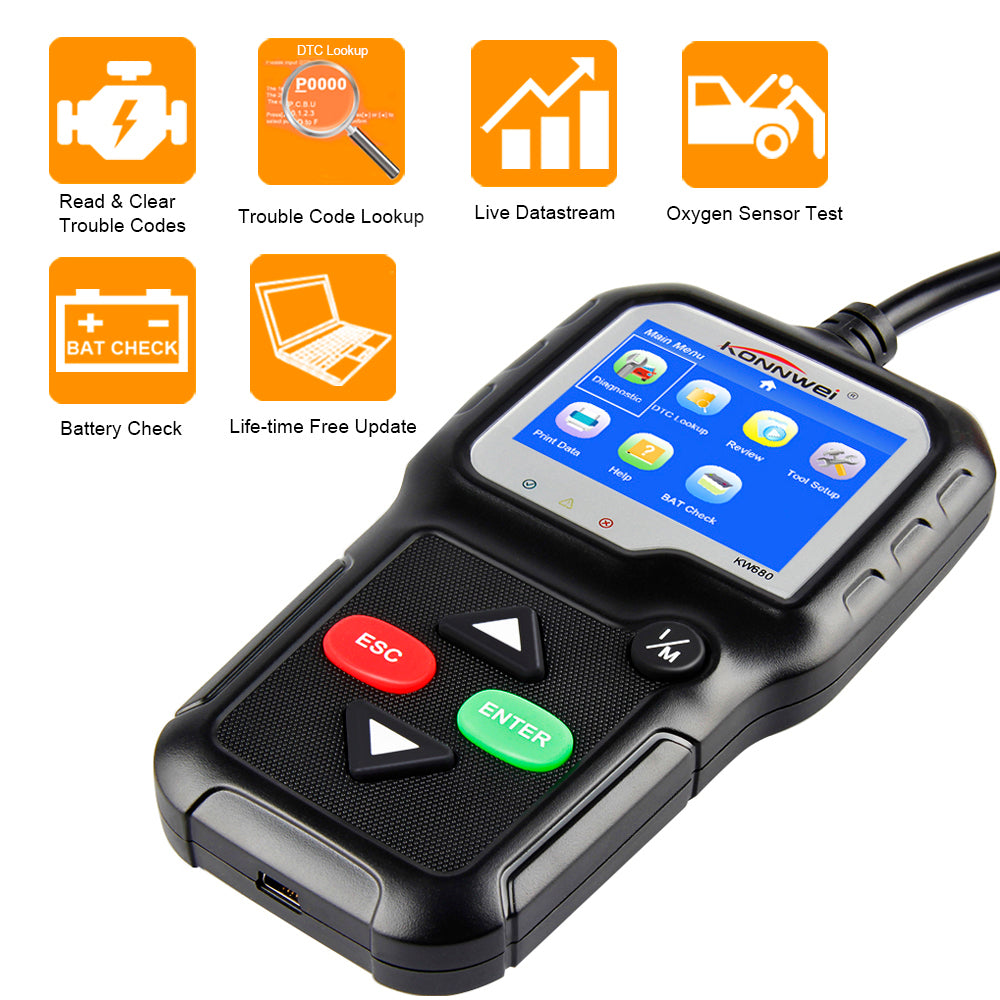

                                      KW680 Car Diagnosis Function List:

                           1. Read engine or emission related fault codes error codes.

              2. Erase and delete the fault code,

              3. Turns off Check Engine Light (MIL), warning light, clears codes and resets monitors

              4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes

              5. Easily determines the cause of the Check Engine Light (MIL), show definitions of the fault codes.

              6. Displays monitor and I/M readiness status (emissions)

              7. Reads live PCM data stream

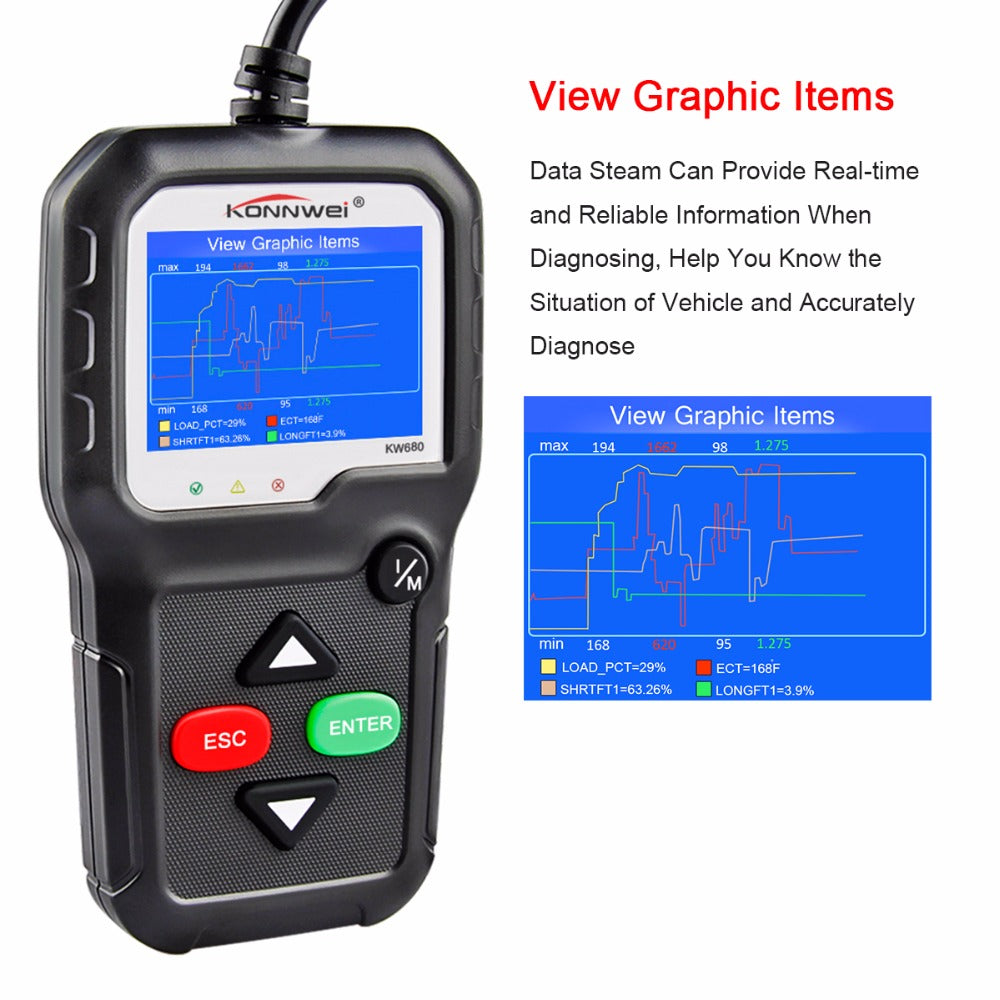

              8. Displays Live sensor data readings in both text mode and graph mode (1996 and newer vehicles)

              9. Storage data stream, and playback, printing the stored sensor readings.

              10. Views freeze frame data to analyze the real cause of engine failures

              11. Displays live O2 oxygen sensor test data

              12. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.

              13. EVAP System test data

              14. Battery Voltage real time monitoring.

              15. Retrieves vehicle information (VIN code, CIN and CVN Number)

              16. Built-in DTC look-up library and display definition.

              17. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, save diagnosis and repair time

              18. Internet updateable and upgradeable, life-time update free

              19. Prints the stored trouble codes/ freeze frame/ live data readings via PC, works for all windows system.

                        Why choose the KONNWEI KW680 Auto Scanner?

                        1. Multilingual diagnostic interface:

                        KW680 Supports to up to 8 different languages user interface, including  English, Spanish, Portuguese, French, Russian, German, Dutch, Italian

            2. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.

            3. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification.

            4. Patented appearance design & Key pad, unique patented One-Click I/M Readiness Key, it is the best partner for car repairing.

            5. Featured 24-hr battery real-time monitoring during diagnostics, keep your car battery in healthy status.

            6. Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when away from the vehicles.

                        7. Bright color coded LEDs indicators and built-in speaker provide both visual and audible tone for readiness verification

                        8. Universal scanners works on ALL 1996 and newer vehicles (OBDII & CAN) in USA, Most 2003 after EU (EOBD), 2006 after Asia car brand vehicles, suitable both diesel and gasoline 12V cars.

            7. Data printable through USB cable, allows modify and print-out storaged data.

            8. Internet upgradable via usb port, adapted to Windows XP- Windows 10. (other scanners only work for windows 7)

                                      KONNWEI KW680 Supports Car Makes

                          KW680 supports both diesel and gasoline vehicles, as long as the car is compliant with standard OBDII protocols, with OBDII 16pins Diagnostic Port.

                                                             American (USA) car

                                for Standard OBD2 Cars from 1996 to Now:

                                for Chrysler, for Ford, for GM, for Jeep

                                European car

                                for Standard OBD2 Cars from 2004 to Now:

                                for Alfa Romeo , for SAAB  , for Acura  , for Opel,  for Audi , for Seat  , for Peugeot , for Bentley , for Skoda , for Daewoo, for Benz , for Daihatsu  , for Land Rover, for BMW , for Vauxhall , for Citroen,  for Volvo , for Fiat , for VW , for Ford , for Jaguar

                                Japanese car

                                for Standard OBD2 Cars from 2006 to Now:

                                for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan,  for Subaru ,  for Suzuki, for Toyota.

                                Chinese car:

                                for Standard OBD2 Cars from 2011 to Now:

                                NOTICE:

                                Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.

                                Warning:

                                Not Support Russian Cars before 2012, VAZ,UAZ,LADA ; Not works with trucks

                                for Renault, SsangYong, please contact us before purchasing.

                                Leave us message in below format, we will reply you within 8 hours.    for example : xx, 2005, 2.0cc, Diesel

                          KONNWEI Life-time Free  Update  software

                          1. Please press the scanner and hold, then connect the scanner to PC with USB cable included in the package, the screen will be turned to "UPDATE MODE"

             Notice: Please turn off anti-virus software when installing the update tool, otherwise it will not be able to install the driver properly. the Update tool can be found from official website (refer to user manual)

             2. download and Install the "uplink" program to your PC( Windows xp- 7 only), you will find the below page, All you need is one-click, the program will search the update from our server, download and upgrade it by itself. No need any other operation, save the time and money.

             3. Wait for the update process finished, the scanner KW680 will be ready to go! we will update to latest version before shipping out, normally there is no need to update for a long while.

             KW680 Auto Diagnostic Scanner Data Printing Guides

             1. After install the "uplink" program on PC, connect the scanner to PC with USB cable. (No need to press any buttons)

             2. Launch the program"uplink" ,  Select "Print" option.

             3. Operation on scanner:  go to main menu, select " Print Data" ; Select the data option that you want to print to PC,

             4. After select the "print data", the data stream that storaged in the scanner will be sent to PC software, you may modify them before printing them out from PC's printer.

                          KONNWEI KW680 Specification

                                         Display:  2.0'' TFT color screen

                            Operating Temperature: 0 to 60 ℃ (32 to 140 ℉)

                            Storage Temperature: -20 to 70 ℃ (-4 to 158 ℉)

                            Power: 8 to 18 V provided via vehicle

                            Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network  ISO 11898)

                            Dimensions: 124mm (4.88in) x 70mm (2.76'') x 20mm (0.79'')

                            Weight: 0.45KG

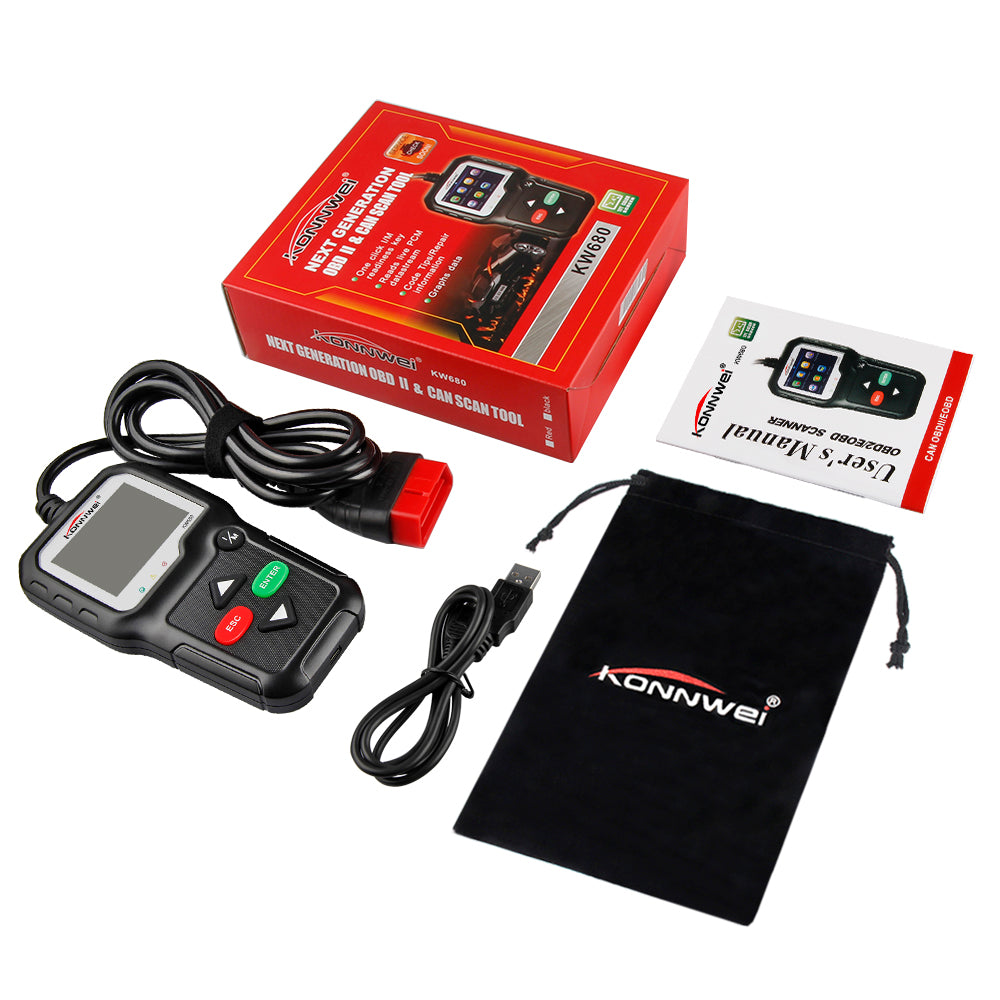

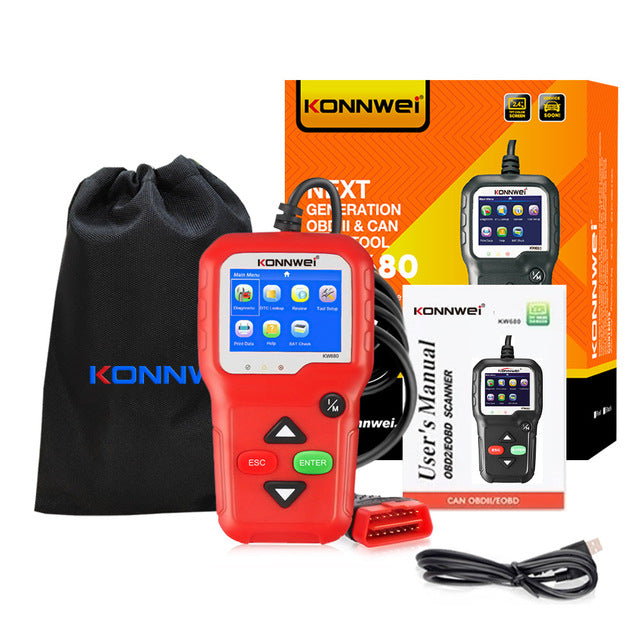

                         1*KONNWEI KW680 Auto Scanner with cable

             1*User's Manual in English

             1*USB Cable

             1*Protective nylon bag
