1000A /600V -50-1000C UT233 Digital Power Clamp Meter
UT233 is an intelligent, handheld and stable power and harmonics clamp meters, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more.
It can be applied in power equipment/supply, circuit measurement, and grid power quality evaluation.
Features：
1. 999-group data storage; single/continuous recording and data recall available
2. True RMS voltage/current measurement
3. 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements
4. 10000 count LCD dual display
5. Adjustable sampling rate
6. Max/Min modes
7. Auto range, auto power off, backlight, low battery indication
8. Equipped with USB interface .
Specifications：
Specifications
Range
UT233
AC Current (A)
1000A
±(2%+5)
AC Voltage (V)
600V
±(1.2%+5)
Active Power (W)
0.01kW~600kW
±(3%+5)
Apparent Power (VA)
0.01kVA~600kVA
±(3%+5)
Reactive Power (VAr)
0.01kVAr~600kVAr
±(4%+5)
Power Factor
0.3~1
±0.022
Phase Angle (°)
0°~360°
±1°
Active Energy (Wh)
1kWh~9999kWh
±(3%+2)
Features
Display Count
10000
Auto Range
√

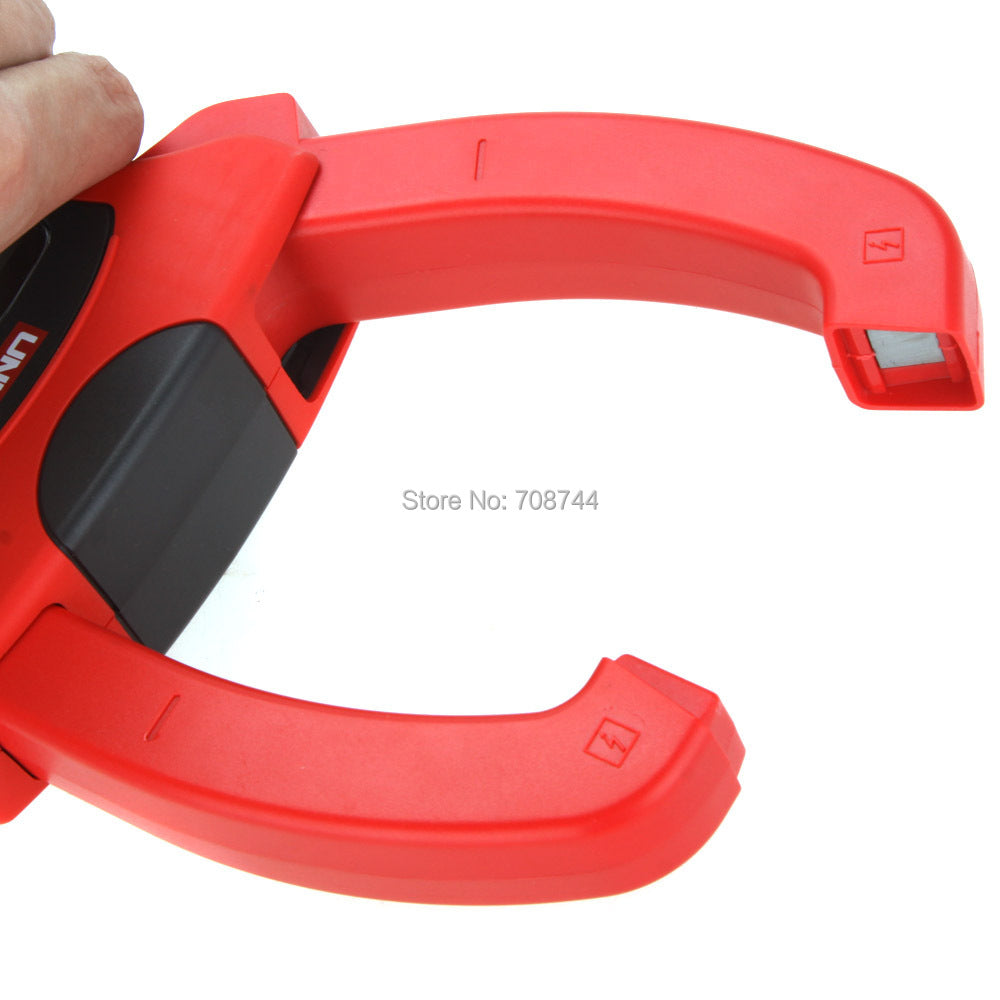

Jaw Opening
50mm
True RMS
AC voltage/AC current
√
Auto Power Off
√
Low Battery Indication
√
Data Hold
√
MAX/MIN
√
Data Storage
99
USB Interface
√
LCD Backlight
√
Full Icon Display
√
Single-phase 2-wire
√
3-phase 3-wire
√
3-phase 4-wire
√
Phase Sequence Test
Positive Phase, Reverse Phase,Phase Deficiency
√
Auto Calibration
√
Input Impedance for DCV
≥10MΩ
General Characteristic:
Power: 1.5V Batteries(LR6) * 4 (not included)
LCD Size: 46mm * 42mm
Product Net Weight: 601g
Product Size: 303mm * 112mm * 39mm
Product Colour: Red and Grey
Package Size: 36 * 28.5 * 10cm / 14 * 11.2 * 3.8in
Package Weight: 2328g / 5.1lb
Package List:

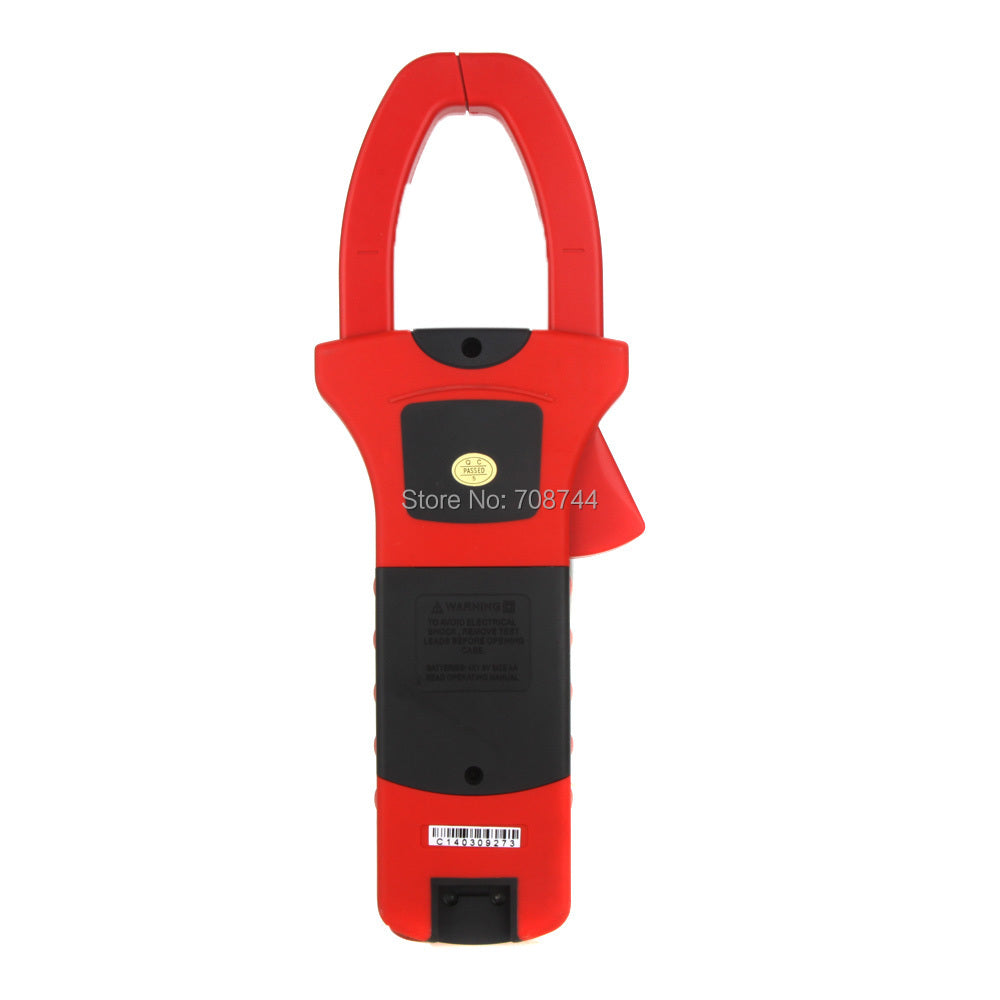

1 * UNI-T UT233 Three Phase Digital Power Clamp Meter
2 * Test Leads
4 * Alligator Clips
1 * USB Interface Cable
1 * PC Software CD
1 * Manual
1 * Tool Box
