Main Color : Black;
Package Content : 10 x Slide Switch

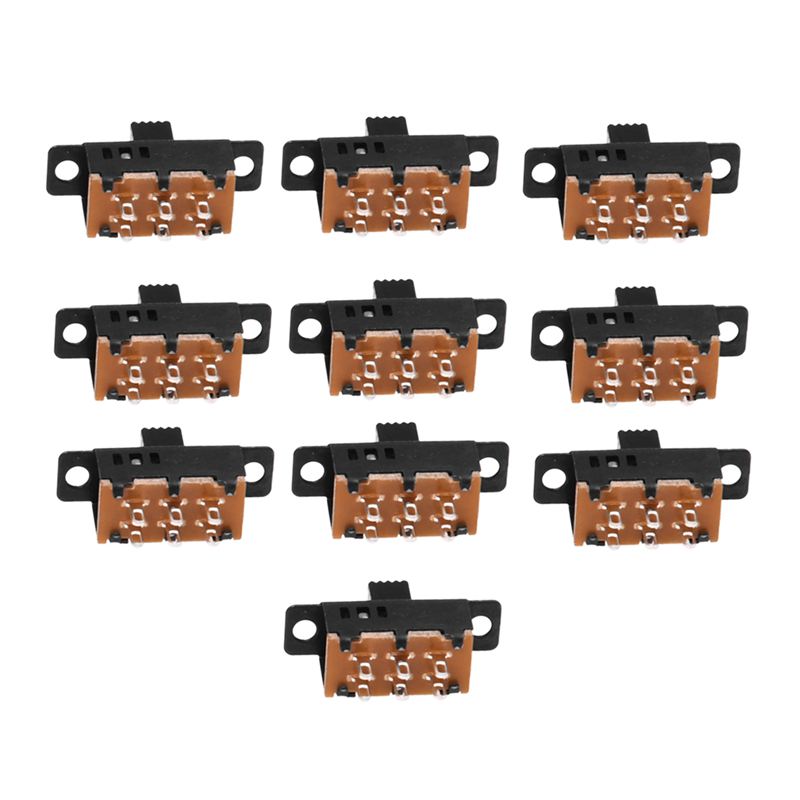

There are 10 Pcs sliding switches here, thay are 6 terminals, DP3T action type and 3 on/off/on positions.
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights.

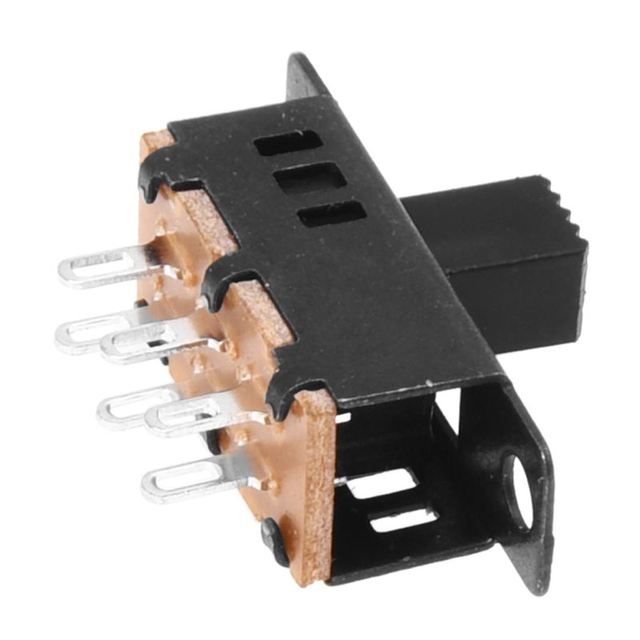

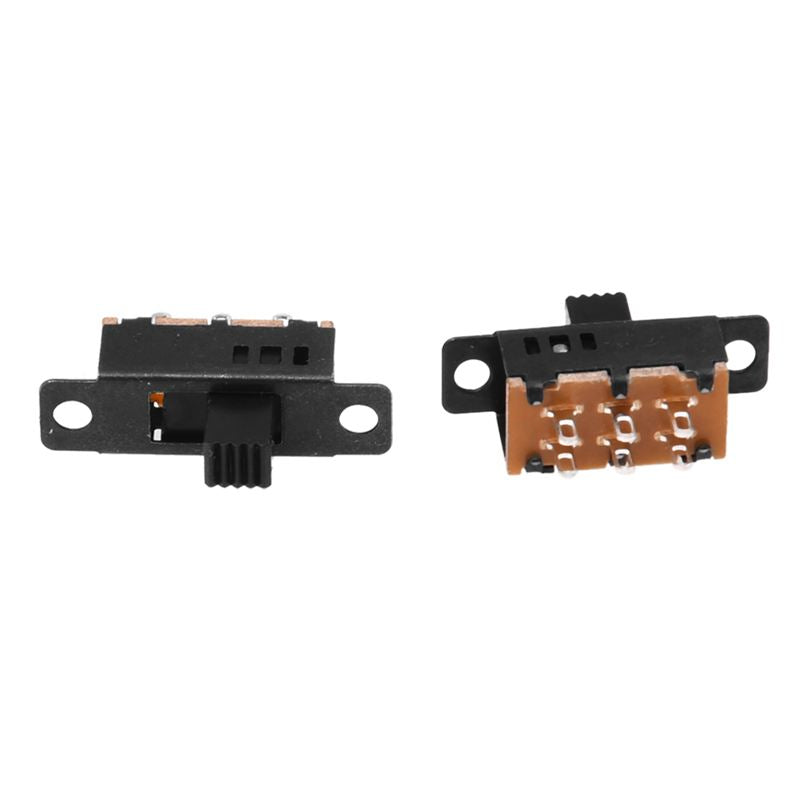

Product Name : Slide Switch;
Model : SS-23D32G6;
Action Type : DPDT;
Contact Type : ON/OFF/ON, 3 Positions
Terminals Quantity : 6;
Working Power : 0.5A 50V DC;
Contact Resistance : 30mohm Max
Insulation Resistance : 100ohm Min at 500V DC;
Withstand Voltage : AC 500V for 1 min;
Terminals Size(Each One) : 4 x 1.6mm/ 0.16" x 0.06" ( L * W)
Switch Total Size : 2.3 x 0.75 x 1.7cm/ 0.9" x 0.3" x 0.7"(L * W* H);
Knob Size : 5.5 x 4 x 6mm/ 0.22" x 0.16" x 0.24" (L * W * H);
Material(External) : Plastic, Metal
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
