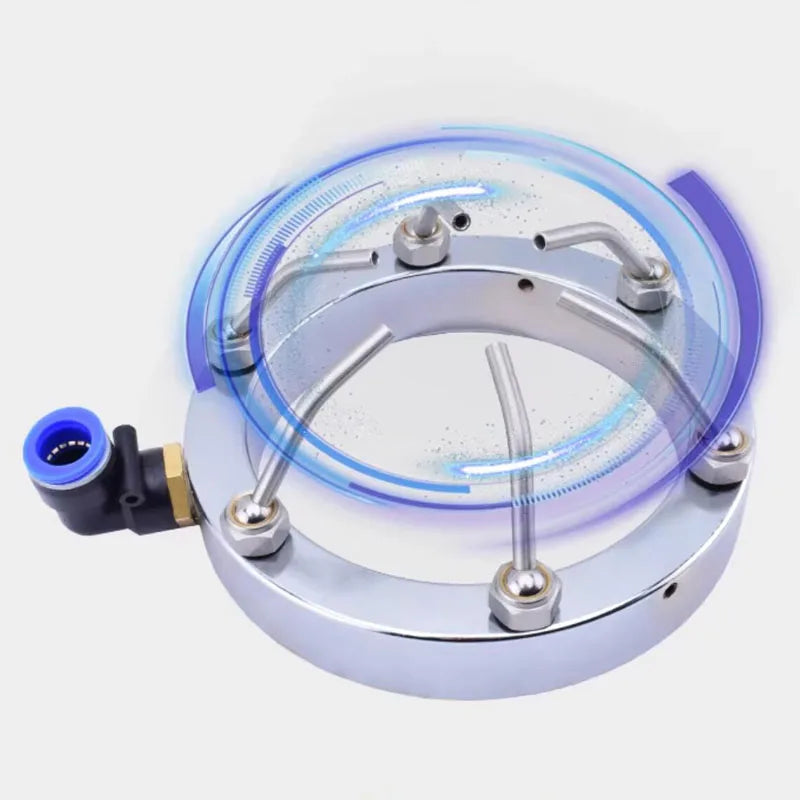

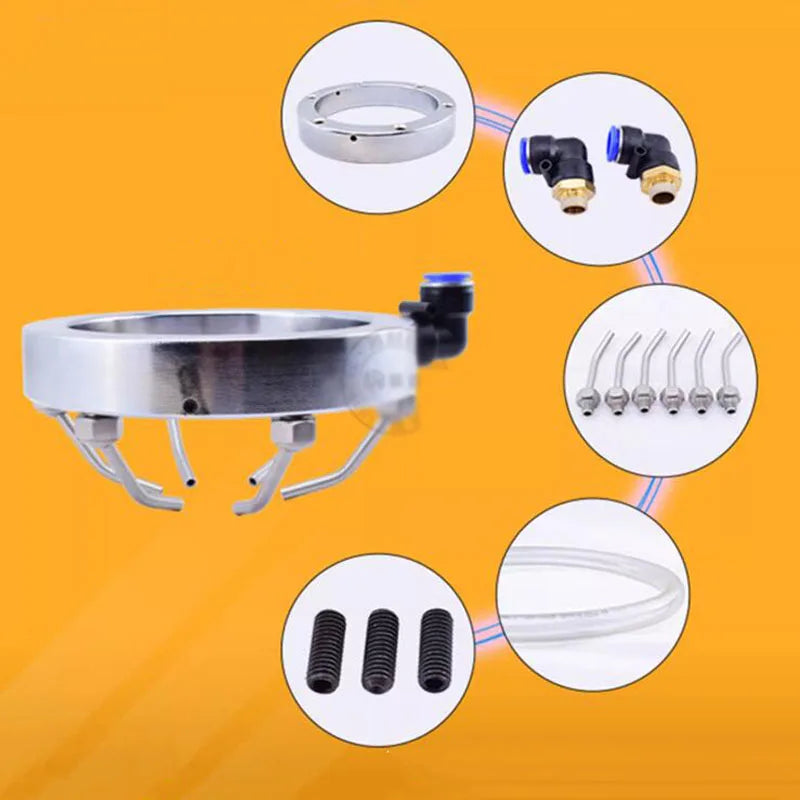

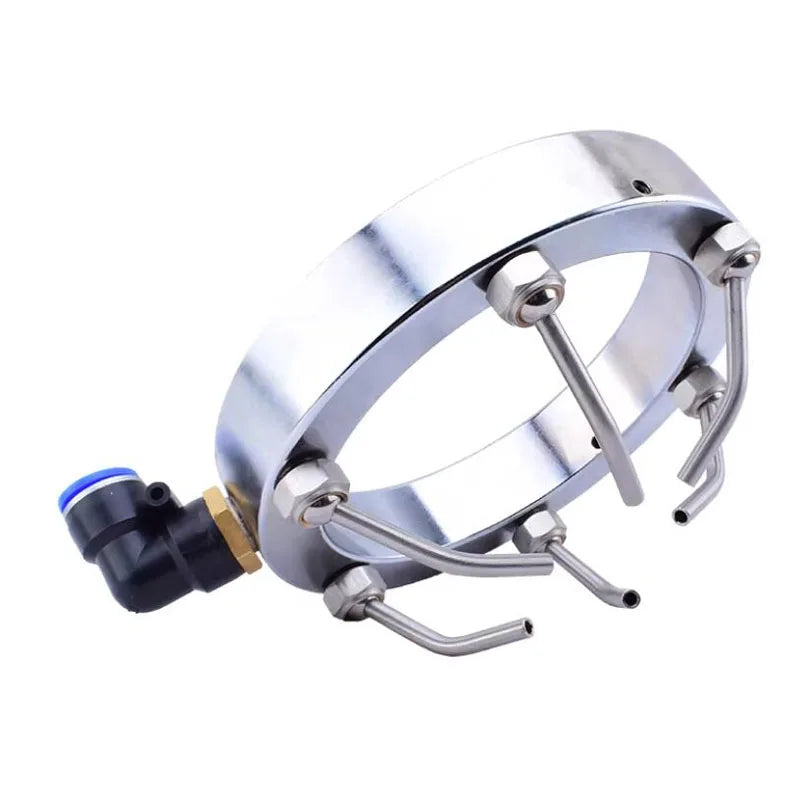

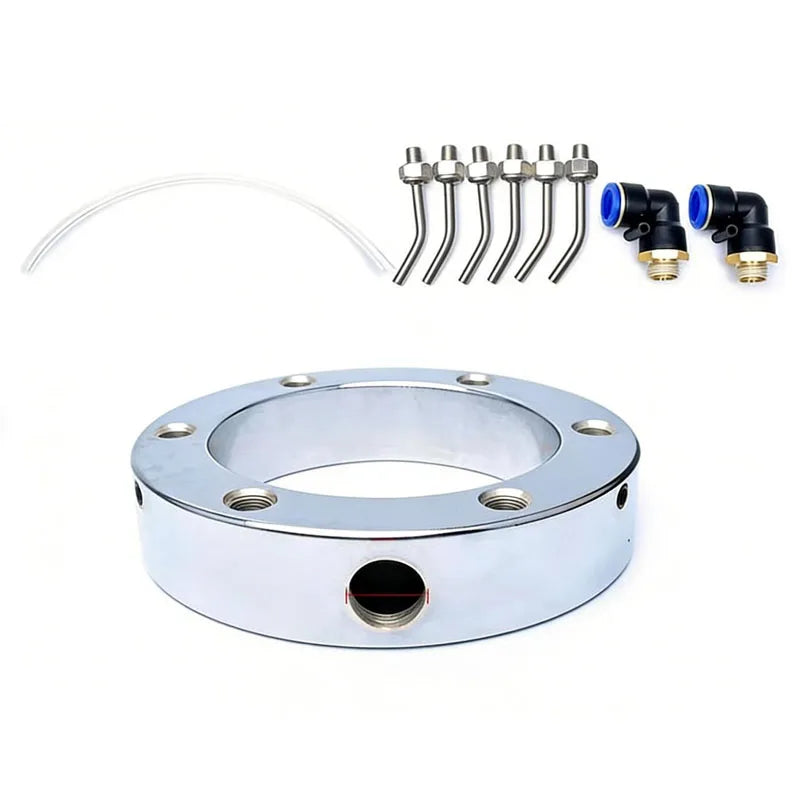

This CNC water spray ring is designed for stone engraving machines, metal engraving and milling machines, machining centers, and other CNC machine tools. The ring design allows 360° water spray around the spindle, effectively reducing tool temperature during cutting. Each of the 6 metal nozzles can be adjusted independently to direct coolant exactly where needed. With high water pressure, it provides fast cooling, efficient chip flushing, and better tool protection. The inlet and outlet threads are G3/8 and G1/8 respectively, and the included 300mm hose ensures easy connection. Ideal for improving machining performance and extending tool life.

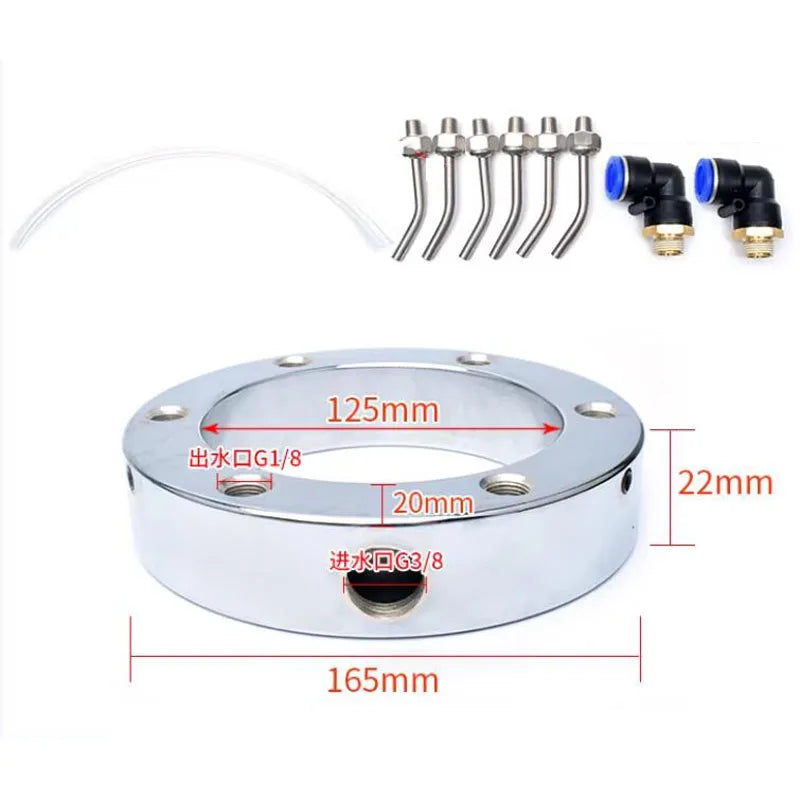

Specifications:
Product Name: CNC Water Spray Ring
Material: Metal
Number of Nozzles: 6 pcs
Nozzle Length: 60 mm
Hose Diameter: 12 mm
Hose Length: 300 mm
Inlet Diameter: 12 mm
Inner Diameter (Ring): 125 mm

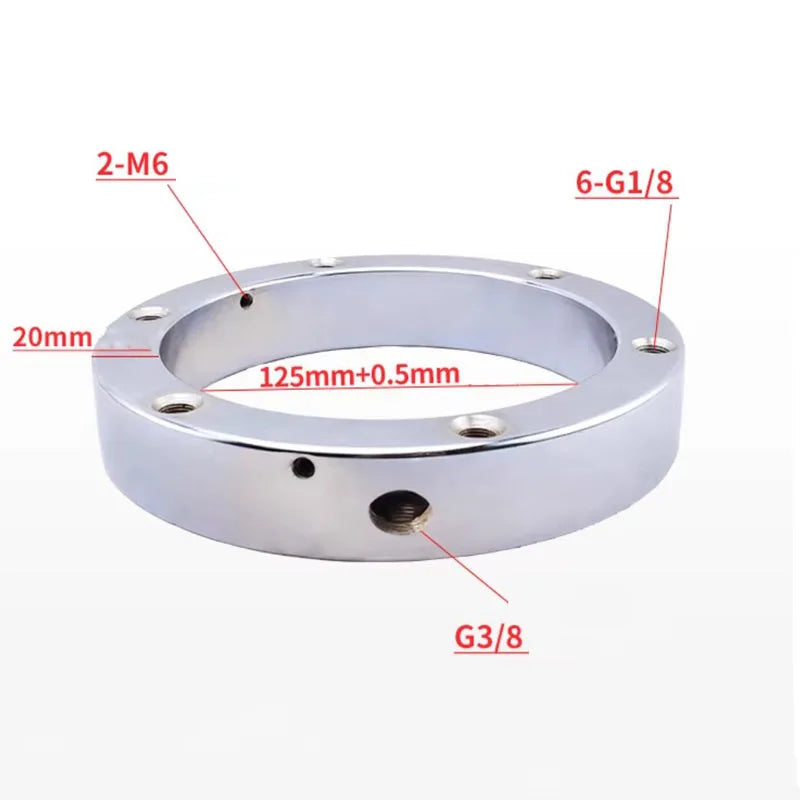

Inlet Thread: G3/8
Outlet Thread: G1/8
Ring Thickness: 20 mm
Overall Height: 22 mm
Outer Diameter: 165 mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
