 Description:

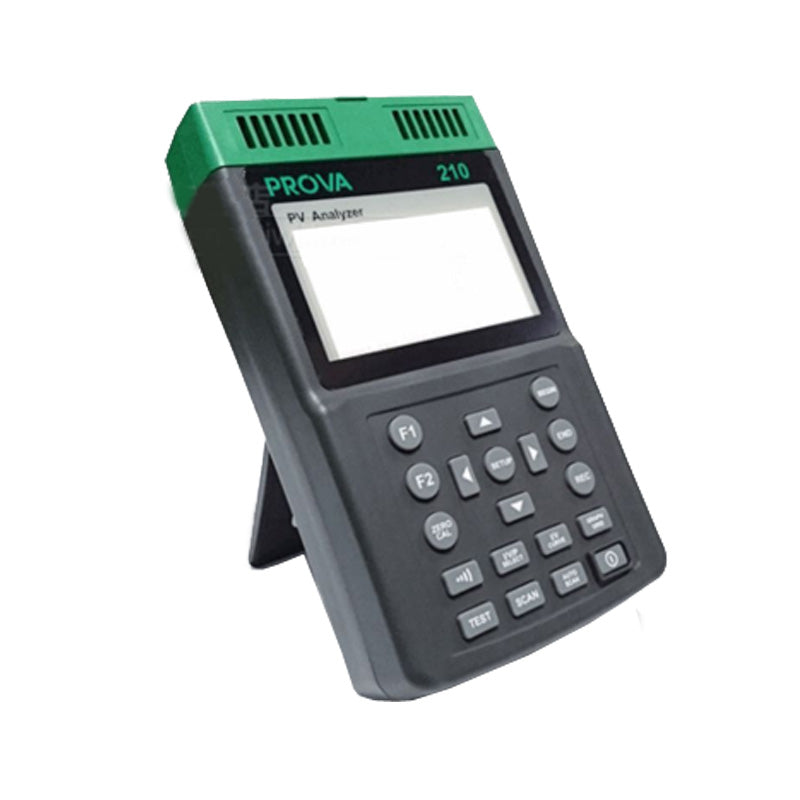

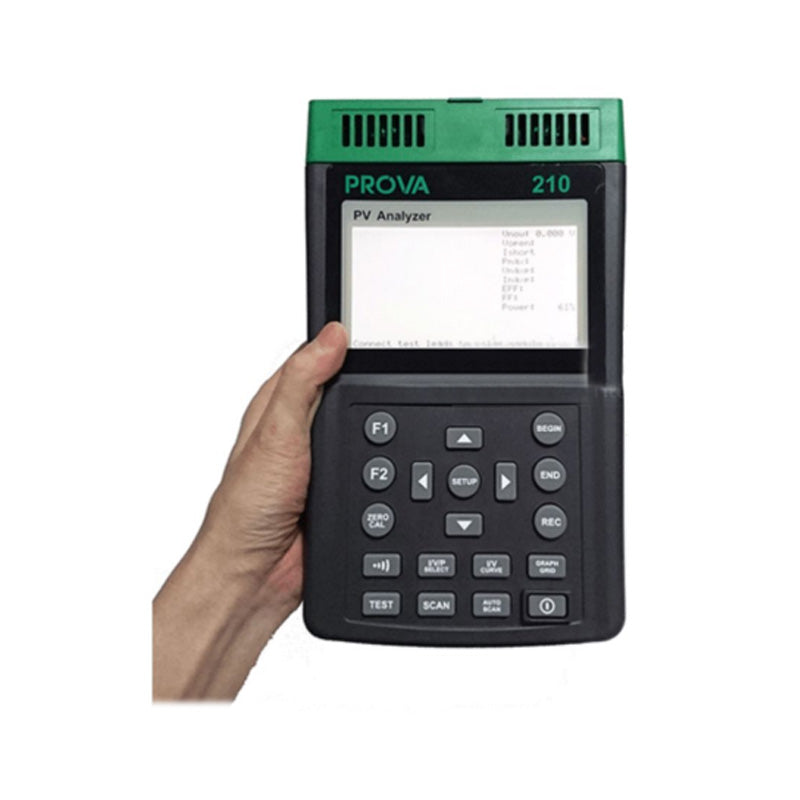

 New Solar Module Analyzer PROVA-210(12A,60V) Solar Meter PROVA 210

 Specifications

 1)100% Original New Products With Good Quality

2) Made In China

3)In stock .

4)Model :Prova-210

 Features:

   I-V Curve Test for Solar Cell.

  Maximum Solar Power (Pmax) Search by Auto-scan (60V, 12A)

  Maximum Voltage (Vmaxp) at Pmax

  Maximum Current (Imaxp) at Pmax

  Voltage at open circuit (Vopen)

  Current at short circuit (Ishort)

  I-V curve with cursor

  Optional printer (model: 300XP) to hardcopy I-V curve

  Calculation of Efficiency (%)

  Manual single point test

  Datalog, Capable to logging daily I-V characteristic curve

 Specification:

 Electrical Specifications (23°C±5°C)

DC Voltage Measurement:

          Range (60V / 6A)

    Resolution

    Accuracy

          0- 10V

    0.001V

    ±1% ± (1% of Vopen ± 0.1V)

          10–60V

    0.01V

    ±1% ± (1% of Vopen ± 0.1V)

 DC Current Measurement:

          Range (60V / 6A)

    Resolution

    Accuracy

          0.01 - 10A

    1mA

    ±1% ± (1% of Ishort ± 9mA)

          10–12A

    1mA

    ±1% ± (1% of Ishort ± 9mA)

 DC Current Simulation:

          Range (60V / 6A)

    Resolution

    Accuracy

          0.01–10A

    1mA

    ±1% ± 9mA

          6-10A

    1mA

    ±1% ± 0.09A

 General Specifications:

          Battery Type:

    Rechargeable, 3400mAh Li-ion Battery

Linear Scan 400times  (60V-0V, 0A-12A)

          AC Adaptor:

    AC 110V or 220V input,

DC 15V/ 1 ~ 3A output

          Dimension:

    257 (L) x 155 (W) x 57 (H) mm

10.1 (L) x 6.1 (W) x 2.2 (H) in

          Weight:

    1160 g / 40.0 oz

(battery included)

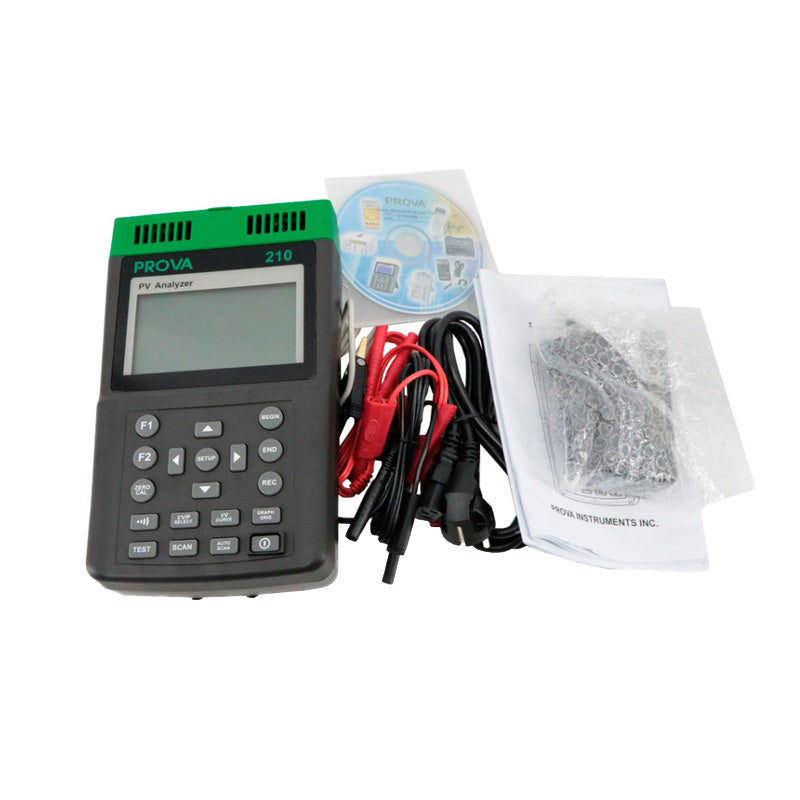

          Accessories:

    Users manual x 1, AC adaptor x 1

RS232C (to USB Bridge) Cable x 1

Rechargeable batteries x 8

Software CD x 1

Kelvin Clips (6A max) x 1 set
