res:
2. This DAB antenna is suitable for all /Kenwood, for JV-C and for Sony car audio and navigation devices.
3. DAB - Digital radio antenna with built-in signal booster.
4. Many of the DAB antennas sold have inferior elements that stand out from the crowd and destroy the beauty of the car.
5. Our special elements blend better with your car glass. It will be placed on your car window.
Description:

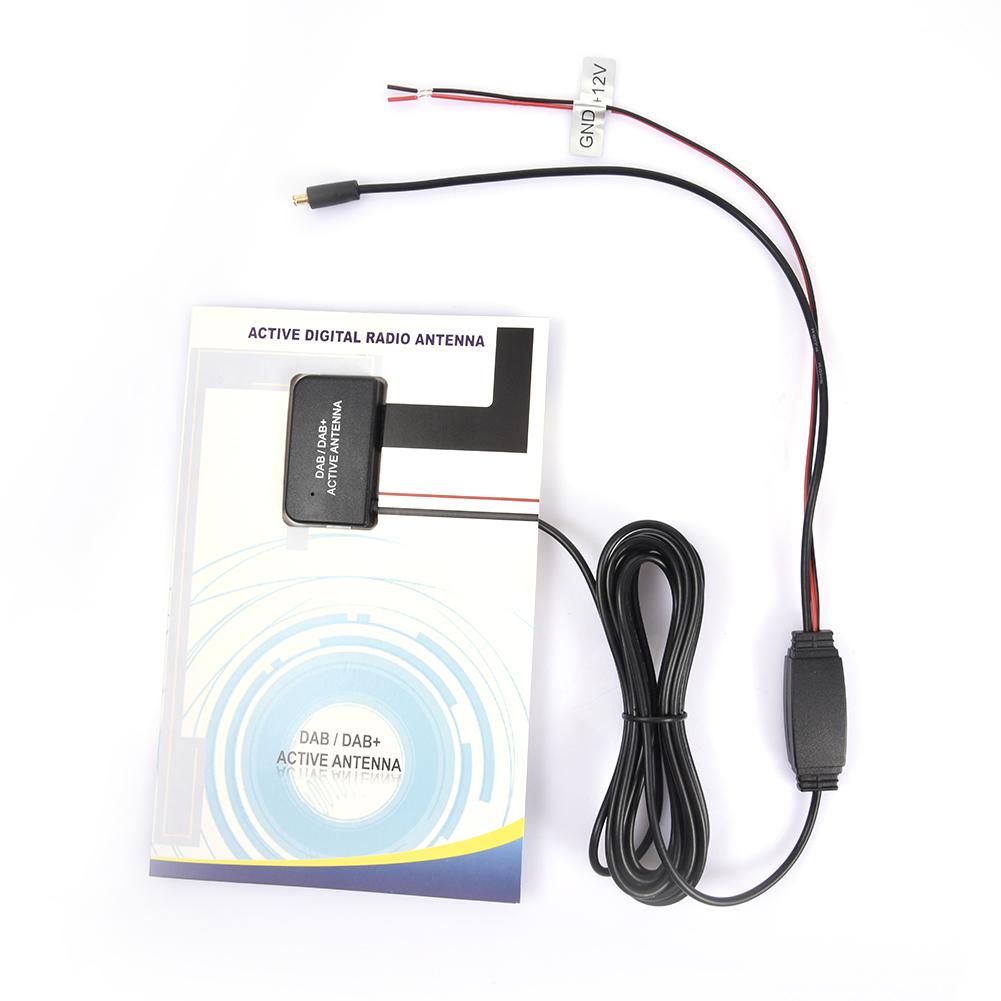

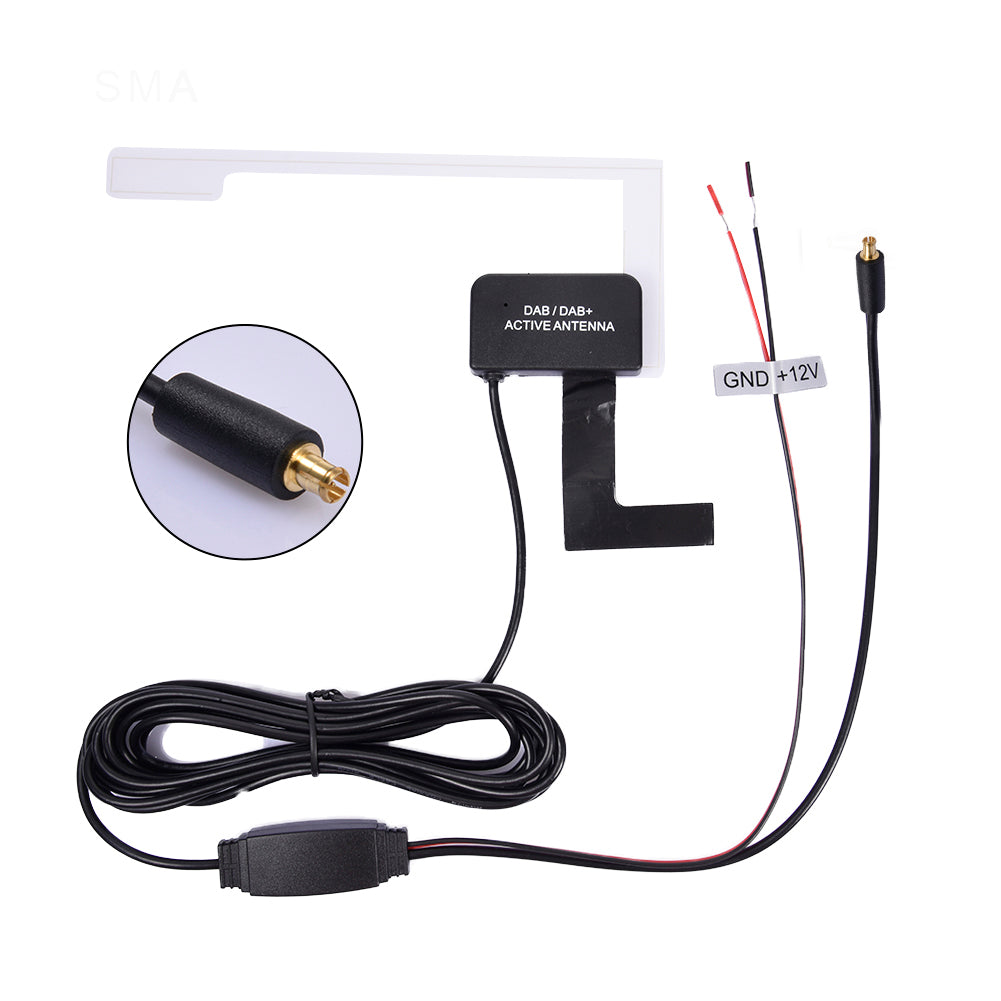

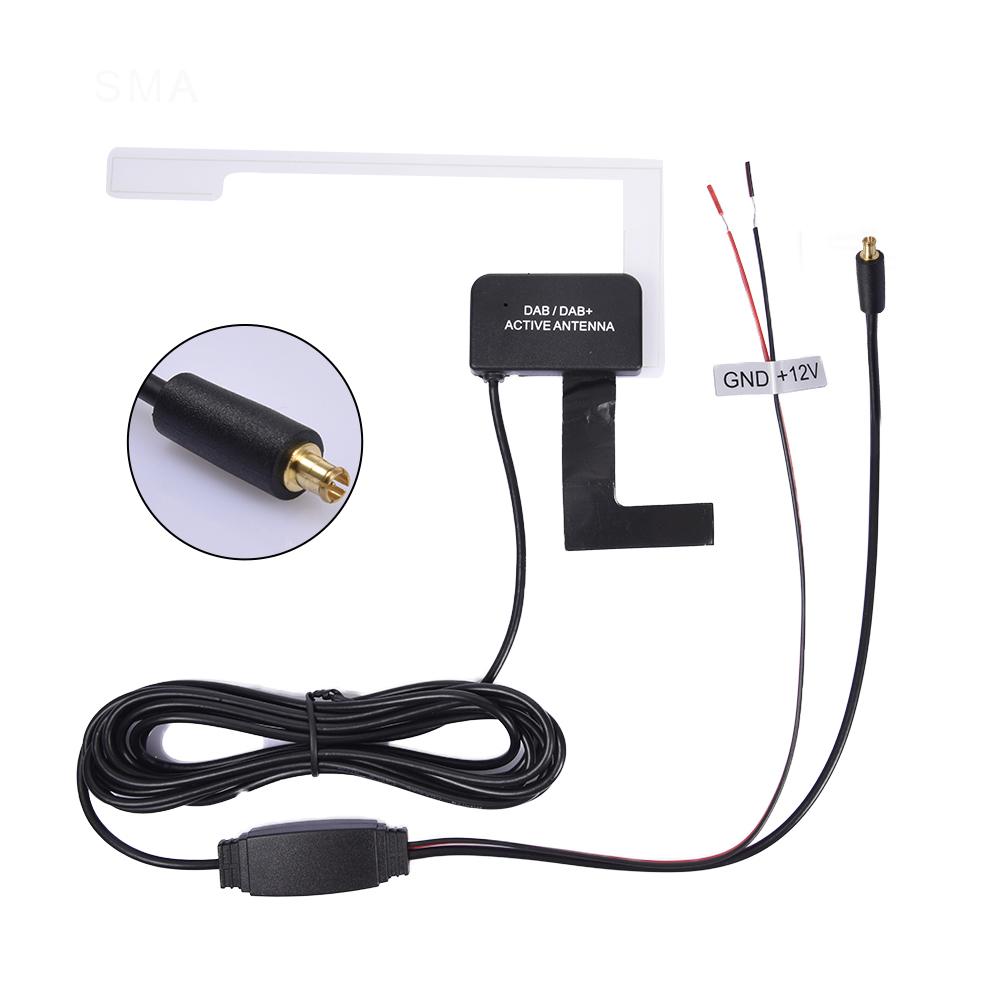

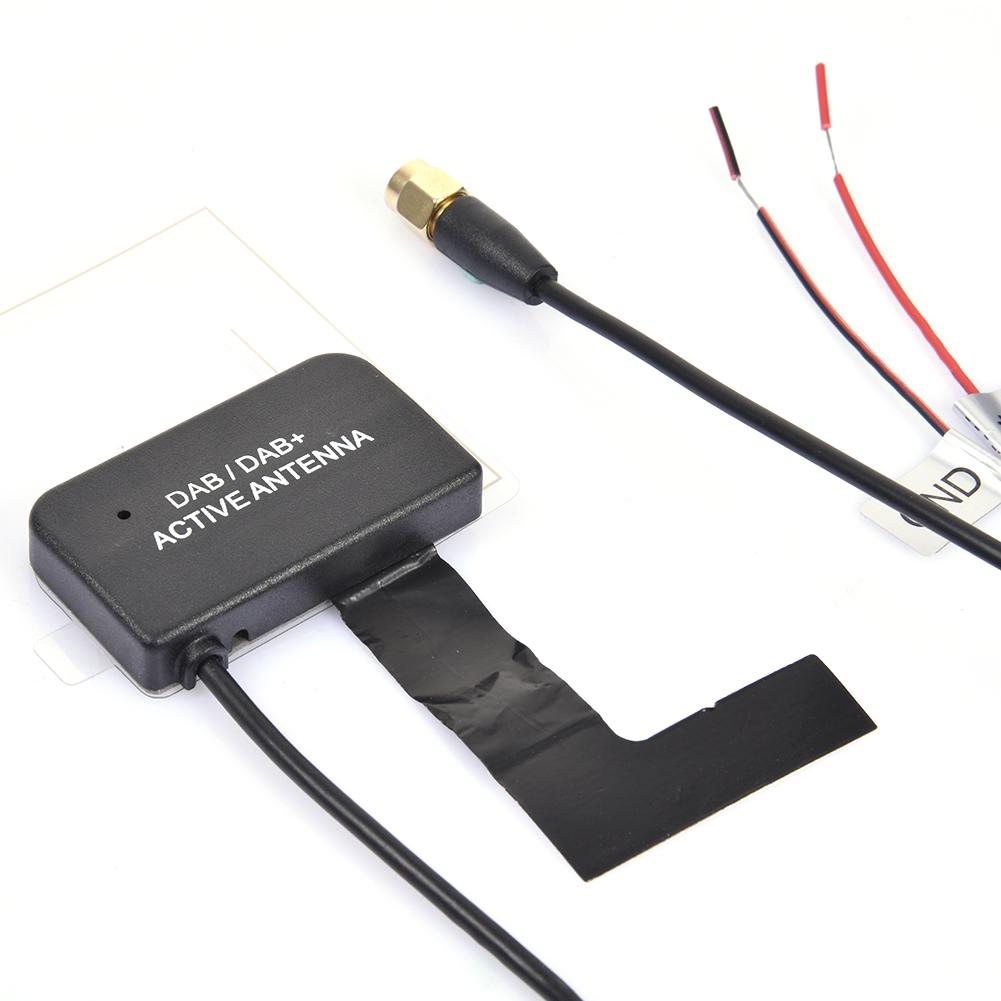

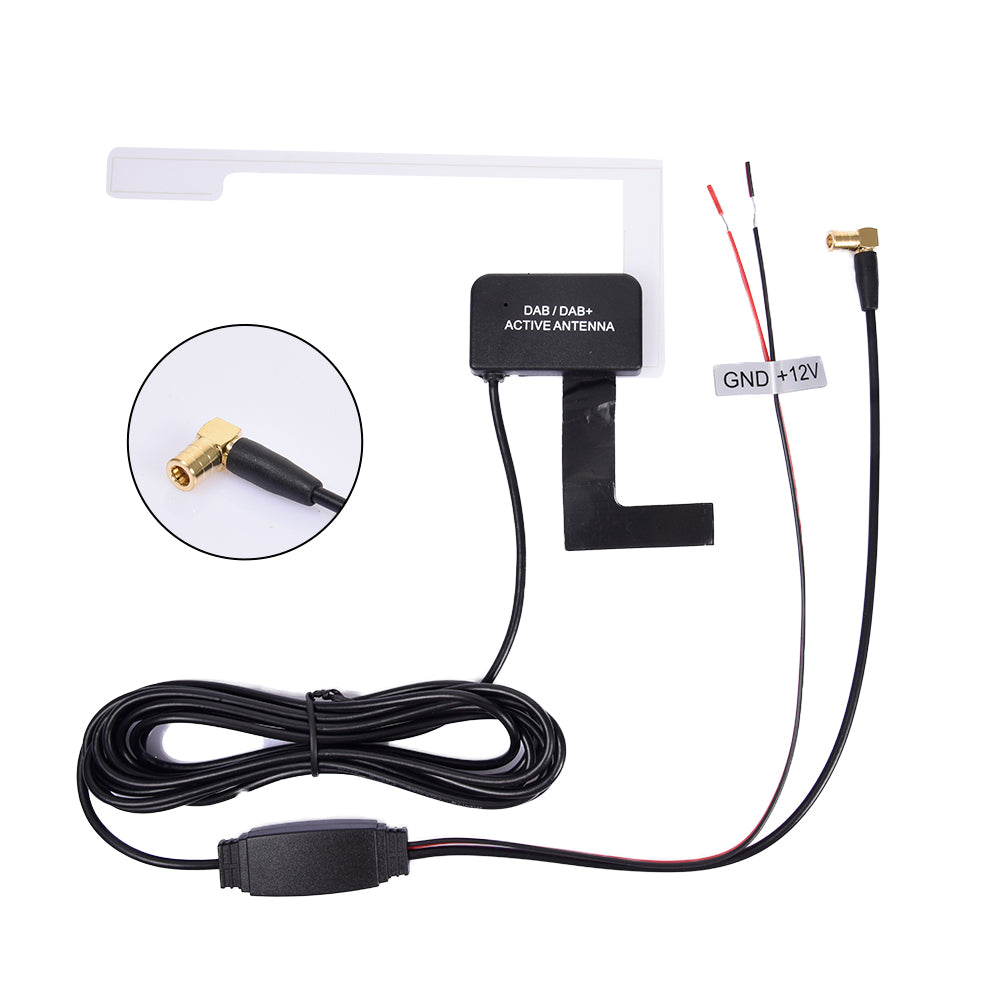

Built-in antenna/active amplifier car DAB antenna/not suitable for windshields with metallic tones or heating elements.

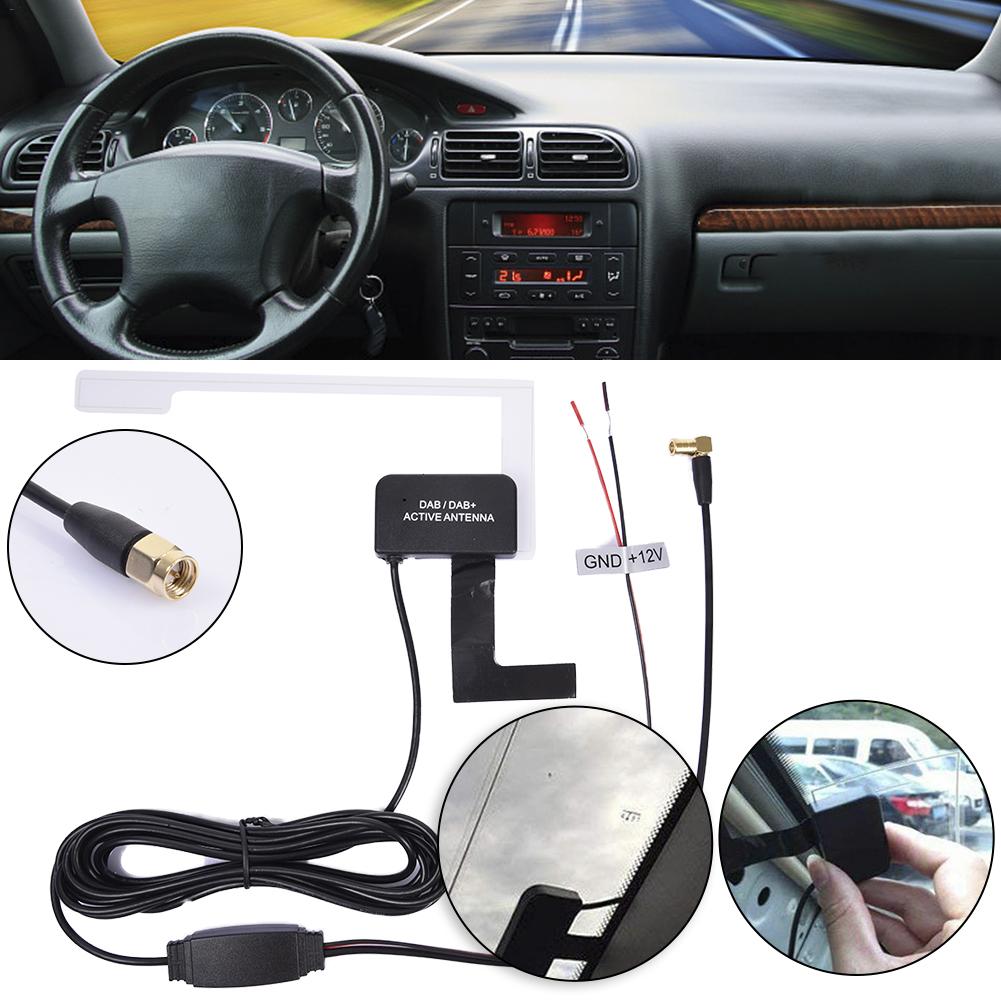

Installation: adhesive - internal glass mounted patch antenna
Cable length: 3M/118.11inch
Application:

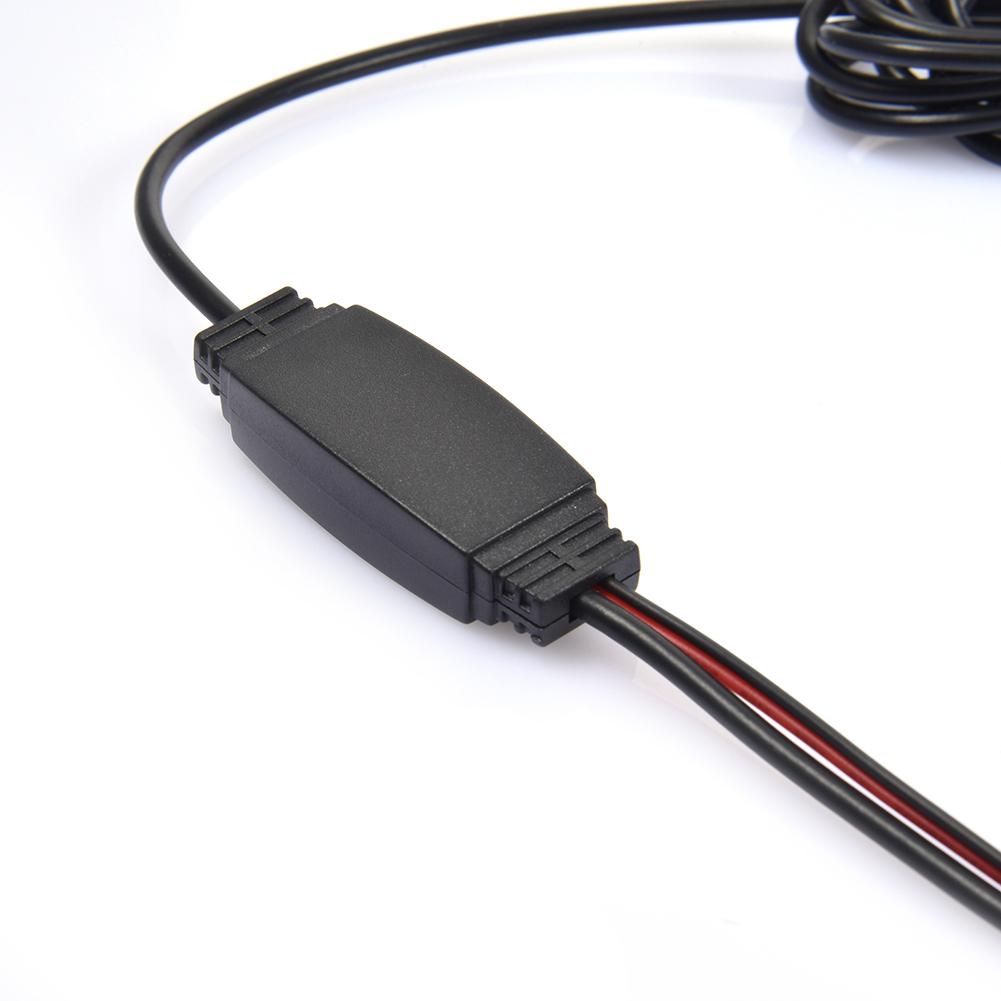

Active antenna with built in RF amplifier for digital Radio
2.Specifications
Impedance: 50/75 Ohm Typ.
Receiving frequency range: Band Ⅲ170~240MHzL-Band 1452-1492MHz(Apolegamy)
Supply voltage: DC5V/DC12V+/-10% From Tuner
Working Current:30mA~60mA
Operation assurance temp.range -20*℃~+60℃
Storage assurance temp.range -40℃~+85'C
V.S.W.R.<2
Gain 15dB±3dB(Band m)18dB±3dB(L-Band)

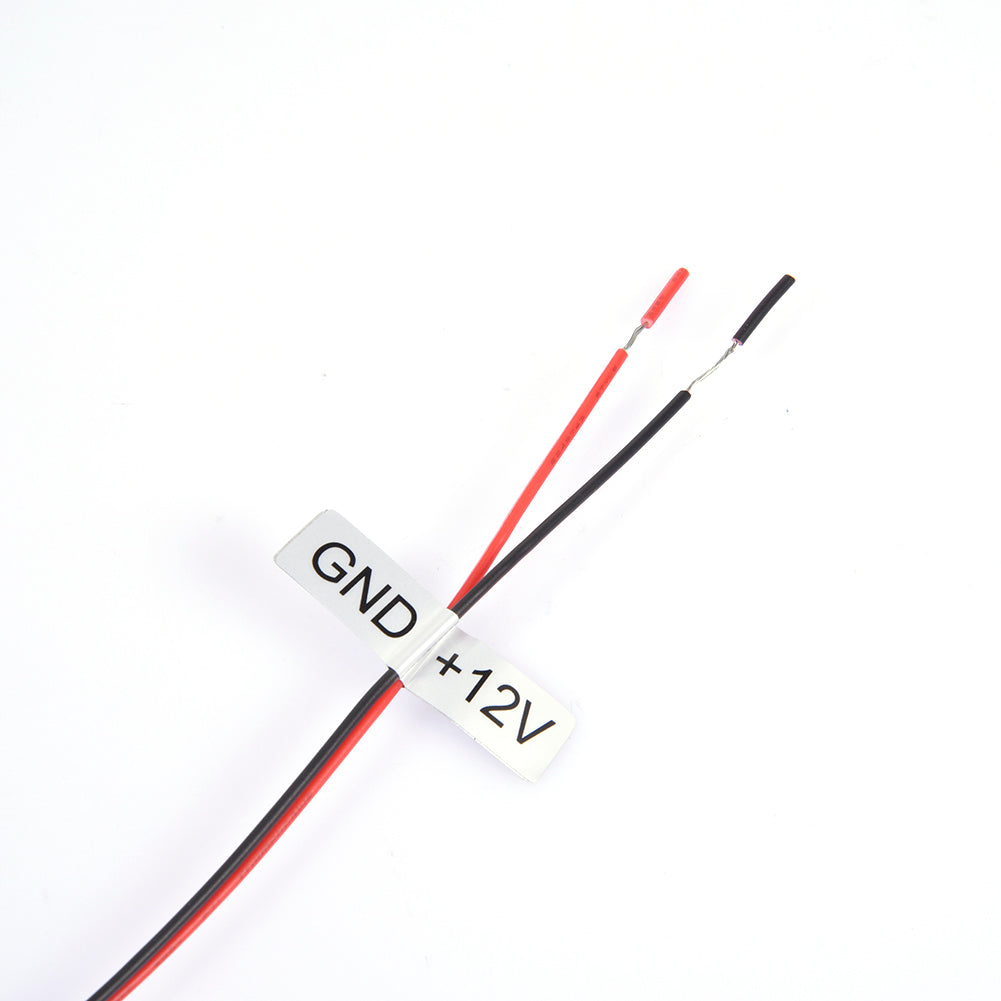

Cable specification: RG174 with power wire
Working voltage: 5V.
Working current: 26±3mA
Compatible with all DAB radios and tuners with SMB (screw connectors)
Package Included:
1 * High quality DAB antenna
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
