Many customers inquire whether our products are equipped with higher magnification lenses.
We provide 4 models, 120X 130X 180X 300X.
Please note that the installation diameter of the lens is different, we will match and send the correct goods according to your choice. If the goods exceed the weight limit, we will send multiple packages

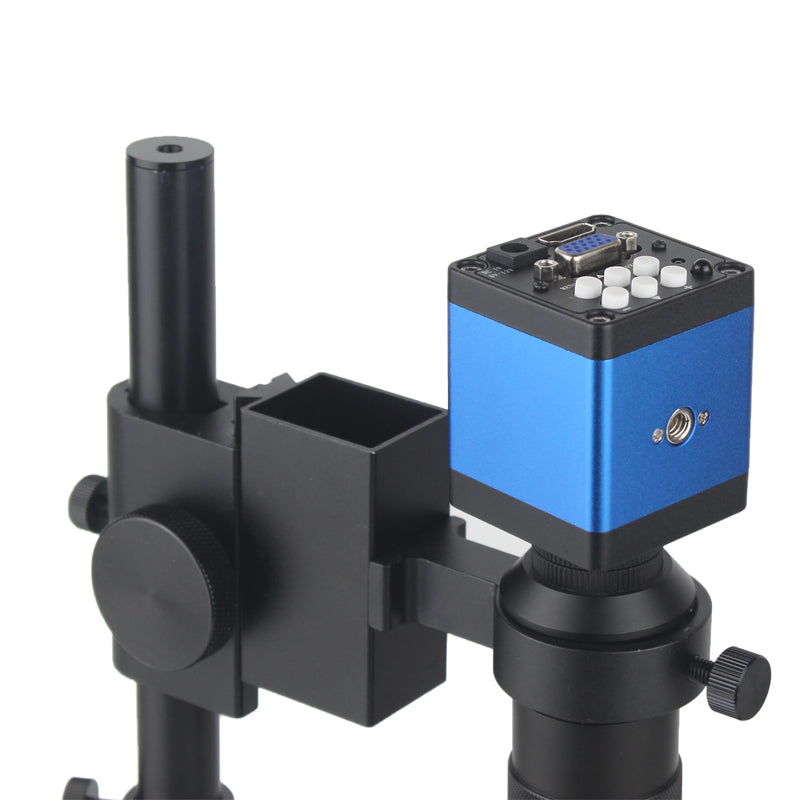

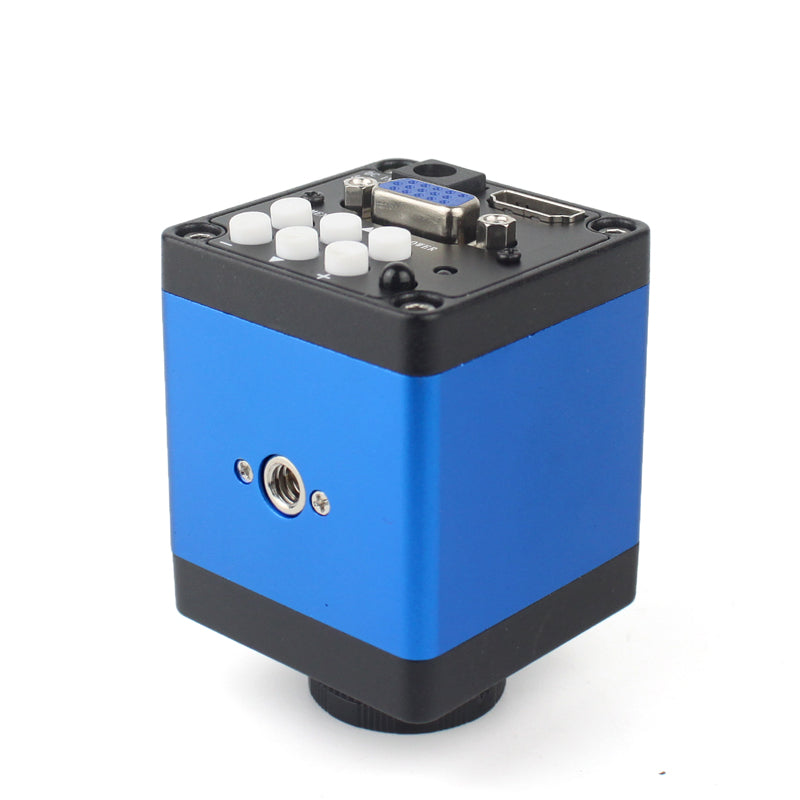

Microscope Camera Specification:
Model: Camera with HDMI VGA two output
Sensor: 1/3 inch 13MP
Image format: jpg
Image resolution: 1920*1080 60F/S
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,8 horizontal line , 8 vertical line,any positions

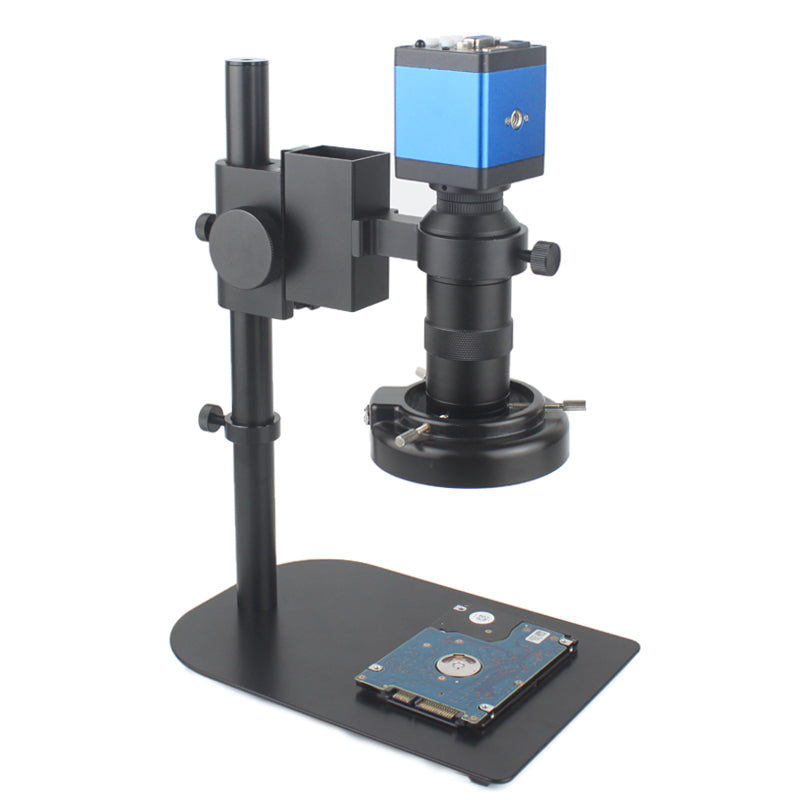

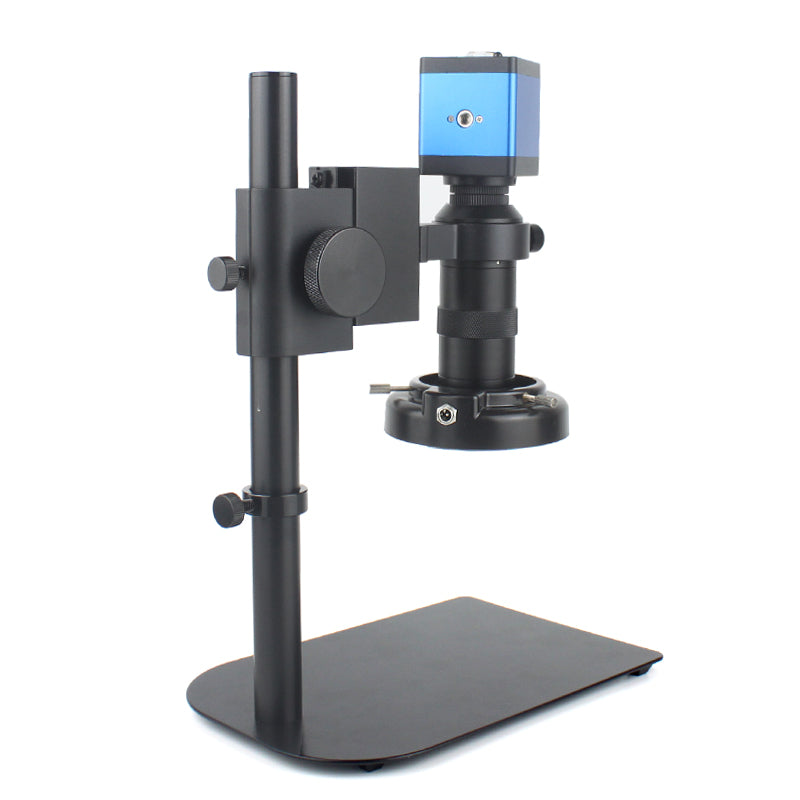

Package A:
1 x Microscope Camera
1 x Power Supply
1 x IR remoter
1 x HDMI Line
1 x 1-130X C-mount Lens
1 x LED Ring Light
1 x Camera Stand

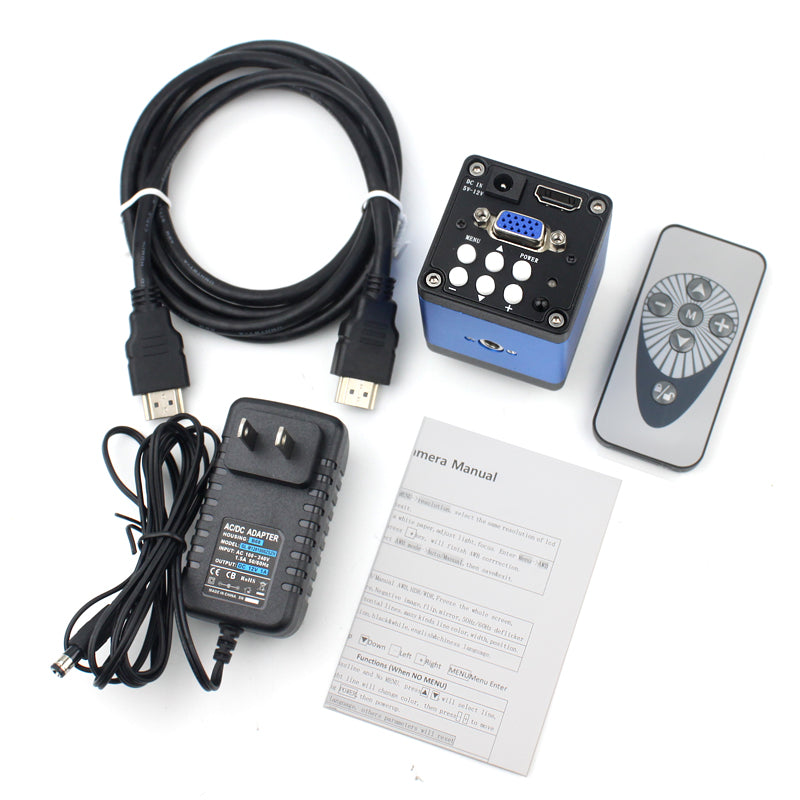

Package B:
1 x Microscope Camera
1 x Power Supply
1 x IR remoter
1 x HDMI Line
Package C:

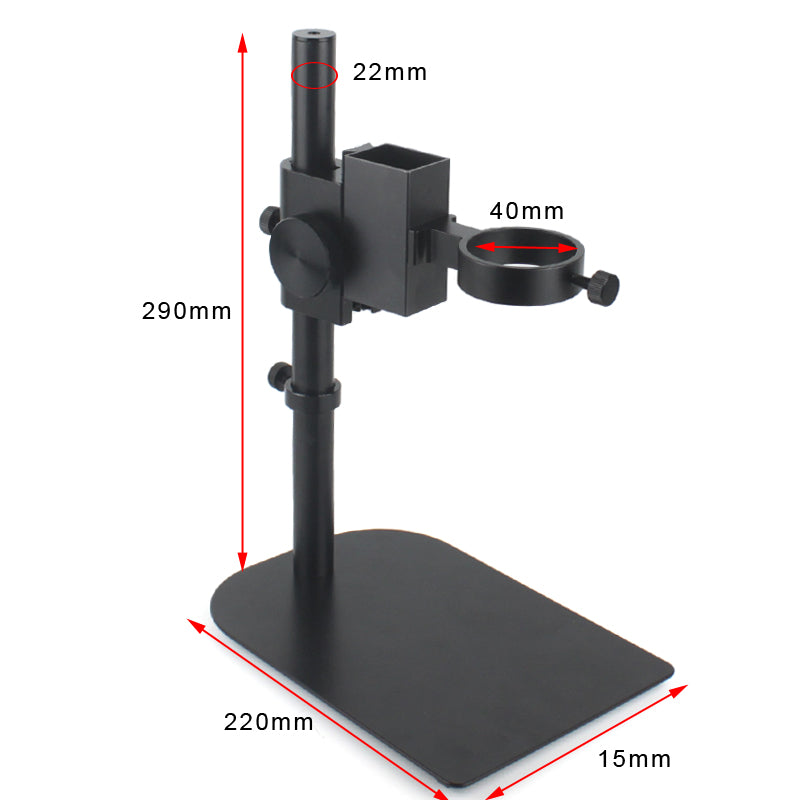

1 x Stand
Package D:
1 x 1-130X C-mount Lens
Package E:
1 x LED Ring Light
Package (With 120X 180X 300X Lens)
1 x Microscope Camera
1 x Power Supply
1 x IR remoter
1 x HDMI Line
1 x (120X 200X 300X) C-mount Lens Can Choose
1 x LED Ring Light
1 x Camera Stand

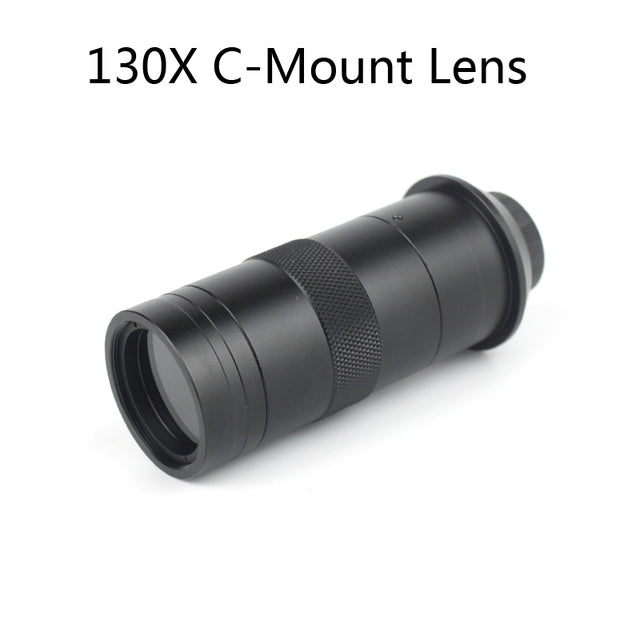

C-MOUNT Lens:

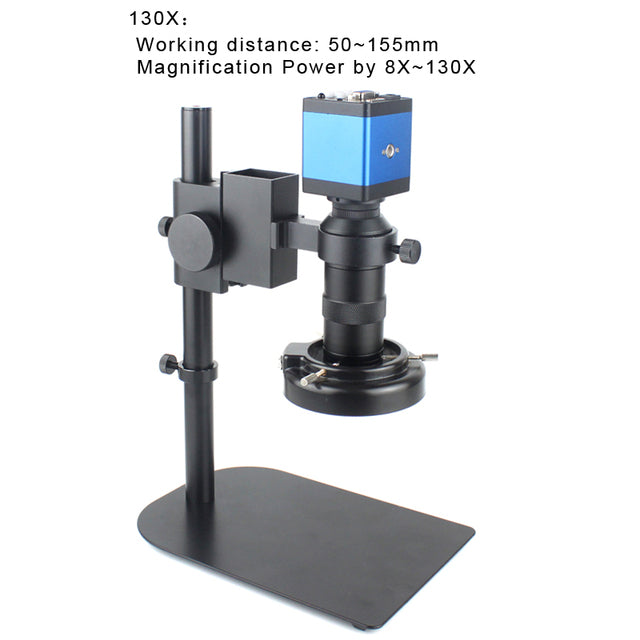

Working distance: 50~155mm
zoom c-mount 130X Lens
Magnification Power by 8X~130X
Size: 115mm(L) * 40mm(DIA)

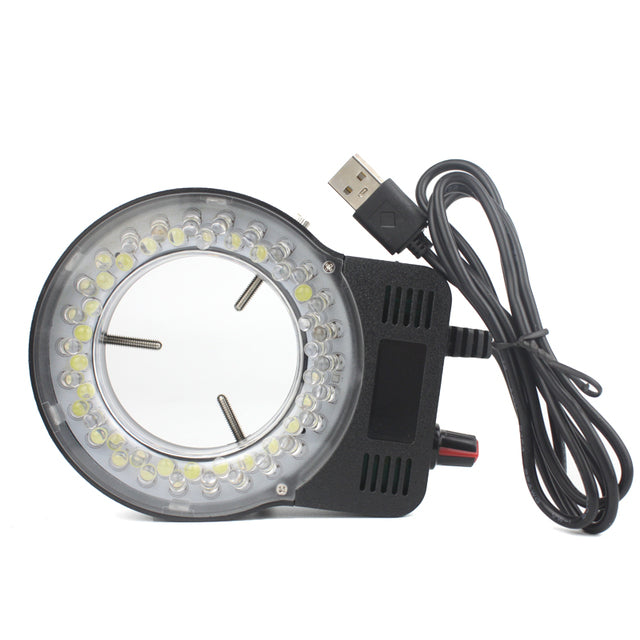

USB LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)

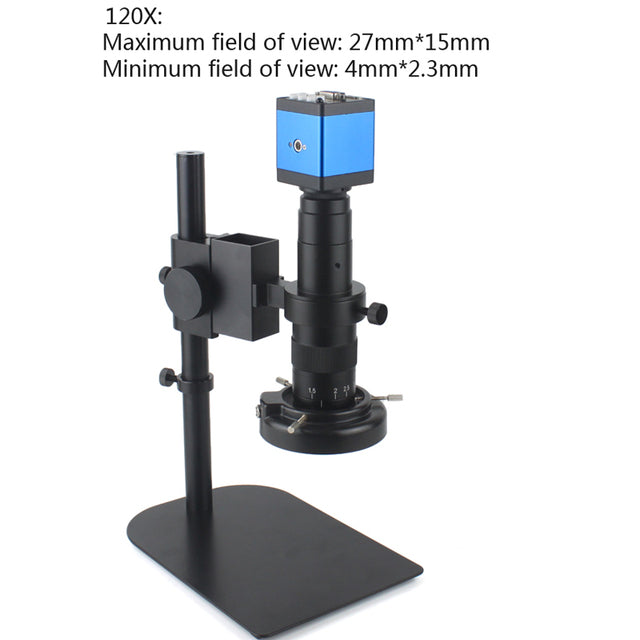

120X C-Mount Lens: ( 21.5-inch Monitor)
Zoom C-Mount Lens
0.35X C-mount adapter
Objective Magnification Power by 0.7X-4.5X
Working distance: 100mm
Maximum field of view: 27mm*15mm
Minimum field of view: 4mm*2.3mm

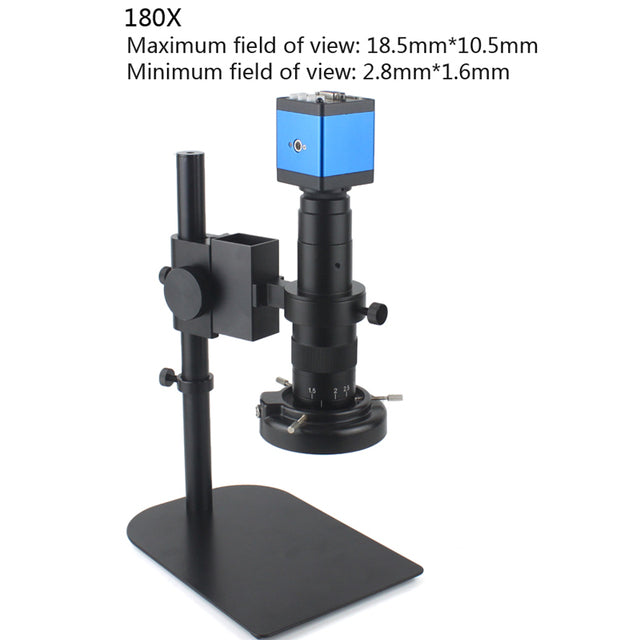

180X C-Mount Lens: ( 21.5-inch Monitor)
Zoom C-Mount Lens
0.5X C-mount adapter
Objective Magnification Power by 0.7X-4.5X
Working distance: 100mm
Maximum field of view: 18.5mm*10.5mm
Minimum field of view: 2.8mm*1.6mm

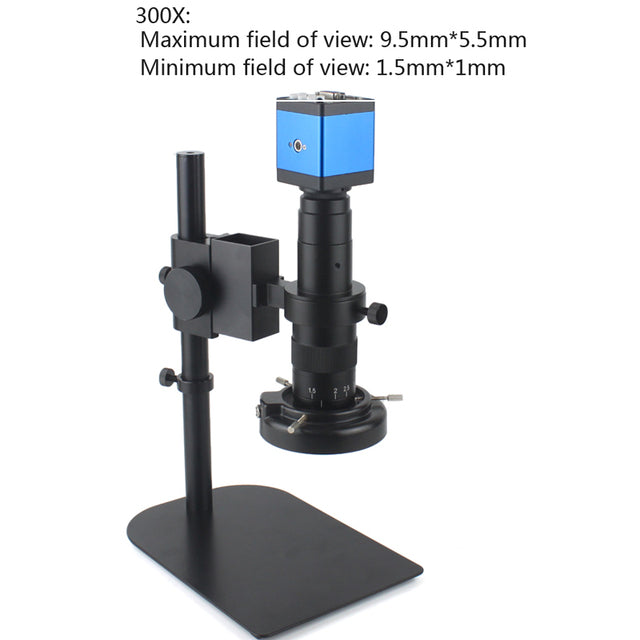

300X C-Mount Lens: ( 21.5-inch Monitor)
Zoom C-Mount Lens
1X C-mount adapter
Objective Magnification Power by 0.7X-4.5X
Working distance: 100mm
Maximum field of view: 9.5mm*5.5mm
Minimum field of view: 1.5mm*1mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
