1. With wing-shaped heat dissipation, the heat dissipation effect is very good, and the output power is greater (the power can reach about 1800W when the 48V input is added with a fan).

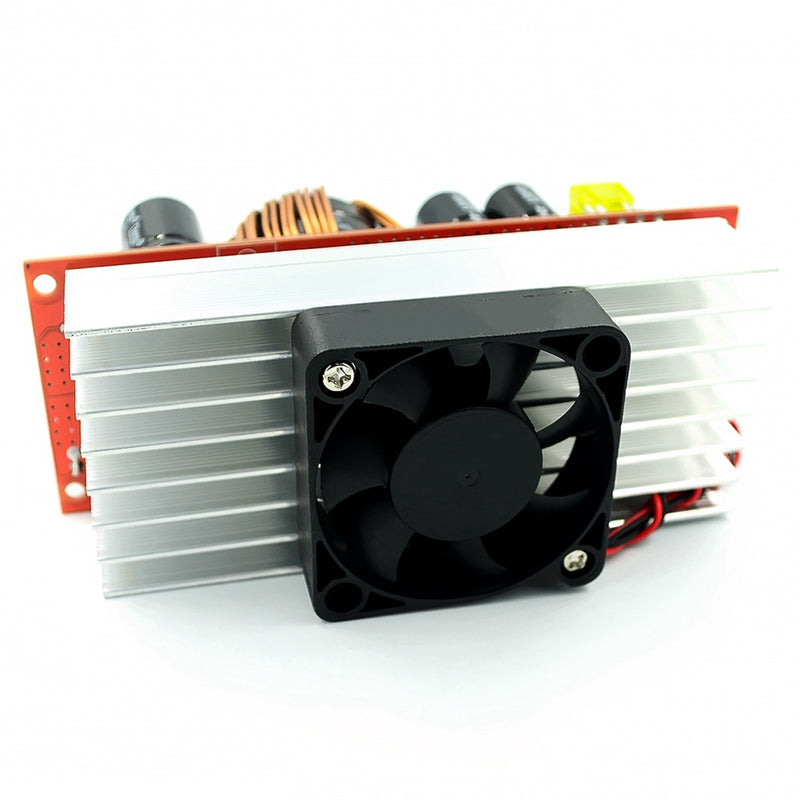

2. The temperature-controlled fan, combined with the hydraulic bearing fan, has a very good balance between noise and heat dissipation. When the load is light, the fan does not rotate, and when the load temperature reaches about 60 degrees, the fan automatically turns on and rotates. Can effectively reduce noise and extend life.

3. The main power tube insulation board is made of alumina, and the thermal conductivity is 10 times that of ordinary insulation pads.

4. Using 100V 210A TO-247 large package power tube, with large power margin and good dynamic response.

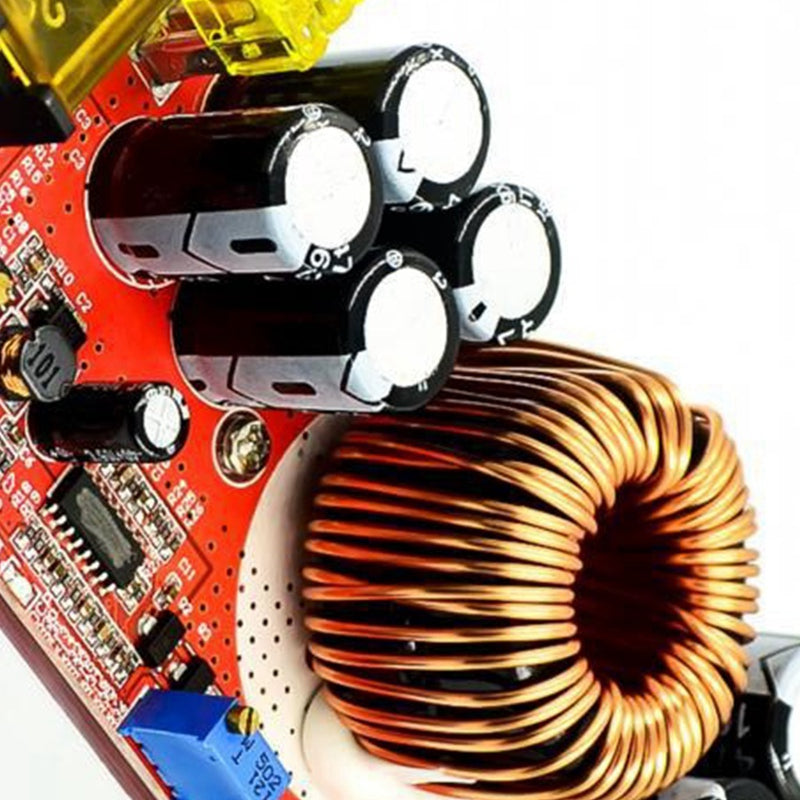

5. Double large-size sendust magnetic rings, using 4 1.2 pure copper enameled wires, with low heat generation and high efficiency.

New design, conversion efficiency up to 98.1%

3296W multi-turn potentiometer, with high adjustment accuracy and small drift.

With constant current function, it can be used to boost battery cars, charge batteries, and so on.

Input 3 20A fuses in parallel, which can protect the risk of accidental short-circuit of the output.

Three indicator lights: undervoltage, overcurrent, power indicator, working status is clear at a glance.

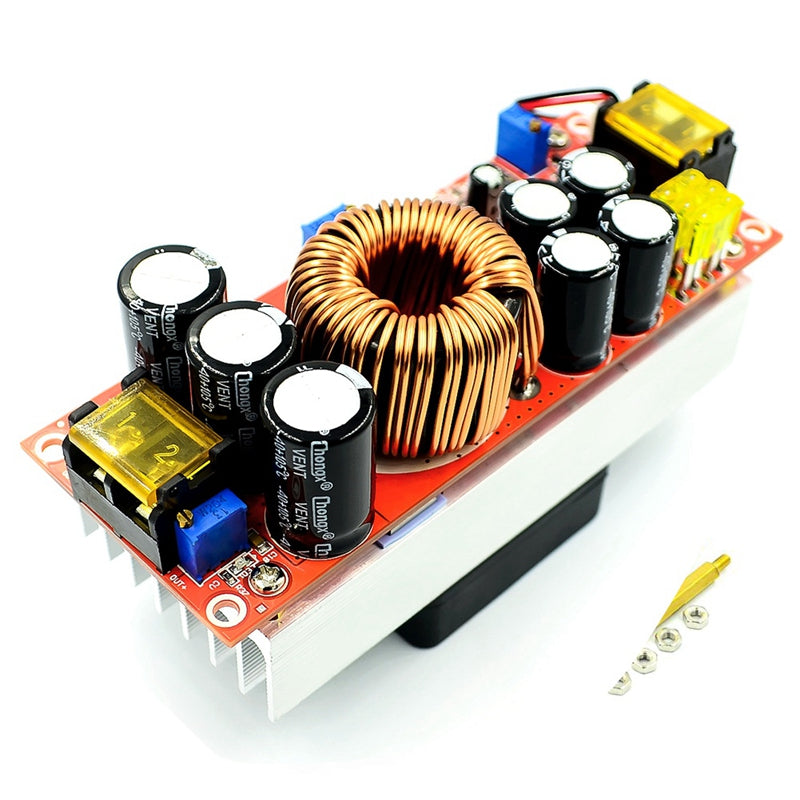

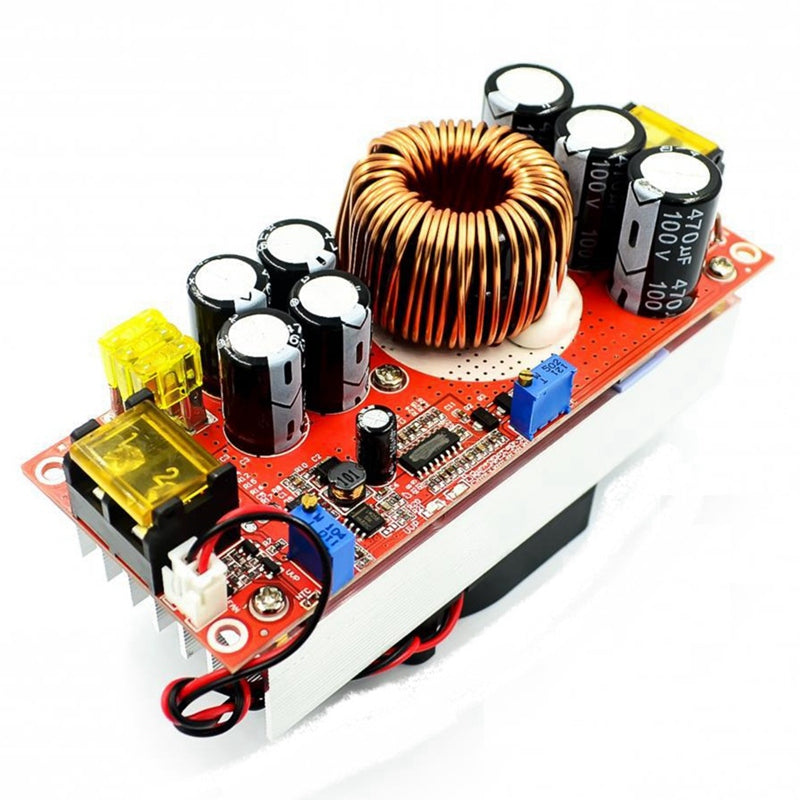

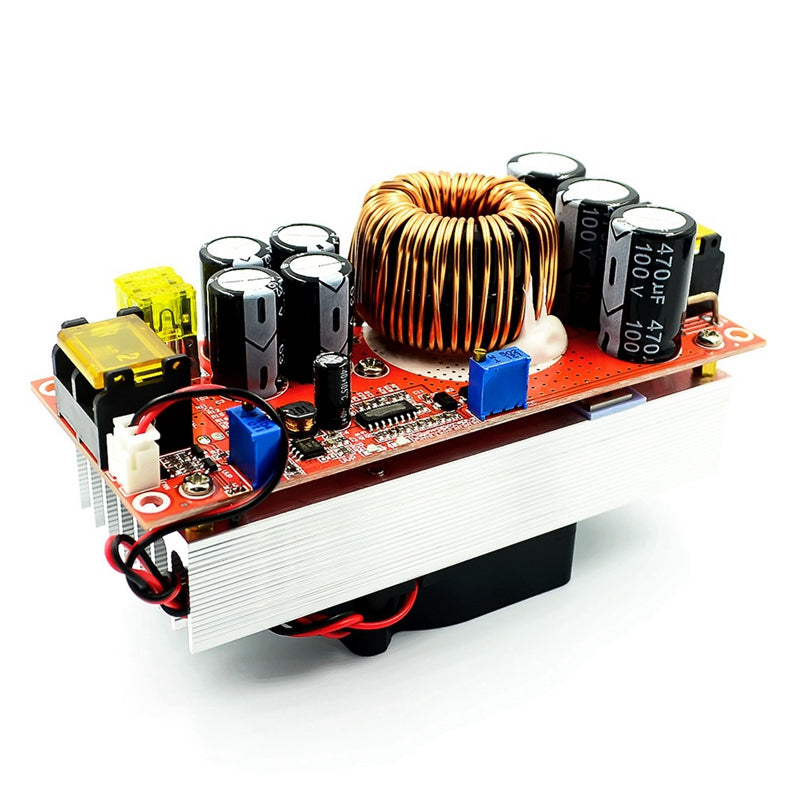

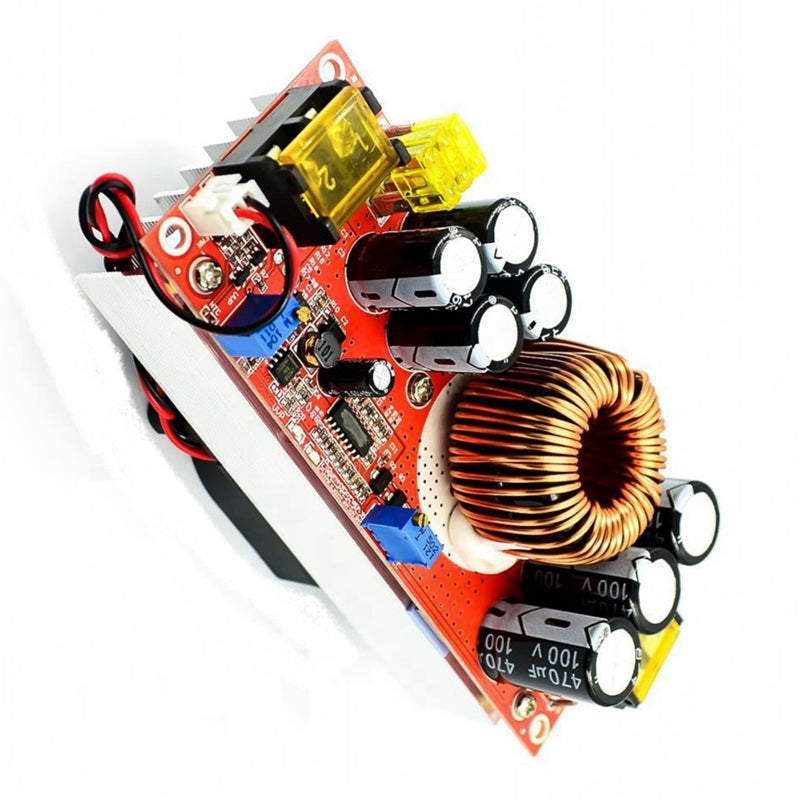

Product name: 1500W boost constant current module

Input voltage: DC10-60V

Output voltage: 12-90V continuously adjustable

Output current: 20A MAX Please strengthen heat dissipation if it exceeds 15A (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)

Constant current range: 0.8-20A (+/-0.3A)

Input anti-reverse connection: Yes (150A power MOS anti-reverse)

Low battery protection: Yes (8-50V adjustable) self-recovery type

Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 150KHz

Colour:Red

Material:PC+metal

Size:length 130mm width 52mm height 84mm (including copper column and fan)

weight: 490 grams

Package Contents:

1 x Power Module

Only the above package content, other products are not included.
