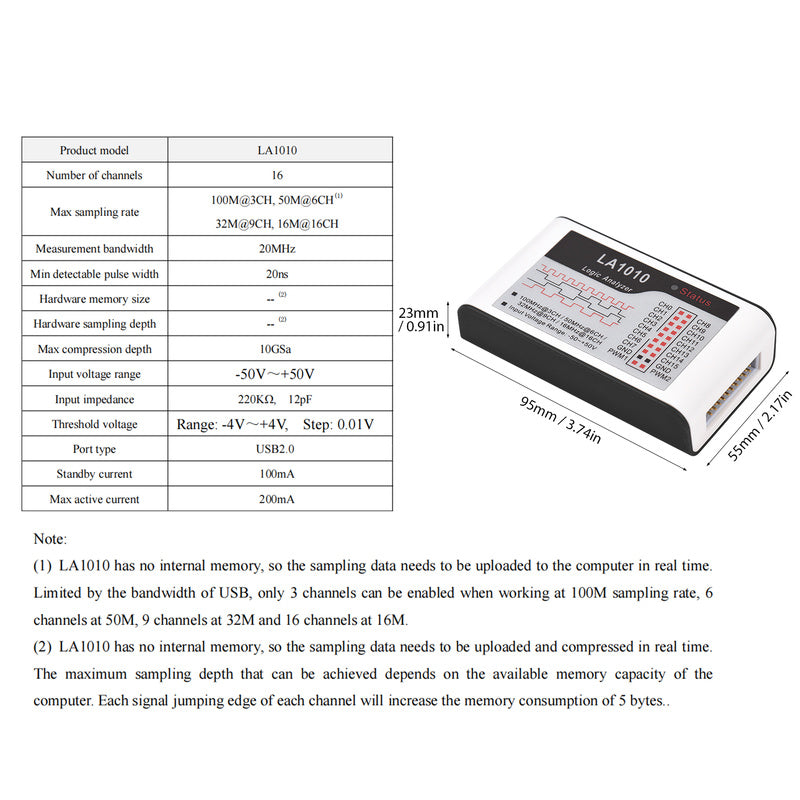

Specifications:
Color: Grey
Material: ABS
100MHz, 3 Channels
50MHz, 6 Channels
32MHz, 9 Channels
16MHz, 16 Channels
Measurement Bandwidth: 20MHz
Min. Detectable Pulse Width: 20ns
Max. Compress Depth: 10GSa
Sampled Data Format: txt, csv, bin
Decoding Data Display Format: Binary, Decimal, Hexadecimal, ASCII, ASCII Hexadecimal

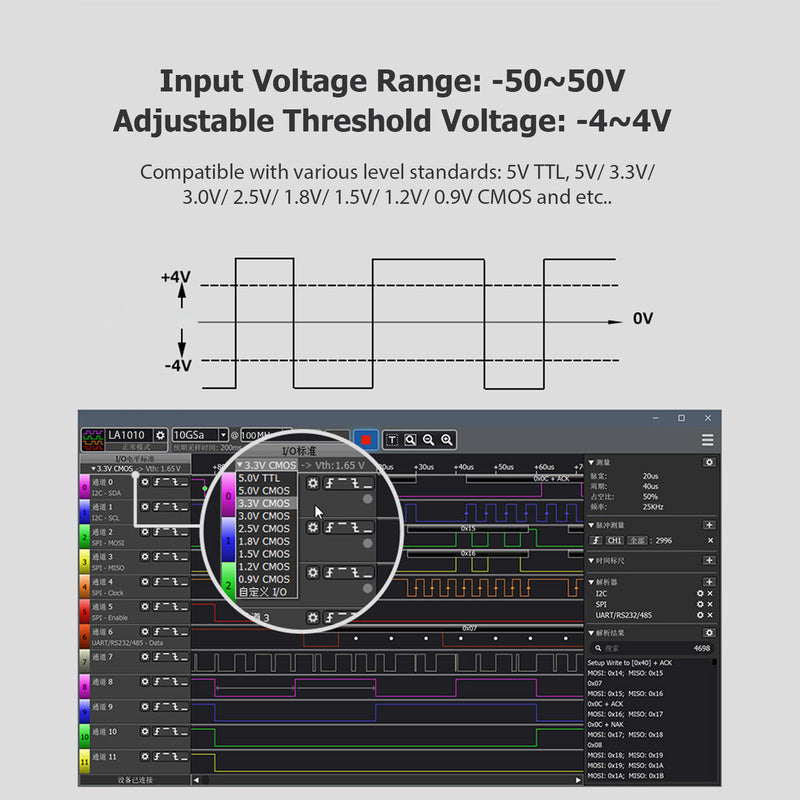

Input Voltage Range: -50~50V
Input Impedance: 220KΩ, 12pF
Adjustable Threshold Voltage: -4~4V
PWM Output: x 2
USB Interface: USB 2.0
Standby Current: 100mA
Max. Active Current: 200mA
Item Size: 95 * 55 * 23mm / 3.74 * 2.17 * 0.91in
Package Size: 25.5 * 19.5 * 5.5cm / 10.04 * 7.68 * 2.17in
Package Weight: 403g / 14.20oz

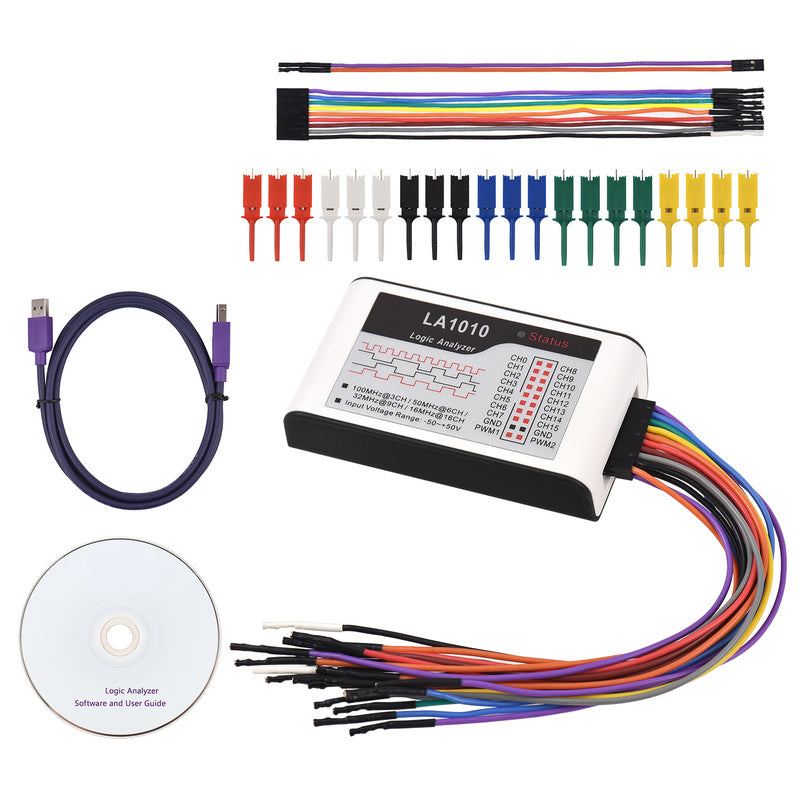

Package List:
1 * Logic Analyzer with 20P Cable
1 * 9P Cable
1 * 2P Cable
20 * Connector
1 * USB 2.0 Cable (1.5m)
1 * Software CD
1 * User Manual (English)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
