Balance Current: 40mA
Balance Voltage: 4.25(±0.02)V
Over-Charge Protection Voltage: 4.25(±0.025)V
Over-Charge Protection Voltage Release: 4.15(±0.05)V
Over-Charge Protection Voltage Delay Time: 1S
Over-Discharge Protection Voltage: 2.70(±0.05)V
Over-Discharge Protection Voltage Release: 3.0(±0.1)V
Short Circuit Protection Release: Disconnect load
Impedance: ≤20mΩ
Operating Temperature: -40~85ºC
Number in series: 16S
Size: 120 x 60 x 10mm/130 x 65 x 10mm
Application: 16S 60V li-ion battery,Suitable for assembled battery pack, Electric bicycles, electric scooters, motorcycles, electric boats, solar energy, etc.

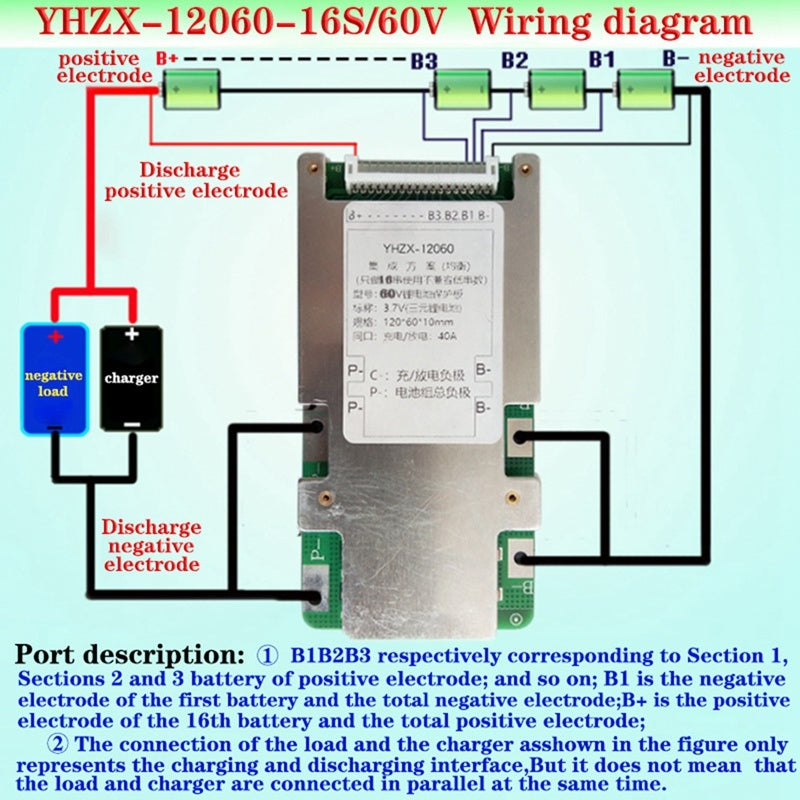

Wiring instructions:
Same port for charging and discharging:40A
power cable
B-: Connect to the negative pole of the battery pack
P-/C-: Connect to negative electrode of charger and discharge
Material: PC+Metal
colour: As shown
Package Contents:
1 * Battery Protection Board(Due to different product batches, the appearance may be different, which does not affect use.)
