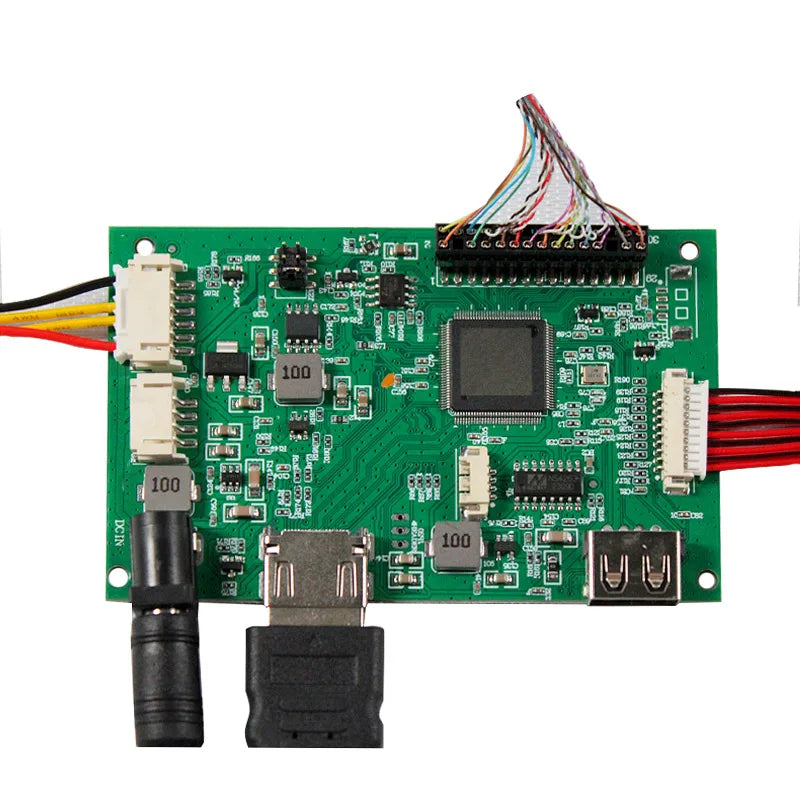

LCD Controller Board:
H-D.USB LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Video Input: H-D USB
H-D: Support H-D 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90.7mm x 57.3mm x 14mm

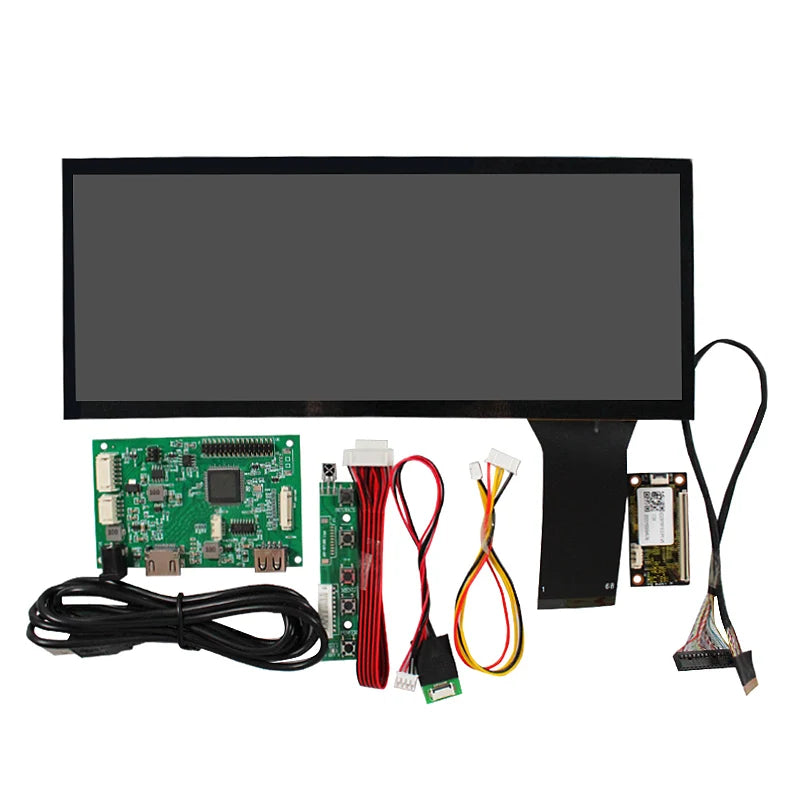

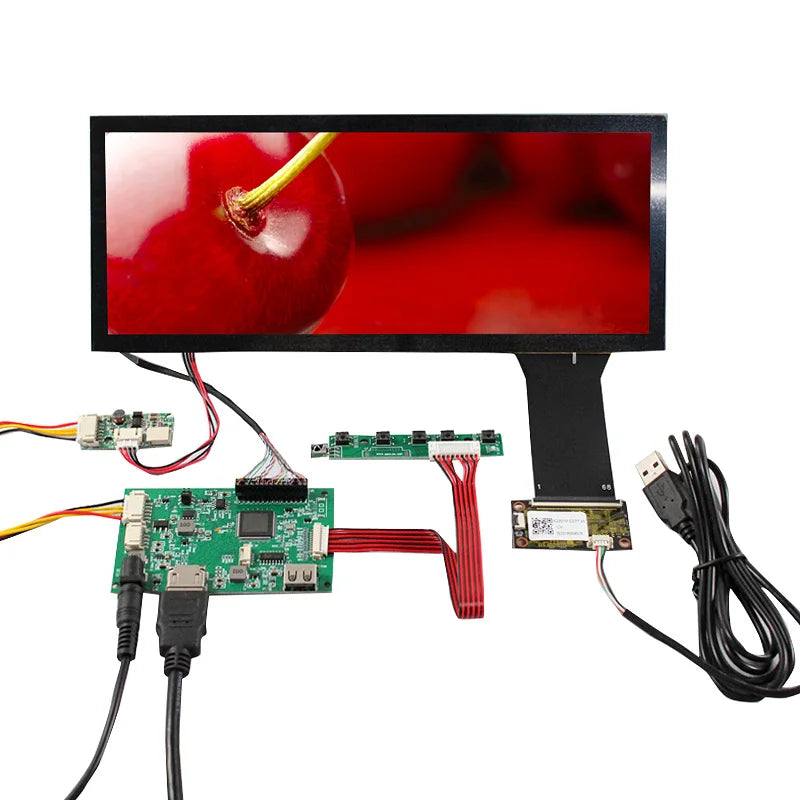

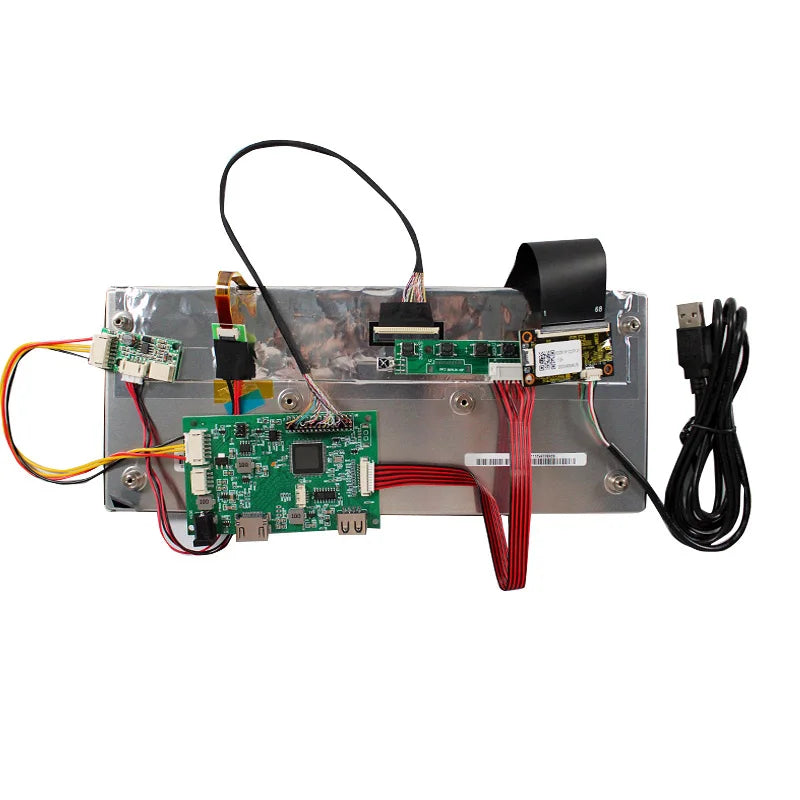

10.3" VS103IA 1920X720 Touch LCD Screen
Display New Mode IPS Pro, Normally Black, Transmissive
Resolution 1920(RGB)×720
Outline Size 259.84×109.3×16mm(H×V×D)
Display Area 243.6×91.4 (H×V)
Brightness 800 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50pins
Backlight 9S4P WLED
Input Voltage 3.3V (Typ.)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
