Features:
2.4-inch 320X240 TFT LCD with clear graphic interface.
Chinese / English menu available.
Both channels are independent of each other and have phase synchronization function.
5 basic waveform and 32 arbitrary waveform in-built.
Support internal storage of 50 groups of user-defined edited waveform.
Including 2 functions of measurement mode: frequency meter and counter.
Pulse wave output set in edge time.
Internal AM, FM, PM modulation function (External AM, FM, PM modulation is optional).
Internal/external ASK, FSK, PSK modulation function.
Dual channel output, maximum output frequency 60M.
With 100MHz high precision frequency meter and 32 bit counter.
Standard USB Device interface. Optional external analog modulation interface.
Equipped with multifunctional arbitrary waveform editing software.

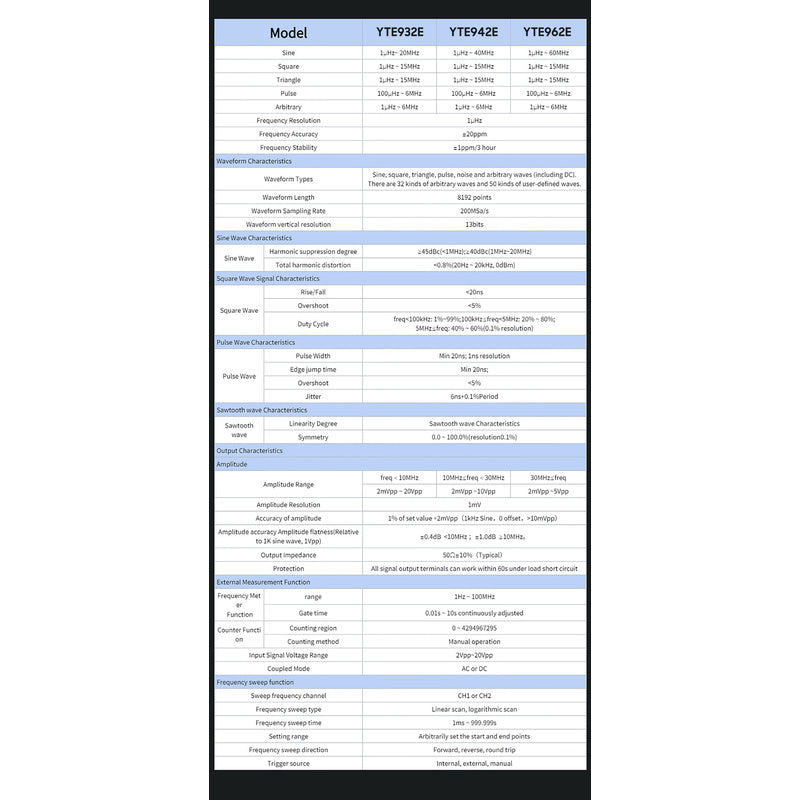

Specifications:
Plug: EU / US (Optional)
Bandwidth: 20M / 40M / 60M (Optional)
Material: ABS
Power Voltage: AC 110-240V, 50/60Hz
Power Consumption: 15W
Display Type: 2.4 inch TFT LED
Display Resolution: 320*240
Display Color: 16M color
Interface: USB device

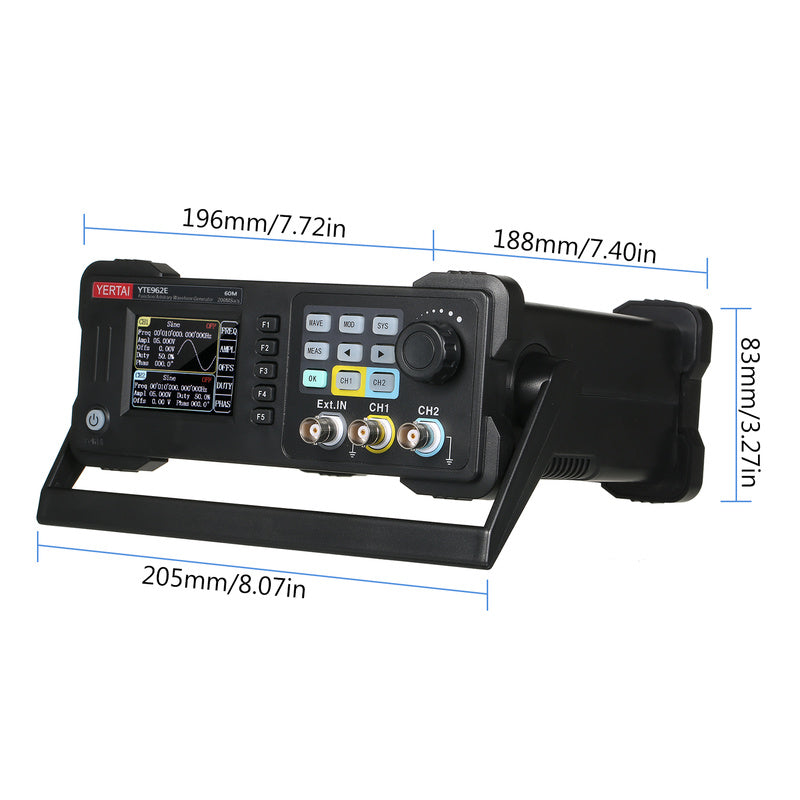

Item Size: 205 * 188 * 83mm / 8.07 * 7.40 * 3.27in
Item Weight: 594g / 1.31lboz
Package Weight: 1045g / 2.31lb
Package Size: 27.5 * 23.7 * 12cm / 10.83 * 9.33 * 4.72in
Package List:
1 * Waveform Generator
1 * Power Cable
1 * USB Data Cable
1 * Straight Signal Cable
2 * BNC Coaxial
Cable
