Features:
Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.

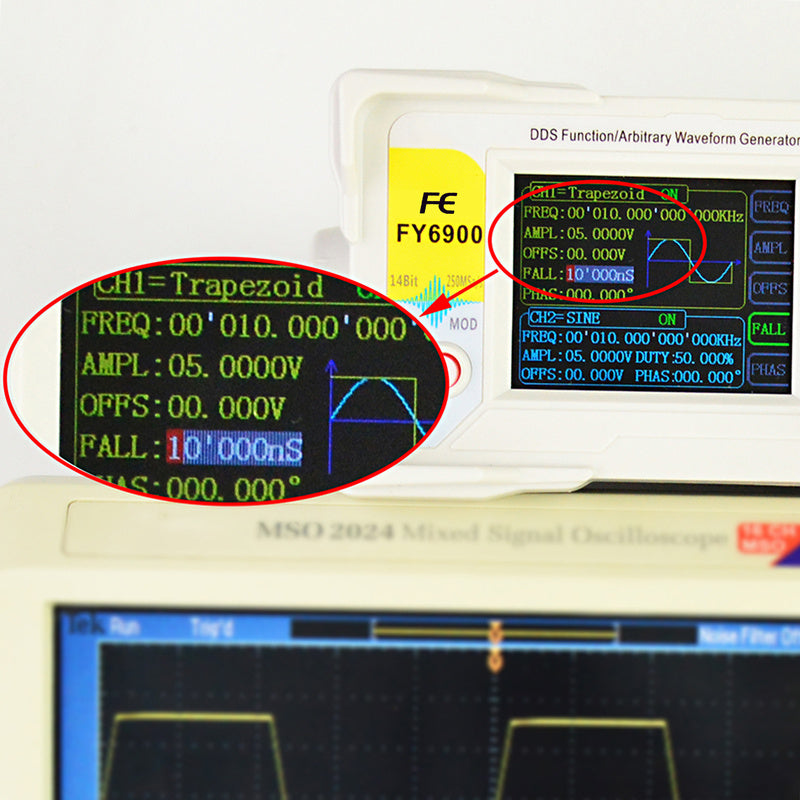

2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.
Adopt MagicPulse Technology, Low Jitter(RMS)200ps.
The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution.

Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)
Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.
Sweep Function: it can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S999.99S sweep time; Up, Down and roundtrip sweep directions.

Burst Output Function: there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 11048575 pulse trains.

Standard dual full functional channels which are equivalent to two independent generators.
Channel SYNC Function: support waveform copy and state copy between channels.
Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.
Precisely adjust the phases of the two channels. Precision can be 0.01°.
Min amplitude resolution can be up to 1mV. Amplitude range is 1mV24Vpp.
Duty-cycle of each channel can be adjusted independently 0.01%-99.99%, the adjusting resolution is 0.01%.
-12V+12V DC Offset function. Resolution 0.001V.
Save Function: it can save 20 sets user-set parameters and can be loaded at any time.
Communicating Function: all functions can be controlled by PC program and the communication protocol is open for secondary development.
Output Short-circuit Protection: all channels can work more than 60 seconds when the load is short-circuited.
Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user CD.
Adopt ABS plastic shell with table type design. Use 100-240V (AC) wide range voltage power supply.

Specification:
Plug Model: EU Plug FY6900-20M / EU Plug FY6900-60M / EU Plug FY6900-100M / US Plug FY6900-20M / US Plug FY6900-60M / US Plug FY6900-100M / AU Plug FY6900-60M (Optional)
Material: ABS
Sine: 0~20MHz(20M), 0~60MHz(60M), 0~100MHz(100M)

Output Amplitude Range: 1mV24Vpp(20M,60M), 1mV25Vpp(100M)
Vertical Resolution: 14 bits
Waveform Length: 8192 points * 14bits
Minimum Pulse Width: 20ns
Modulation Type: AM, FM, PM, ASK, FSK, PSK
Display: 2.4 inch (320*240), TFT color display
Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
Power: AC100V~240V

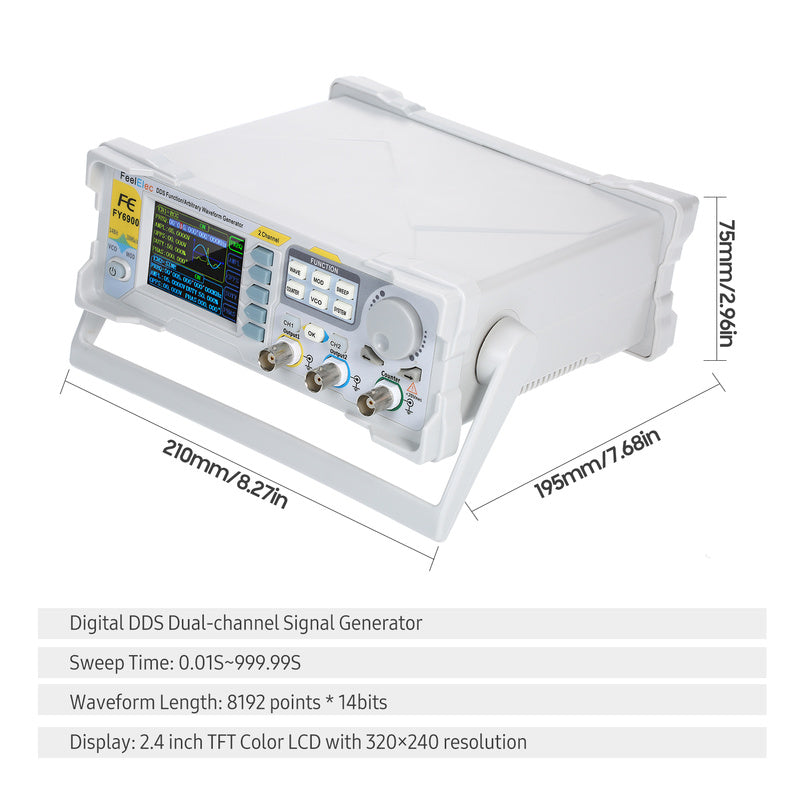

Item Size: 210 * 195 * 75mm / 8.27 * 7.68 * 2.96in (L*W*H)
Item Weight: 611g / 21.56oz
Package Weight: 1065g / 37.51oz
Package Size: 27 * 21 * 9.5cm / 10.63 * 8.27 * 3.75in

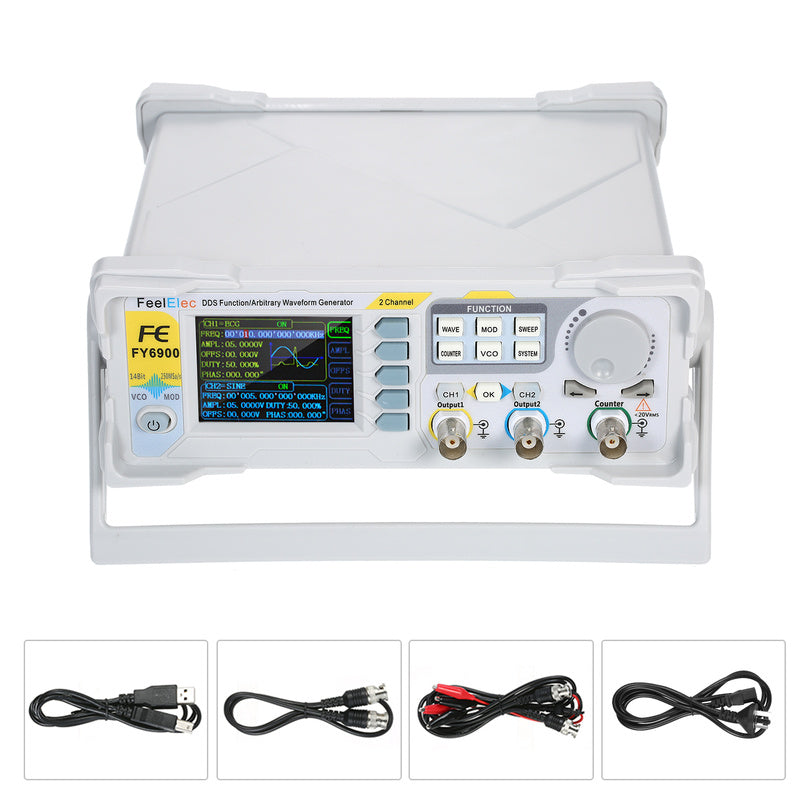

Package List:
1 * DDS Signal Generator
1 * Power Cable
1 * USB Data Cable
1 * BNC-BNC Cable
2 * BNC-Clip Cable
