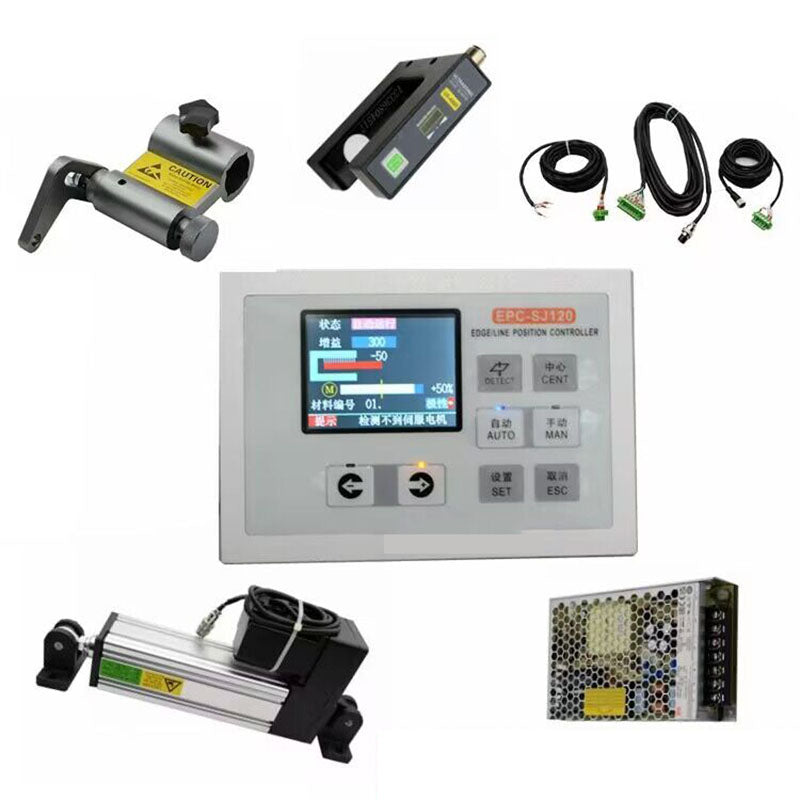

Servo side-to-side control system deviation correction utomatic deviation correction Photoelectric infrared line machine

  describe:

Servo correction controller EPC adopts high-speed 32-bit CPU to drive DC servo driver and PI adjustable algorithm of integral variable without overshoot. High deviation correction and fast response. In addition, it supports three operation modes: edge follow, line follow and center align mode

feature:

1. Support three operation modes: edge follow, line follow and center.

2. Support photoelectric sensor, ultrasonic transducer and CCD sensor

3. Intelligent detection of sensor parameters, no need to correct the sensor in most cases

4. Automatic stroke measurement without mechanical limit switch.

5. No overshoot integral variable PI algorithm, high precision, fast response and small error.

6. 0.5msec super fast response speed

7. 12bit AD sampling of analog transmitter signal, 700,000 sampling times per second

8. Using FIR digital filter and backlash filter, the anti-interference ability is stronger and the signal is more stable

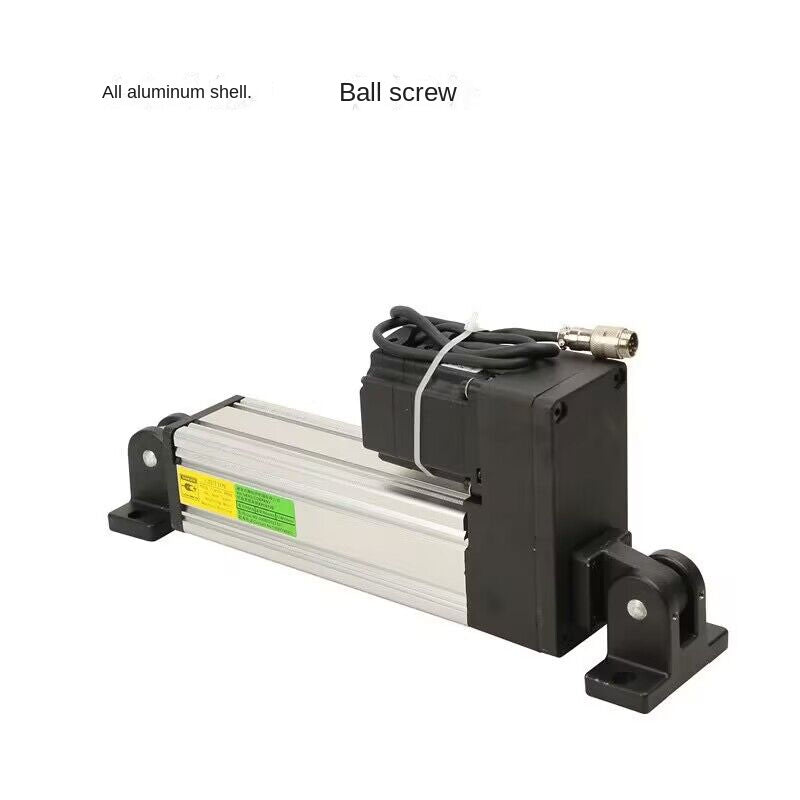

9. DC servo motor drives the ball screw

10. All parameters can be stored in power-off memory in any state of the system

11. Store 10 sets of different material parameters, convenient and quick material switching

12. Simplified Chinese/Traditional Chinese/English menu operation

13. Humanized operation, fast, simple and convenient

Specification:

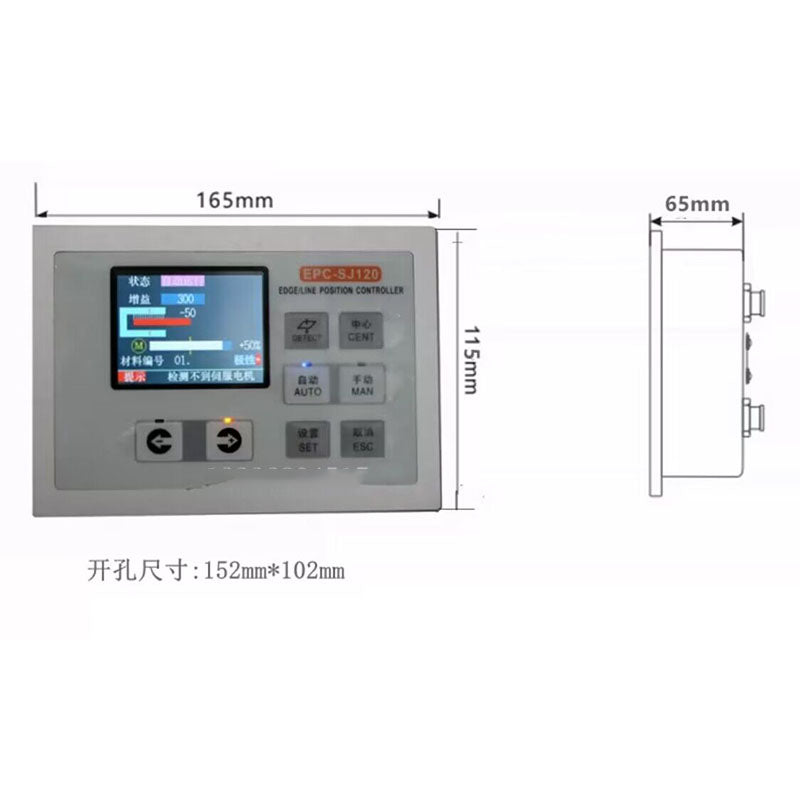

Calibration controller:

Control mode: DC servo drive

Power supply: DC 24V/5A

Control input: DC 0~5A

Control output: 24V, PWM

Response time: 0.5 milliseconds

Ambient temperature: -10~60C, below RH90%

Weight: 1.2 kg

sensor:

Color sensor: US-400S

Power supply: DC-12V

Power output: DC 0-5V

Detection range: 5mm

Detection accuracy: 0.1mm

Detection method: ultrasonic exposure

Frequency: 100KHZ

Shell material: aluminum alloy

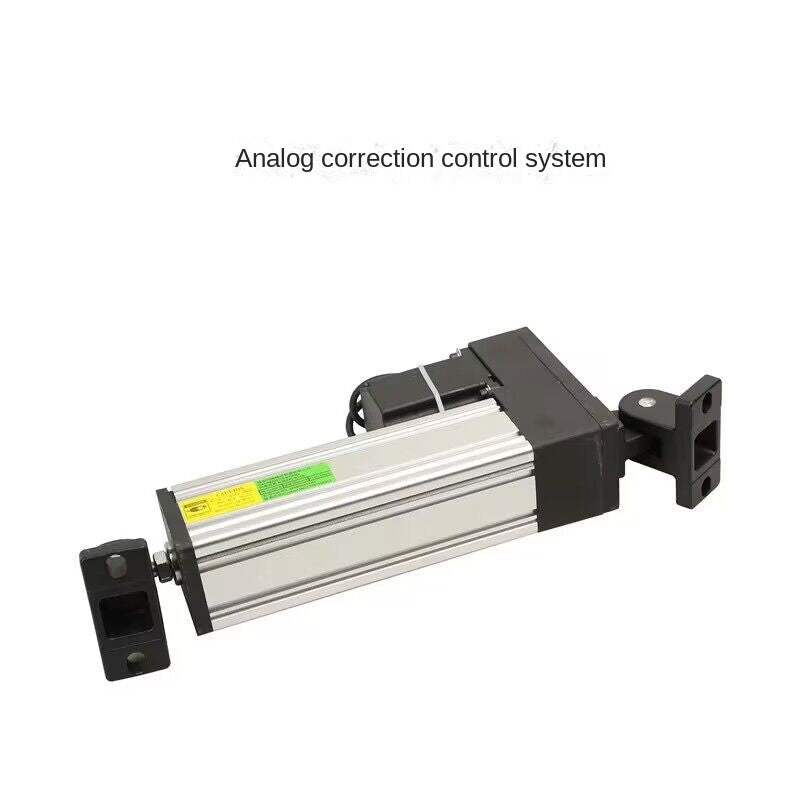

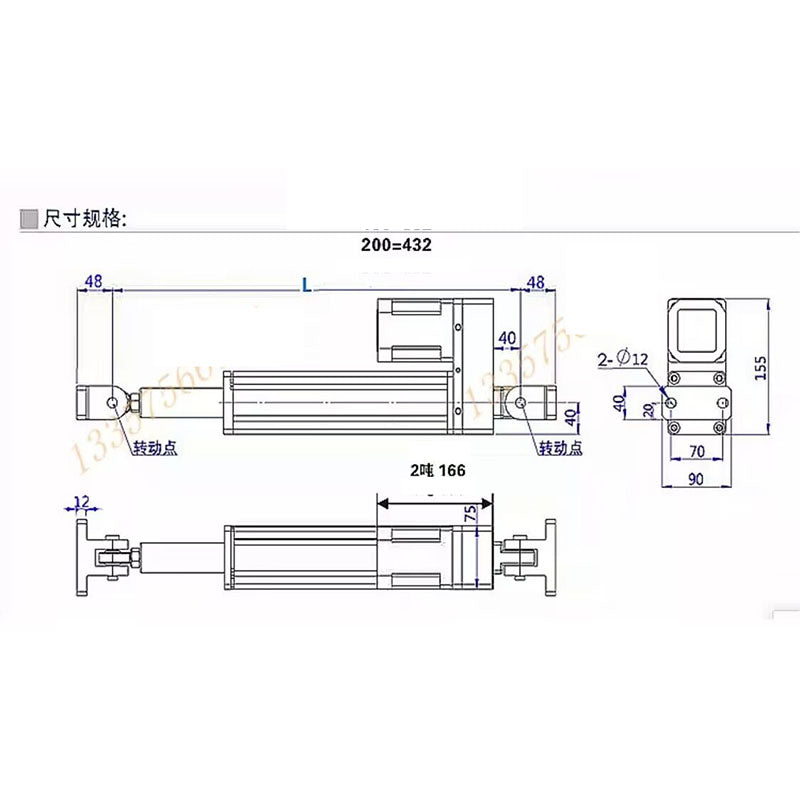

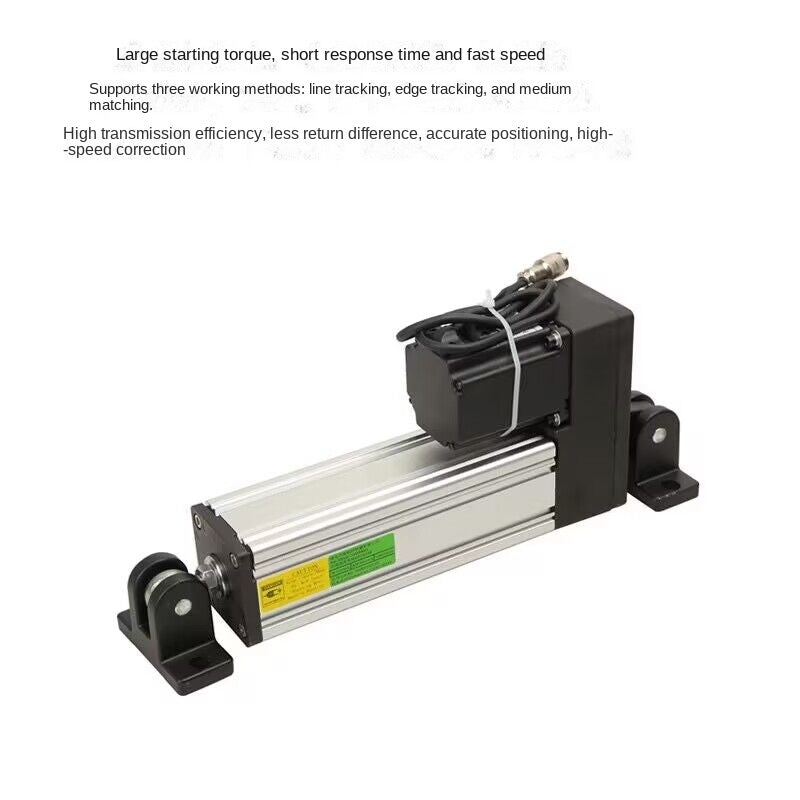

Servo Actuator:

Maximum thrust: 2000N

Driving load: 2000KG

Travel range: 80MM/150MM/200MM/300MM

Maximum driving speed: 40mm/s

application:

Textile machinery: fiber twisting machines, processing machines, looms

Metal salvage systems: extrusion machines, wire drawing machines, presses, welding machines, wire retractors, cutting machines, pipe making machines, winding machines

Machine tool system: lathe,

Milling machines, steel extrusion machines, CNC lathes, special purpose machinery

Transport equipment: elevators, feeders, conveyors, rollers, winders

Paper making system: bag making machine, box making machine, slitting machine, book making machine, paper cutting machine, copier paper machine
