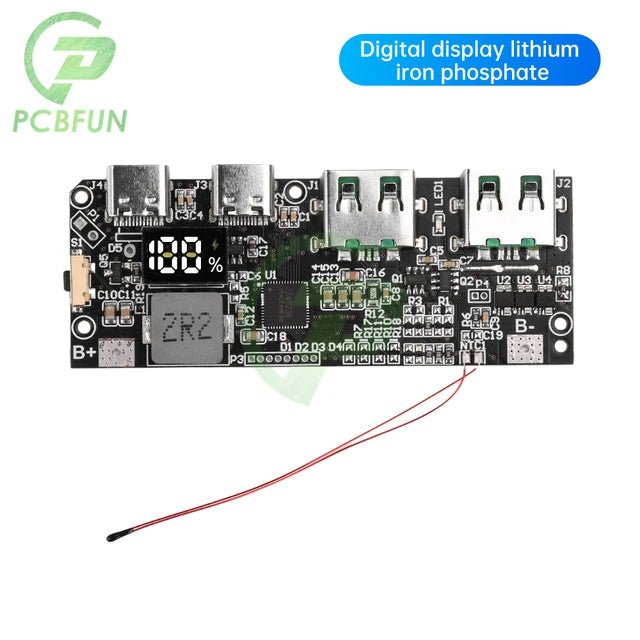

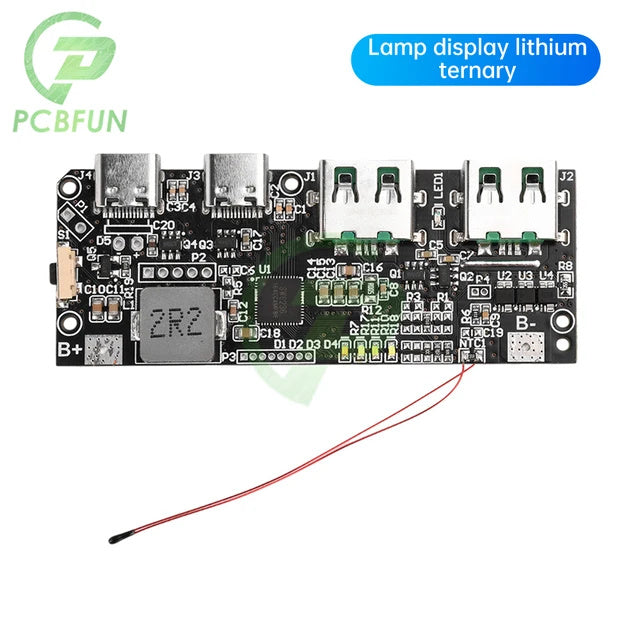

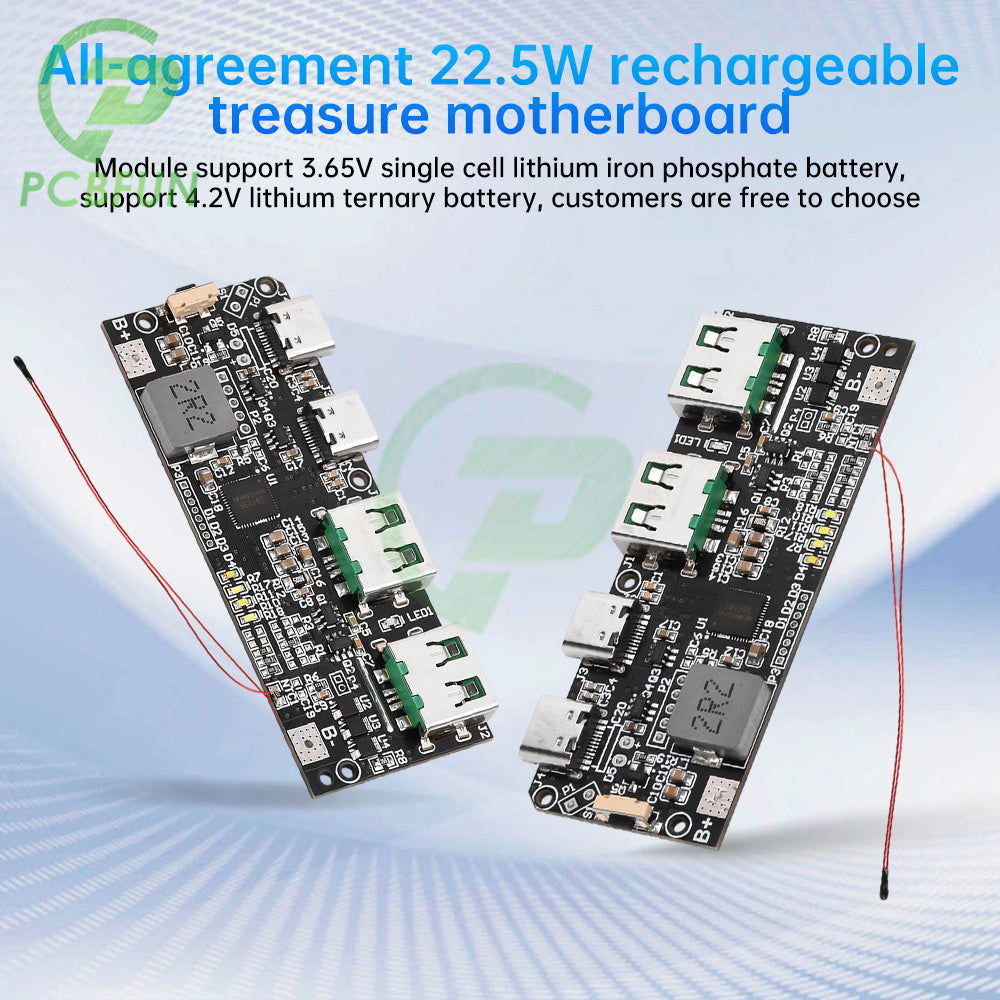

1.module support 3.65V single lithium iron phosphate battery, support 4.2V lithium ternary battery, customers are free to choose!

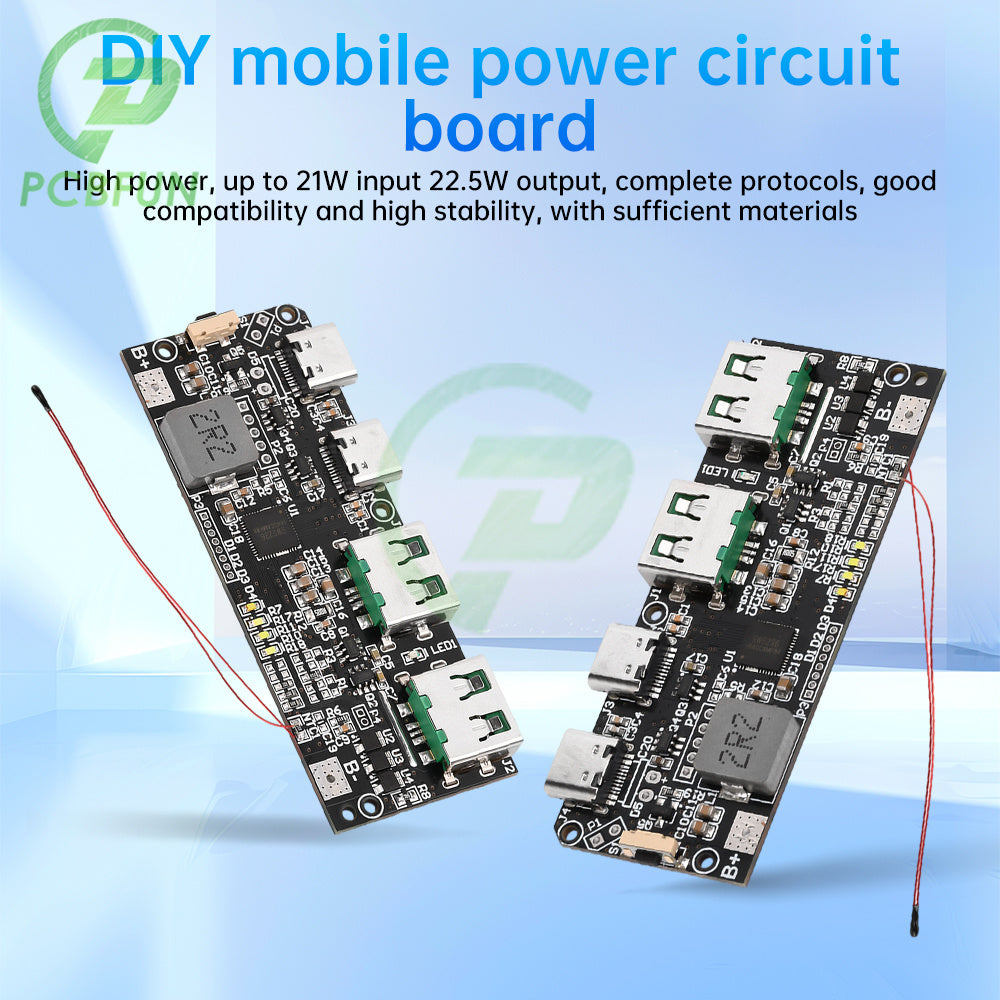

2. High power, up to 21W input 22.5W output, complete protocols, good compatibility and high stability, with sufficient materials

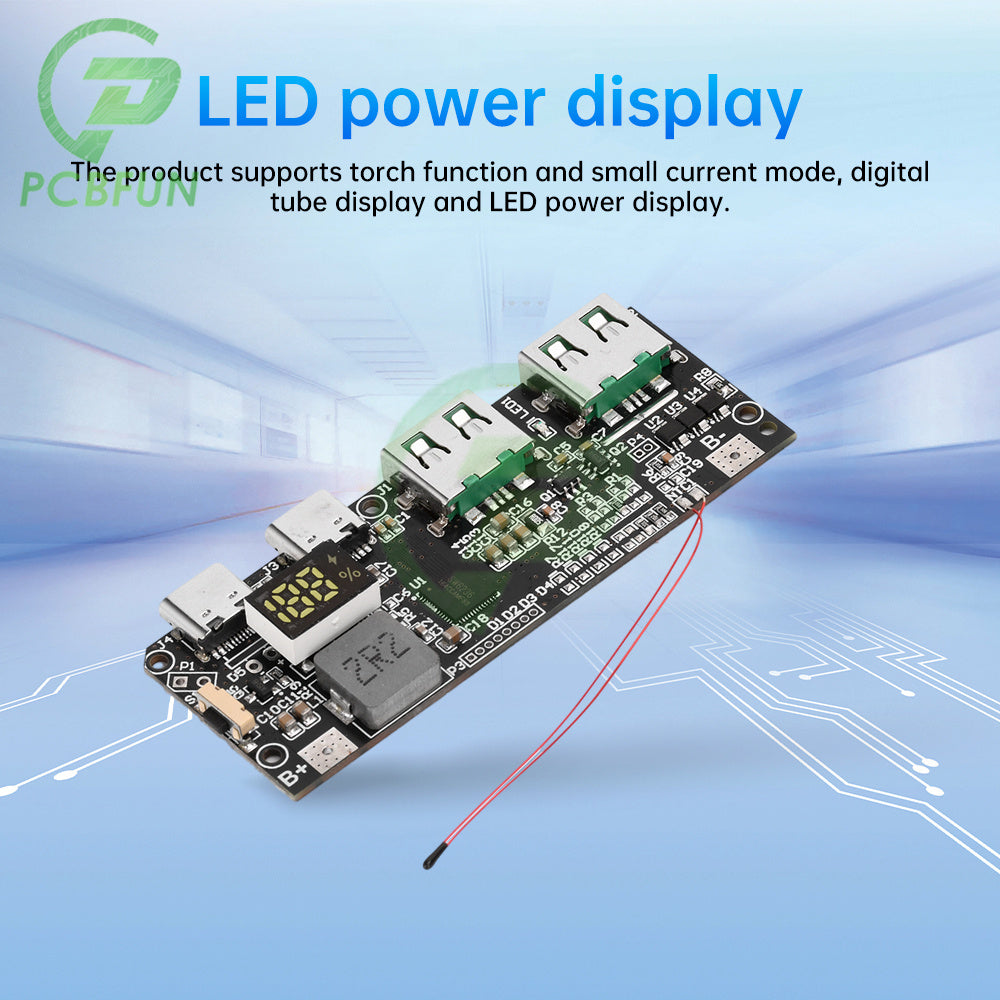

3. The product supports flashlight function and small current mode, supports digital tube display and LED power display.

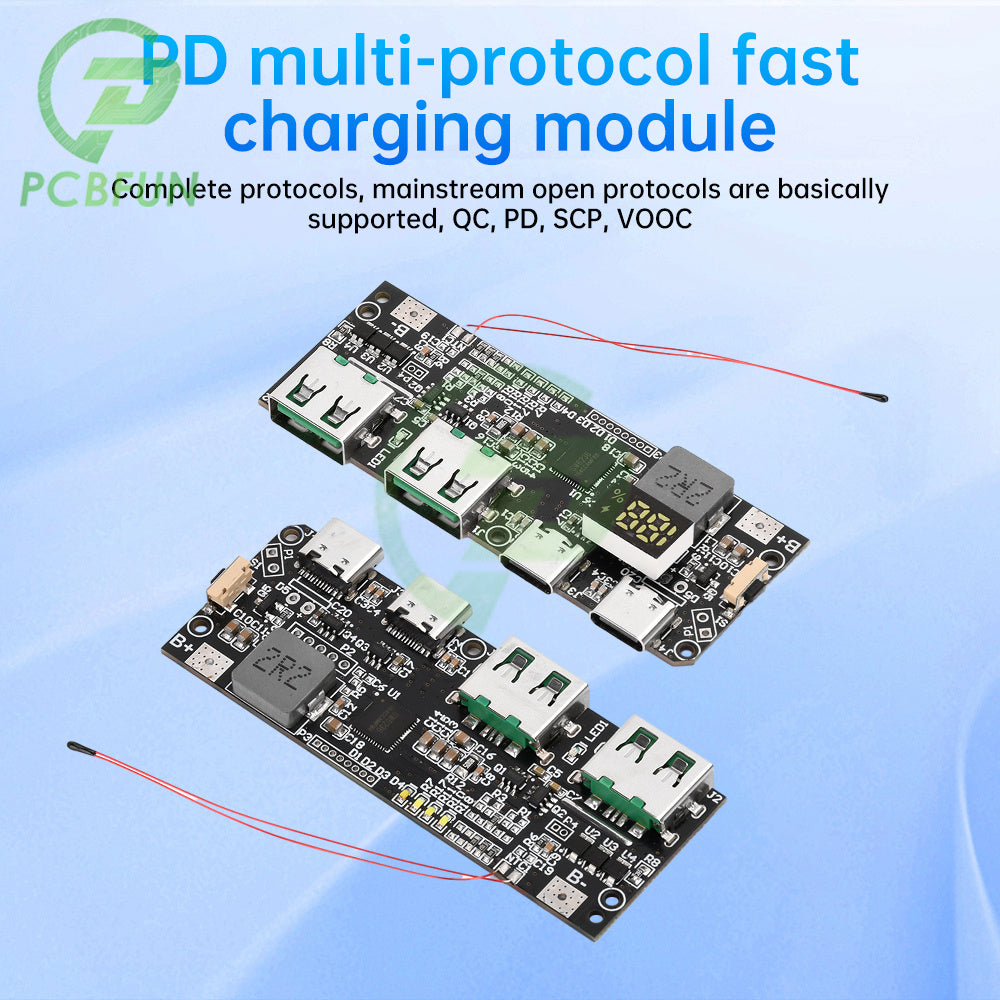

4. Complete protocols, mainstream open protocols are basically supported, QC, PD, SCP, VOOC

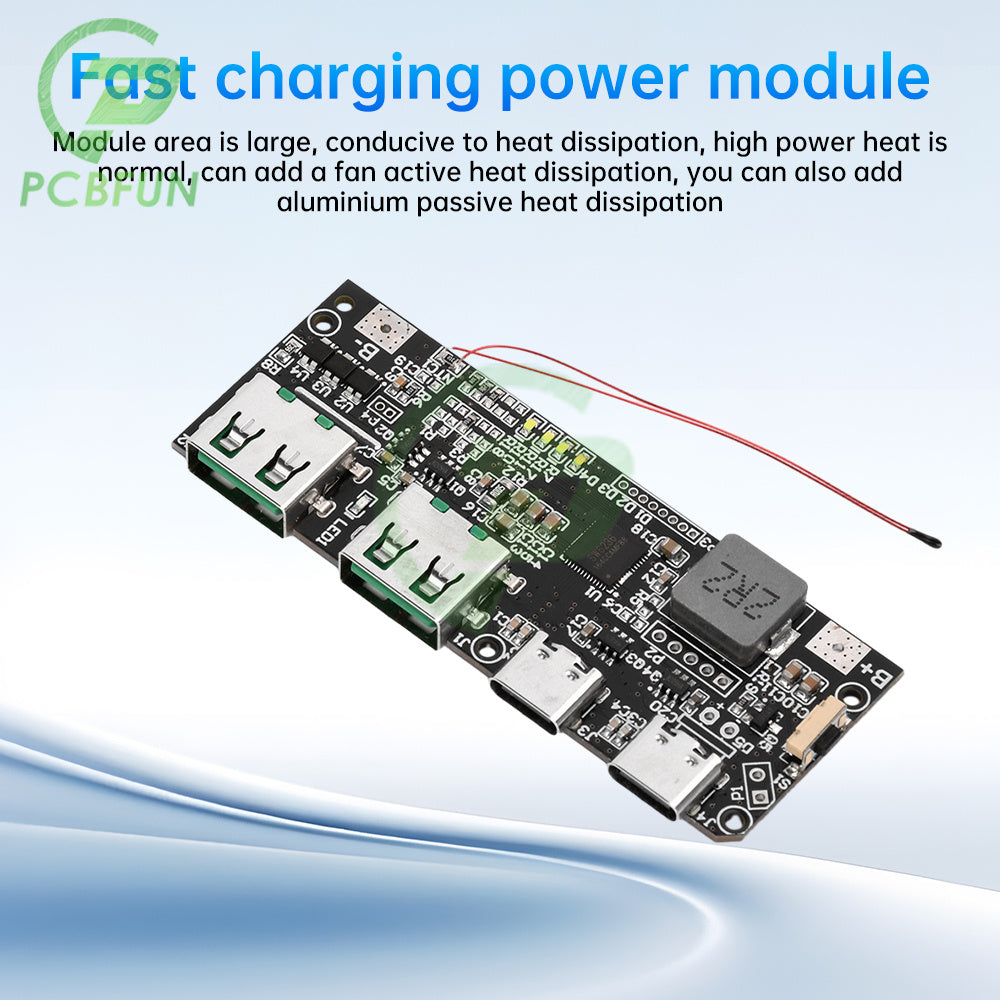

5. Large module area, conducive to heat dissipation, high power when the heat is normal, you can add a fan active heat dissipation, you can also add aluminum passive heat dissipation

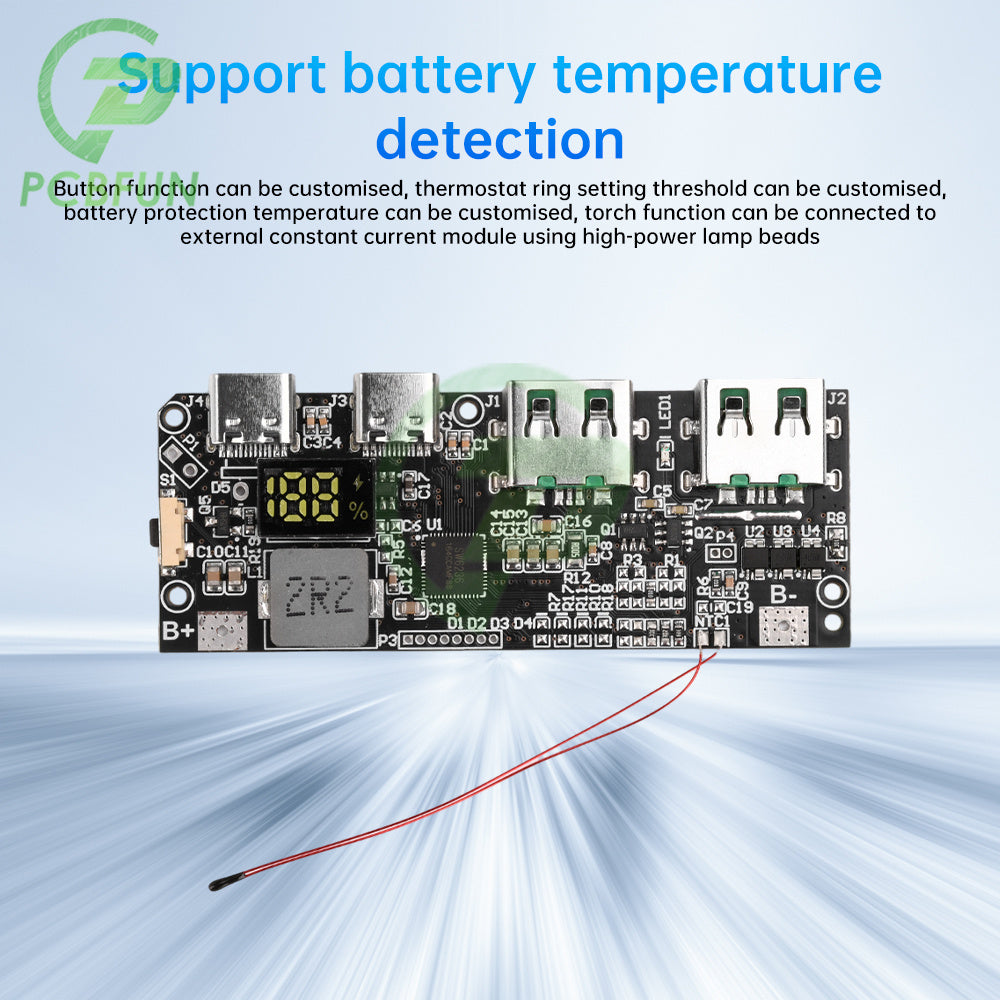

6. Support battery temperature detection, protect the battery, increase life expectancy.
7. Key function can be customized, thermostat ring setting threshold can be customized, the battery protection temperature can be customized, the flashlight function can be connected to the constant current module using high-power lamp beads
Parameter:
SCP support 5V4.5A, 10V2.25A, input support 5V/9V
FCP input and output support 5V/9V/12V
AFC input supports 5V/9V, output supports 5V/9V/12V.
PE1.1 supports 5V/7V/9V/12V output.
PE2.0 support output 5-12V, 500mV/step
PD output supports 5V3A, 9V2.22A, 121.67A.
PPS output support 5-5.9V3A, 5-11V2A, input support 5V/9V/12V
This motherboard supports all the protocols open to the public on the market, private non-open protocols are not supported by a third-party products.
