Specifications:

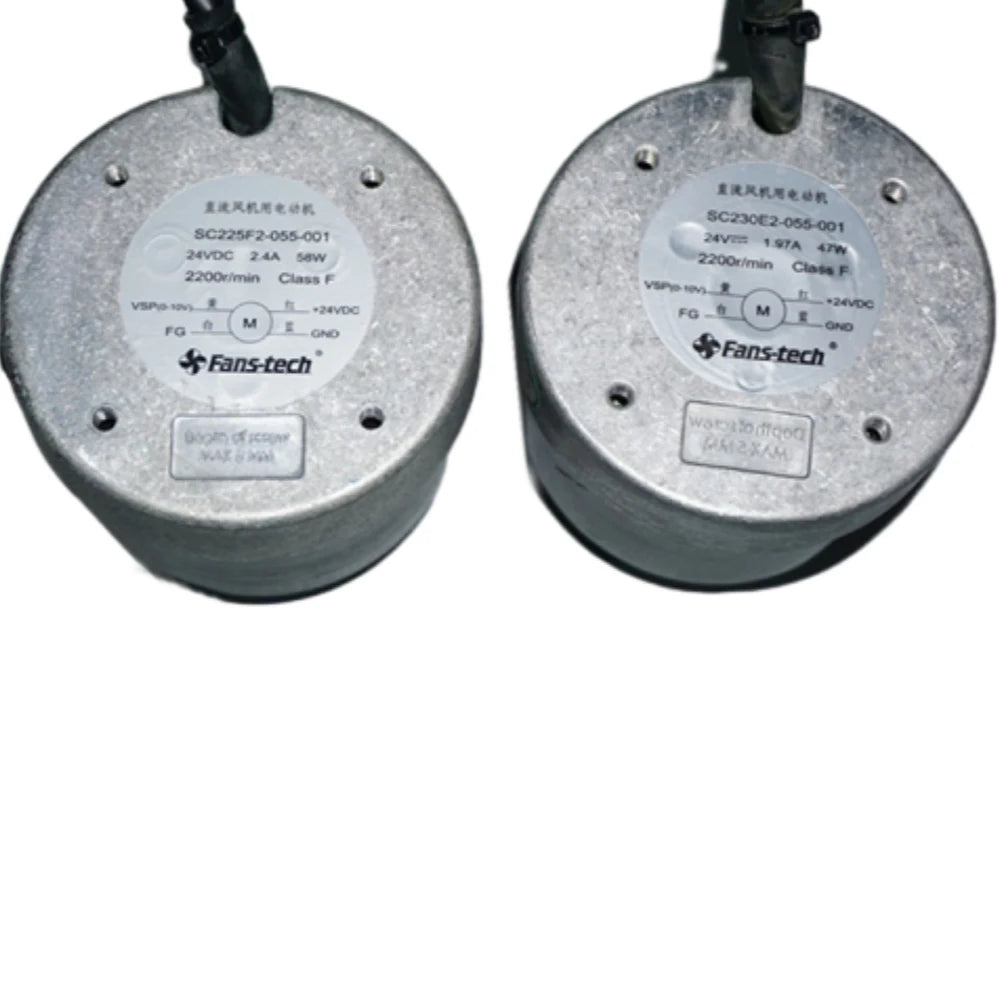

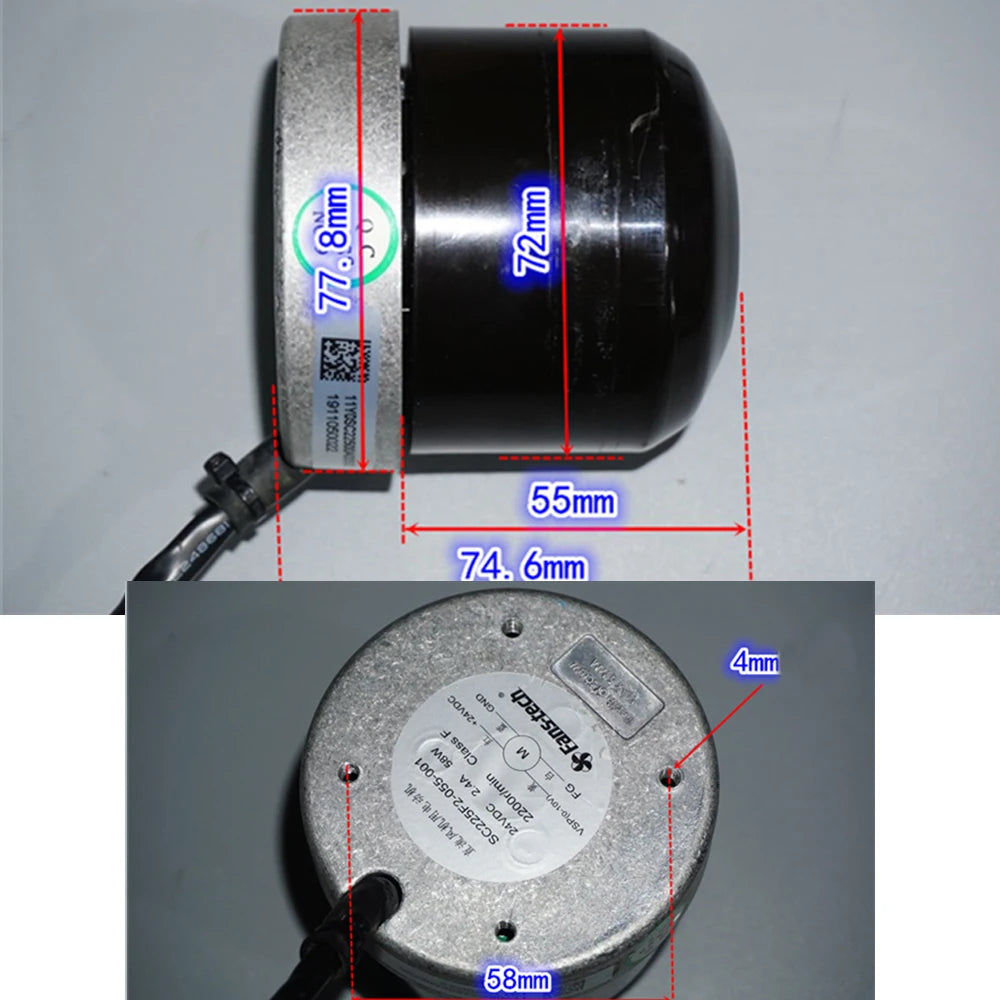

72mm brushless motor with external rotor, rated voltage 24V, power 47W/58W. Motor speed 2200 RPM, running sound is very small, motor internal workmanship material is very good, imported ball bearings, built-in three-phase brushless drive, support 0-10V signal speed regulation, the motor rotor is clockwise to itself.
The motor is placed in bulk, there may be a little scratch, and the motor functions are tested intact.

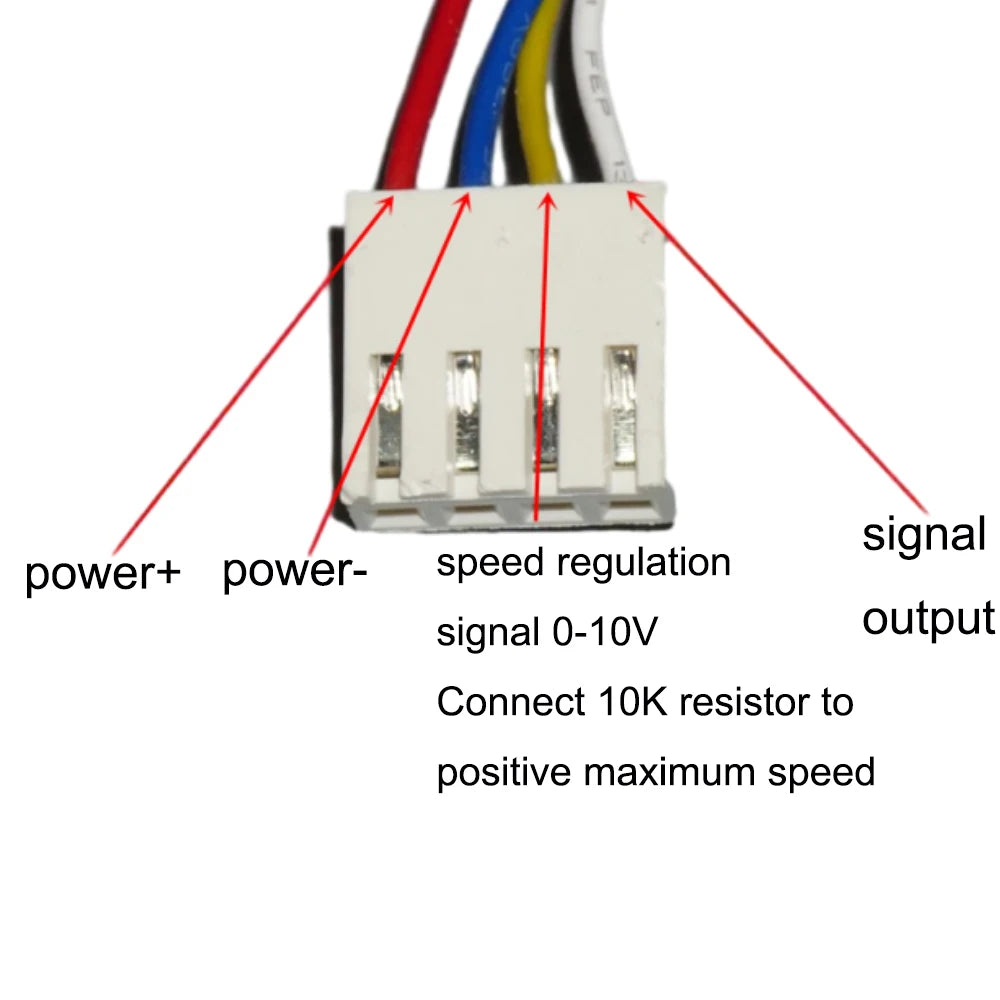

The rated voltage of the motor is 24V, the actual 16-24V can run, the highest speed as long as the speed regulating foot is connected to the 10K resistance to the positive electrode can start the highest speed, simple speed regulating can be equipped with 10K resistance plus 10K potentiometer voltage regulation, the motor starts slowly, just energized low speed to the highest speed is estimated to wait for more than 10 seconds, the motor runs very smooth and quiet.
The motor weighs about 800 grams.
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
Package Included:
1x Brushless Motor
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
