Features:
IGBT Control Easy to Use -- The mini 220V arc welder is controlled by IGBT inverter frequency up to 100KHZ, that ensures exact current, low splash and smooth joint. The arc welding machine is easy to operate. Perfect entry level welder!
Powerful & Stable -- Up to 225 Amp output that allows you to weld mild steel diameter from 5/64in to 1/4in (2mm-6mm), welding thickness 2-6mm, greatly improving the welding efficiency by more than 30%.
Applicable Material -- The melder machine is easy to weld stainless steel, alloy steel, carbon steel, copper, copper alloy and other non-ferrous metal, even for different specific weld rob, including acid, alkaline and cellulose electrode.
Scope of Application --- Great for outdoor repairs, rusty metal, farm and road equipment and maintenance and repair. Great gift for DIY Users, Maintenance and Repair and Metal Fabrication.
Portable Design -- Compact and lightweight welder machine with an adjustable belt for easy transport so that you can weld wherever and whenever you need.
60% Duty Cycle, Longer Lasting -- The weld machine has a rated duty cycle of 60%. With this feature, it will protect you and your welder from any long-lasting damage.
Multiple Protection -- The mini arc welder designed with anti-electricity waterproof housing, with over current, over load and over heat protection and insulation protection; Which makes welding safe and stable.
Specification:
Color: Blue(IGBT) / Red(ARC) (optional)
Display: LED Display MMA-250 / Not Included MMA-225 (optional)
Material: ABS+Metal
Input Voltage: 110V / 220 V ±15%
Frequency: 50/60Hz
Output Range: DC 20-225A / 20-250A
No-load Voltage: 54V
Welring Mode: Manual Metal ARC Welding
Rated Load Duration: 60%
Efficiency: 85%
No Load: 40W
Power Factor: 0.93
Insulation Class: F
Housing IP Grade: IP21
Strap length: 1.5m
Recommended Stick Thickness: 2.5 mm - 4.0mm
Recommended Stick Electrode: Stainless Steel Electrode, Cast Iron Electrode and other Basic Coated Electrode
Recommended Material Thickness: 2-6mm
Recommended Welding Material: Stainless Steel, Alloy Steel, Carbon Steel, Cast Iron
ARC Welder Size: 210*165*105mm
ARC Welder Weight: 1479g/3.3lb

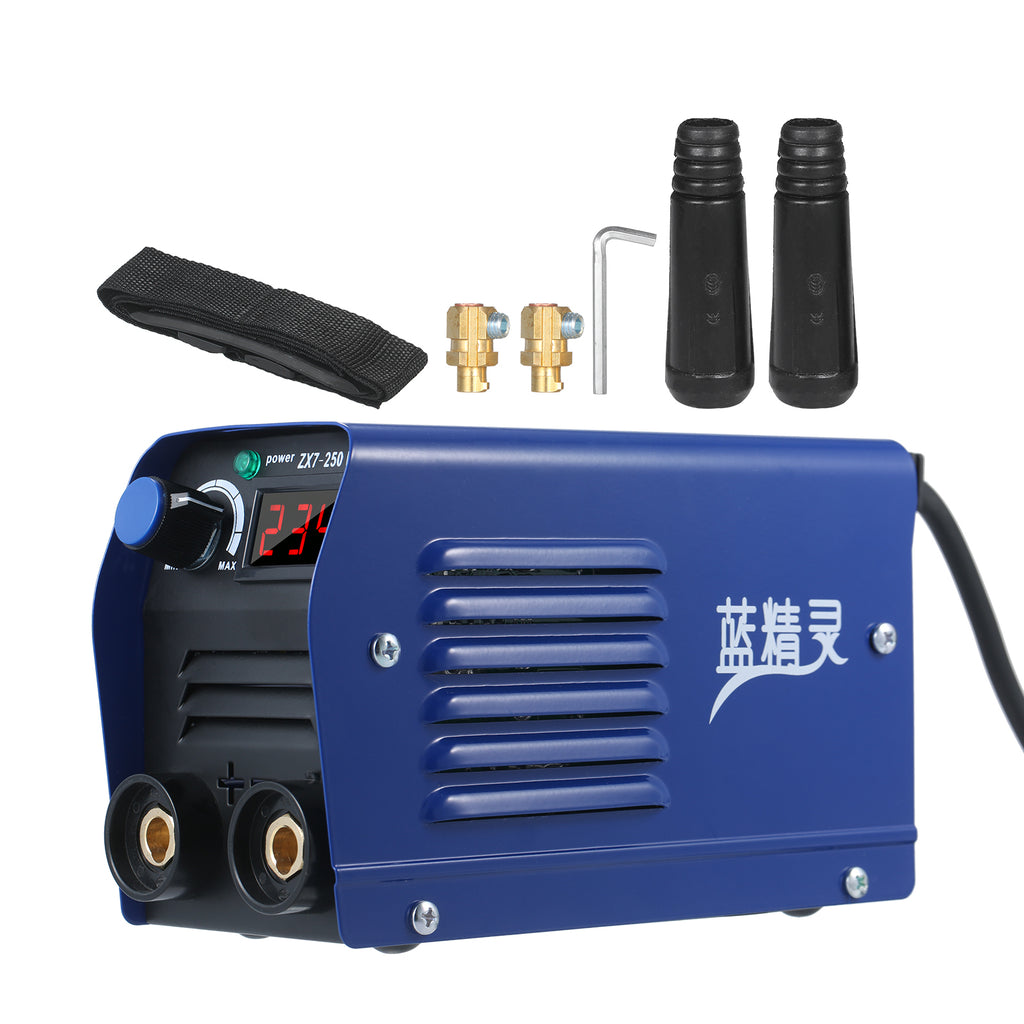

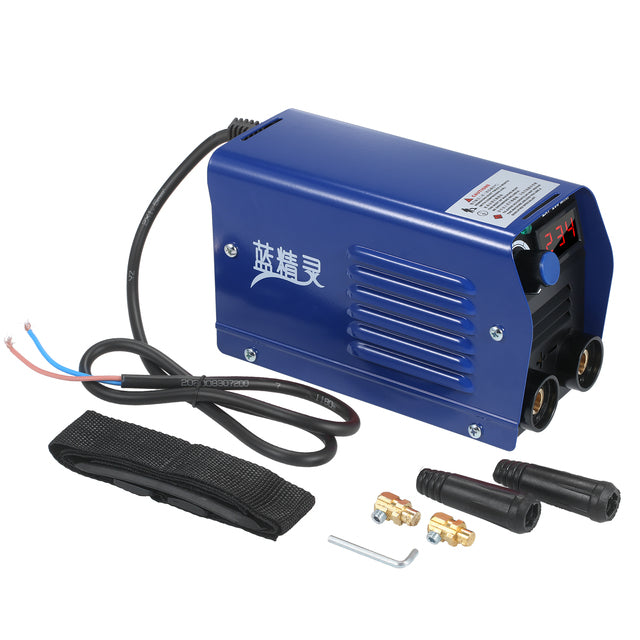

Packing List:
1 * ARC Welder
2 * Quick Connector
1 * Hex Wrench
1 * Belt
1 * User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
