Feature:
1. Imported industrial electronic components and innovative MPPT technology are selected, the efficiency is over 99%, and the response is faster and more sensitive.
2. The inverter has a modular design, small size, simple system configuration, flexible assembly, and strong system scalability.
3. DSP (digital signal processor) and accuracy sensor IC are used to accurately obtain electrical parameters.
4. Wi-Fi Data Sender and Mini PC realize web-based monitoring and analysis together, so you can obtain and monitor solar power information anytime and anywhere.
5. The shell is made of aluminum alloy material, heat-resistant and corrosion-resistant, and adopts high-frequency isolation transformer, which has high safety.
Specification:
Item Type: Micro Inverter
Model: SMG-260W
Product Certification: Ce
Circuit Topology: Push-pull
Output Voltage Waveform: Sine wave
Solar Panel: Voc: 42-46V, Vmp: 35-39V
DC Input Range: 24-45V
MPPT Voltage: 28-36V
Maximum DC Current: 15A
Output Frequency: 50/60HZ
Output Power: 250W
Inverter Efficiency: 95%
Voltage Regulation Rate: 3%
Power Factor: 97%
Total Harmonic Distortion: <3%
Phase Shift: <1%
Peak Efficiency: > 90%
Stable Efficiency: > 90%
Working Temperature: -25℃-65℃
Waterproof Rating: IP65
Package List:
1 x Micro Inverter

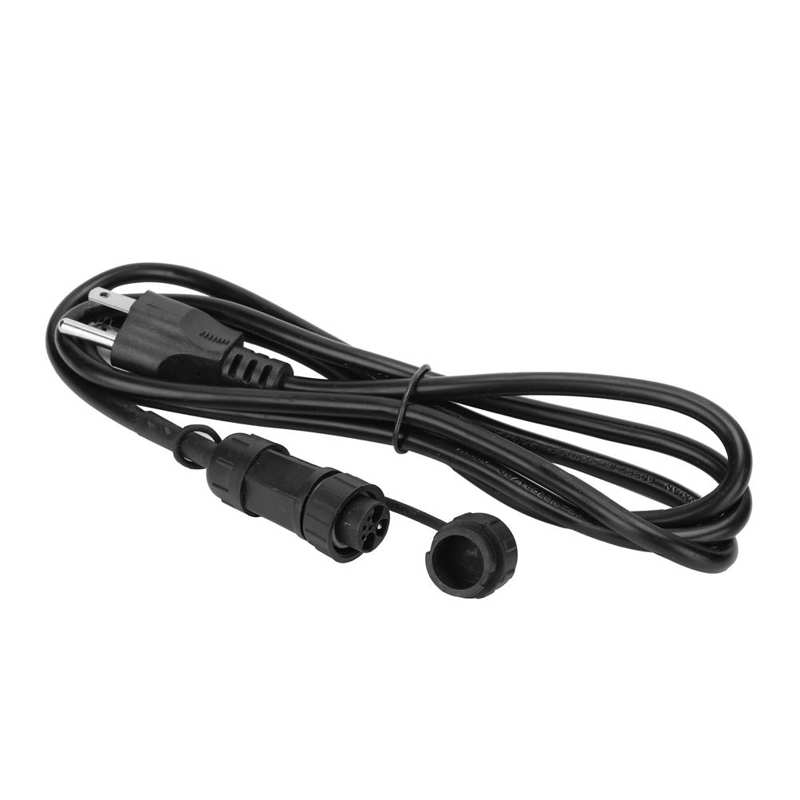

1 x Power Cable
1 x User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
