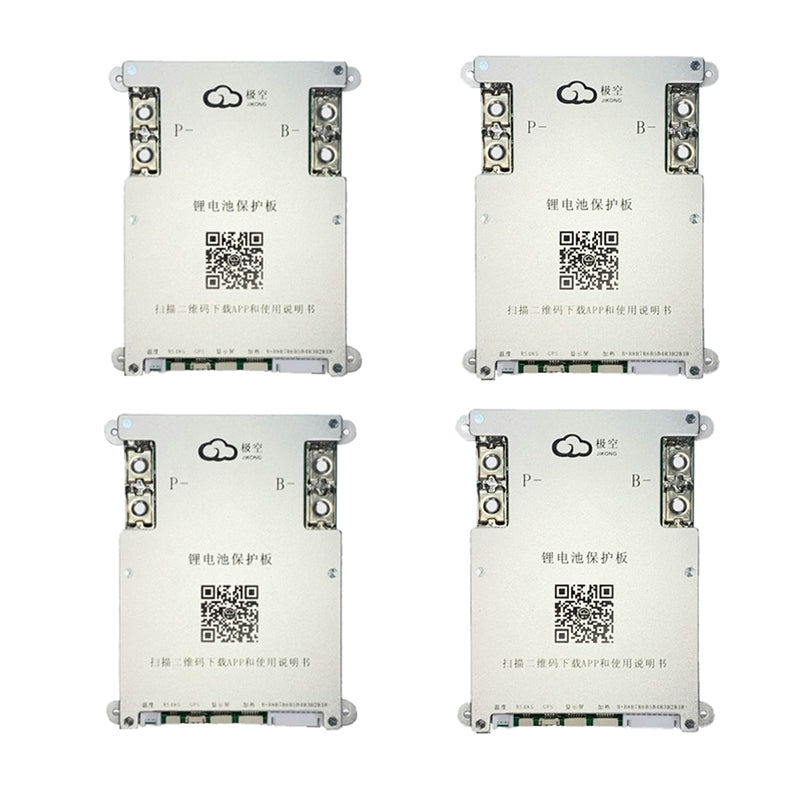

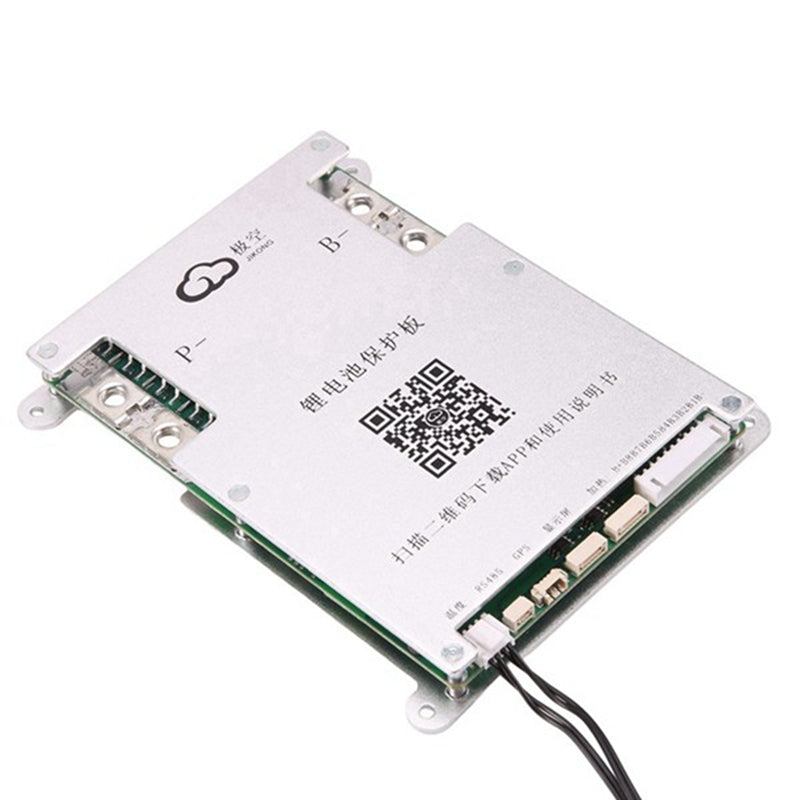

This is an Active BMS, it supports 3S-8S of Li ion and 4S-8S of LiFePo4

200A continuous current, It also has 2A active equalization current. It can set up the equalization voltage and the charge & discharge protection parameter through APP, It can display the single series of battery voltage

After connected the BMS, please use the power supply which is 5v greater than battery voltage to activate it

Product character: Active balance functionality, no need to lose the battery capacity to balance the voltage difference of sells, raise the battery usage efficiency for 95%. It can be used on 4-8s li-ion/Cobalt acid lithium/Manganese acid lithium/Lithium iron battery packs. It has the protections of Over-charge/Over-discharge/Over-current and Short circuit etc.

Working condition: Workable temperature: -20~70℃; Power requirement: 24V~100V, it could be worked by battery power or external Power supply; Power dissipation: In balance: 10mA & 100V, No balance: 6mA & 100V

Notice: The 485 converter just for transfering the communication to be RS485, it can not be connected to PC directly, it needs to connect to another 485 module to connect to PC, The yellow wire is for 485A , the white wire is for 485B, the black wire is for GND and you don't have to connect the black wire, We will provide you the 485 protocol after bought the 485 converter, and we don't provide the software, if you are not the familiar with Serial Port Debugging Tool, please be careful when you want you purchase this product

Balanced way: Active equalization

Active equalization current:2A

Internal resistance:1.3mΩ

Rated discharge current:200A

Maximum discharge current:250A

Overcurrent protection(Adjustable):10-200A

Wiring method:common port

Monomer voltage range: 1V-5V

Voltage acquisition accuracy: ±5mV

Battery cell Over-charge protection voltage :1.2V-4.35V(Adjustable)

Battery cell Over-charge protection recovery voltage: 1.2V-4.35V(Adjustable)

Battery cell Over-discharge protection voltage: 1.2V-4.35V(Adjustection voltage :1.2V-4.35V(Adjustable)

Battery cell Over-charge protection recovery voltage: 1.2V-4.35V(Adjustable)

Battery cell Over-discharge protection voltage: 1.2V-4.35V(Adjustable)

Battery cell Over-discharge protection recovery voltage : 1.2V-4.35V(Adjustable)

Model Number: JK-B2A8S20P

Accessory Type: Battery Accessories

Set: A

color:As shown

Material:metal+plastic

Package Contents:

1 x Smart BMS(4-8S)
