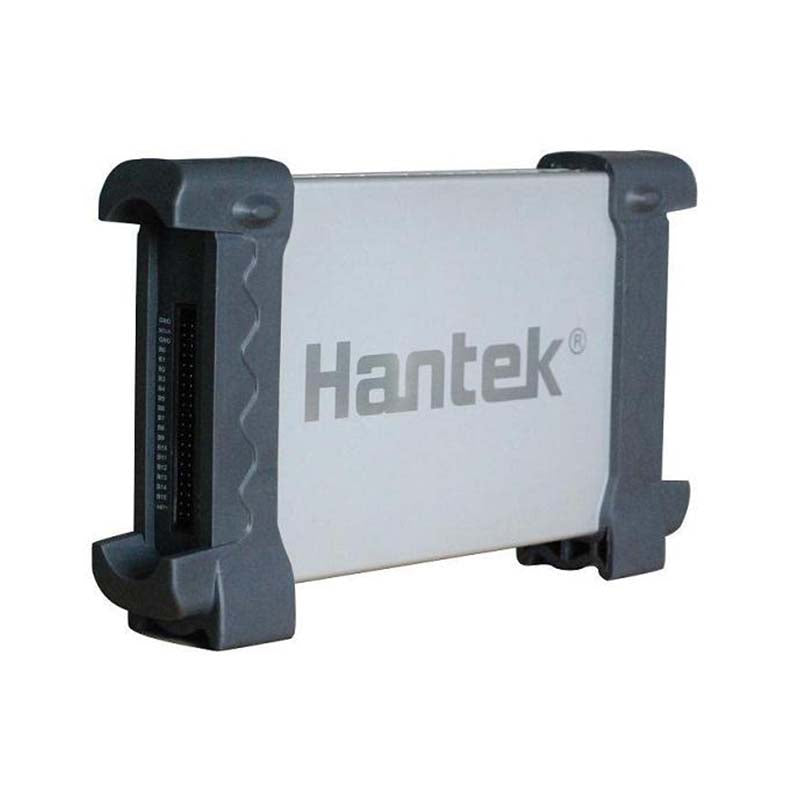

2Gbit Memory Depth 150MHz Bandwidth Hantek4032L PC USB Logic Analyzer Hantek
4032L
Characteristic：
Hantek4032L is a set of logic analyzer, analyzer, a logical pen etc. measuring instrument of the great in a body, is suitable for various kinds of digital circuit development, measurement, analysis and debugging work, is the electronic development, electronic engineer, university teachers and students of the scientific research development and the teaching assistant.
The storage depth 2Gbit (DDR2), sampling frequency, 150MHz bandwidth 400MS/s to meet your various needs.
Innovative trigger mode and new analysis of measuring means, make you in the measurement of the process more efficient and simple.
Hantek4032L can be set in different edge, level, bus, data width trigger mode, easy to use.
Innovative data analysis function, makes you more relaxed in the analysis of UART, SPI, I2C and other data.
Analysis of two powerful protocol, can export CSV, TXT, DOC format, easy to use other tools two analysis;
USB2.0 high speed interface, plug and play;
Excellent industrial design, similar to desktop oscilloscope interface, easy to use;
The number of channels 32
The input impedance 200K(C=10p)
Input voltage range -6V~60V
Voltage threshold -6V~6V
The maximum sampling rate 400MHz
The maximum input signal bandwidth 150MHz
The minimum time resolution 2ns
Sampling depth 64M Sample
The storage depth 2G bits
Compatible inputs TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA
Electrostatic protection area 15KV
The host interface USB Port
Working voltage 4.5V~5.5V
Energy consumption Max. 3.5W
Temperature range
Operation: -10 ~60
Storage: -40 ~60
Operating system WinXP/2000/Win7
The volume and weight 207 (D) x 37 (H) x 123 (W) mm, about 390g
