1. electrical parameter measurement function (voltage, current, active power).
2. The power button clear function.
3. Power-down data storage function (cumulative power down before saving).
4. PC PC display function (display voltage, current, active power).
5. The serial communication function (comes with TTL serial interface, via various terminals communicate with the adapter plate, read, and set the parameters).
front display and key
UI
PC display window composed of four, used to display the voltage, current, power, power parameters, as shown in FIG.
Display Format
1. Power: measurement range 0 - 22kW
0 - 10kW within the display format of 0.000 to 9.999;
Within 10 - 22kW display format 10.00 - 22.00.
2. Power: measurement range 0 - 9999kWh
0 - 10kWh within the display format of 0.000 to 9.999;
10 - 100kWh within the display format of 10.00 to 99.99;
100 - 1000kWh within the display format of 100.0 to 999.9;
1000 - 9999kWh and above the display format from 1000 to 9999.
3. Voltage: Test Range 80 - 260VAC
Display Format 110.0 - 220.0.
4. Current: measurement range 0 - 100A
Display Format 00.00 to 99.99.
button
A built-in button on the panel, used to make electricity clear function, as shown in Figure 2.
Electricity clear method: Press ZERO key five seconds, then release the button! Press again to clear the key, the data is cleared and exit charge cleared, cleared so far completed.
Colour:green
Material:plastic
Package Contents:

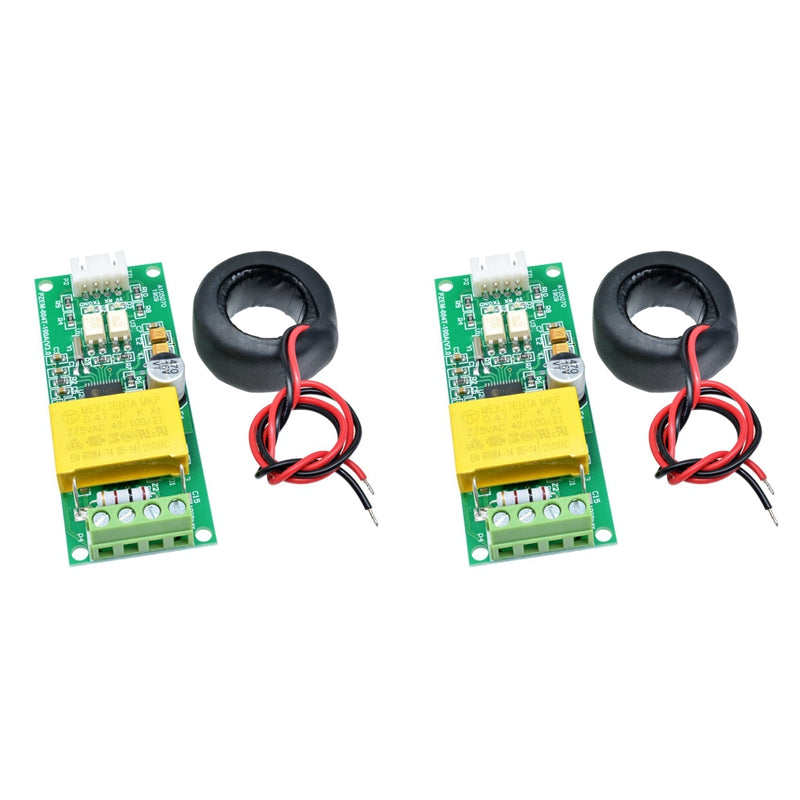

2x Digital Multi-function Meter
2x Coil
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
