Function:

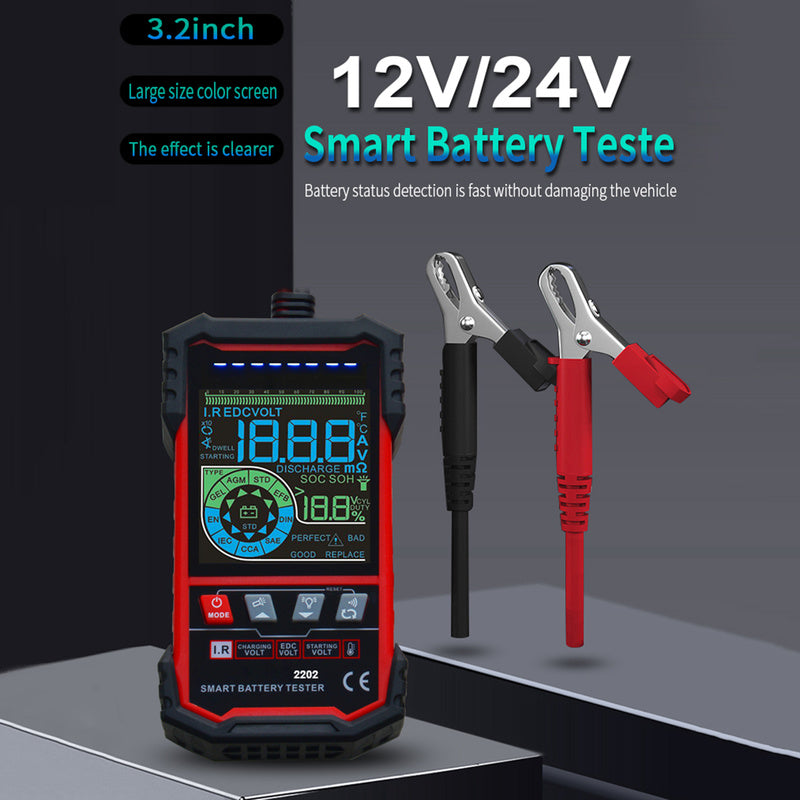

Display: 3.2inch large LCD color screen for display functions status measuring results, analogue bargraph shows the battery lifespan after finishing tests.
Support 12.0V and 24.0V Batteries: Automatically identify 12.0V or 24.0V batteries, and select smart measurement with one key. Various types of batteries are optional, supporting matching of various types of batteries, EN, IEC, CCA, SAE, DIN.
Multiple Protections: Support input overvoltage, reverse polarity connection, high voltage connection protections and poor contacts of test clip.
Simple Operation: Allows to connect the car battery, it does not need to take out the battery for testing. The battery detection operation is simple, and it is easy to understand the battery status. The larger the CCA value of the battery, the smaller the internal resistance.
What You Get:

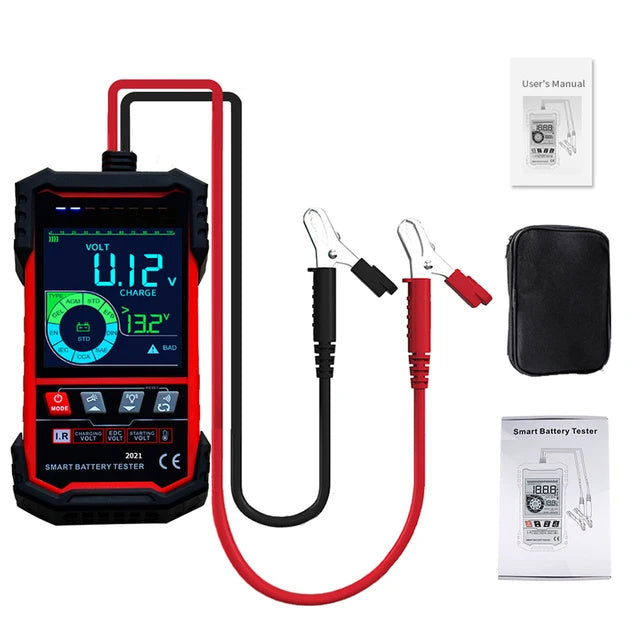

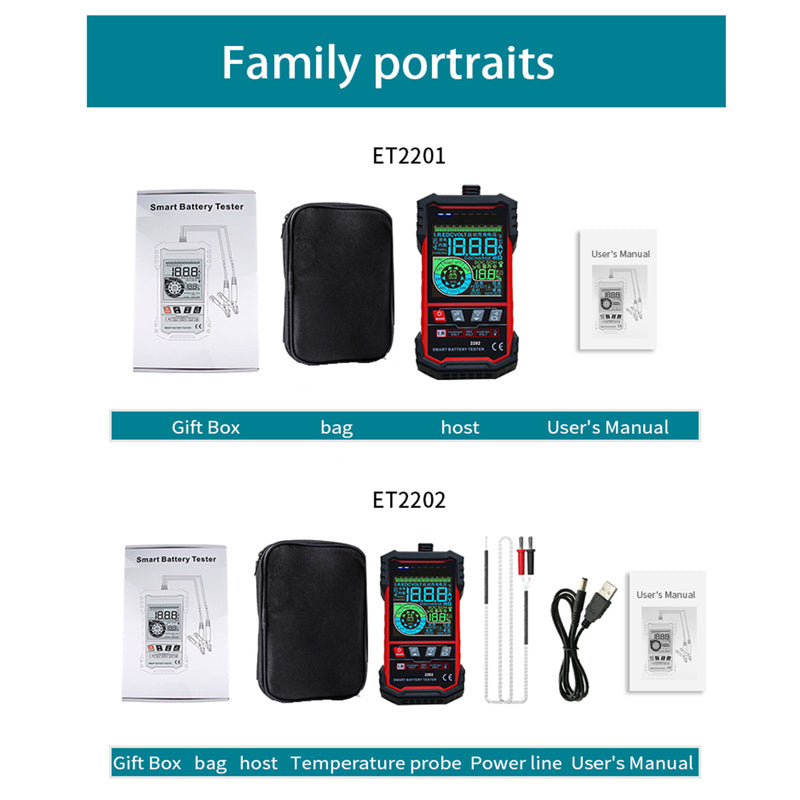

Optional basic model 2201: 1x Battery tester, 1x Leather bag, 1x User manual.
Specifications:

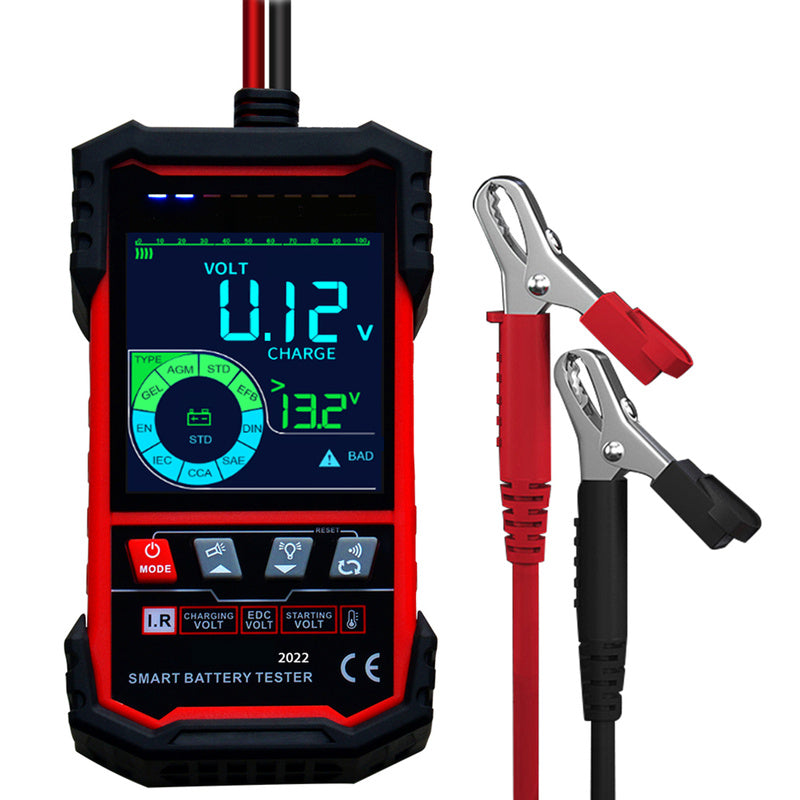

Item name: Smart Battery Tester

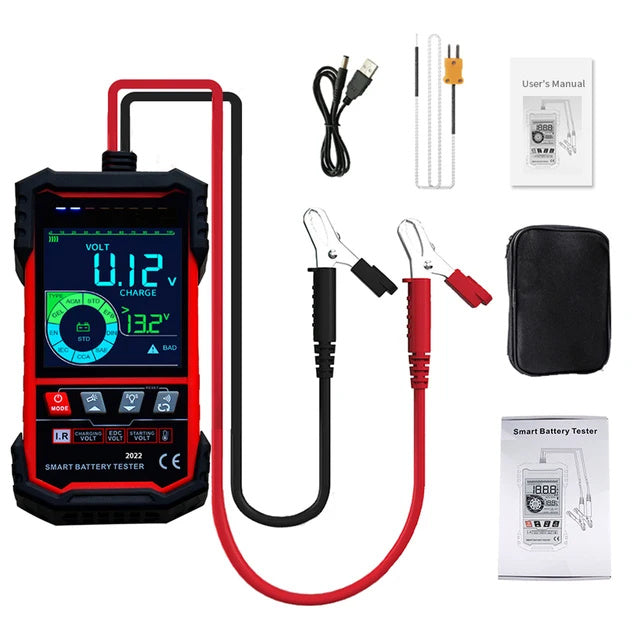

Model: Model 2201/Model 2202 optional (2202 with charging capability and temperature measurement).
Material: TPR materials
Color: As shown
Screen size: 3.2 inch color screen(55*57mm four color screen)
Battery: 12V/24V activated lead-acid battery
Internal resistance measurement: Support
Current of discharge: Support
Analysis of lifespan: Support
Electric quantity detection: Support
Ability to starts: Support
Quality of battery: Support
Function of lighting: Support
Car starting test: Support
Vehicle load measurement: Support

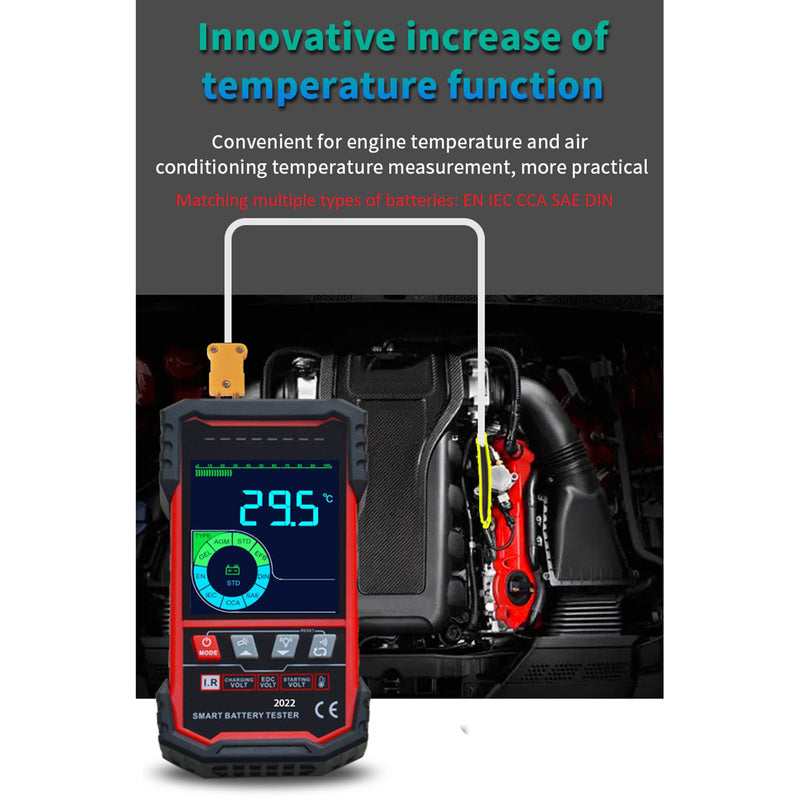

Temperature detection: Upgrade model 2202 Only

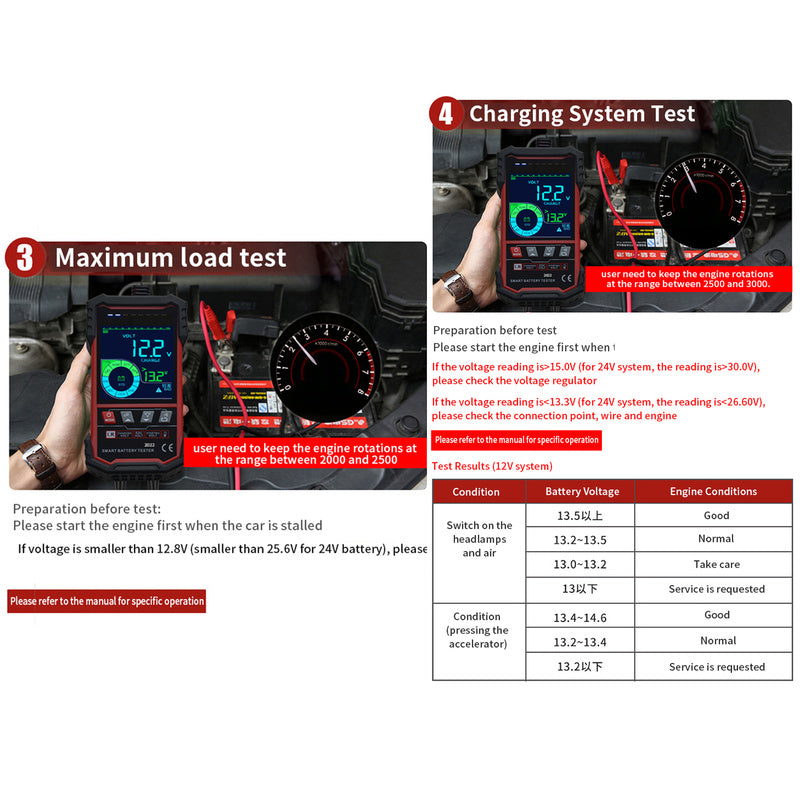

Vehicle charging capacity: Upgrade model 2202 Only
Range CCA: 100-1999
Range of capacity: 3AH-250AH
Test method: Four-wire Kelvin test
Battery selection criteria: STD/AGM/GEL/EFB/EN/IEC/CCA/SAE/DIN
Power supply power: Storage battery power supply/power supply
other: White backlight, overvoltage protection, reverse input protection.
Package size: 216*145*49mm / 8.50*5.71*1.93in
Package weight: 2201: 480g / 16.93ouce, 2202: 535g / 18.87ouce.
Attention:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm.
