Features:

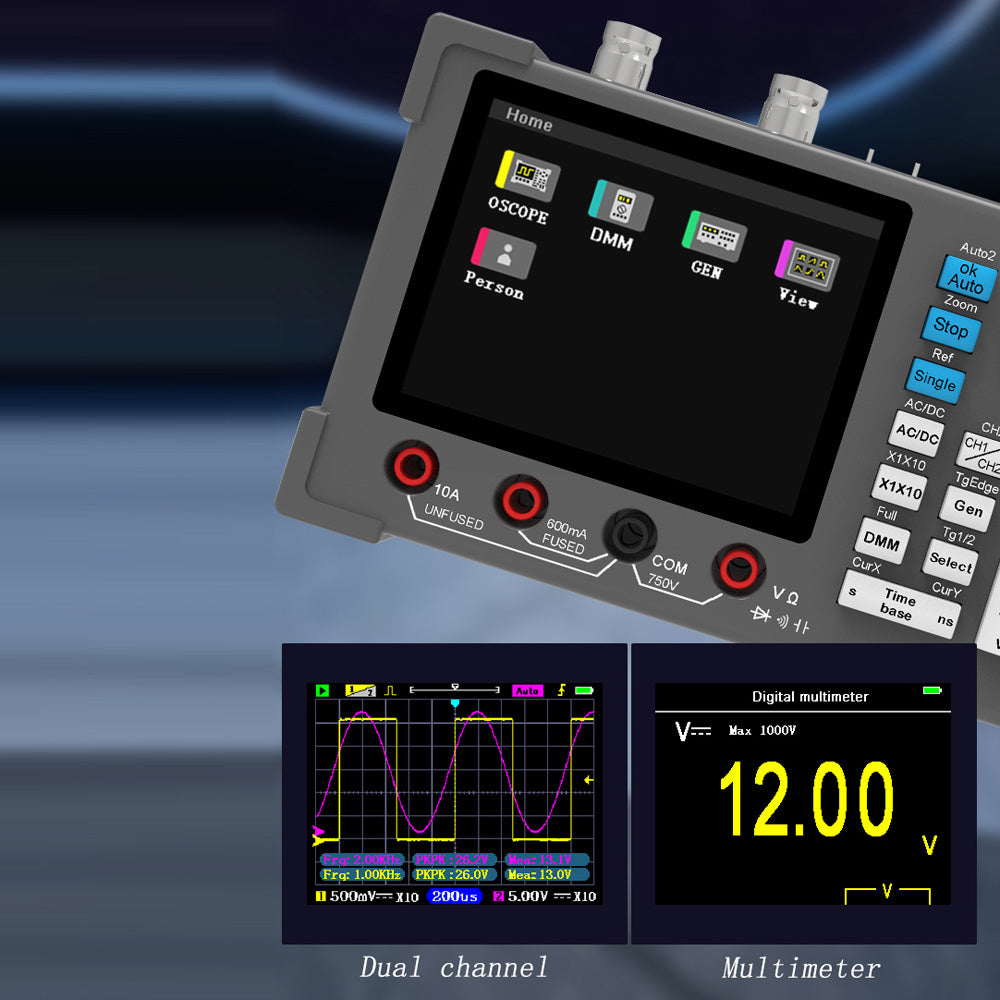

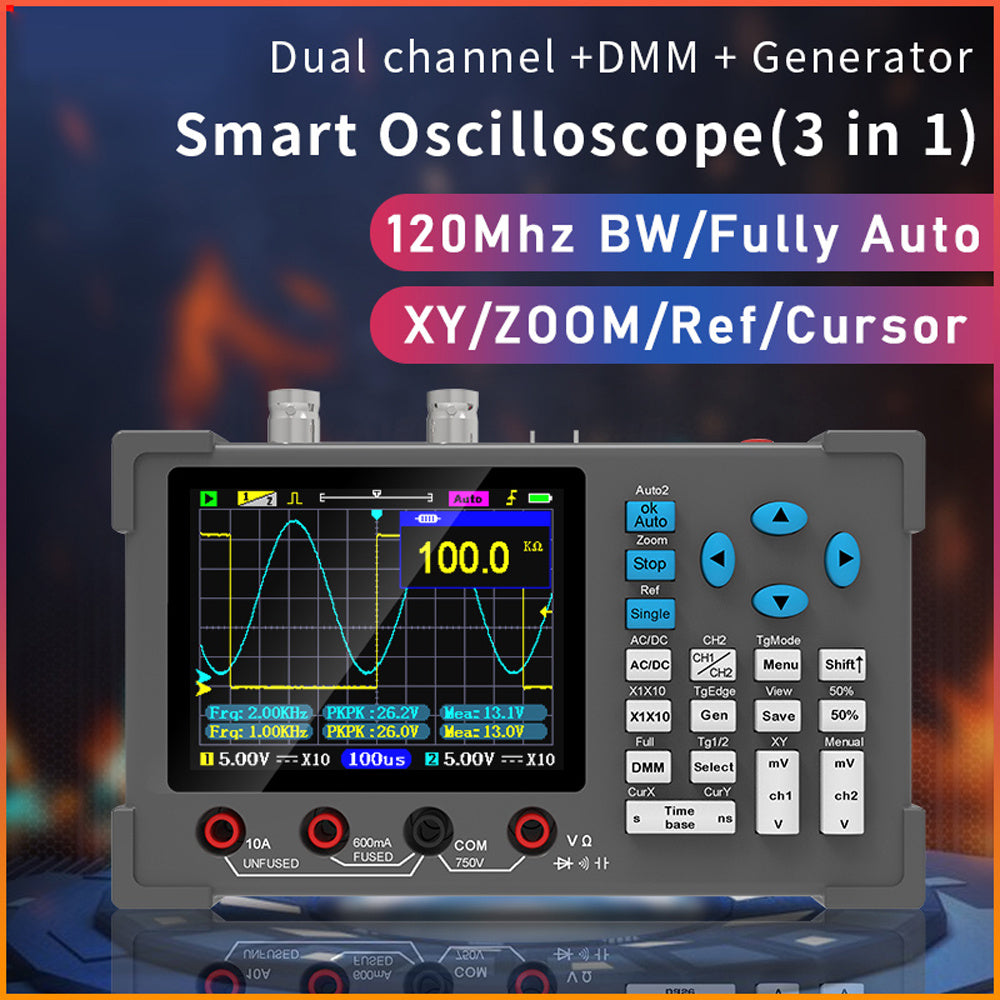

【3In1 Design with IPS Display】: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/purple.
【Signal Generator】: Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on. The voltage amplitude is 2.5V, the frequency is adjustable from 0-2Mhz, and the squarewave duty cycle is adjustable from 1% to 99%.
【High-precise Multimeter】: Built-in true RMS multimeter, that supports quick software calibration. With DC/ACvoltage, DC/ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner).
【Digital Oscilloscope Function】:
【Sensitivity and Time Base】: The oscilloscope will automatically detect the signal and adjusts the ranges. Support manual adjustment of the waveform vertically and horizontally. The vertical sensitivity indicates the voltage in the vertical direction, and it is adjusted by the mV and V buttons to adapt to different voltages. The time base represents the time in the horizontal direction. It is adjusted by the S and NS buttons to accommodate different frequencies.  In the stop mode, the user can move the waveform left and right.
【Two Automatic Modes Adjustment】: Support one-button automatic and fully-automatic mode, no complicated operation, you can quickly detect and display the waveform. In fully automatic mode, no keystrokes are required, and continuous automation is performed.

【Dual Channel】:

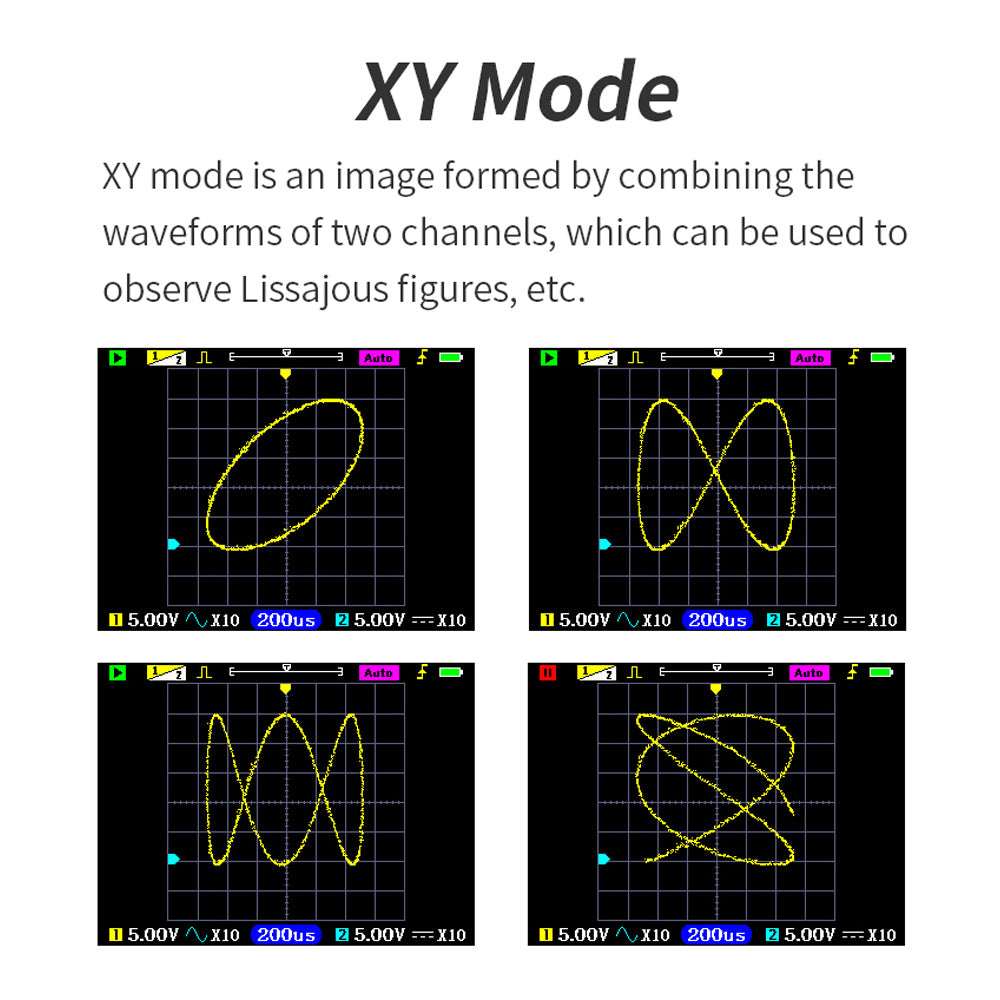

【X-Y Mode for Cursor Measurement】: The X-Y mode is an imaging formed by combining the waveforms of two channels and is commonly used to display the phase difference or frequency relationship between two signals. Supports X cursor and Y cursor measurement. The horizontal cursor can be used, for example, to measure the interval time between two pulses. The vertical cursor can be used to measure the voltage and the voltage difference at any two locations.
【FFT Spectrum】: FFT (Fast Fourier Transform) is an algorithm that transforms waveforms in the time domain to the frequency domain, which can be used to analyze the frequency component in waveforms. Linear and logarithmic displays are supported. Note: FFT can only display spectrograms, frequency measurement is not supported.
【Reference Waveform】:

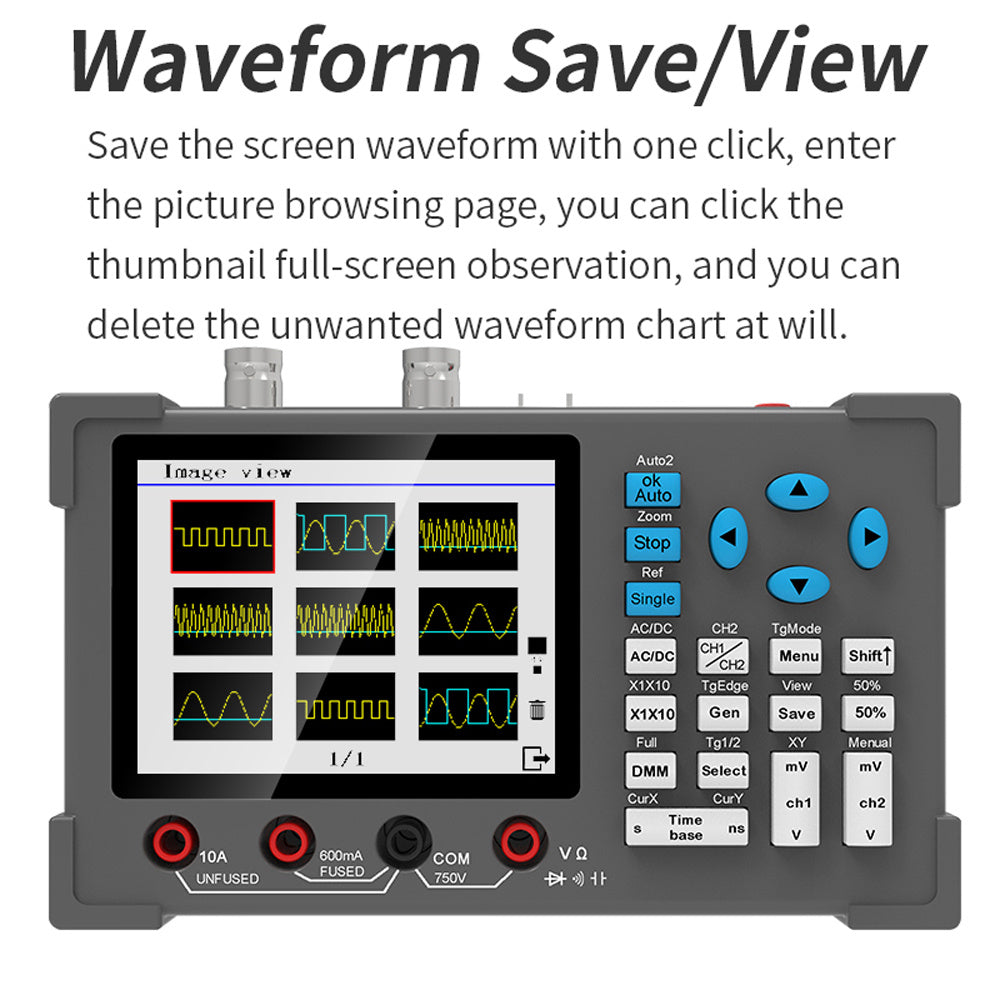

【Waveform Save/View】: Save the screen waveform with one click, enter the picture browsing page, you can click the thumbnail for full-screen observation and also can delete the unwanted waveform chart at will.
【Safer Design】: Use an isolation transformer and isolation optocoupler chip to isolate the multimeter from the oscilloscope, so you don't have to worry about common ground wiring. (When measuring high voltage, the multimeter, and oscilloscope cannot be used at the same time).
【Wide Applications】:

Specifications:
Name: 3in1 Digital Oscilloscope
Material: ABS
Display: 3.2 inches IPS color screen
Battery: 1 * built-in 2500mah rechargeable battery (included)
Charging: TYPE-C 5V
Language: Chinese/English

Oscilloscope:
Real-time sample rate: 200Msps
Analog Bandwidth: 120MHz (CH1 only); 60MHz (CH1+CH2)

Rise time: 3ns
Storage: 128Kb
Impedance: 1ΜΩ
Time Base: 5ns- 10s
Peakvoltage:  ±40V (1x), ±400V (10x)
Trigger mode: auto/normal/single
Trigger type: rise/fall
Display mode: YT /X-Y/roll
Persistence: none/1s/∞
Auto mode: oneKey-auto/fully-auto
Sensitivity: X1:10mV/div~10V/div; X10:100mV/div~100V/div
Measure items: 14 types
DC Offset: ±2%
X-Y mode: yes
Screenshot: yes
Frequency: ±0.01%
Zoom mode: yes
FFT: yes
Generator waves: sin/square/triangular
Generator Vol: 2.5V±0.05
Generator freq: 1Hz-2MHz

Multimeter:
DCvoltage: 600mV/6.00V/60.0V/600V/750V, ±(0.5%+3)
AC voltage: 600mV/6.00V/60.0V/600V, ±(1%+3)
DC current: 600mA/10A, ±(2%+5)
AC current: 600mA/10A, ±(3%+5)
current note: 600mA hole with 1A fuse, 10A hole without fuse
Resistance: 600.0Ω±(1.5%+3); 6.000kΩ/60.00kΩ/600.0kΩ±(1%+3); 6.000ΜΩ, ±(1.5%+5); 60.00ΜΩ, ±(3%+3)
Capacitance: 60.00nF/600.0nF/6.000μF±(5%+5), 60.00μF/600.0μF±(10%+5)
Diode: 0.0V~3.3V, 3.3V higher display OL
Continuity: Sound at 50Ω and below

Item size: 145 * 86 * 32mm / 5.71 * 3.39 * 1.26in
Package size: 220 * 150 * 70mm / 8.66 * 5.91 * 2.76in
Package weight: 600g / 1.32lb

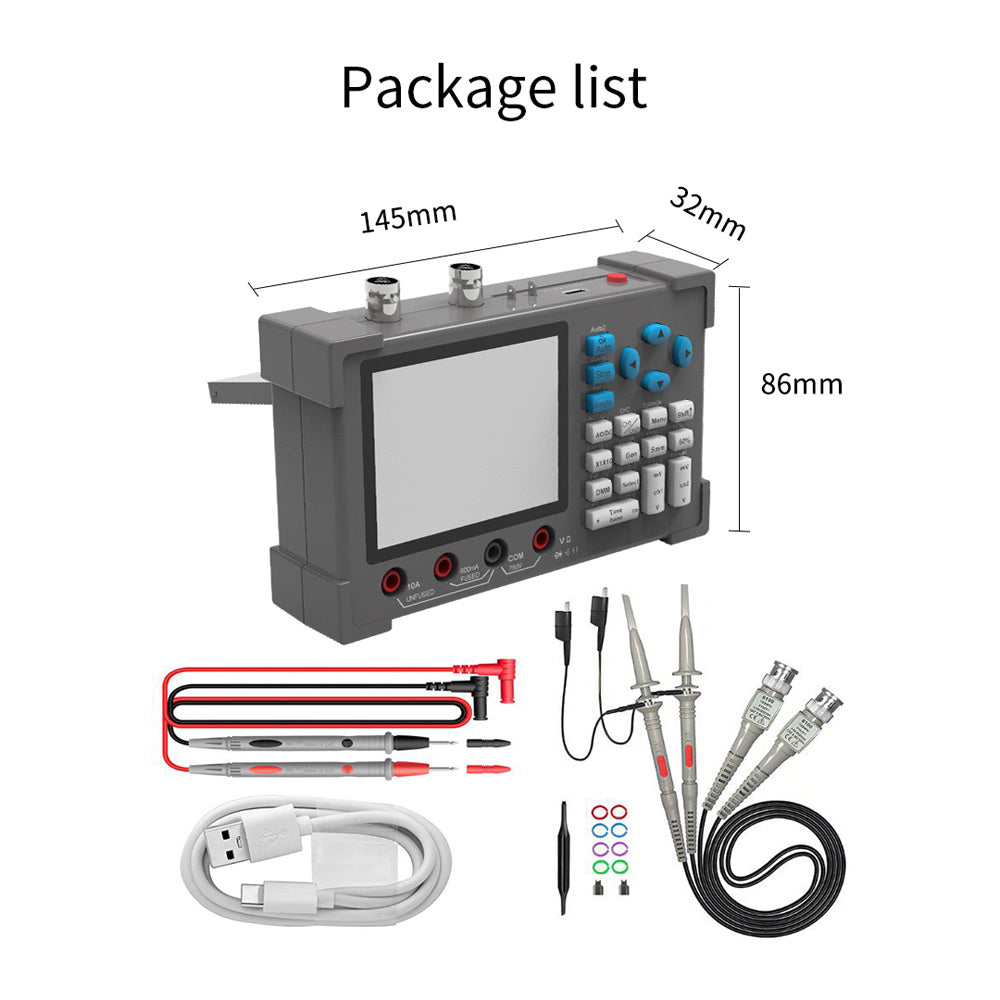

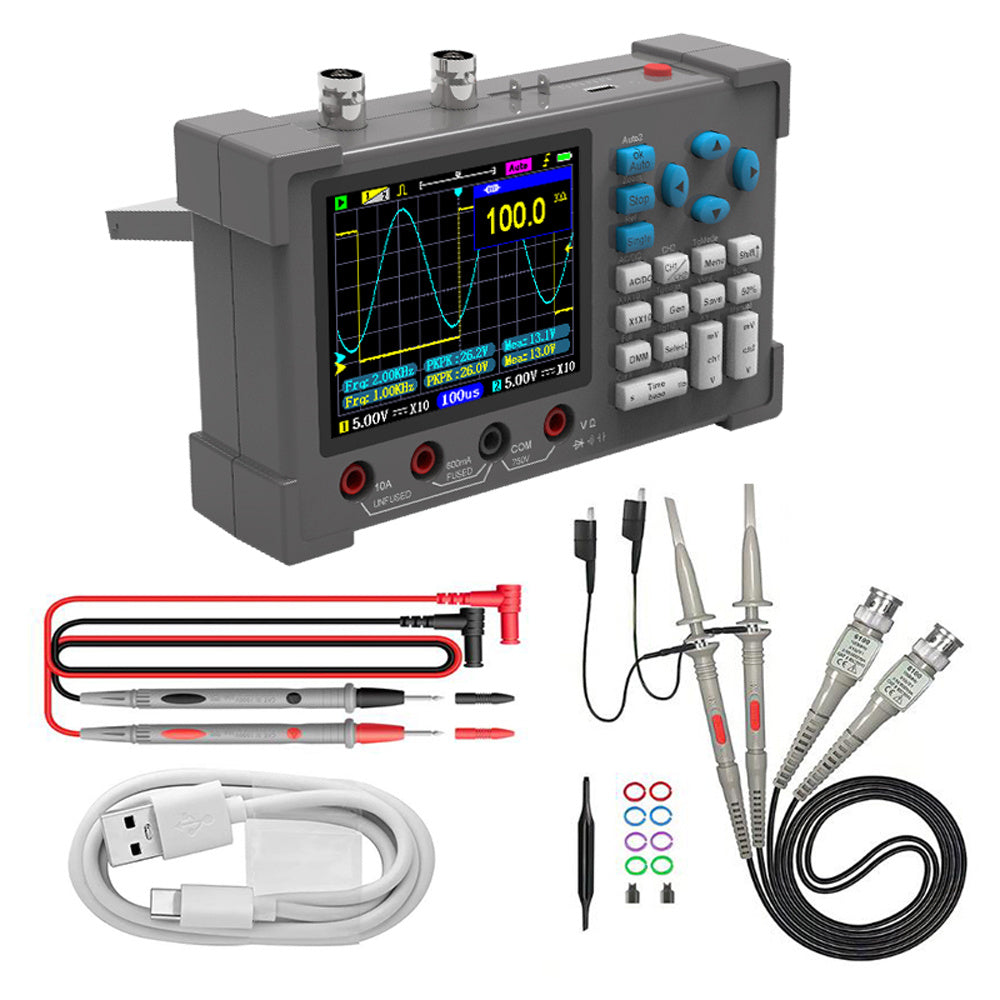

Packing List:
1 * 3in1 Digital Oscilloscope
1 * Pair of Test Pen
2 * Cable
1 * Charging Cable
1 * Set of Accessory
