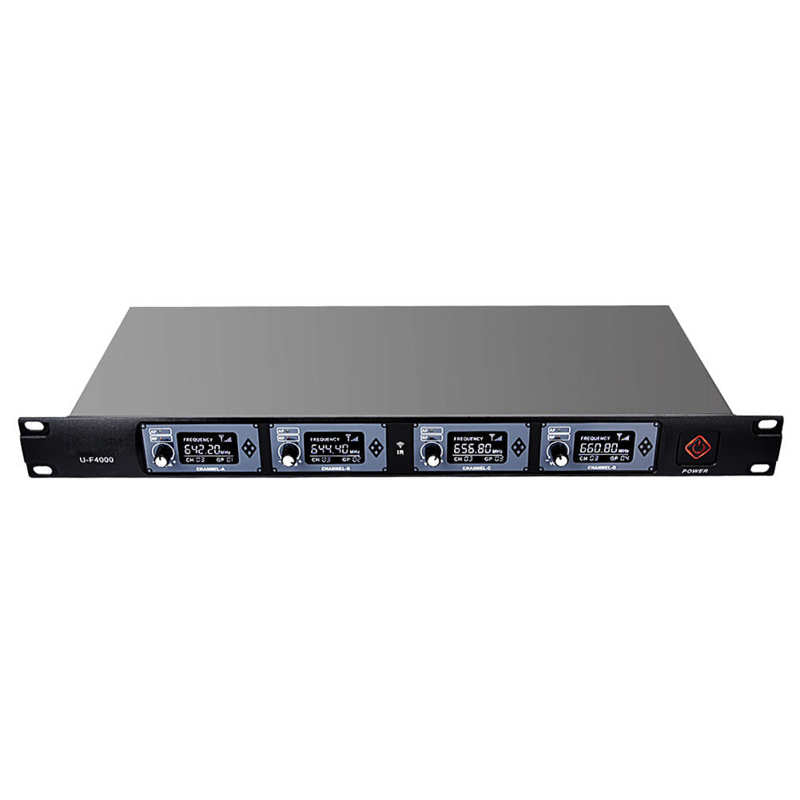

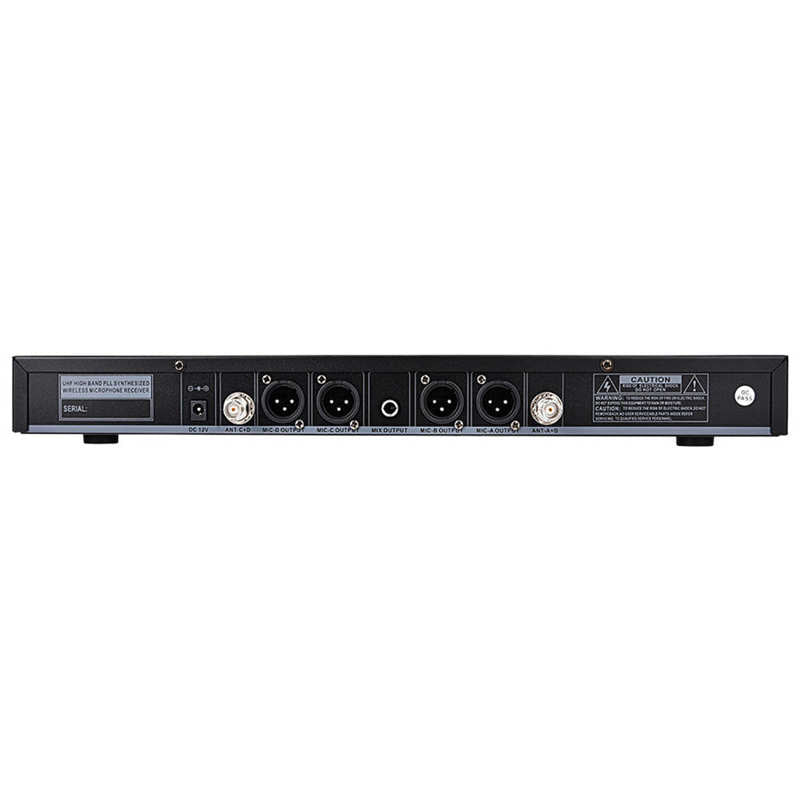

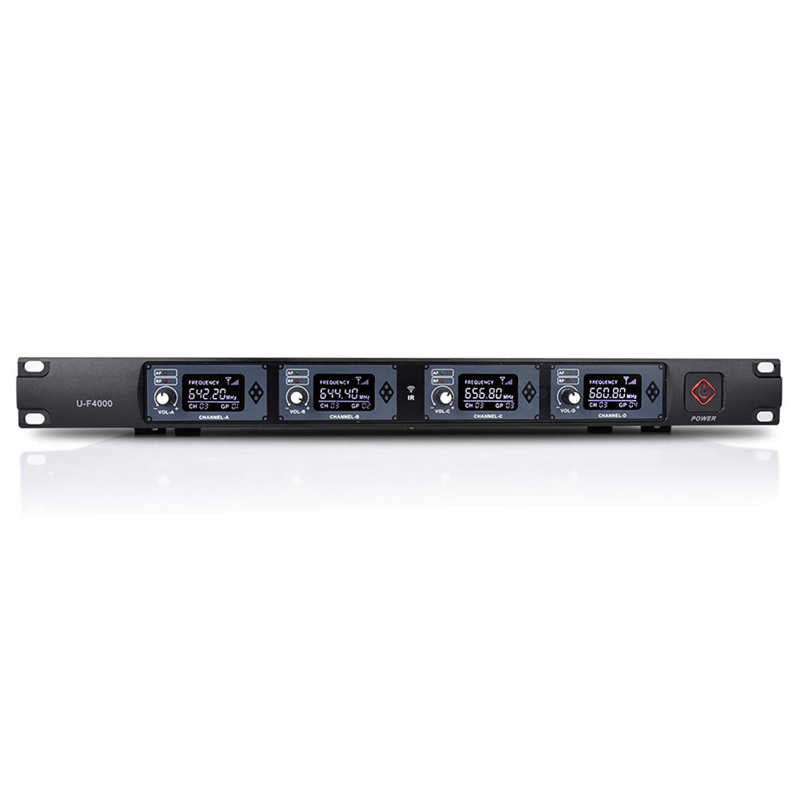

1-to-4 UHF Portable Wireless Transmitter Receiver Clip Lapel Headset Microphone

       This product adds several new domestic unique technologies based on the original microphone technology, which makes the system have ultra-high sensitivity, strong anti-interference ability and excellent stability. The original technology includes high-efficiency low-cost RF emission technology and SMT production process in the United States, and uses a locking frequency of better than 10ppm quartz crystal, dynamic audio compression, expansion circuit, image frequency suppression circuit, switch-time shock elimination circuit, anti-return circuit Variable output control technology, computer EDA, analog online assisted design, etc.

     Features:

     1. The frequency is fixed, it can be used at boot, convenient.

     2. Four-channel volume is independently adjustable, providing 1+4 audio output, and four-channel audio output is independently controllable.

     3. Handheld/collar clips in the transmitter can be used in a mix and match.

     4. 5 sets of different frequency points can be used simultaneously.

     5. Very suitable for stage performance.

     6. Lightweight, mini size. Easy to carry.

     Specification:

     Model: U-F4000

     Weight: about 896g/31.61oz (transmitter), about 270g/9.52oz (receiver*4)Channels

     Size: about 48*19*4cm/18.9*7.48*1.57in (transmitter), about 11*6.3*2cm/4.33*2.48*0.79in (receiver)

     Battery: AAA*2 (Not Included)

     Transmit power: <30mW (depending on applicable national regulations)

     Harmonic power: <35dB (main wave)

     Battery life: >10 hours

     Oscillation mode: quartz crystal oscillation

     Stability: 10PPM

     Wireless interface: BNC/50Ω

     Maximum frequency offset: 50KHz

     Signal to noise ratio: >103dB

     Distortion: <0.5%@1KHz

     Image interference: >85dB

     Adjacent frequency interference: >75dB

     Frequency response range: 50Hz~16KHz

     Squelch control mode: multiple squelch circuit

     Maximum output level: +10dBV

     Sensitivity adjustment range: 12-32 dBμV

     Power supply: external DC power supply, 0.8A, 12~15V DC

     Use distance: Open environment: 50-80m Complex environment: 30-40m

     Frequency range: 621.5~643.7Mhz

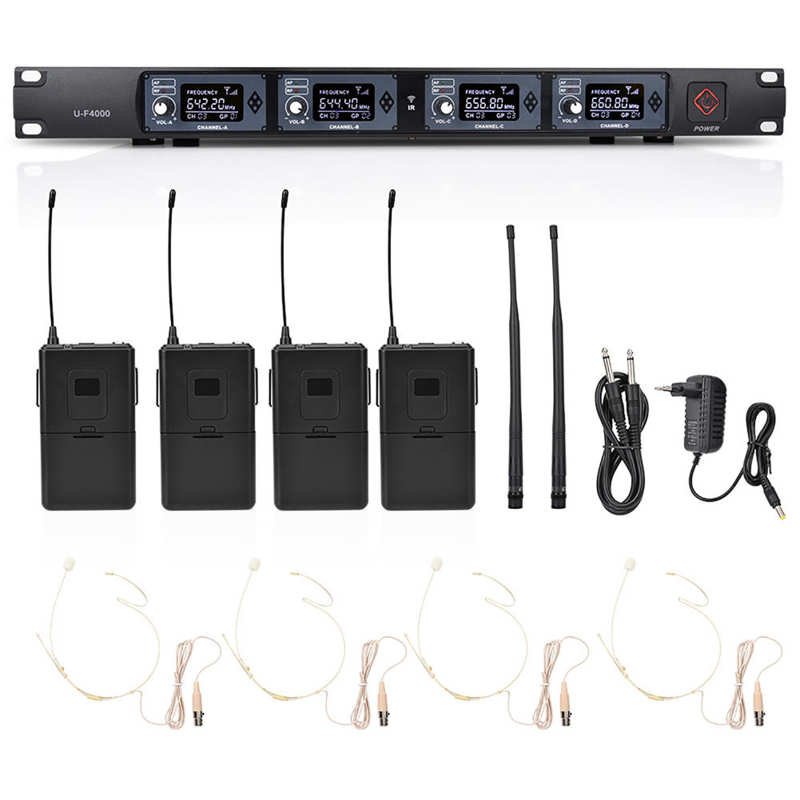

     Package List:

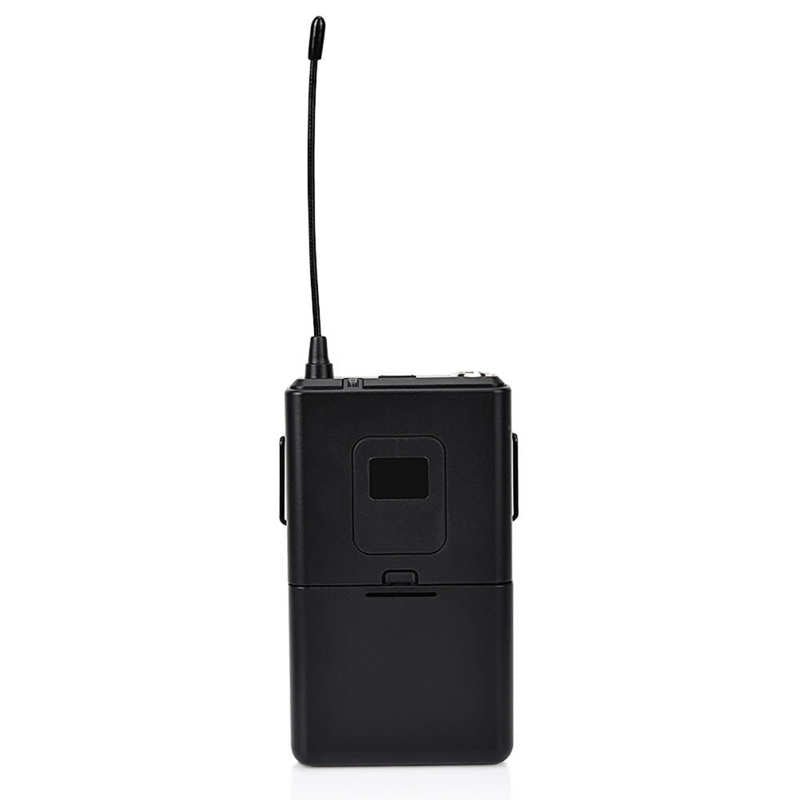

     1 * Transmitter

     4 * Receiver

     1 * Instruction Manual

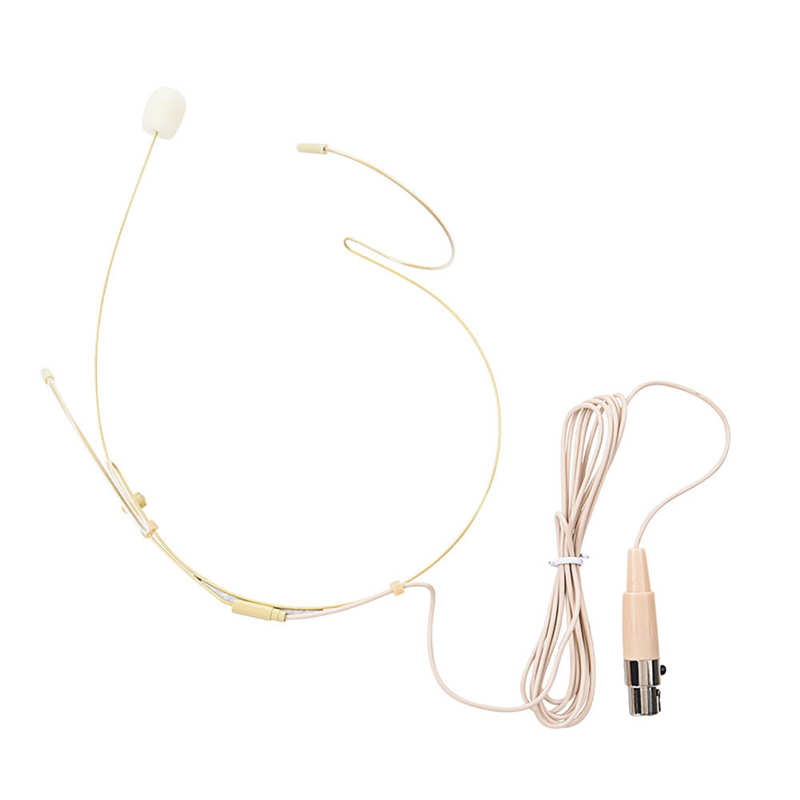

     4 * Microphone

     1 * Charger

     1 * Audio Cable

     2 * Antenna
