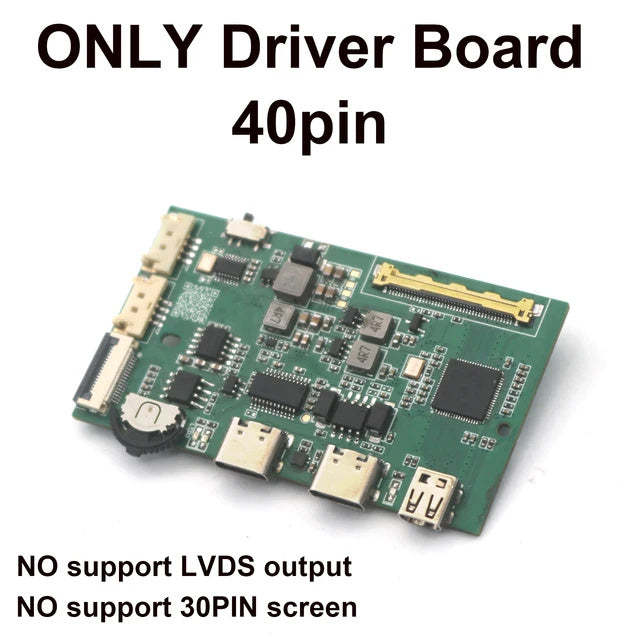

Only supported the EDP output signal screen.Only supported 40PIN LCD screen
When purchasing. Please search the parameters of the query screen
A function description:
2. The device does not support hot swap. Disconnect the Type-c power supply when removing the HDMI socket. Do not plug and unplug EDP cables while live. The screen may be damaged. The power must be turned off first in order. All ports are removed. The EDP cable can be removed at last.

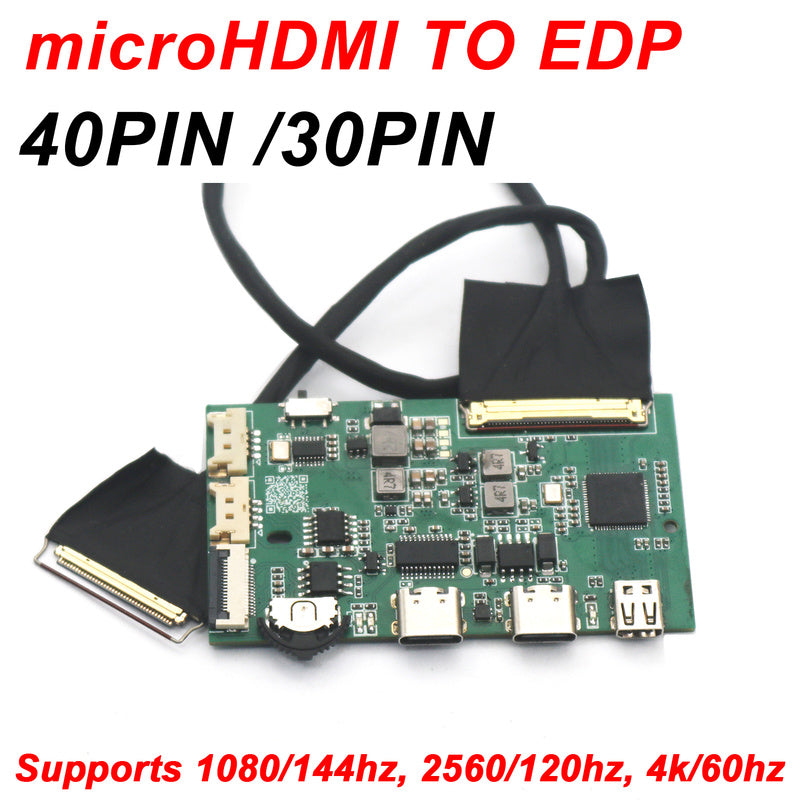

3.EDP40 coaxial signal output.microHDMI port supports 1920*1080/120HZ,1920*1200/144HZ, 2560*1440/120HZ, 2560*1600/120HZ, 3200*1800/48HZ, 3840*2160/60HZ, 3840*2400/60HZ compatible with 16:9/16:10 conventional resolution. Supports 360 Xbox.PS5 (requires 1920*1080 screen). Does not support 4:3 ratio screen or other unconventional resolution screen.
Two performance parameters:
Operating voltage 5V/PD15V protocol. Compatible with QC protocol, automatic identification of charger fast charge protocol features, support 60W PD protocol power charger; Current 2~5A. (A C TO C charging cable can only support PD protocol, and A to c only supports 12V protocol)

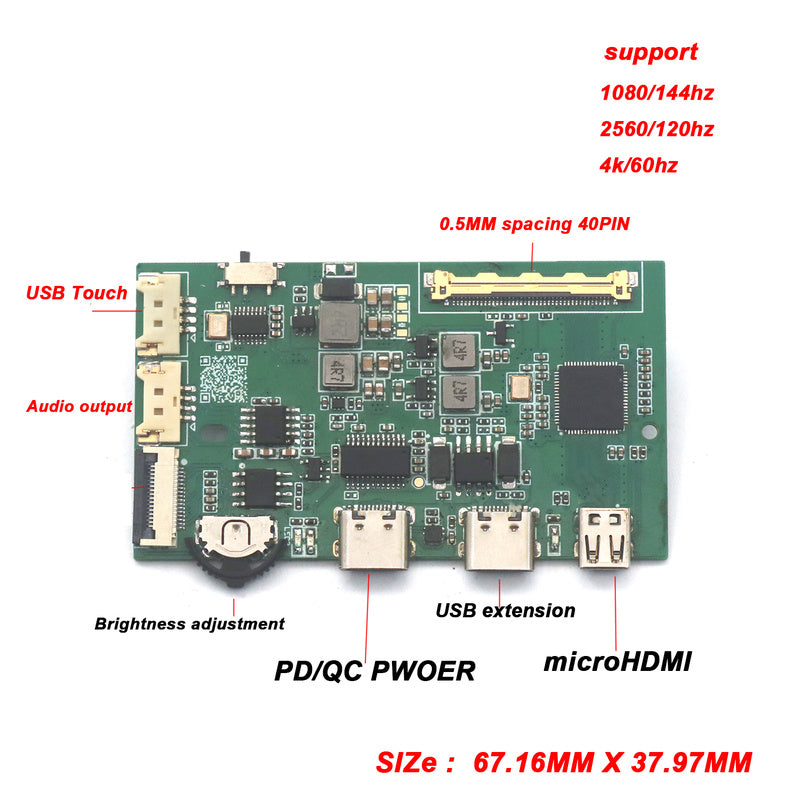

TYPE-C is the power input, supports PD protocol, DP/QC, EDP40 is the signal output, (40PIN is 4LAN), the backlight voltage is 15V by default, and the drive logic voltage is 3.3V.
Keystrokes: 50,000 times.
Operating temperature: -40-85℃
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
