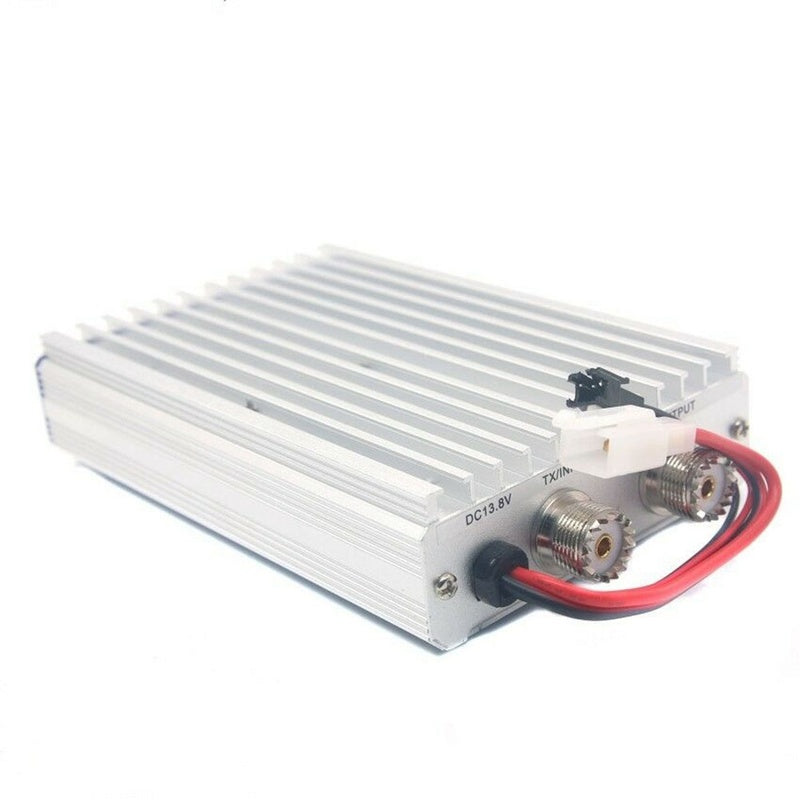

HF power amplifier, for QRP transceiver, Improve signal. Can be used both as a base and mobileunit,Extremely Small Compact and lightweight , Full integration with the FT-817 using the supplied interface cable.
The amplifier incorporates various protection circuits such as high VOLTAGE,front mounted LED display.
This amplifier can be successfully used with other QRP rigs such as the ICOM IC-703(and Elecraft KX3).
YAESU FT-817ND Quick operating manual:

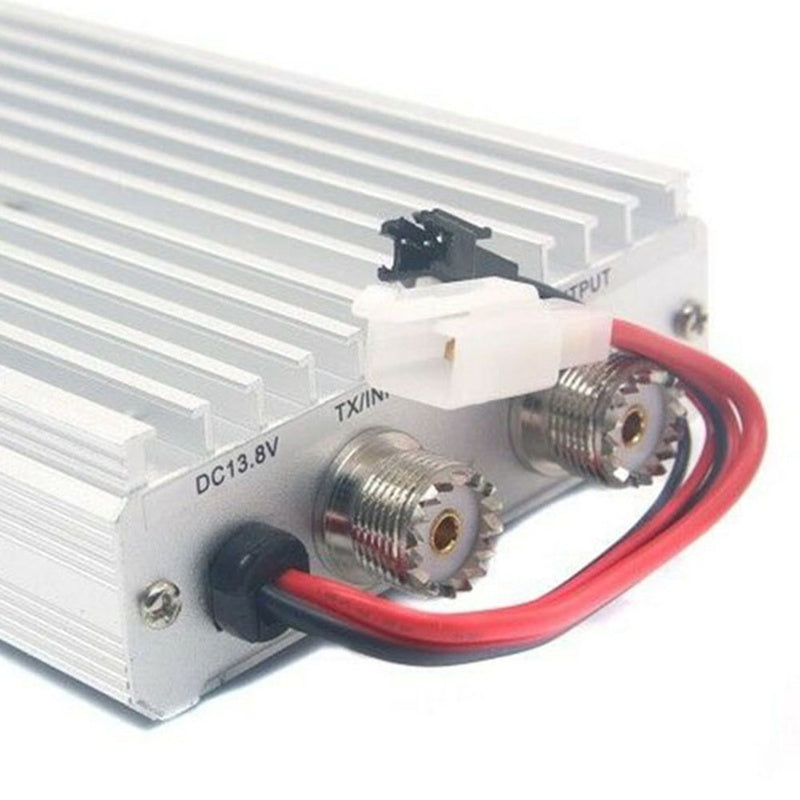

Connect power cord to DC power supplier, Red to "+", Black to" -"
Connect ACC cable to FT-817 ACC and amp
Adjustment "BAND ADJ" button,Select the band.

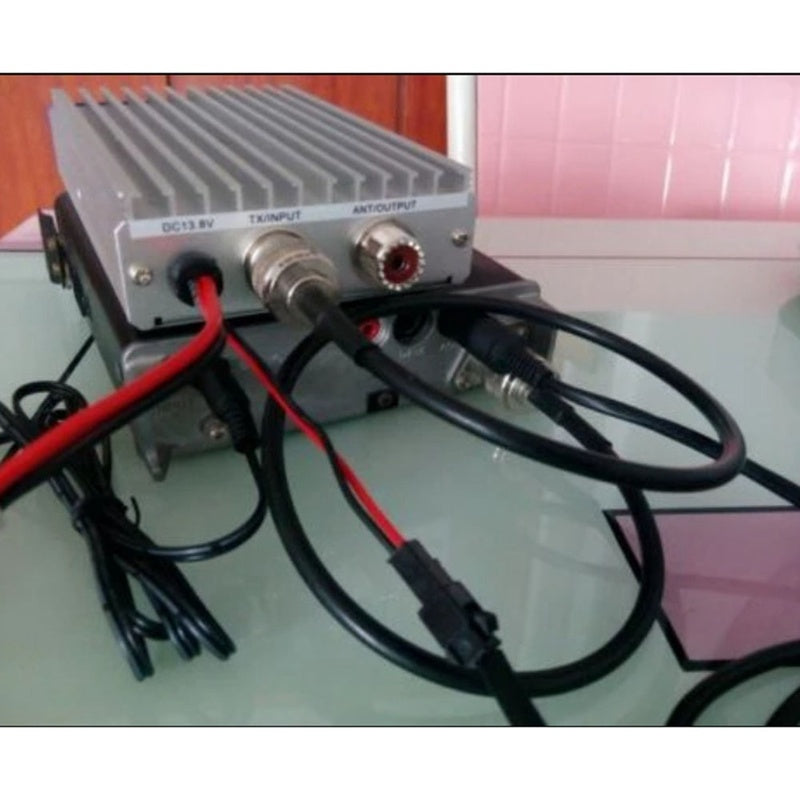

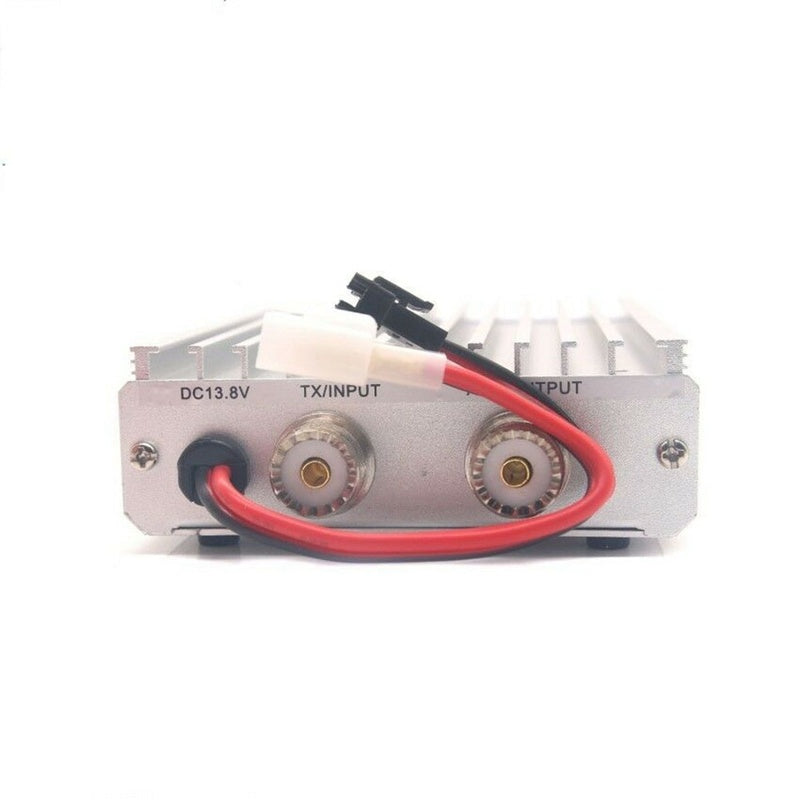

Connect antenna to amp "ANT" and "input" from FT-817 antenna out. Note that the antenna you used that should well tuned, the SWR should less than 1:1.5
Open the power on both power supplier and AMP. The power indicate on.
Power on FT-817, the band indicate on Amp shoule be on.
Press PTT, the TX indicate on Amp should be on.Notice! If working on FM or SSTV for long operating time, should lower the output power on FT-817,
say 2.5W or 1W.
Other QRP transceiver operating manual:

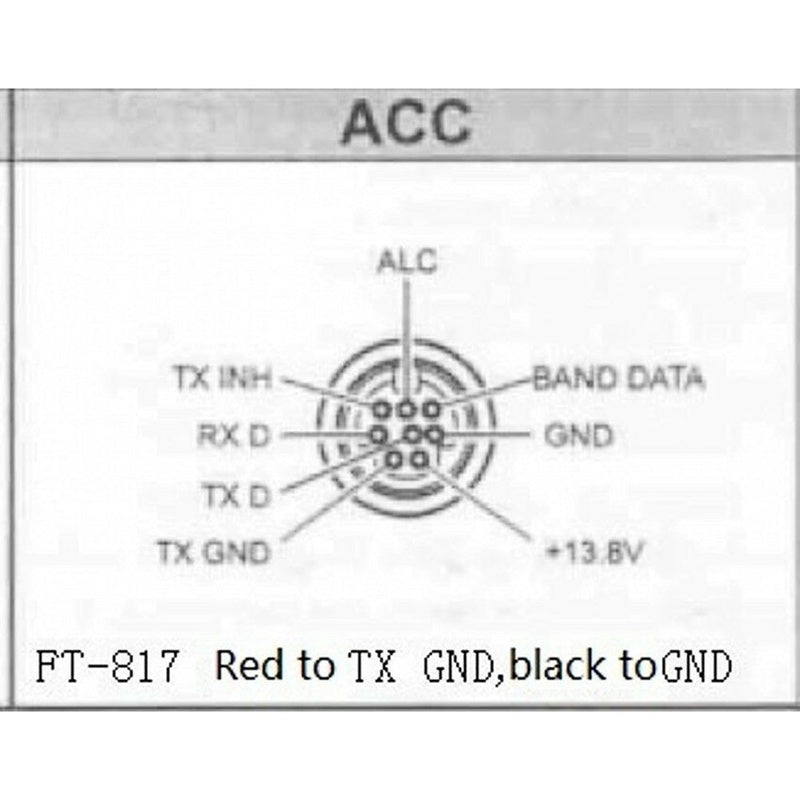

Connect acc cable to transceiver PTT-TX and amplifier,ACC green to"GND",RED TO"TX-PTT",the radio "TX-PTT"view manual.
Specifications
Frequency Band: 80m 40m 30m-17m 15m-10m
Operating Modes: SSB CW AM, RTTY and FM-Reduced duty cycle
Rf input: 5W
Out power: 45W
Band mode: Manual
Power requirement: 13.8V 8A, RED "+" BLACK"-"
Antenna connector: SO-239 50Ohm
Colour:silver
Material:Metal
Size:155 x 100 x 35mm
Package Contents:

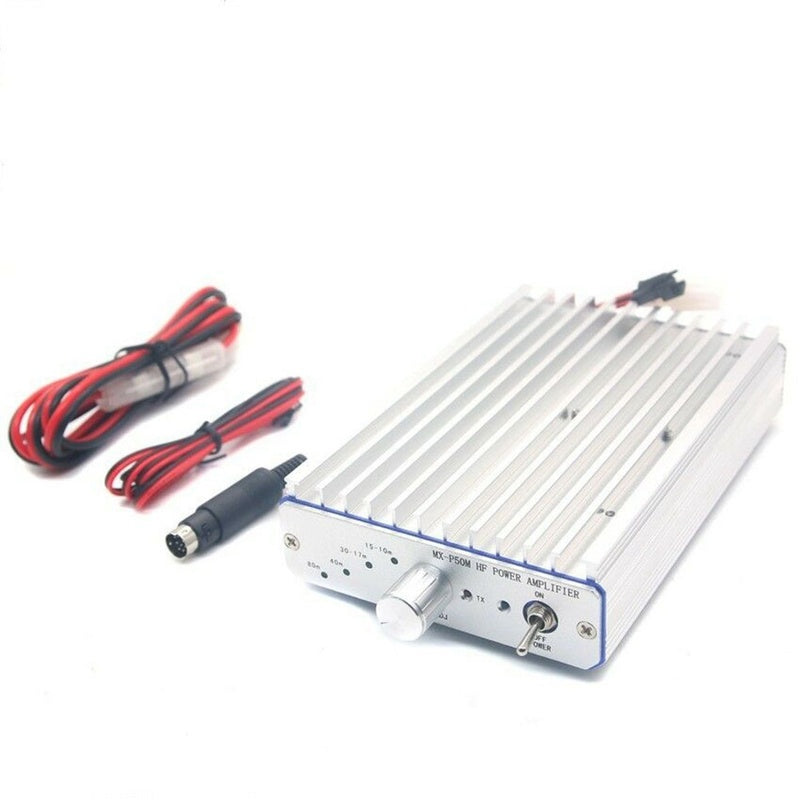

1 * MX-P50M
1 * Power cord
1 * PTT Control cable for FT-817 818
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
