High-quality material, with clear tension thread, strong toughness, strong water resistance, long-lasting use.
It is not only waterproof, anti-air, salt-proof, but also resistant to acids and alkalis, alcohol, grease and general solvents, and is resistant to corrosion.

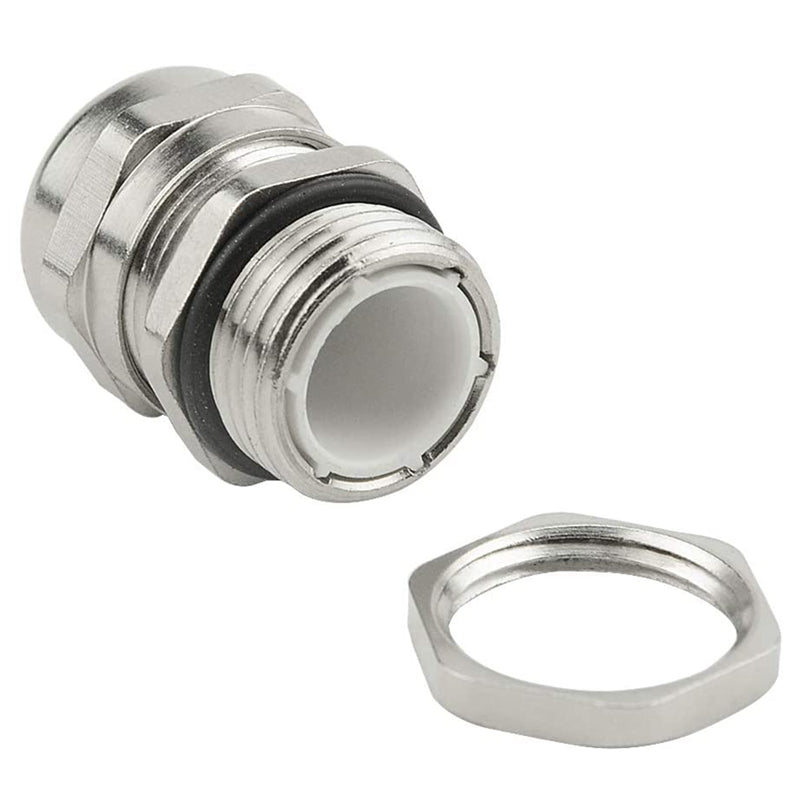

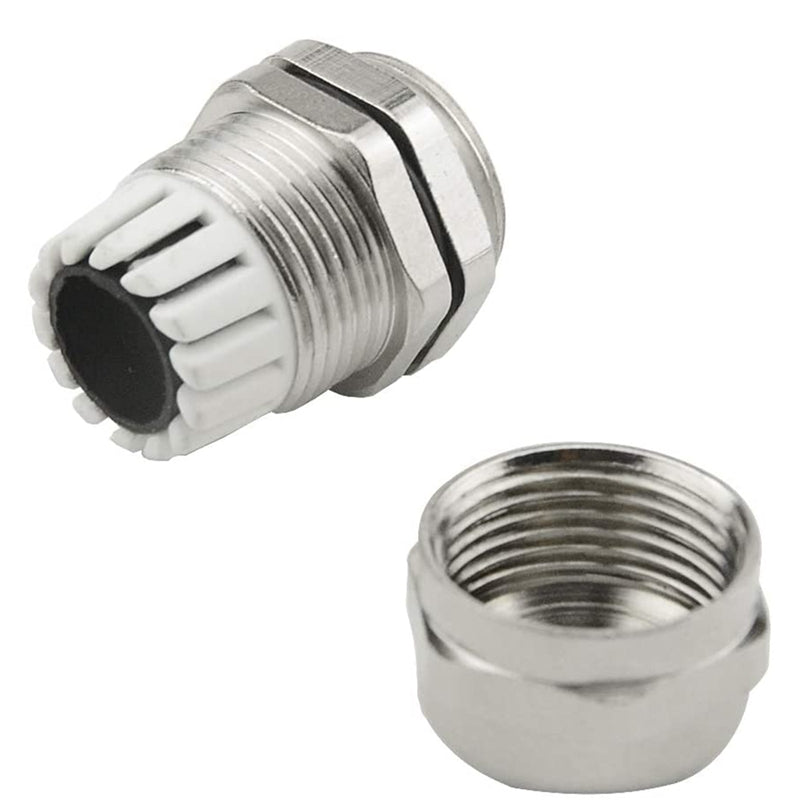

The joint structure consists of tight cap, waterproof inner core, main body and nut, the clamping range is large, the tightening cap is specially designed, the cable fixing tension is strong, and no damage is caused to the motor. Waterproof structure design, rigorous thread, exquisite technology.
It is not necessary to disassemble the fixing head of the waterproof connector, and the cable can be directly inserted into the tightness, which is convenient and efficient.
It is used in navigation, aviation, transportation, surveillance systems, audio-visual audio, LED lighting equipment, transportation, office equipment wire and cable fixing, small size can be used in small cabinets, space shortage.

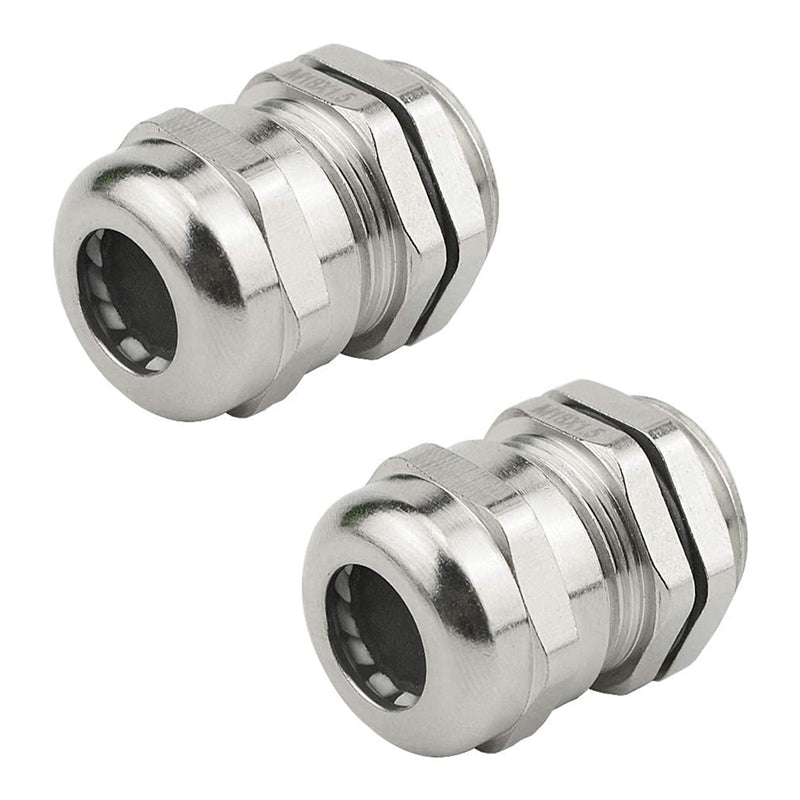

Name: Cable Waterproof Connector
Model: PG7/M12
Connection type: threaded connection, screwed and fixed
Cable range: M18 x 1.5(5-10mm).
Thread O.D: M18 x 1.5 (18mm).
Thread minimum length: M18 x 1.5 (9mm/0.35inches)
Total Size : 14 x 23mm (Dia*H)
Protection grade: IP68 waterproof grade
Ambient temperature: static -40Celsius-100Celsius, short time to 120Celsius, dynamic -20Celsius-80Celsius, short time to 100Celsius
Product usage:
1. First insert the body into the machine plate, and then fix it with the nut
2. Insert the wave tube into the clamping claw, and then make forward rotation with the clamping sleeve
colour:Silver
Material:Nickel-plated copper + rubber + plastic
Package Contents:
5 x Cable waterproof connector
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
