Features:
With small size and high speed, the motor operate quietly.
The rear of the motor is equipped with a cooling fan, which can work for a long time with confidence.
The pulse width technology is used to make the speed more stable, and the force is strong at low speed.

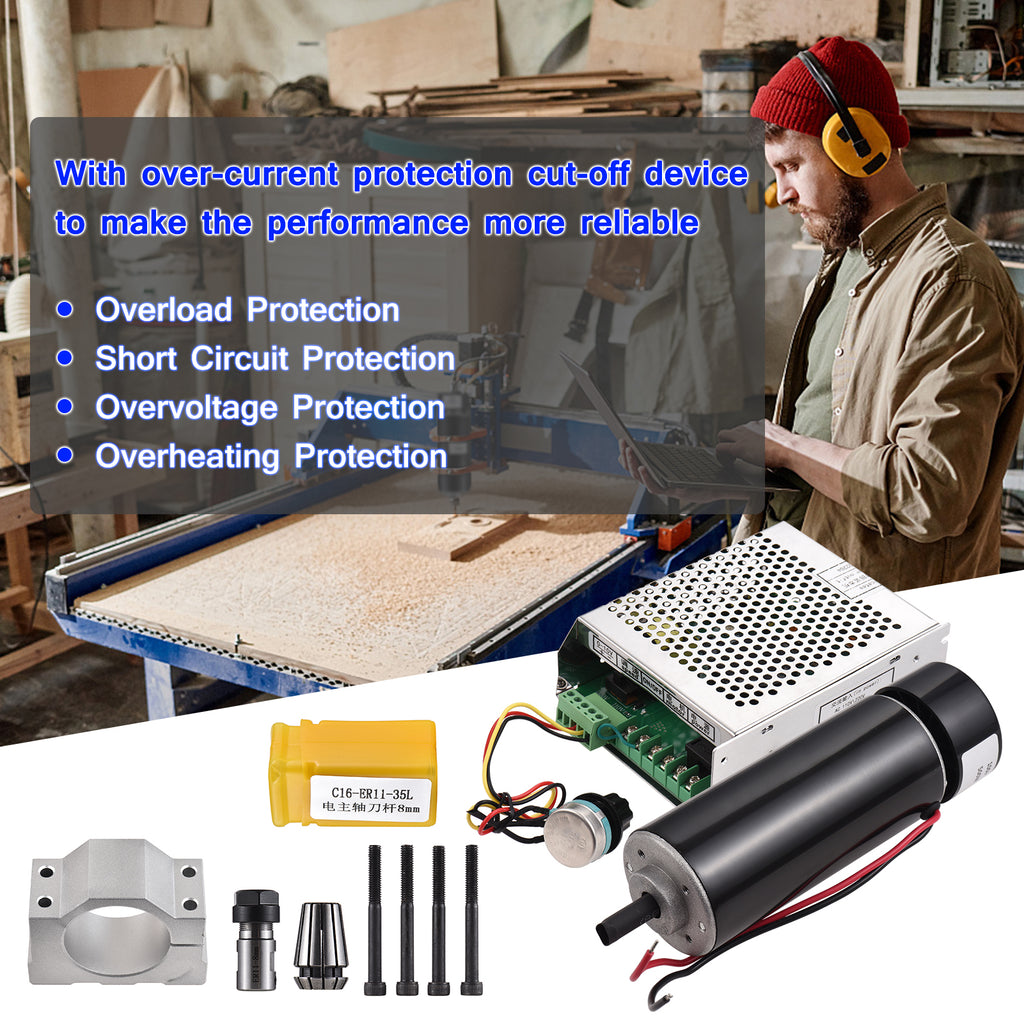

With over-current protection cut-off device to make the performance more reliable.
With a soft start device to eliminate excessive starting current of the motor.
(Power supply)Governor is lightweight, small heat, low noise, high efficiency and energy saving.
With overload protection, short circuit protection, overvoltage protection, overheating protection.
Spindle radial runout 0.01-0.03 high precision.
Can be used for solid wood / PCB engraving and drilling, etc.
Install in the place with good ventilation, no violent shock, no vibration, no explosive dangerous medium and no conductive metal powder.
Applicable to 3018, 3020, 3040, 1*1 meter, 6565, 4545 engraving machine model.
Specifications:

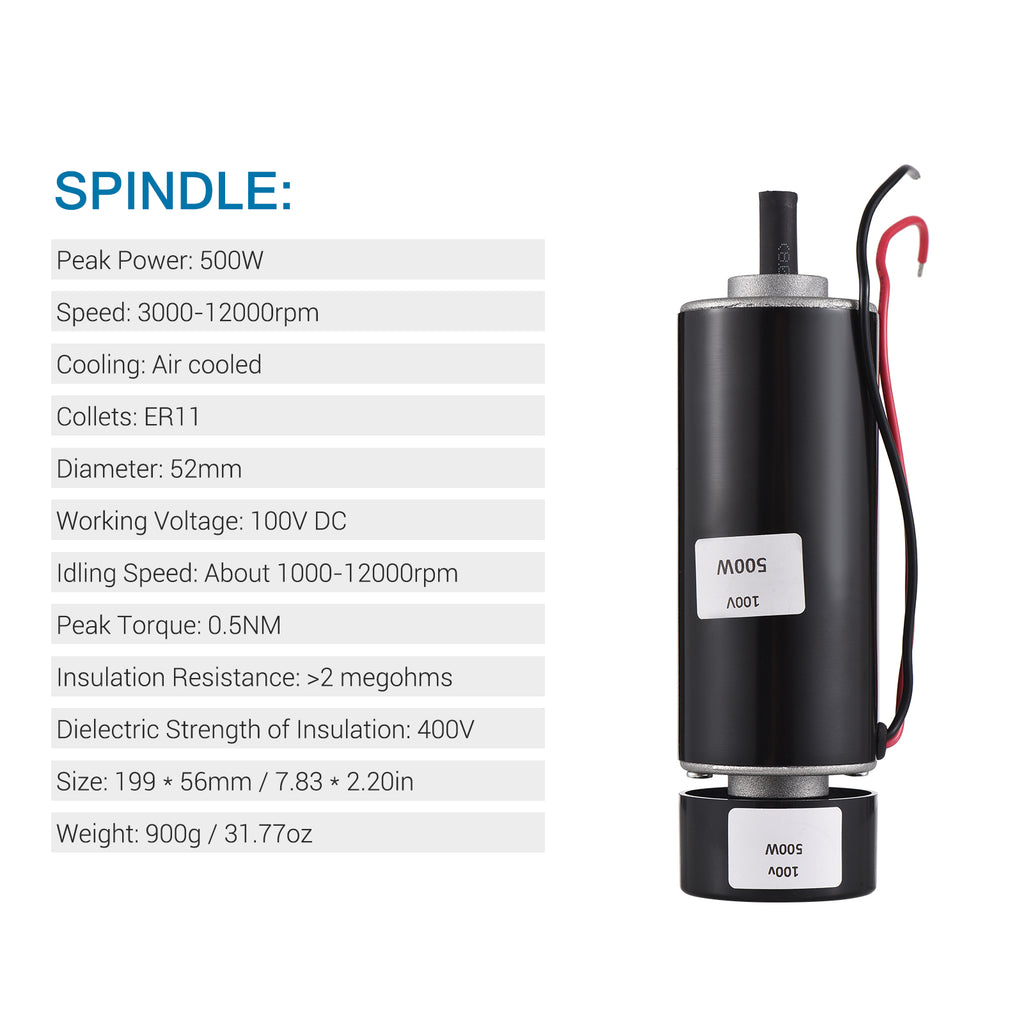

SPINDLE:
Peak Power: 500W
Speed: 3000-12000rpm
Cooling: Air cooled
Collets: ER11
Diameter: 52mm
Working Voltage: 100V DC
Idling Speed: About 1000-12000rpm
Peak Torque: 0.5NM
Insulation Resistance: >2 megohms
Dielectric Strength of Insulation: 400V

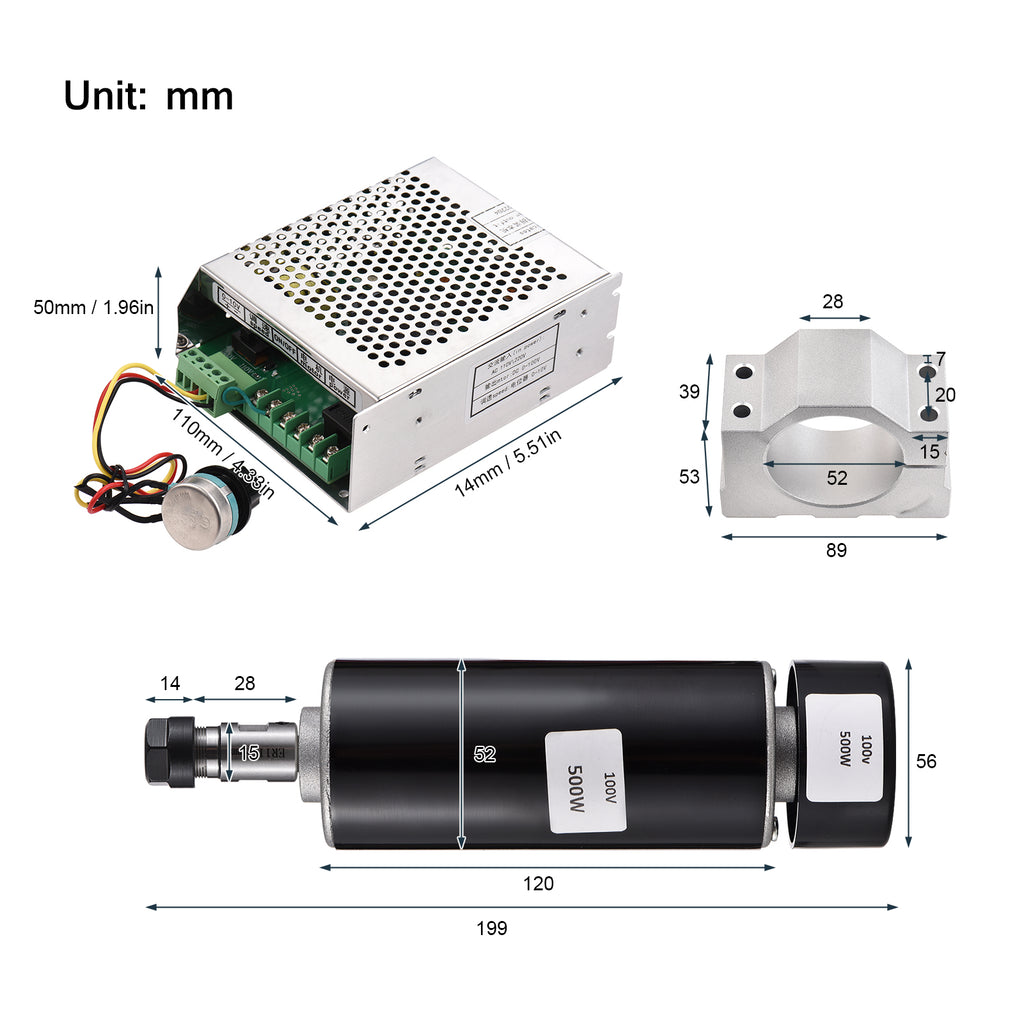

Size: 199 * 56mm / 7.83 * 2.20in
Weight: 900g / 31.77oz
(POWER SUPPLY)GOVERNOR:
Input Voltage: AC 110-220V±10% global voltage 50/60Hz
Output Voltage: DC 0-100V
Output Current: 6A
Adapter Motor Power: 50~500W
Armature Output Voltage: DC0～100V adjustable
Size: 140 * 110 * 50mm / 5.51 * 4.33 * 1.97in
Weight: 446g / 15.73oz
52MM CLAMP:
Inner Diameter: 52mm
Material: Cast aluminum
Use Route: Fixing of the engraving machine spindle
Size: 89 * 53 * 39mm / 3.50 * 2.09 * 1.54in
Weight: 292g / 10.32oz
WORKING ENVIRONMENT:
Working Temperature: -20～60°C
Working Humidity: 20~90%RH
Install in the place with good ventilation, no violent shock, no vibration, no explosive dangerous medium and no conductive metal powder
Package Weight: 1921g / 4.24lb
Package Size: 25.3 * 20.3 * 7cm / 9.96 * 7.99 * 2.76in

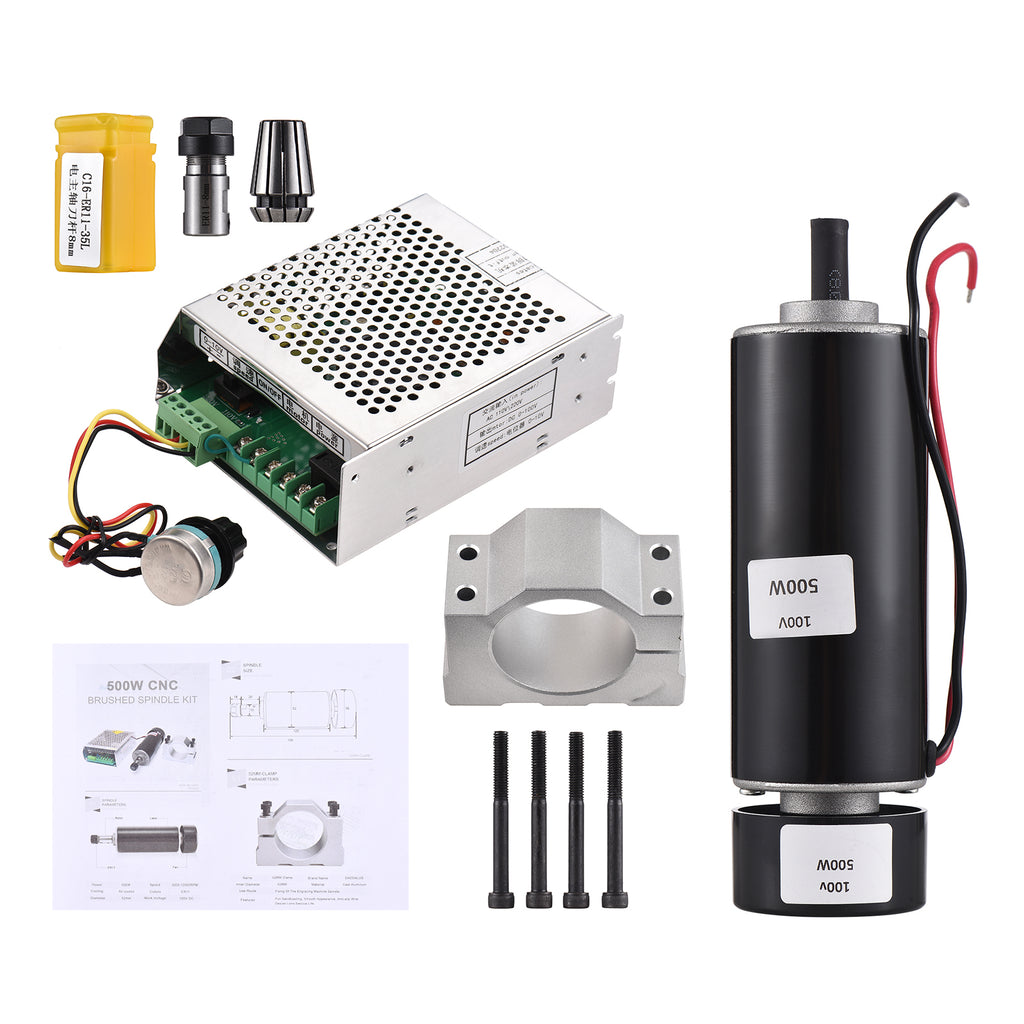

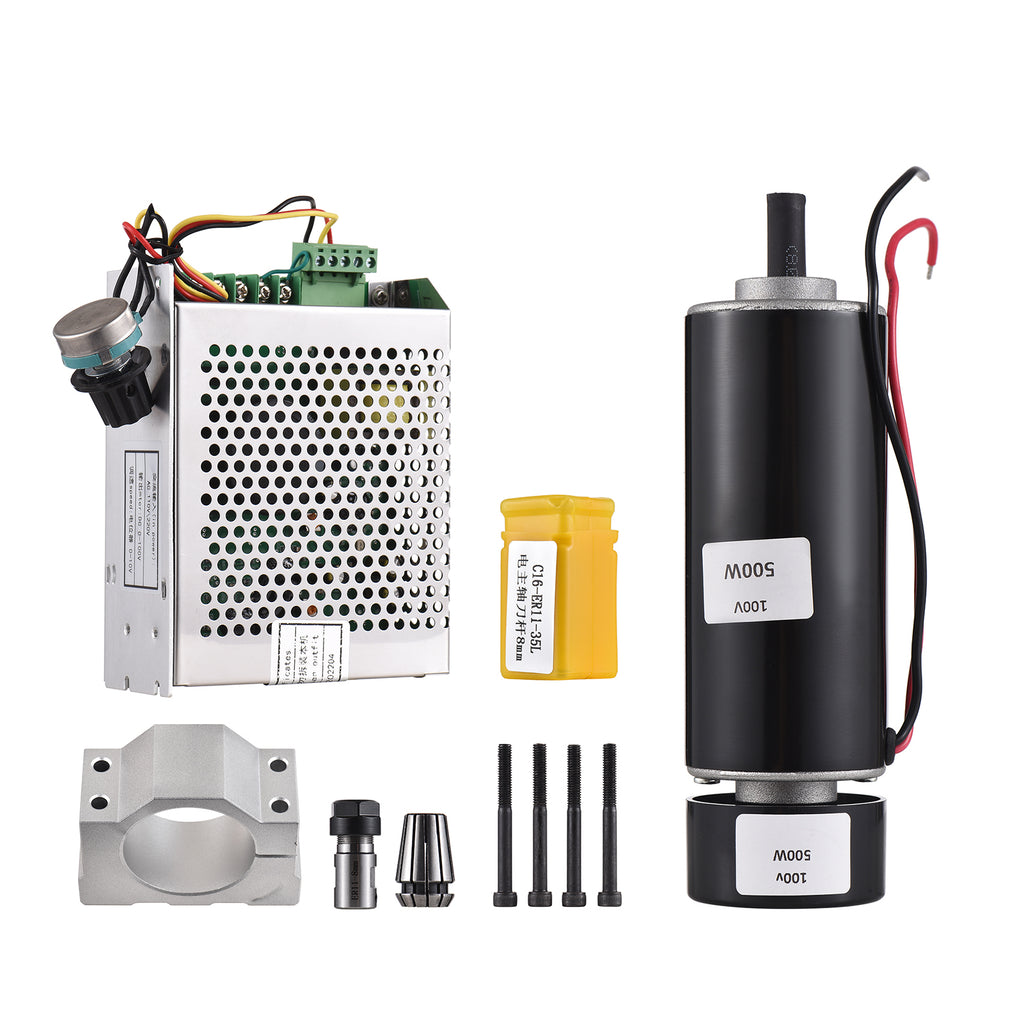

Packing List:
1 * Spindle
1 * Governor
1 * ER11 Collet
1 * ER11-8mm Spindle Connector
1 * 52mm Clamp
4 * Screw
1 * Manual (English)
