It is not a BMS, so there is no overvoltage, overcurrent, and overdischarge protection, but it can work with BMS,
Since the balancing current is fixed, the balancing time of large-capacity batteries is slow, and the balancing time of small-capacity batteries is fast.
Applicable battery type: Li-ion/LEuFEPO4/LTO
Single cell voltage range: Li-ion/LEuFEPVo4 version: 2.7-4.2v
lto version: 1.8-4.2v
Voltage accuracy equalization: 5mv (typ.)
Balance method: The patented balance structure adjusts the capacitance mode, and the entire battery pack participates in active balanced energy transmission at the same time
Current balance: voltage difference 0.08v, balance current 1A, voltage difference is proportional to balance current, maximum allowable working current 6.0A
Under-voltage protection Sleep voltage: Li-ion/LEuFEPO4: lower than 2.7V
LTO: below 1.8V
Working temperature:-10°~60°
Whether an external power supply is required: no external power supply is required, the whole group is balanced by the power transmission inside the battery

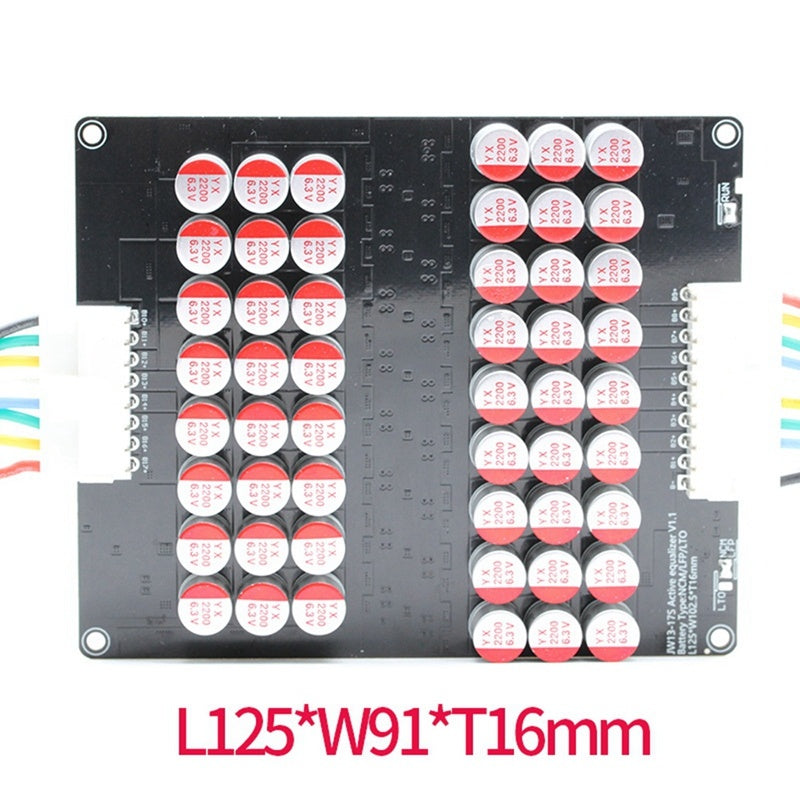

size:125 x 91 x 116mm
Material:pvc
colour:black
Package Contents:
1 * Lifepo4 module
1 * Cable
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
