Features: 4 pin set of pure sine wave output frequency: 50Hz pure sine wave of fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable Unipolar and bipolar modulation
Comes with deadband control, pin 4 dead time: 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time, External 12MHz crystal oscillator
PWM carrier frequency 23.4KHz. Voltage, current, real time temperature feedback, Overvoltage, undervoltage, overcurrent and overheating protection

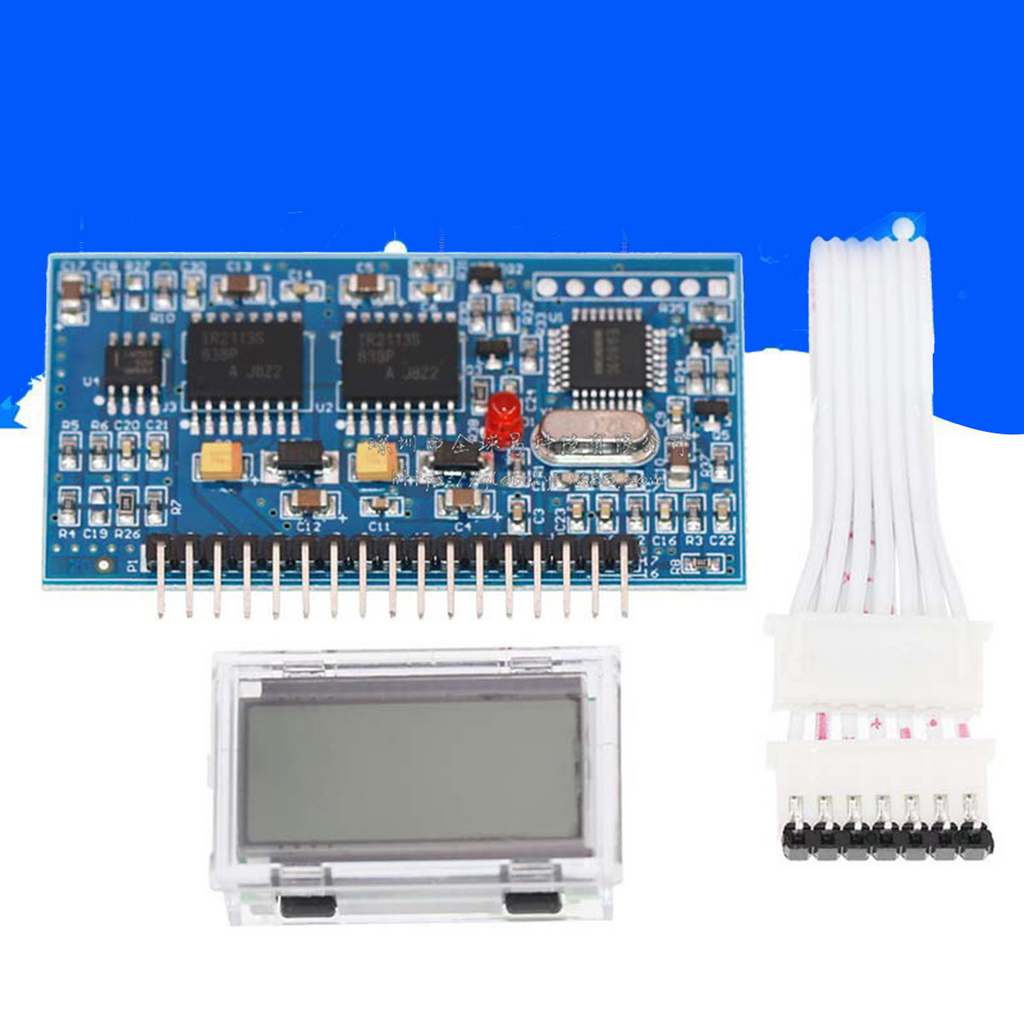

Soft-start mode pin setting the response time of 1S Serial communication to set the output voltage, frequency and other parameters ,External Serial LCD Module 1602 displays the inverter, voltage, frequency, temperature and current information
Applications:
Single phase pure sine wave inverter
PV Inverter
Wind power inverter
Uninterruptible Power Supply UPS System
Digital generator system
IF power
Single-phase motor speed controller
Single-phase inverter
Sine wave dimmer
Sine wave regulator
Sine wave generator
Material: plastic
colour: blue
Package Contents:

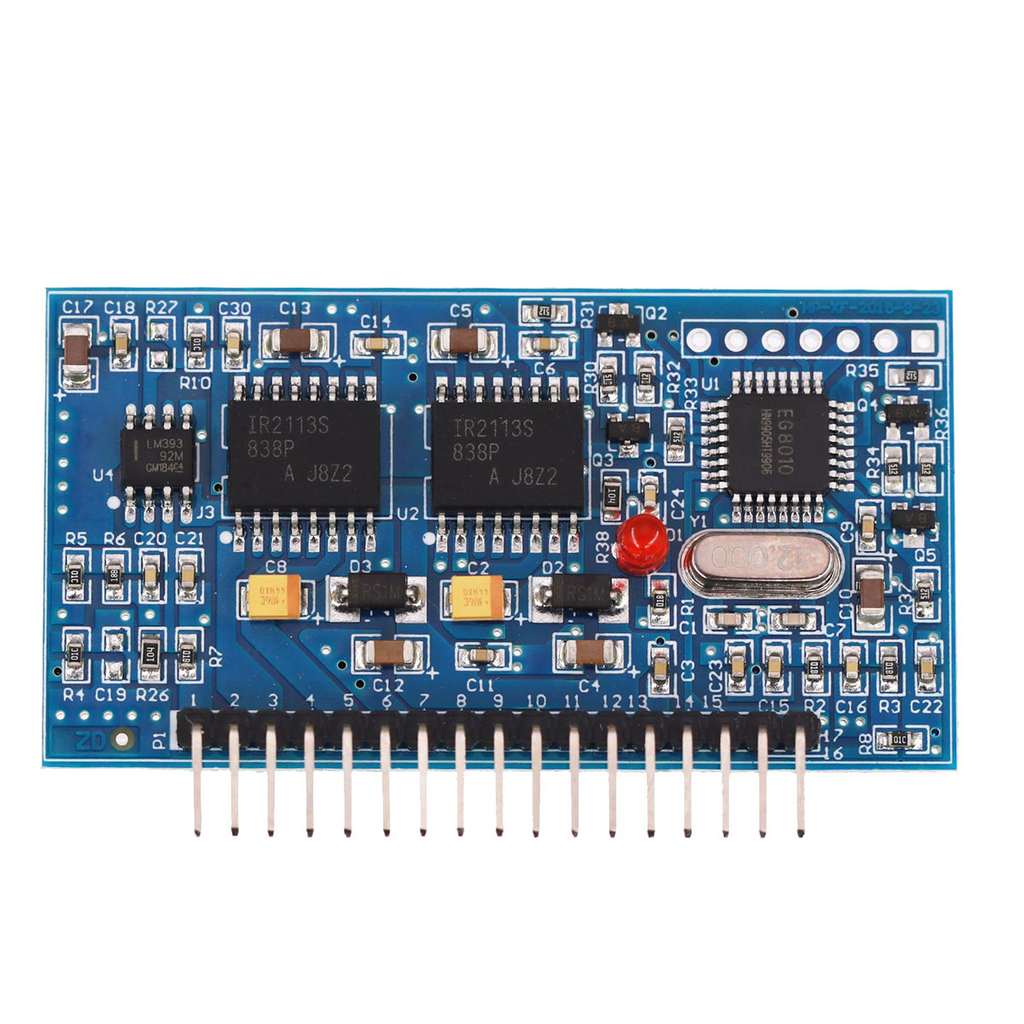

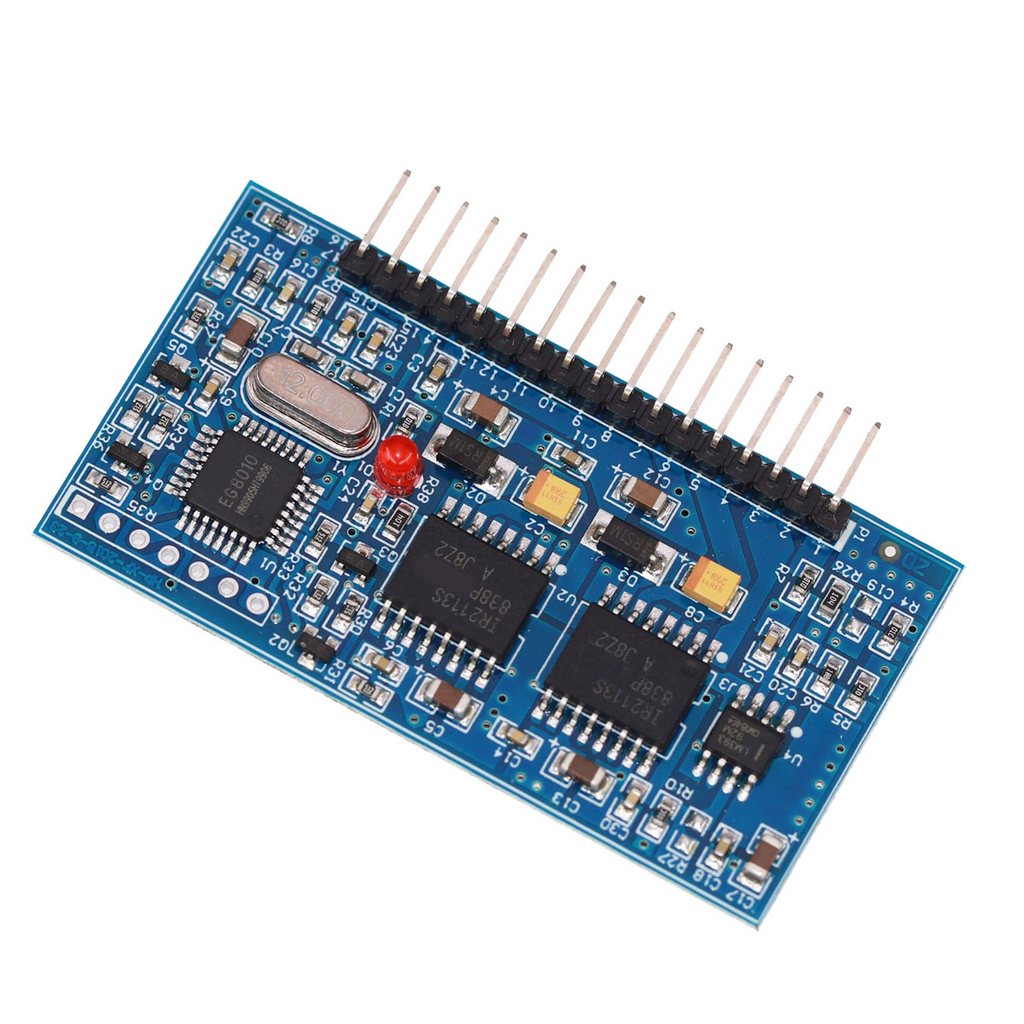

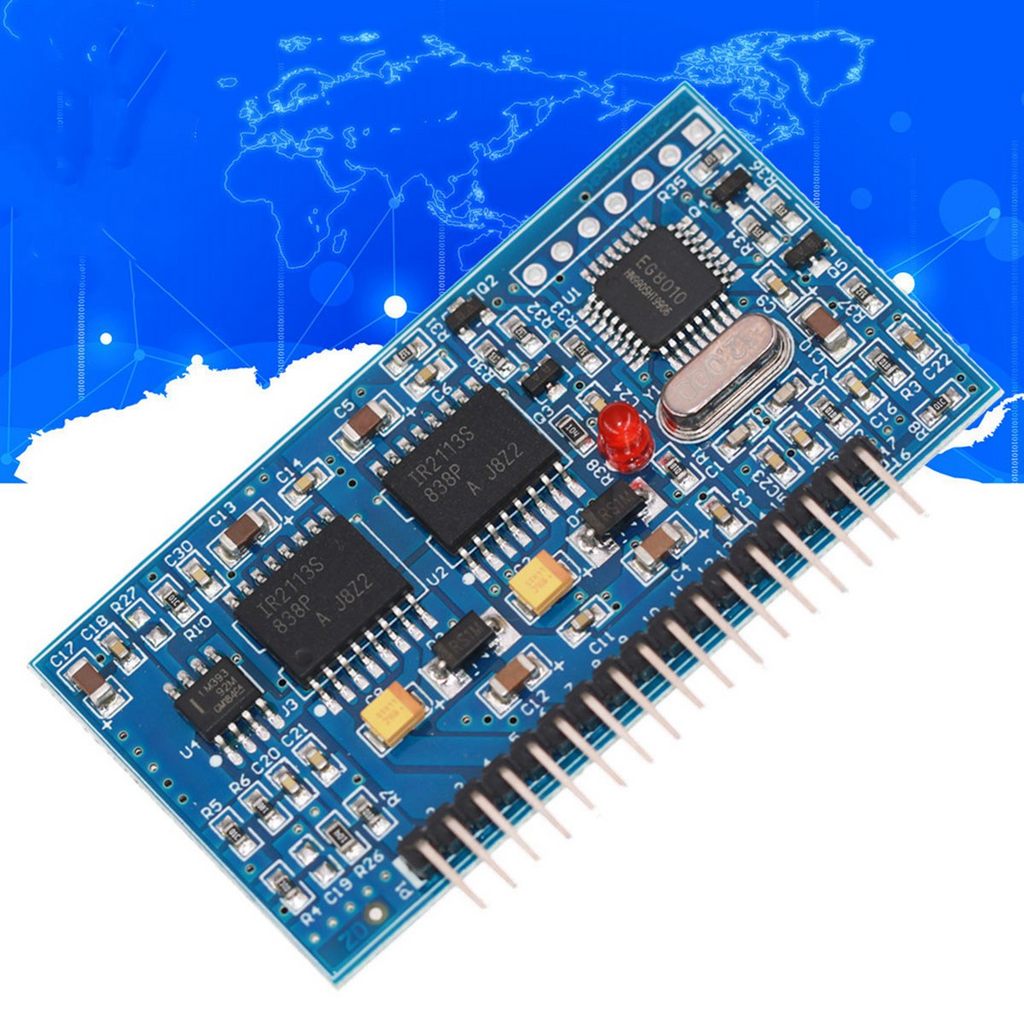

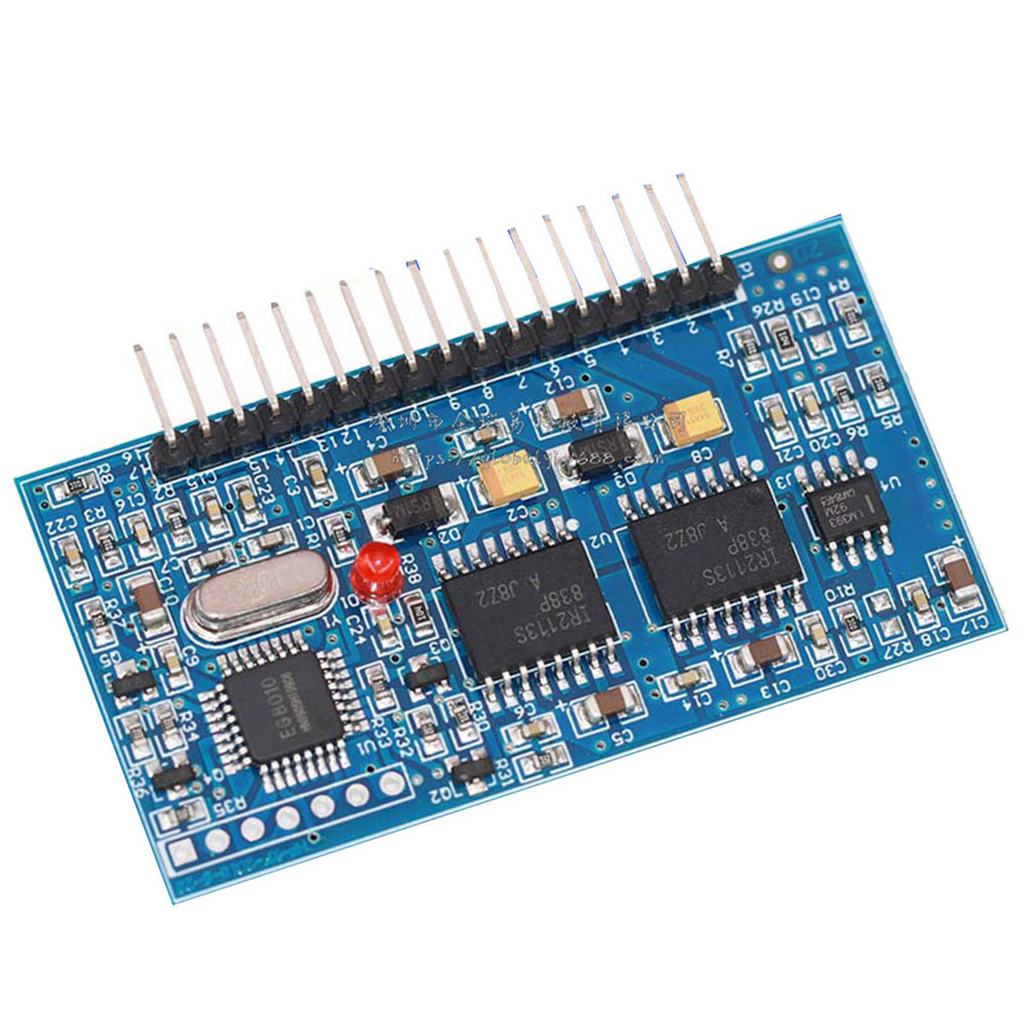

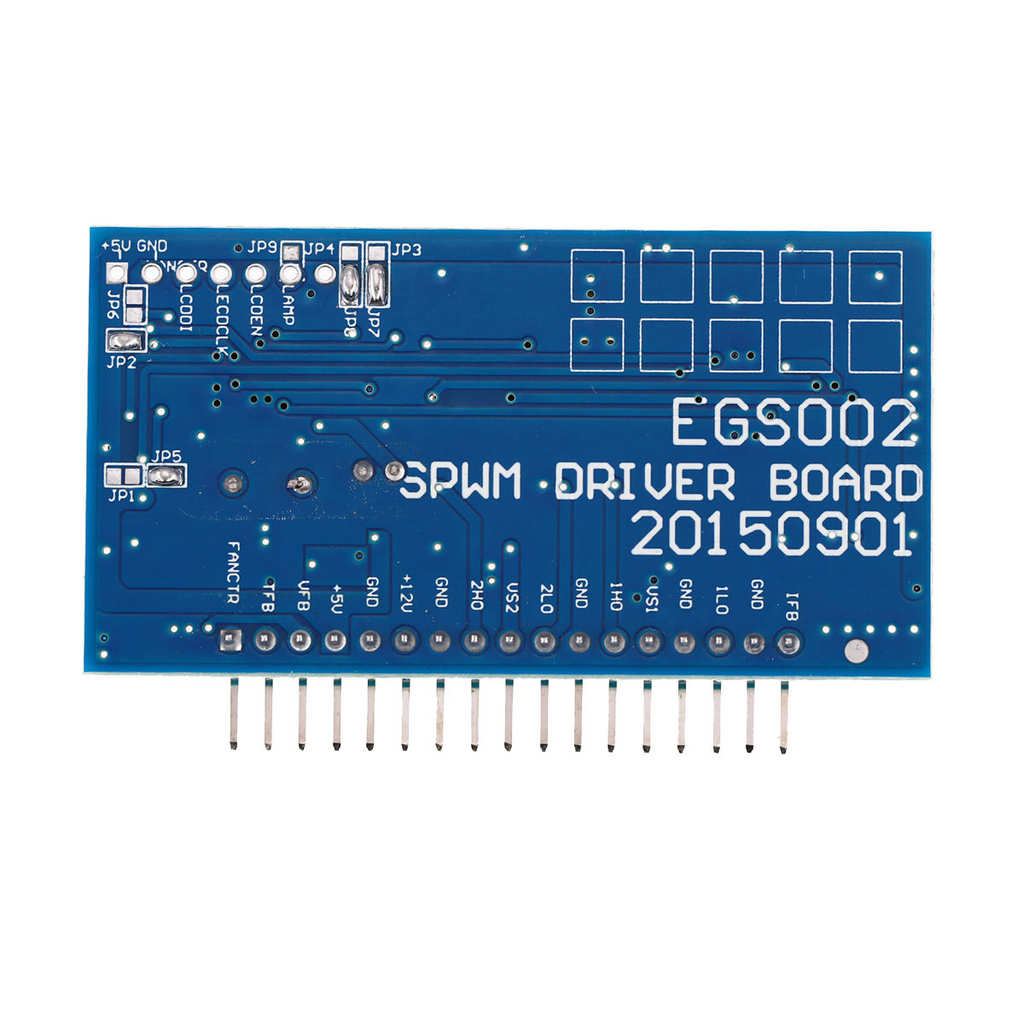

1 x Inverter Driver Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
